Happymodel SuperX AIO V2 - F4 + 5A 1S BLHeli_S ESC + ELRS 2.4GHz

Happymodel SuperX AIO V2 - F4 + 5A 1S BLHeli_S ESC + ELRS 2.4GHz

$83.99
$83.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

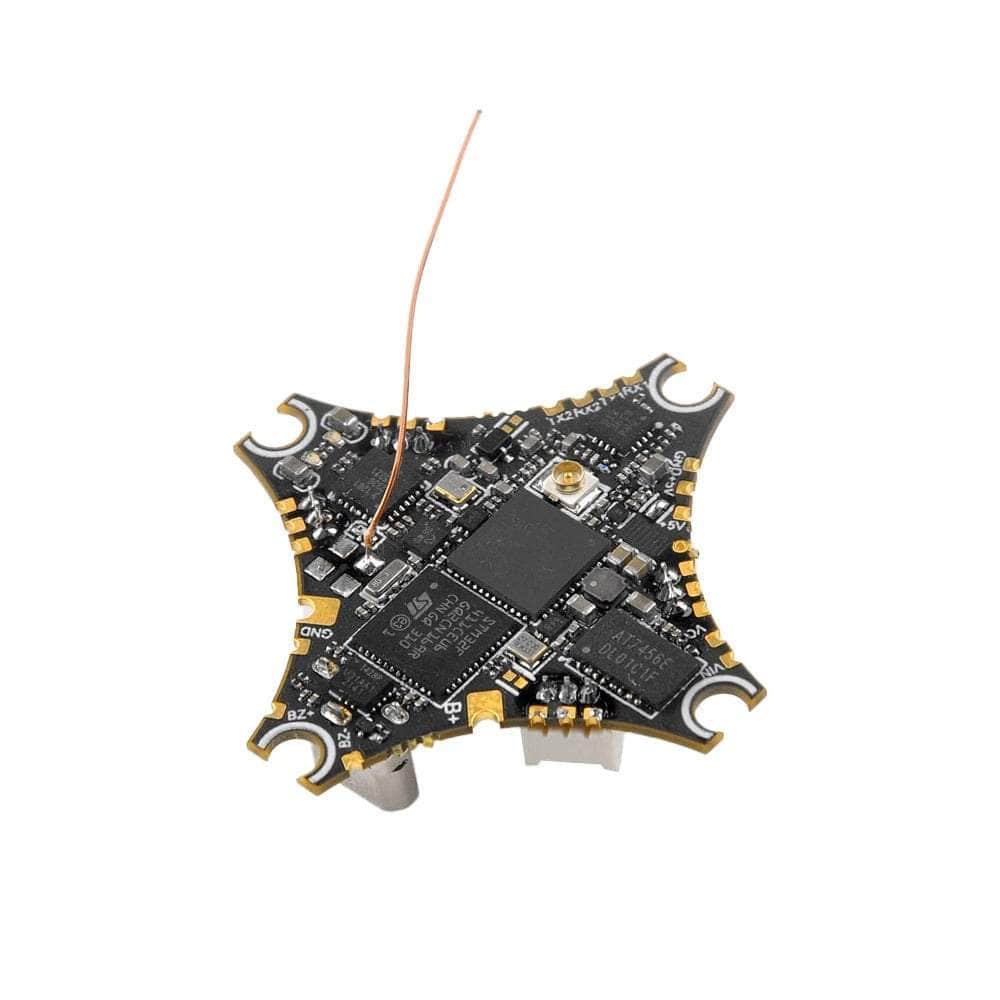

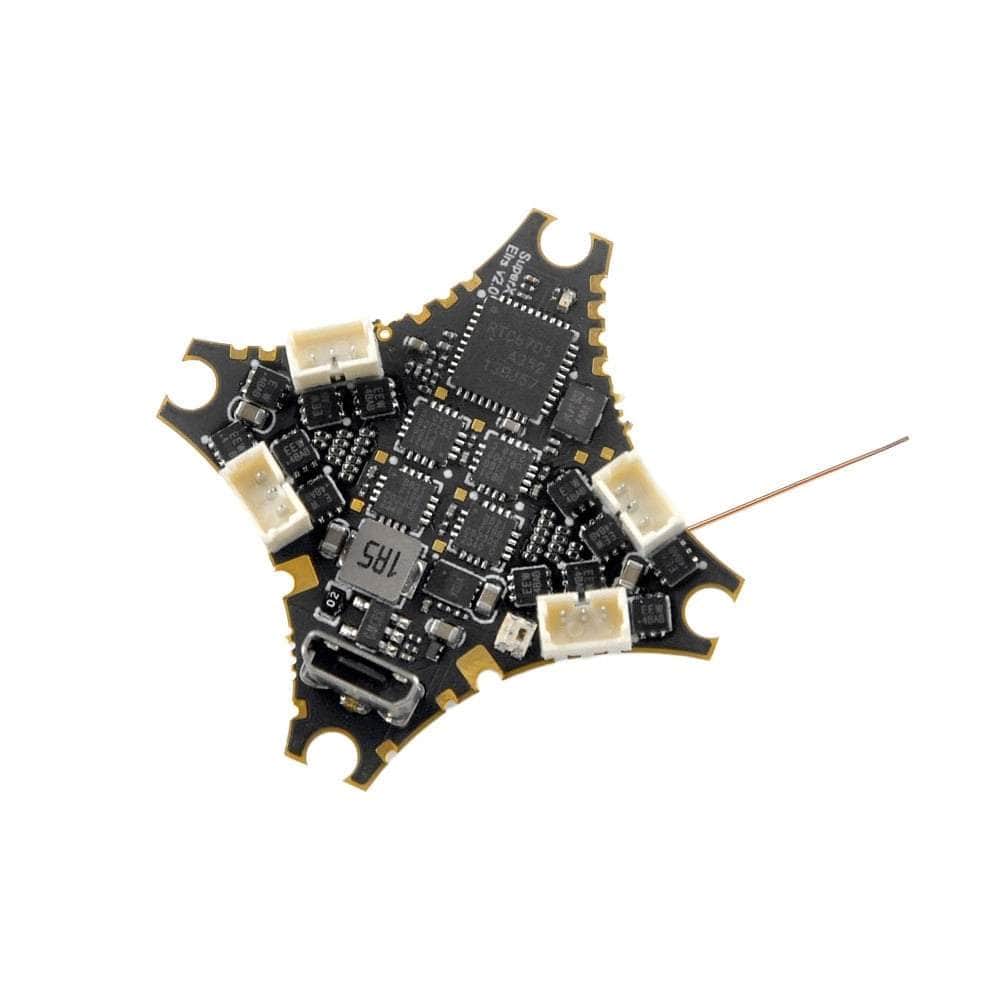

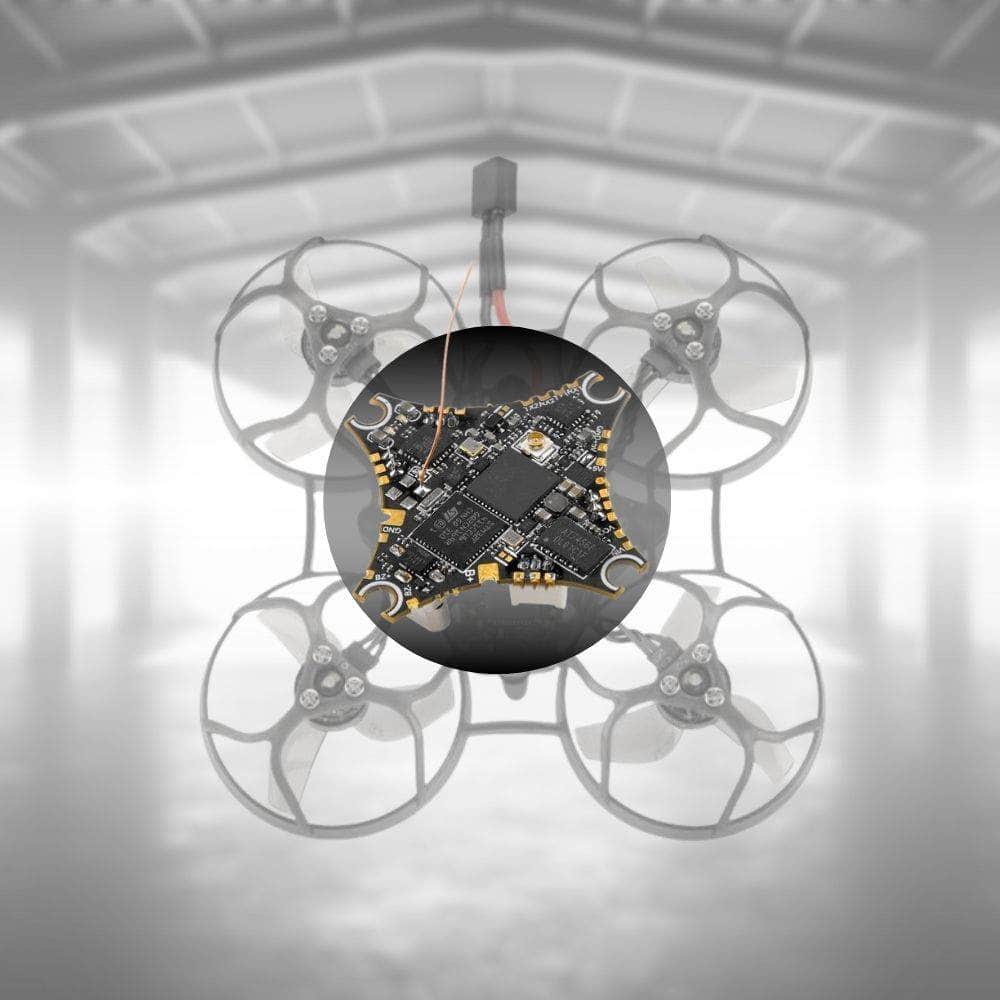

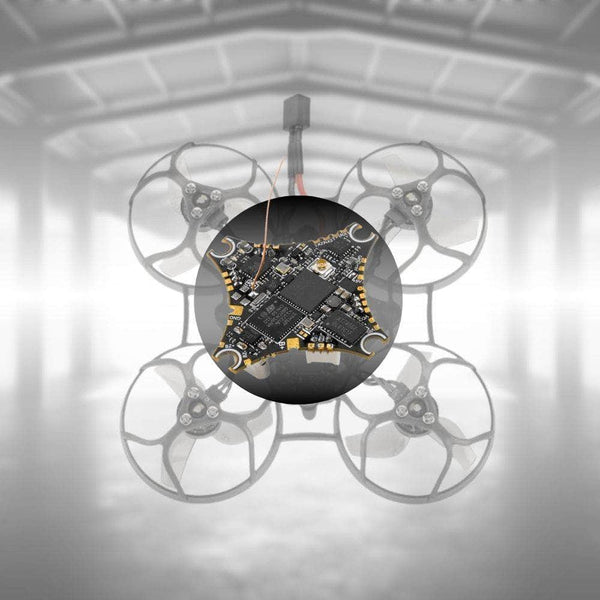

The Happymodel SuperX F4 5A AIO V2 is an all-in-one flight controller built for 1S micro drones, combining an F4 MCU, 5A BLHeli_S ESCs, ExpressLRS 2.4GHz receiver, 5.8GHz OpenVTX (up to 400mW), and Betaflight OSD in a compact 25.5x25.5mm layout. With support for Bluejay firmware, MSP VTX control, and wireless updates via WiFi, it offers reliable performance and easy setup for ultralight FPV builds.

Check out our other whoop flight controllers, and the rest of our Happymodel offerings.

Features

  • Compact and Lightweight
  • F4 Flight Controller
  • High Compatibility
  • Ideal for Upgrades
  • All-in-One Design
  • 5A BLHeli_S ESC
  • A30 Connector

Specifications

ELRS RECEIVER

  • ExpressLRS Firmware Target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
  • Firmware Update: Can flash single ELRS receiver firmware via Wi-Fi
  • Compatibility: Compatible with ExpressLRS V3.x.x TX Module
  • Packet Rate Option: 50Hz/150Hz/250Hz/500Hz
  • Available From: ExpressLRS version 3.4.0 RC2
  • Antenna: Enameled copper wire antenna
  • Receiver Protocol: Serial-based CRSF
  • ExpressLRS Firmware Version: V3.0
  • Telemetry Output Power: <12dBm
  • RF Frequency: 2.4GHz

FLIGHT CONTROLLER

  • MCU: STM32F411CEU6 (100MHz, 512K FLASH), ESP32-PICO-D4
  • Built-in Current Meter Sensor: Current meter scale 1175
  • Built-in Voltage Meter Sensor: Voltage meter scale 110
  • Built-in 5.8G OpenVTX: 0mw~400mw (MSP control)
  • Power Supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A (each) BLHeli_S: 4-in-1 ESC
  • Built-in Betaflight OSD: (SPI Control)
  • Mount Hole Size: 25.5mm x 25.5mm
  • Sensor: BMI270 (SPI connection)
  • Built-in UART: ExpressLRS v3.0.0

ESC

  • Recommended ESC Startup Power Value: Min 1100 / Max 1200
  • Current: 5A continuous, peak 6A (3 seconds)
  • Support: BLHeliSuite programmable
  • Factory Firmware: Bluejay v0.19.2
  • Power Supply: 1S LiPo/LiPo HV
  • Firmware Target: O-H-5 48kHz
  • Default Protocol: DSHOT300

5.8GHz VTX

  • Transmitting Power: 0/RCE/25mw/100mw/400mw
  • Current (5V): <650mA (400mw)
  • Firmware Version: OPENVTX
  • Antenna Connector: U.FL
  • Power Supply: DC 5V
  • PIT Mode: Support
  • Channels: 40ch
  • VTX: MSP
Happymodel SuperX AIO V2 - F4 + 5A 1S BLHeli_S ESC + ELRS 2.4GHz
Happymodel SuperX AIO V2 - F4 + 5A 1S BLHeli_S ESC + ELRS 2.4GHz

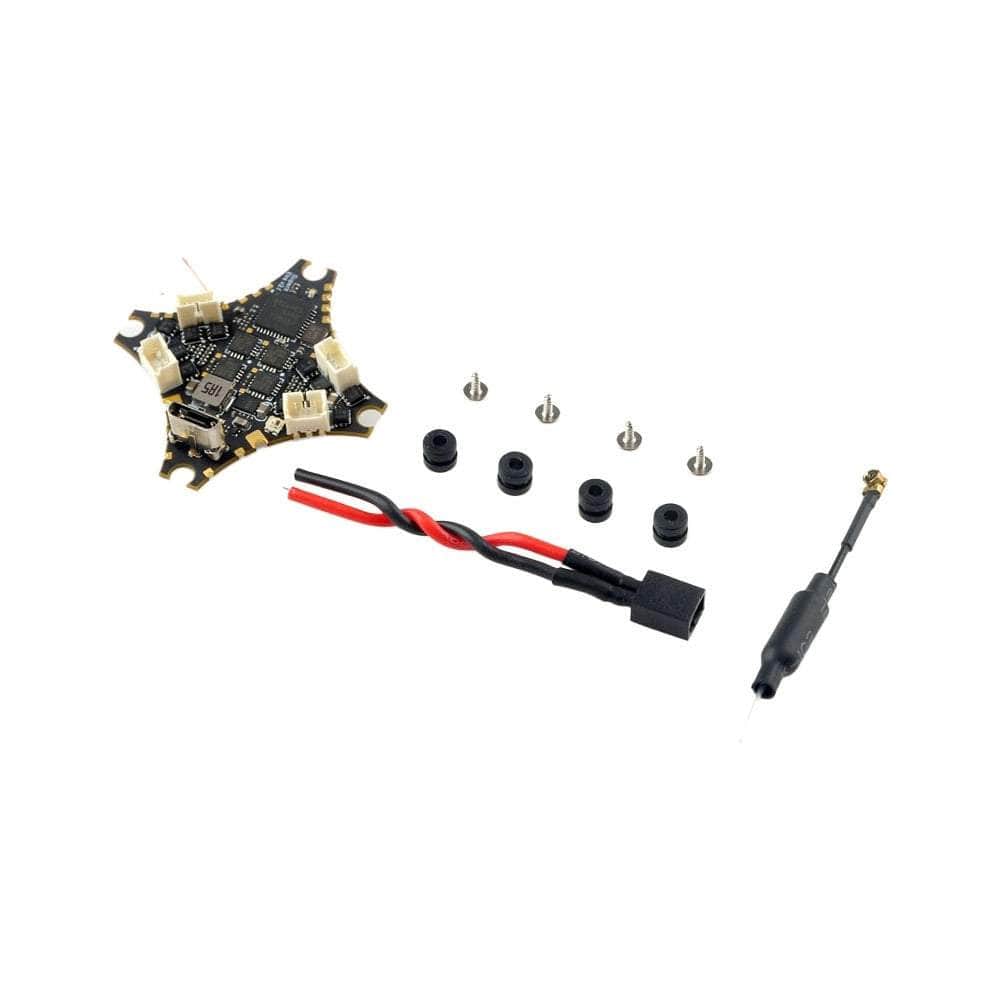

Includes

  • 1x Happymodel SuperX AIO V2 - F4 FC + 5A 1S - ELRS 2.4GHz
  • 1x A30 Power plug
  • 1x Hardware pack
  • 1x Antenna

More Info

  • SKU: 23189
  • Barcode: 723326374814


Overall rating: 4.0 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Installed on a 75mm gen 3 Mobula HD frame.

"I’m using it as a replacement for my Mobula 7 HD gen 3 frame. It fits with trimming of the frame just enough for the connectors/ motor plugs to clear and no squash the wires. You could also direct solder the motor wires. To plug the motors in on assembly, slide up the board and plug them all in. The push back in place. I trimmed as much as I dared so the cross beams of the battery slot are barely on. I used a Dremel with a small diamond disk."

— Lee (5/5)

What fit

"What frame does this fit. Many popular frames motor connector hits frame."

— OJW (3/5)
