Details
Description

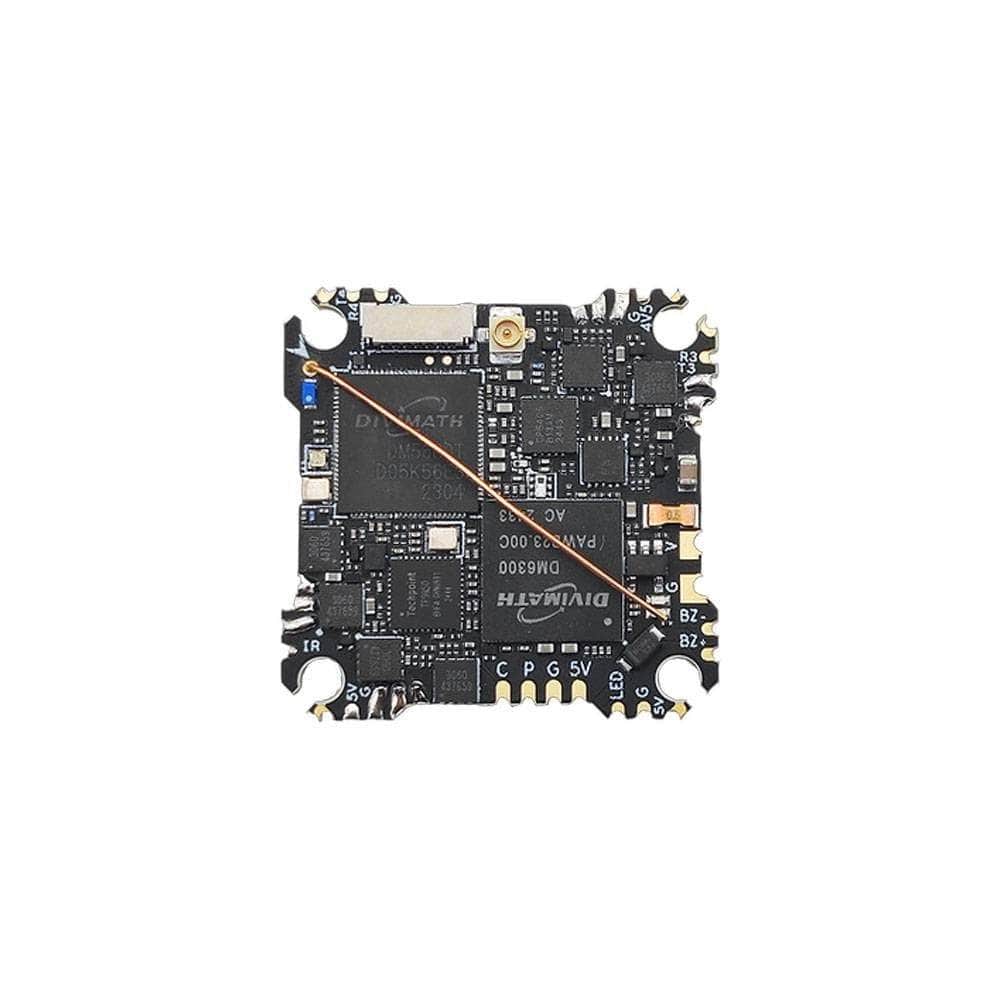

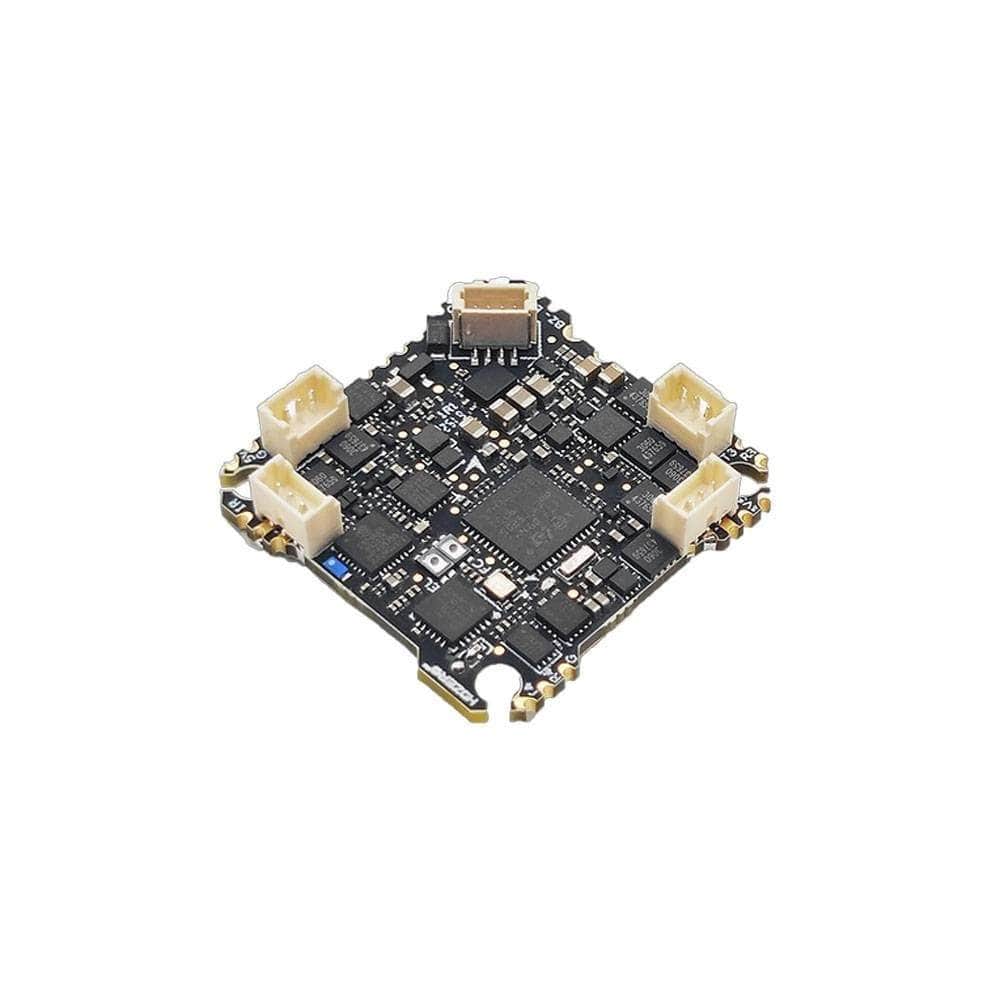

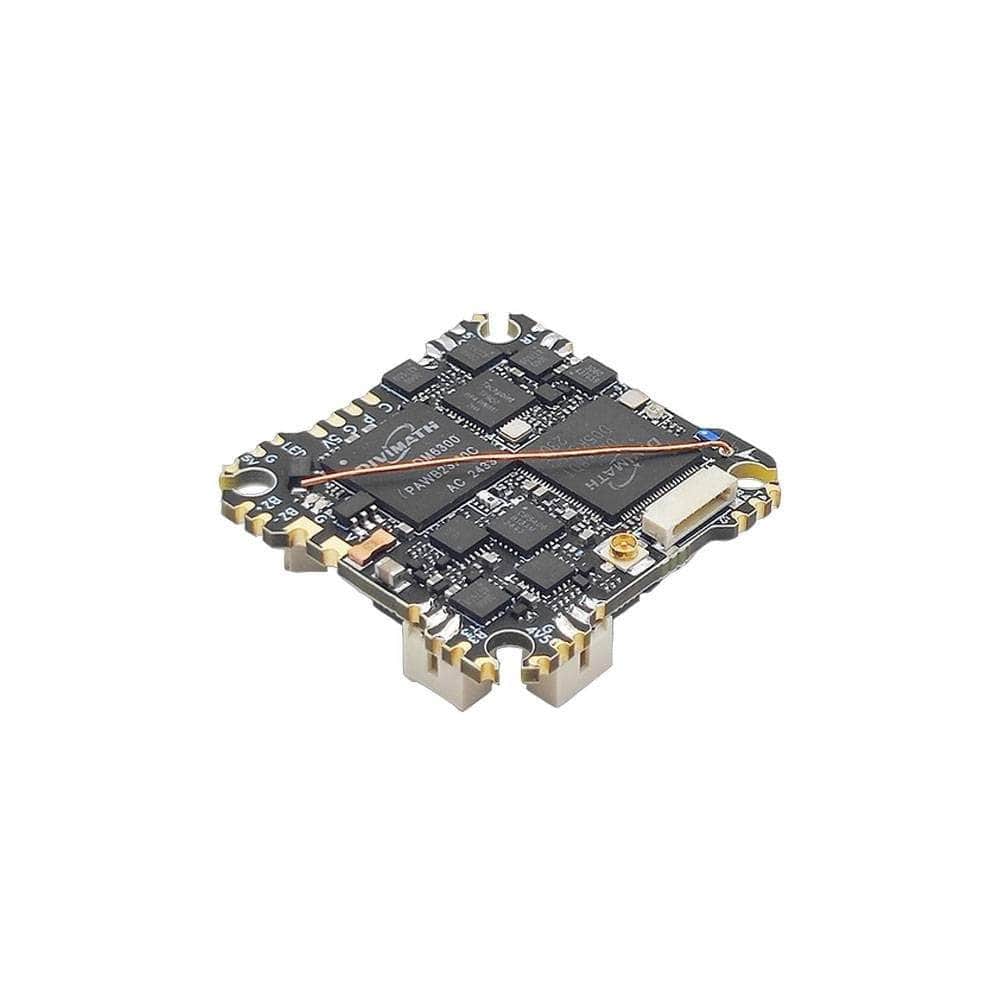

The HDZero AIO15 is the world’s first all-in-one digital FPV flight system built for 2S–3S tiny whoops and micro freestyle drones. Combining a flight controller, 15A 4-in-1 ESC, HDZero digital VTX, built-in ExpressLRS receiver, and BEC into a compact 31.3×31.3mm board, it delivers powerful performance in an ultra-lightweight form. Designed in response to pilot feedback, the AIO15 overcomes the limitations of the original AIO5 with higher-current ESCs and expanded battery support, enabling harder, faster, and longer flights—all with HDZero’s signature digital clarity and ultra-low latency.
Browse the rest of our Whoop AIO Boards and our HDZero selection!
Features
- Onboard voltage and current sensing
- Built-in ExpressLRS 2.4GHz receiver
- Supports 2S–3S LiPo batteries
- Fits popular whoop frames
- High-performance FC
- All-in-one system
- Compact size
Specifications
- Integrated HDZero 5.8GHz Digital VTX
- Battery Input: 2S–3S (3.5V–13V)
- Mounting: 25.5x25.5mm M2
- Board Dimensions: 31.3x31.3mm
- Weight: 7.2g (with motor plugs)
- 15A 4-in-1 ESC
- 5V 1A BEC

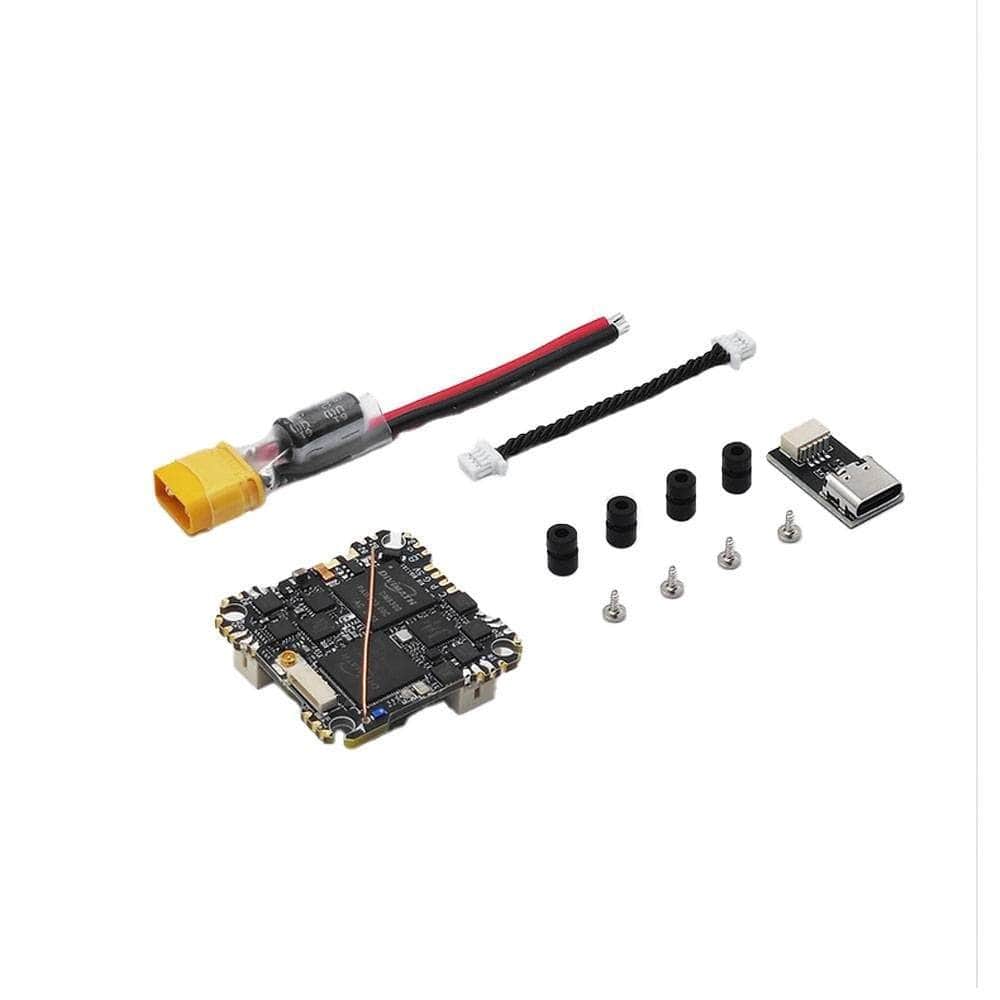

Includes
- 1x HDZero AIO15 - G4 FC + 15A ESC + ELRS 2.4GHz RX + 200mW VTX
- 1x Power cable with XT30 connector
- 4x screws
- 4x rubber grommets
- 1x ultra-lite linear VTX antenna
- 1x Adapter board
- 1x Adapter cable
More Info
- SKU: 23433
- Barcode: 723326375781
