Description

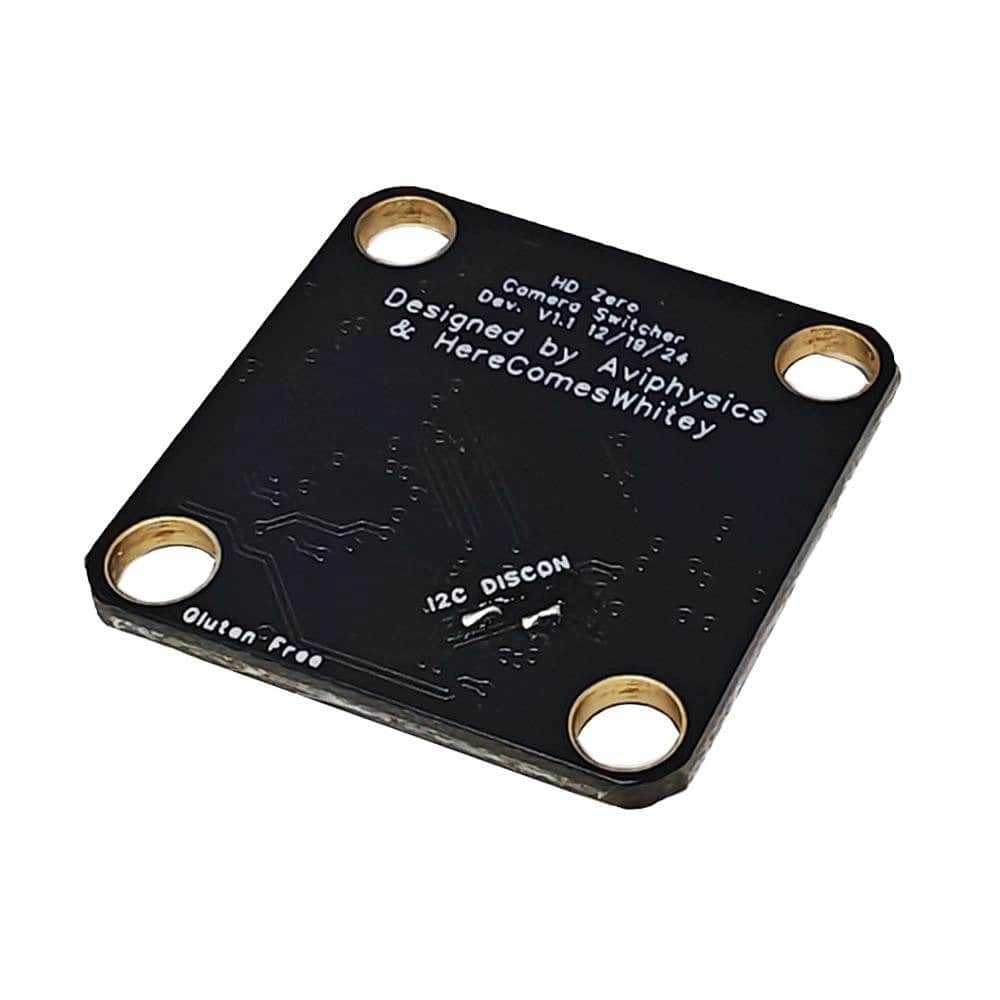

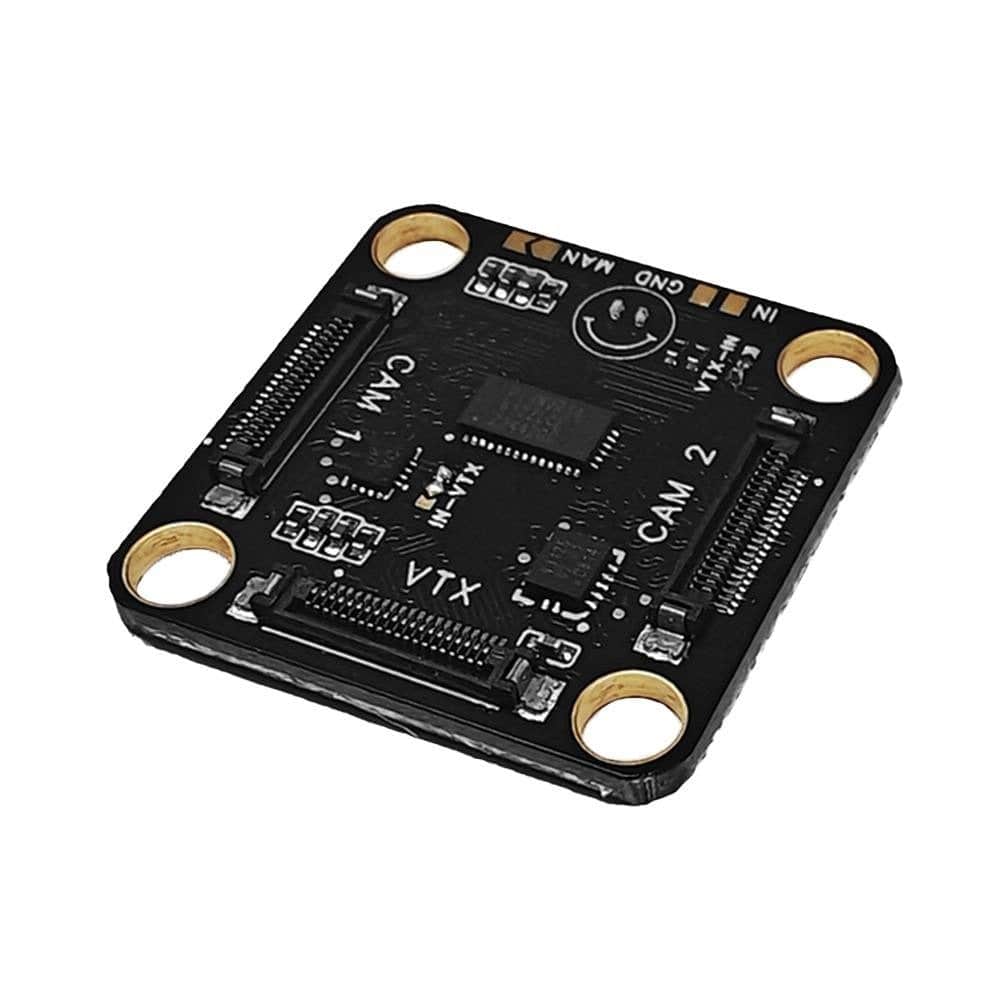

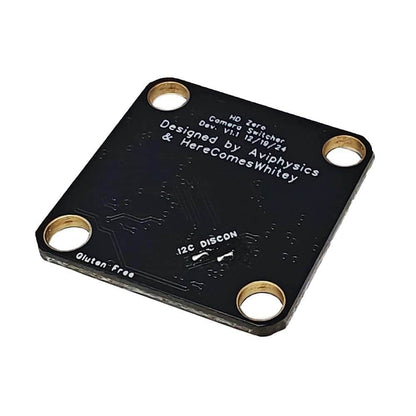

The HDZero Camera Switcher 2 allows you to run two MIPI cameras on a single VTX and switch between them instantly in flight. No soldering is required in the default configuration.

There are many powerful use cases, such as day vs night vision, forward vs downward views, rear-view cameras, or wide vs zoom lenses. For advanced builders, the board also supports VTX-only control, manual GPIO control, and daisy-chaining to run more than two cameras.

Check out our HDZero selection.

Features

• Instant switching between two HDZero cameras
• Plug-and-play: no soldering in Standard Mode
• Works with Betaflight, iNav, and ArduPilot via Camera Control 1
• Powered directly from the VTX (no extra wiring)
• Independent camera settings when controlled through the FC
• Advanced jumper options for manual control and multi-board setups
• Lightweight 20×20 mm board that fits directly into your stack

Specifications

• Dimensions: 26mm × 26mm × 2.6mm
• Mount Pattern: 20 × 20mm
• Weight: 2.7g
• Connectors: HDZero MIPI ports (Cam 1, Cam 2, VTX)
• Control Input: 0–3.3 V GPIO when in manual mode

Includes

• 1x HDZero Camera Switcher 2
