HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX Kit - U.FL

HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX Kit - U.FL

$179.99
$179.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

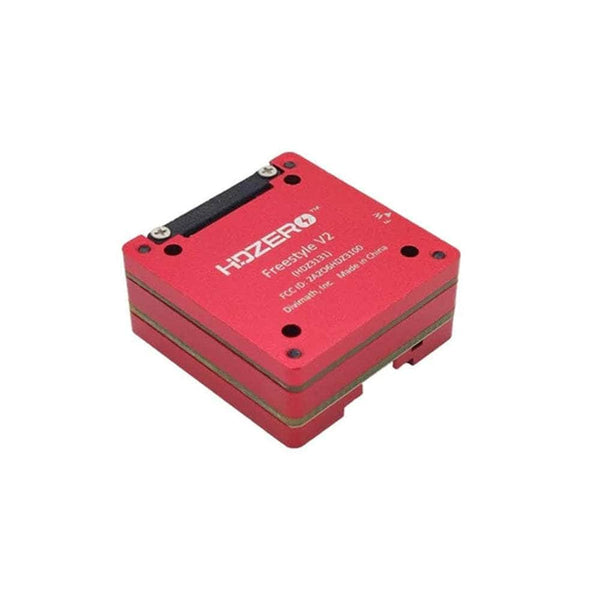

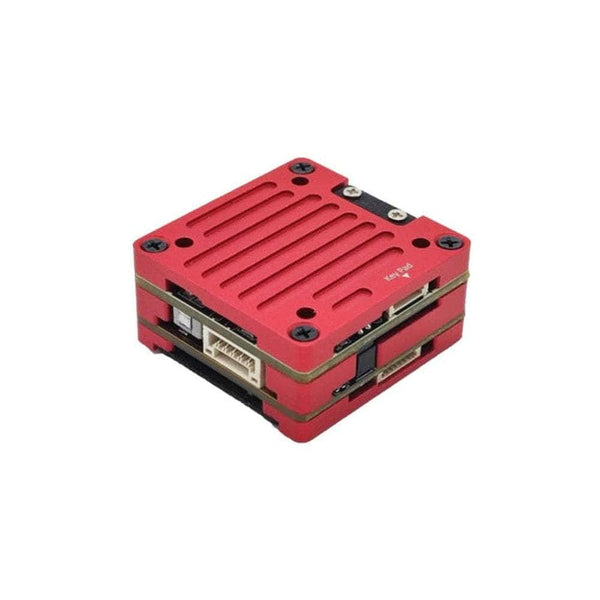

HDZero Freestyle V2 VTX is the second generation 5.8GHz digital video transmitter, perfect for most 3.5-inch and 5-inch drones. It comes in a CNC case that guarantees durable RF shielding with improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. Moreover, the antenna and MIPI cable are secured with a retention bar and screws. This VTX supports 720p60, 1080p30, 540p60, and 540p90 video modes.

This VTX can fit most frames that can accommodate the Caddx Vista/Runcam Link VTX.

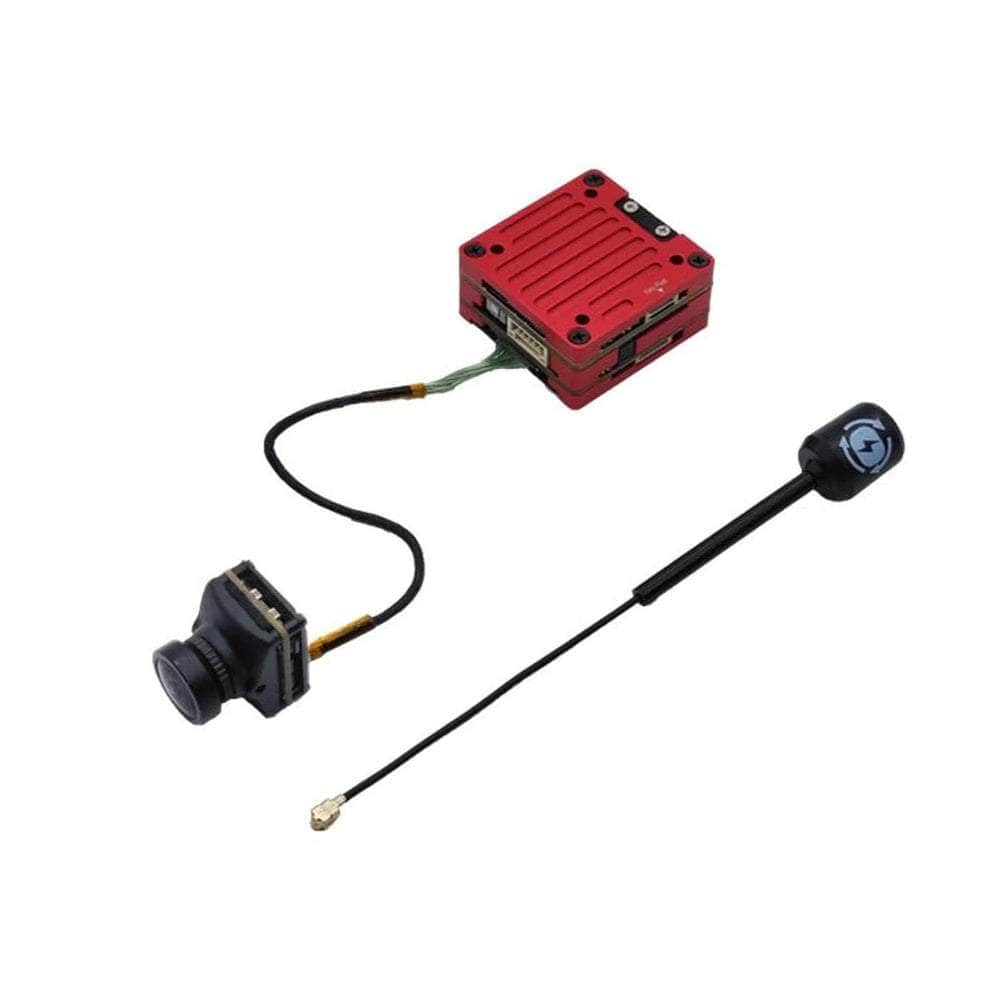

The kit includes a Runcam HDZero Nano 90, HDZero RHCP Antenna, and a 120mm MIPI Cable.

The RunCam HDZero Nano 90 HD Camera is the first 90fps camera for HDZero VTX. This camera enables HDZero to be 5ms faster than analog 60i video to show a full field/frame.

Check out all our VTXs and our HDZero selection.


Specification

Freestyle V2 VTX

  • Manufacturer:  Divimath, Inc
  • Model:  HDZero Freestyle V2 VTX
  • Weight:  22.3g
  • Dimensions:  29x30x14mm
  • Operating Frequency:  5.725-5.850GHz
  • Transmitter Power:  25mW, 200mW, XXXXmW
  • Mounting Pattern:  20x20mm M2 Holes
  • Antenna Interface:  Secured u.FL
  • Video In:  Secured MIPI
  • SmartAudio:  YES
  • MSP Canvas Mode:  YES
  • Input Power:  7-25V
  • Operating Temperature:  32F-104F (0-40C)
  • Power Consumption:  6-15W

Runcam HDZero Nano 90

  • Resolution: 540P@90fps 4:3 | 720P@60fps 4:3
  • Dimensions: L18mmxW14mmxH18mm
  • Lens: FOV D:160° H:127° V:92°
  • Net Weight: 5.2g(without cable)
  • Shutter: Rolling Shutter
  • Image Sensor: 1/3"

Includes

  • 1x  HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX - U.FL
  • 1x Nano 90 Camera (with 19 x 19 Mount)
  • 1x HDZero RHCP Antenna
  • 1x 120mm MIPI Cable
  • 1x Power Cable
  • 1x SA Cable
  • 1x Plastic bar for MIPI Cable with 3x Screws (M1.4 x 2mm)
  • 1x Plastic bar for U.FL with 3x Screws (M1.4 x 8mm)
  • 1x Double Sided Tape (29 x 30 x 1mm)

Wiring Diagram

HDZero Freestyle 2 VTX

More Info

  • SKU: 21213
  • Barcode: 691023446953
