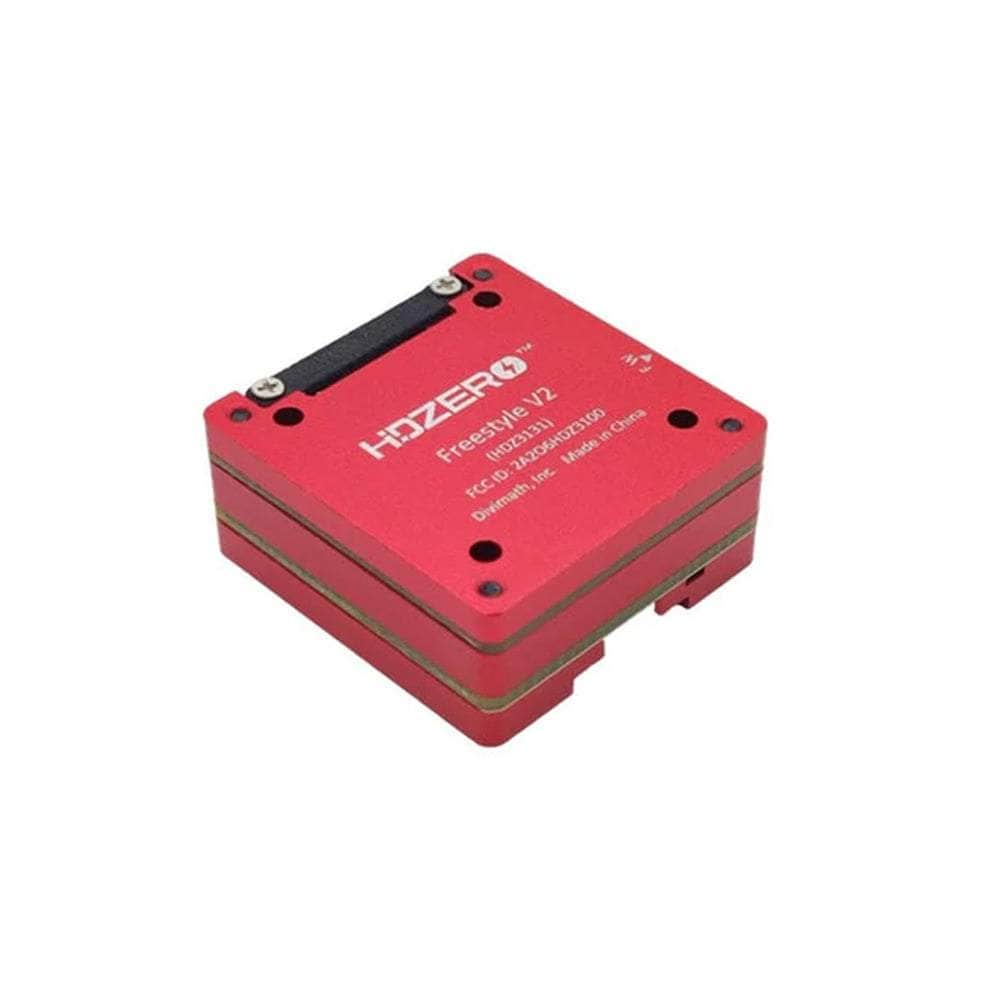

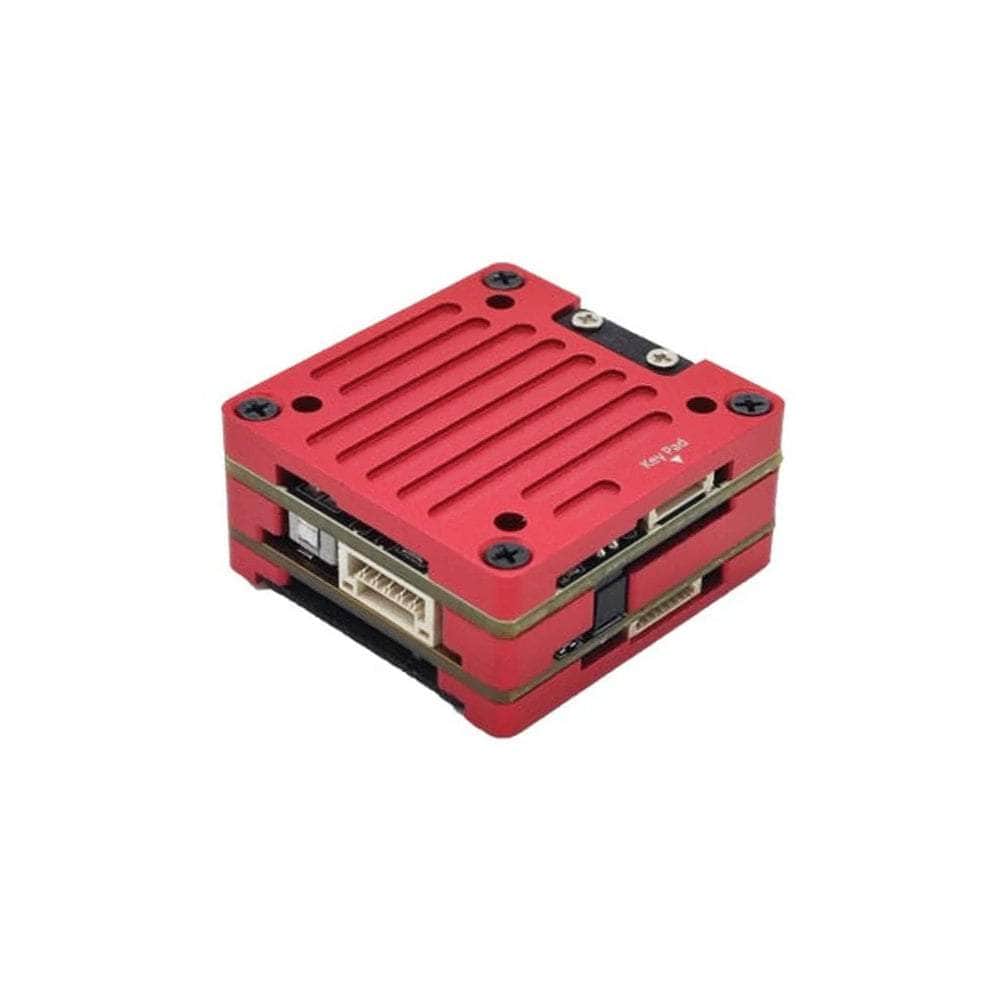

HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX - U.FL

HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX - U.FL

$118.99
$118.99
Add To Wishlist
View full details

Details

Description

HDZero Freestyle V2 VTX is the second generation 5.8GHz digital video transmitter, perfect for most 3.5-inch and 5-inch drones. It comes in a CNC case that guarantees protection and durable RF shielding with improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. Moreover, the antenna and MIPI cable are secured with a retention bar and screws. This VTX supports 720p60, 1080p30, 540p60, and 540p90 video modes.

This VTX can fit most frames that can accommodate the Caddx Vista/Runcam Link VTX.

Check out all our VTXs and our HDZero selection.


Specification

  • Manufacturer:  Divimath, Inc
  • Model:  HDZero Freestyle V2 VTX
  • Weight:  22.3g
  • Dimensions:  29x30x14mm
  • Operating Frequency:  5.725-5.850GHz
  • Transmitter Power:  25mW, 200mW, XXXXmW
  • Mounting Pattern:  20x20mm M2 Holes
  • Antenna Interface:  Secured u.FL
  • Video In:  Secured MIPI
  • SmartAudio:  YES
  • MSP Canvas Mode:  YES
  • Input Power:  7-25V
  • Operating Temperature:  32F-104F (0-40C)
  • Power Consumption:  6-15W

Includes

  • 1x  HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX - U.FL
  • 1x Power Cable
  • 1x SA Cable
  • 1x Plastic bar for MIPI Cable with 3x Screws (M1.4 x 2mm)
  • 1x Plastic bar for U.FL with 3x Screws (M1.4 x 8mm)
  • 1x Double Sided Tape (29 x 30 x 1mm)

Wiring Diagram

HDZero Freestyle 2 VTX

    More Info

    • SKU: 21212
    • Barcode: 691023494749
