Description

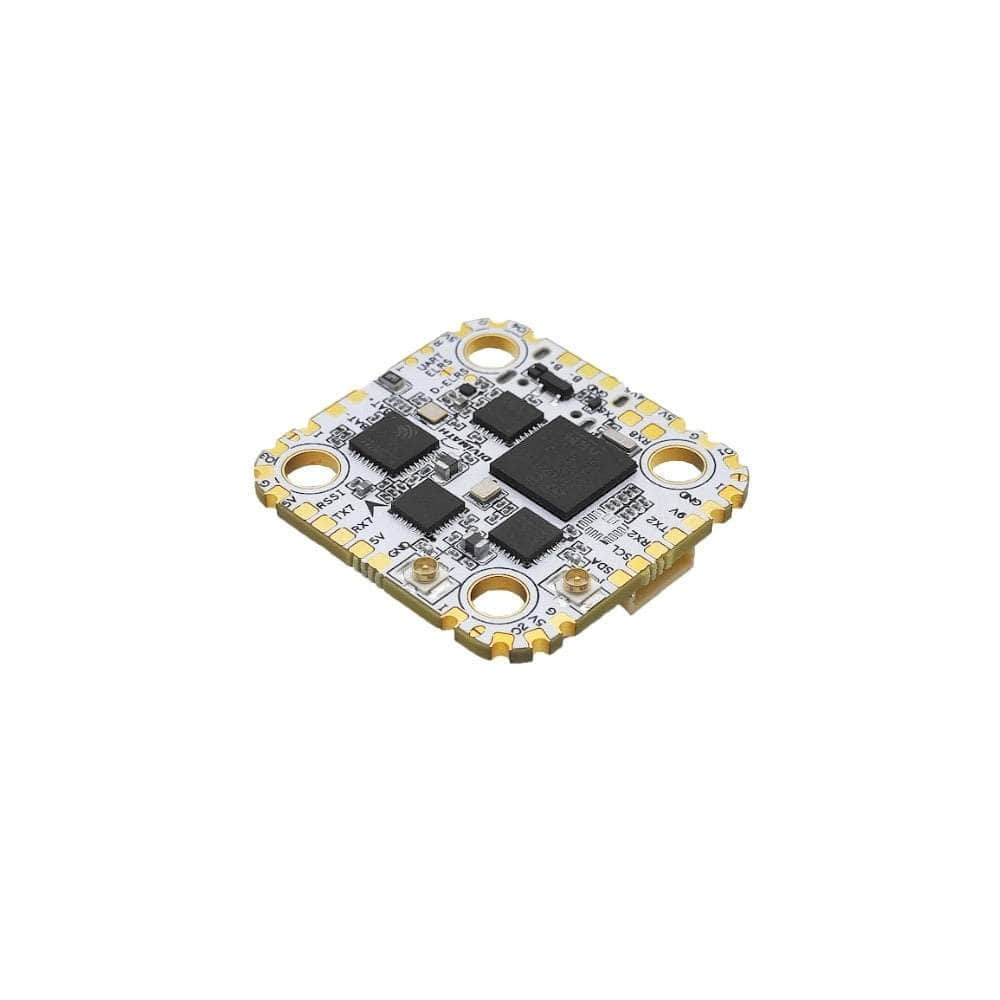

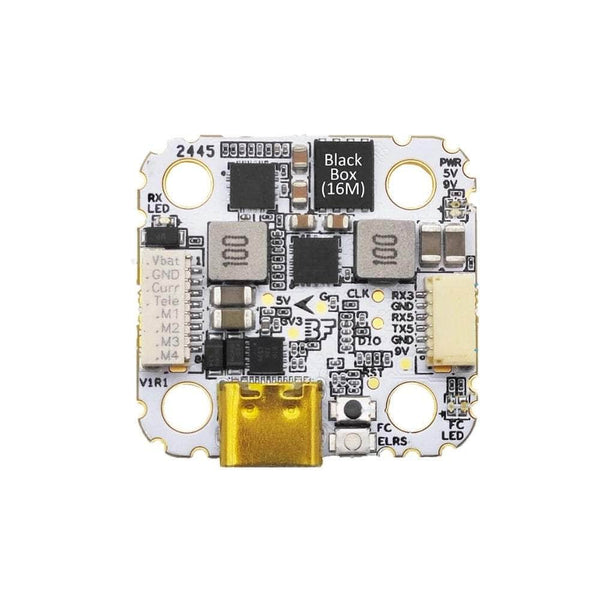

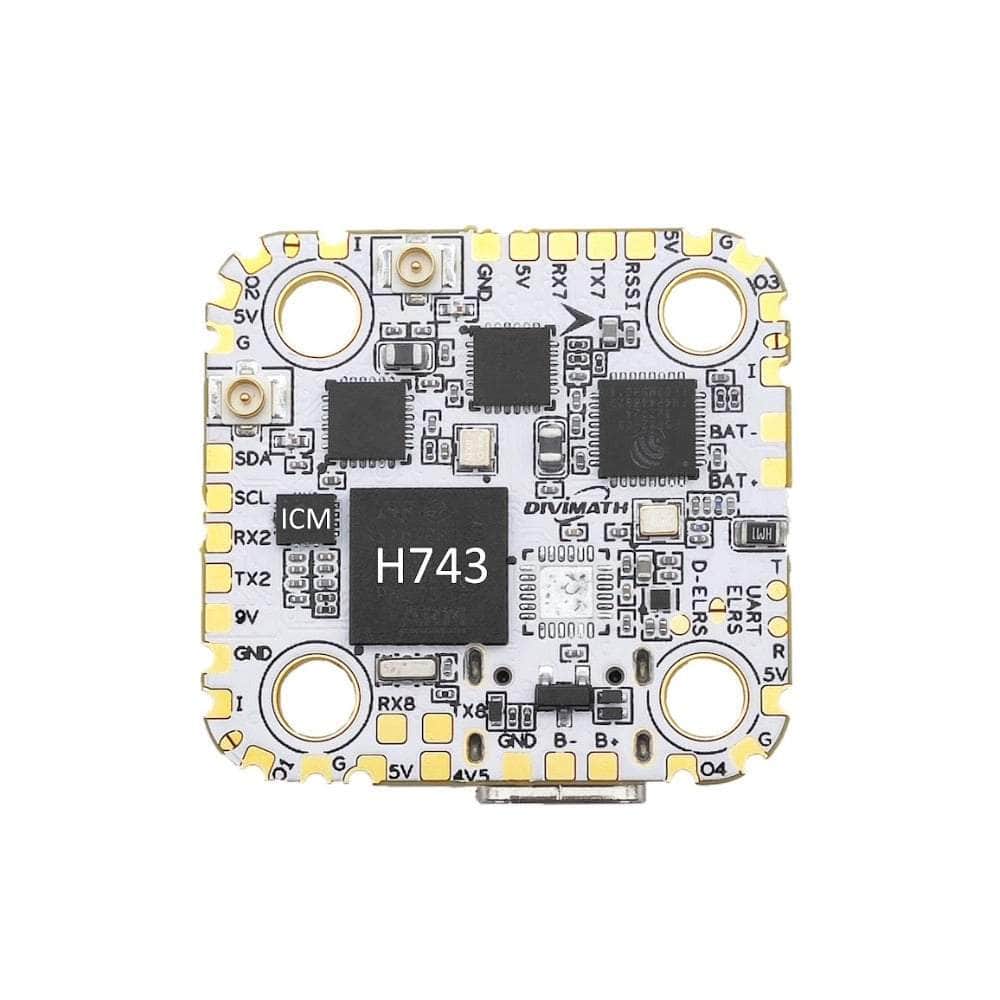

The HDZero Halo H743 Flight Controller is match made in heaven with the HDZero Race VTX. With a H743 MCU and integrated diversity ELRS receiver it is ready for so much more. Designed for modern digital video systems, it includes a switchable 9V/3A BEC, a 5V/4A output for peripherals. Plug n' play ready with ESC and HD video systems,  in a 20x20 form factor. This version comes with the ICM42688 gyro.

Check out all our 20x20 FCs and our HDZero selection!

Features

• Ensures Compatibility with Compact Builds and HDZero Systems
• Optimized for HDZero Race v3 VTX
• Digital Video System Optimization
• High-Performance Processing
• Compatibility and Ease of Use

• Versatile Power Outputs
• Integrated Receiver
• LED Connectivity

Specifications

• ESC Connectivity: Dedicated sockets for ESCs with a 4A maximum included cable
• Video Transmitter (VTX) Compatibility: Optimized for HDZero Race v3 VTX
• LED Support: Simplified connection for parallel LED strips (single-color)
• Integrated Receiver: True diversity ExpressLRS (ELRS) receiver
• Compatibility: HDZero compatible
• Processor: H743 ICM42688
• Design: Solderless Design
• Mounting Pattern: 20x20
• Power Outputs

  • Switchable 9V/3A BEC output for video transmitters
  • 5V/4A output for LED strips and peripherals

Includes

• 1x HDZero Halo H743 Flight Controller - ICM42688 - 20x20
• 1x Hardware Kit
