Details
Description

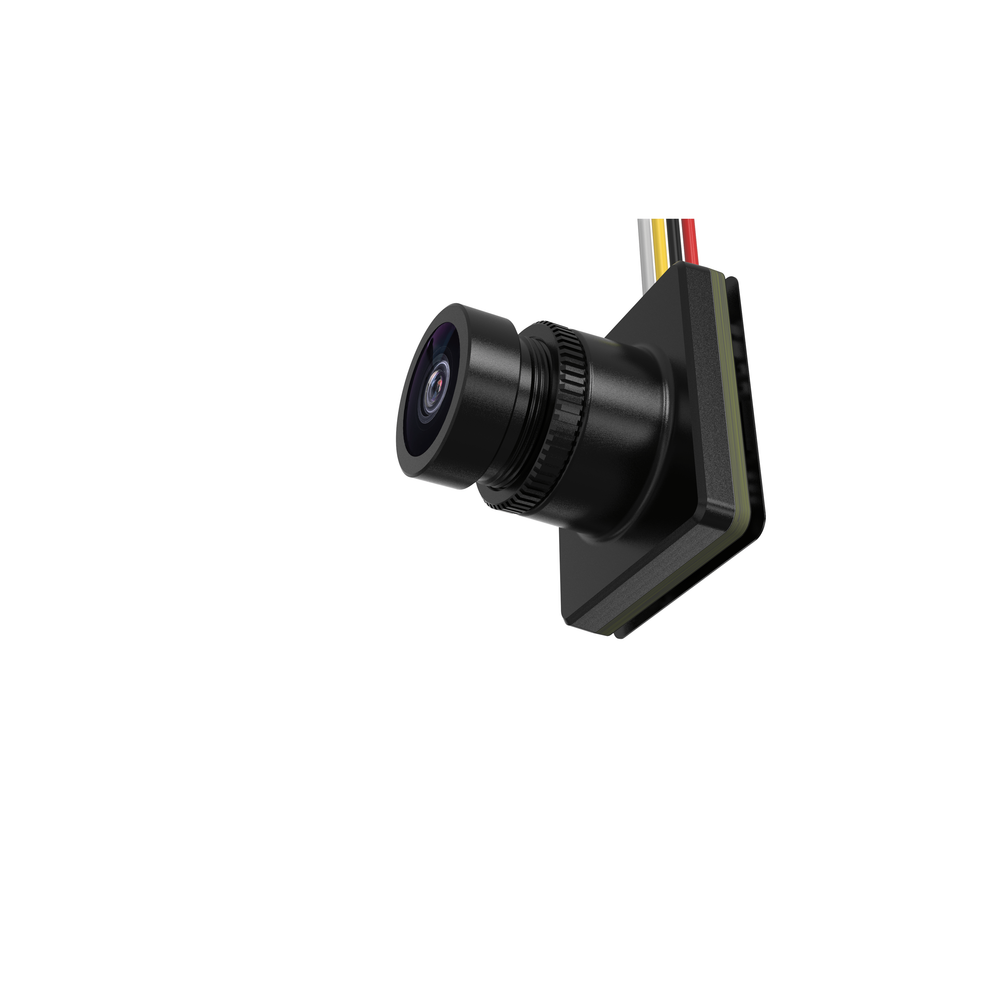

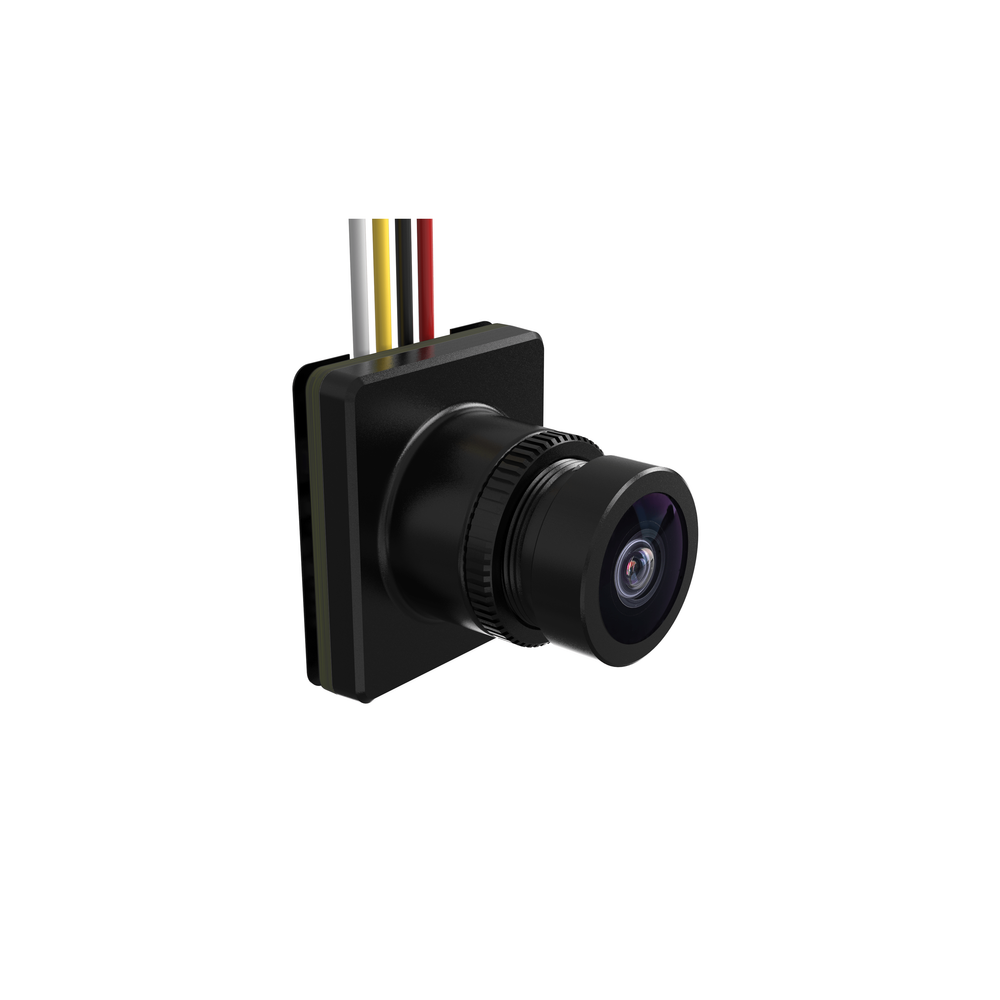

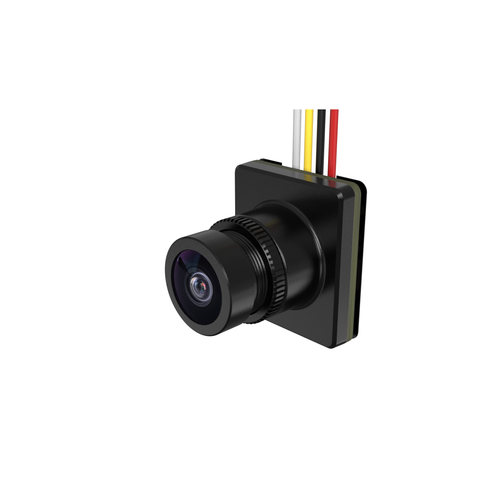

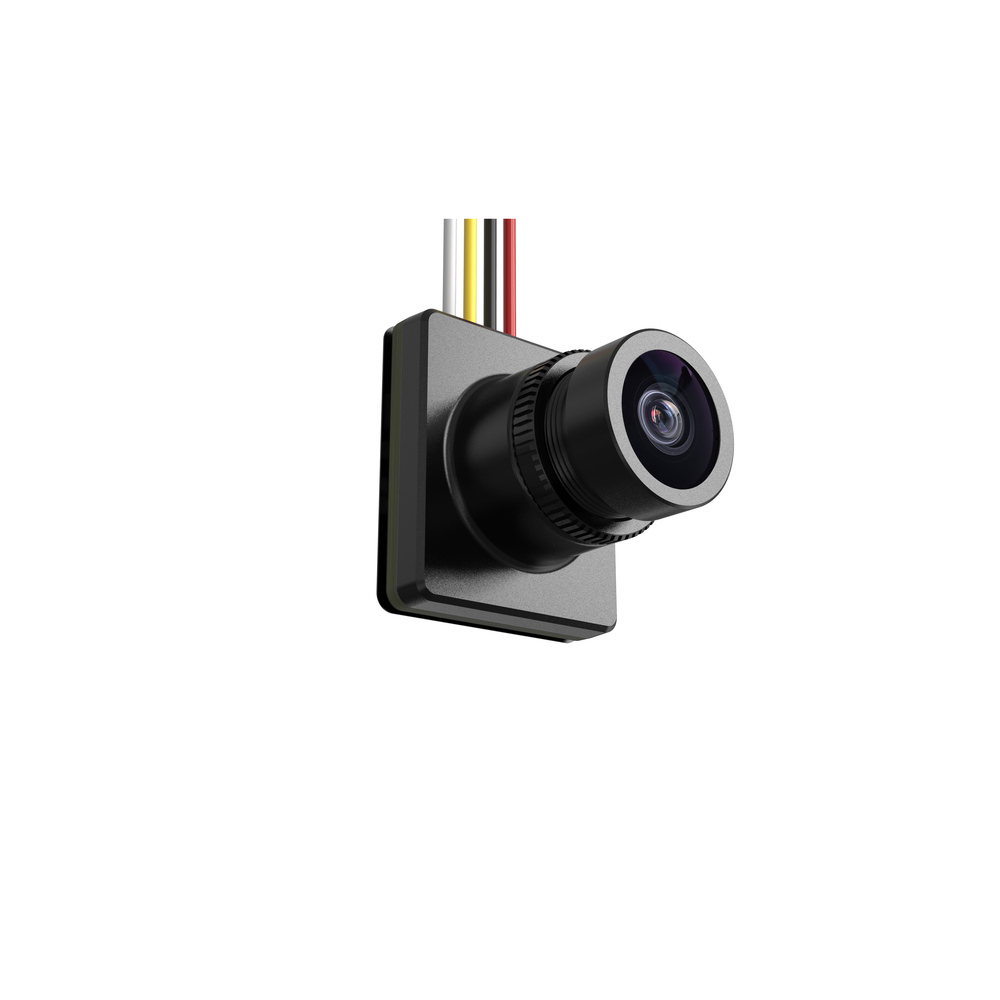

The HDZero Lux camera is compact, lightweight, and durable, making it perfect for tiny whoops and micro drones. It features a ½ inch CMOS sensor that delivers sharp image quality and excellent low-light performance. Lux camera has Wide Dynamic Range (WDR) and offers higher quality by oversampling (1080p ‐> 720p). The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the low latency HDZero is known for.
Check out our selection of FPV cameras and our HDZero selection.
Features
- Optimized for 4:3 aspect ratio (can be 16:9 vertical FOV)
- 94° FOV
- Perfect for indoor or outdoor flight
- Ultra-lightweight
Specifications
- Manufacturer: RunCam
- Model: Lux
- Sensor Size: 1/2 inch
- Resolution: 720@60fps
- Shutter: Rolling Shutter
-
FOV:
- D:155° H:126° V:94° (4:3)
- D:170° H:145° V:82° (16:9)
- D:155° H:126° V:94° (4:3)
- Input: 3.3V~5V
- Power Consumption:0.5W
- Weight: 2.3g(With Cable)
- Dimensions: L14mm x W16mm x H14mm
How to change 4:3/16:9
The HDZero AIO5 and ECO VTX lack a communication mechanism to automatically retrieve the Lux camera settings, such as aspect ratio. Users need to manually set the aspect ratio for both the AIO5/ECO VTX and the Lux camera. Click Here!
Includes
- 1x HDZero Lux Camera
More Info
- SKU: 22554
- Barcode: 6910236007459
