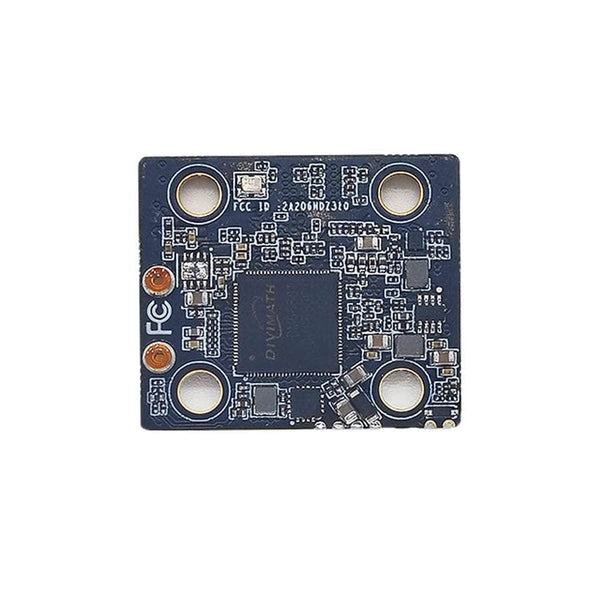

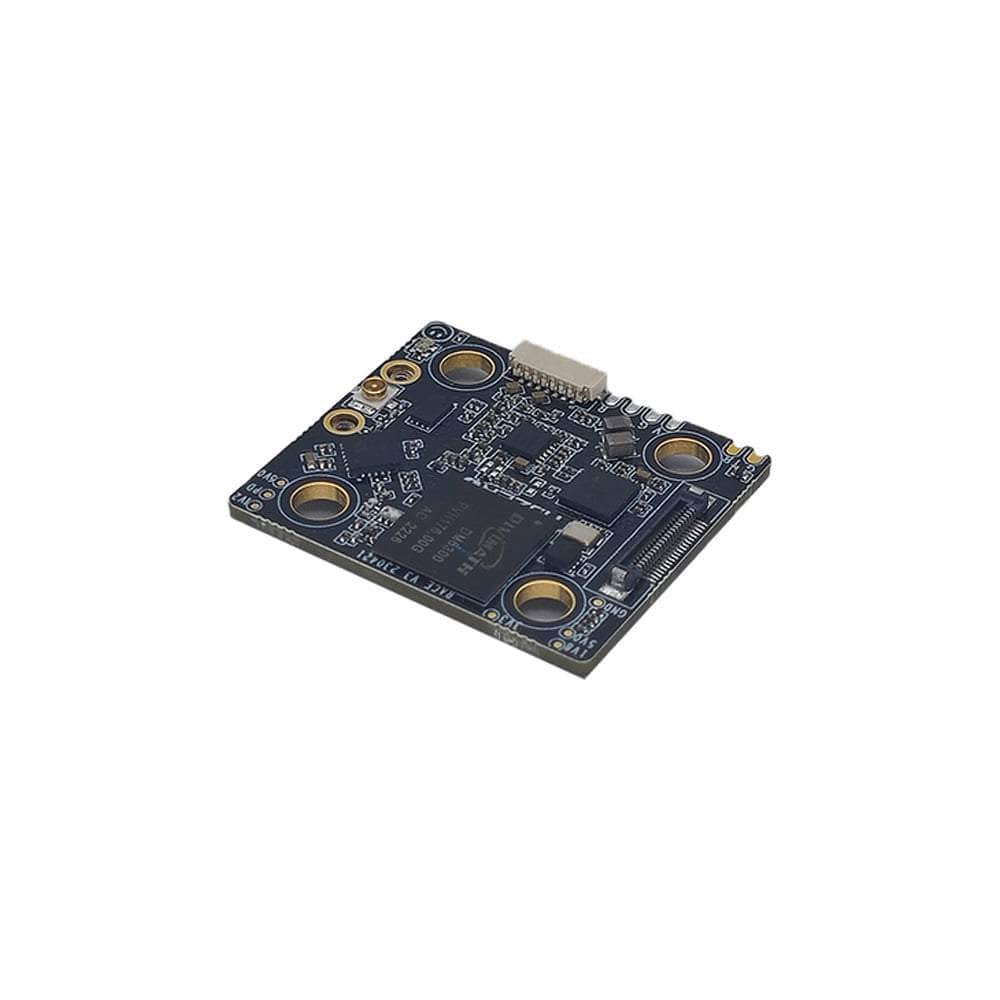

HDZero Race V3 1080P 20x20 25-200mw Digital HD VTX

Description

The HDZero Race V3 1080P VTX is your ideal choice for durability and reliability. Additionally, the Race V3 features larger components for increased stability consideration and an extra glue coating for superior crash protection. Get the ultimate VTX for race-ready performance. This board is rated with a 1.6mm thick PCB and reverse polarity protection circuit, you'll experience safer time working on this board. No soldering is needed – just plug the wire harness into a compatible HD-ready FC.

The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60 and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz.

Check out all our VTXs and our HDZero selection

Features

• Easy installation without soldering, just plug the wire harness into a compatible HD-ready FC
• High-quality video in multiple resolutions: 540p90, 720p60, and 1080p30
• Improved durability and reduced weight with a width similar to many FCs
• Additional glue coating for crash protection of smaller components
• Secure attachment of antenna with a metal bar and screws
• Switchable power options: 25mW and 200mW
• Small and lightweight: 28x32x5mm, 5.5 grams
• Large package size components for stability
• Durable design with a 1.6mm thick PCB
• Operates on a 5.8GHz frequency band
• 3rd generation digital video transmitter
• Wide voltage range: 4V to 12V
• Designed for FPV racing

Specifications

• Resolution Default: 540p90/720p60/1080p30

• Frequency: 5.725-5.850GHz

• RF power: 25mw/200mw

• RF Connector: Secured U.FL

• Interface: 4 lane MIPI CSI YUV422

• Video Connector: 20 Position 0.30mm Pitch

• Size: 32mmx28mmx5mm

• Weight: 5.5g

• Harness length: 40mm

• power input: 4V-12V

• Mounting: 20mm x 20mm M4 with rubber grommets

Firmware

Includes

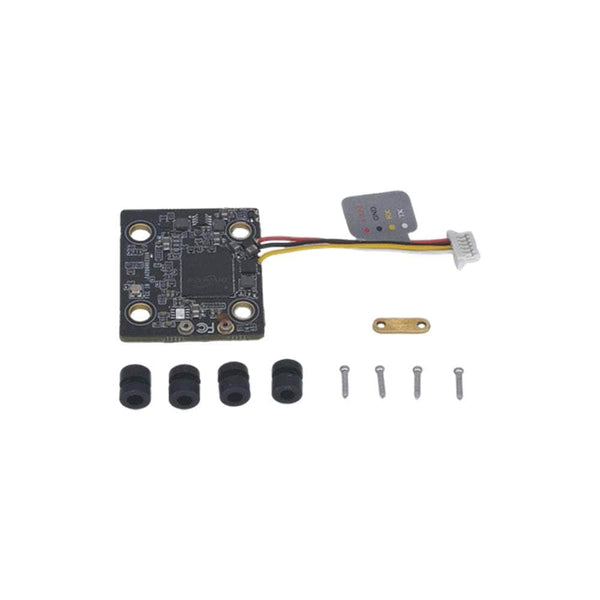

• 1x HDZero Race V3 720P 20x20 25-200mw Digital HD VTX
