Description

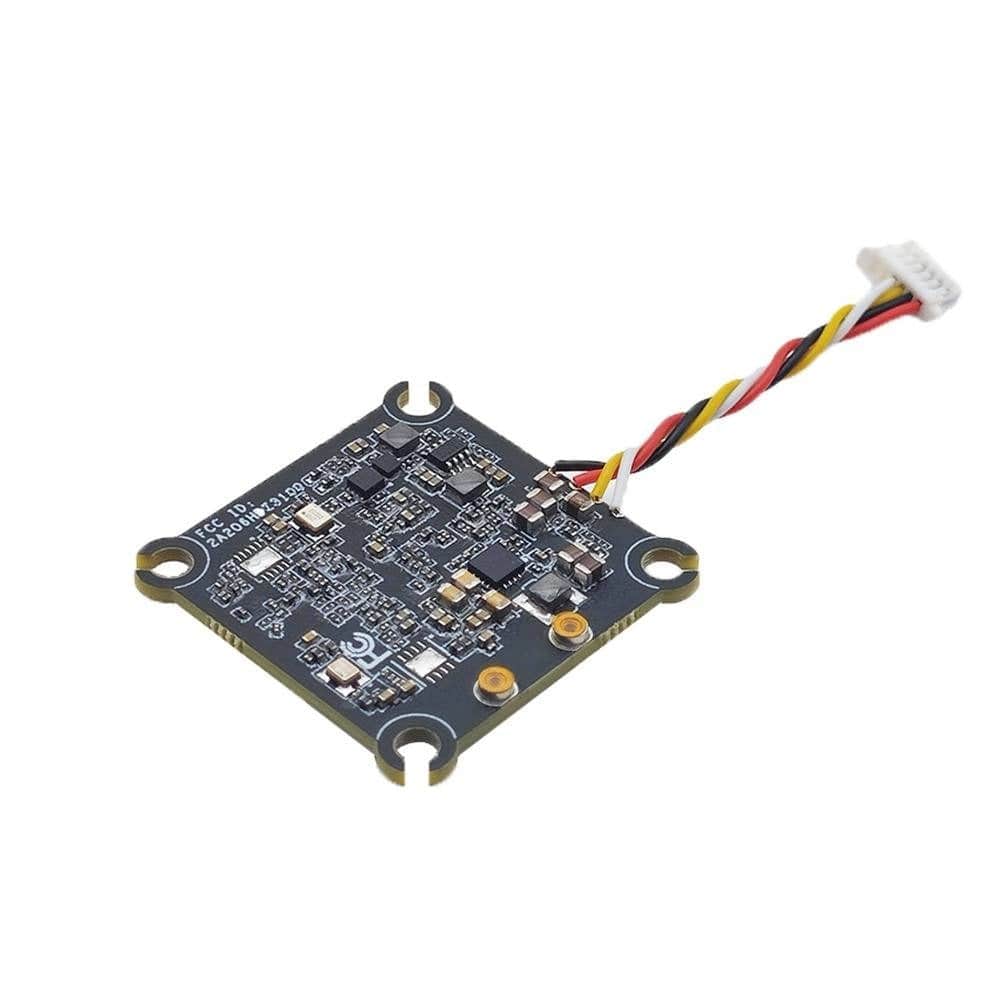

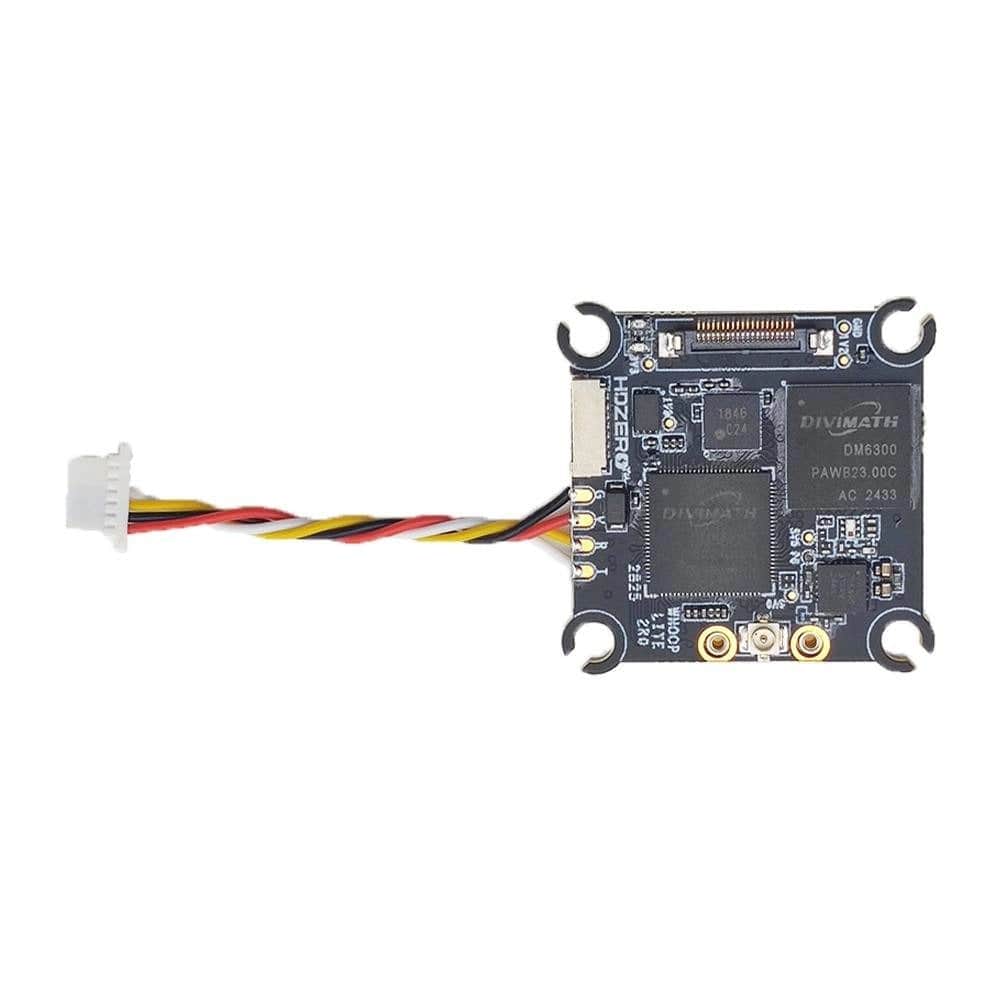

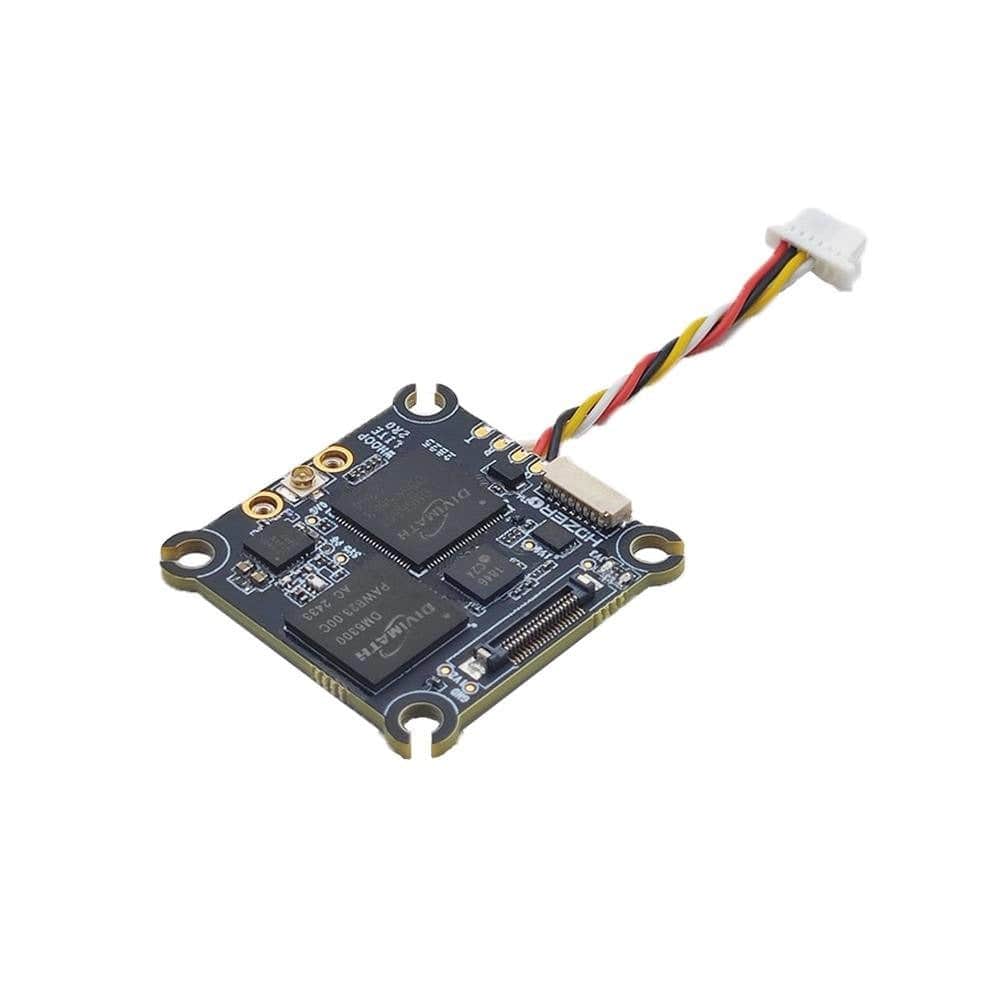

The HDZero Whoop V2 VTX produces sharp, low-latency HD video up to 200 mW while supporting all HDZero MIPI camera modes. Its thicker PCB, factory-soldered wiring harness, and brass antenna retention bar greatly improve durability and make installation more reliable and beginner-friendly. With a compact 31×31 mm footprint and 25.5×25.5 mm mounting pattern, it fits everything from tiny whoops to 4" micro drones. Operating on 1S–3S power, it’s an ideal upgrade for anyone seeking stronger performance and tougher construction in a lightweight VTX.
Check out all our VTXs and our HDZero selection.
Features
- Supports all HDZero MIPI cameras, including 540p90 , 720p60, and 1080p30 modes
- Thicker PCB than Whoop Lite, providing greater impact resistance
- Factory-soldered wire harness with Betaflight standard digital VTX plug
- Brass antenna retention bar
Specifications
- Mounting Pattern: 25.5x25.5 M2
- Dimensions: 31x31mm (29x29mm inner)
- Video Connector: MIPI
- Video Resolution: 720p60 / 540p90 / 1080p30
- RF Power: 25mw/200mw
- Control/OSD: MSP OSD / Smart Audio
- Power Consumption: 5 - 6 W
- Power input: 3 – 12.6 V (1S – 3S)
- RF Connector: Secured U.FL with brass bar
- Frequency: 5.725 – 5.850 GHz
- Weight: 5.4g
IMPORTANT NOTES
- No reverse-polarity protection — incorrect wiring will permanently damage the unit.
- Ensure ≥ 1.5 A available current when powered from a 5 V pad.
- Direct 1 S power may dip below 3 V on throttle punch-outs, causing video loss.
- External capacitor recommended for 3S setups.
Includes
- 1x HDZero Whoop V2 VTX
- 4x Rubber grommet (M3 to M2)
- 5x Power/Uart cable
- 2x Zip ties
- 3x u.FL antenna retention screws
- 1x Metal bar
