Description
The HGLRC Draco Ground Unit is part of the revolutionary Draco FPV HD VTX System. It delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an outstanding transmission range of up to 15km. The Draco HD VTX system is one of the core products of the open-source Artlynk HD VTX system, which is committed to a collaborative and standardized network of components from different brands.
Be sure to check out all our FPV goggles and Modules and our full collection of HGLRC products!
Features
- ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
- High-Definition Video Transmission: 1080p @ 60 FPS
- Reliable Ultra-Long Range Transmission: Delivers smooth video with ~60ms latency and up to 15km range.
- Wide-Voltage Power: Supports 8-30V (2-6S LiPo)
- Comprehensive OSD Data: Supports MSP OSD data for BF/INAV with customization of real-time data content and layout.
Specifications
- Video Output: HDMI
- Resolution: 1080p
- Frame Rate: 60fps
- Communication Frequency: 5.8GHz
- Power Input: 8-36V(2S-6S) DC Interface
- OSD Data: BF/INAV (MSP)
- Antenna: Dual Transmit - Dual Receive
- Dimensions: 70x100x20mm
- Weight: 78g
Links

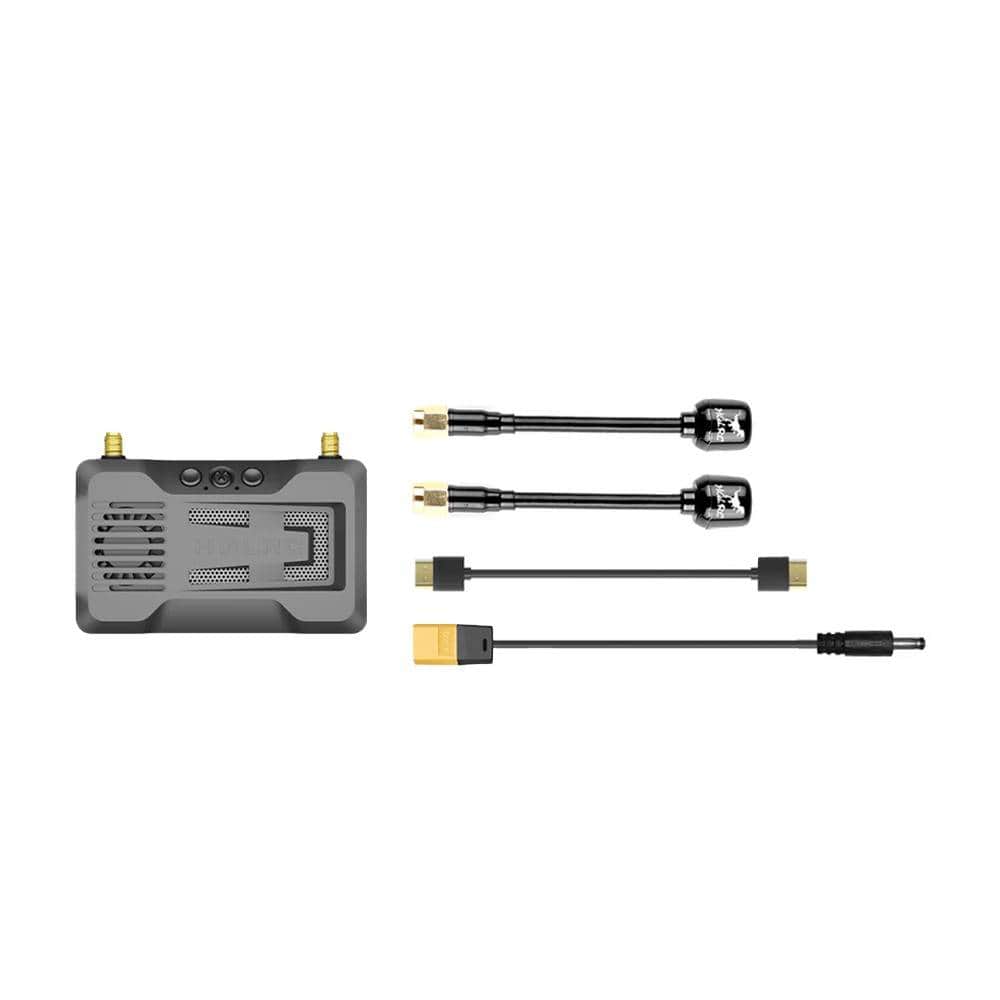

Includes
- 1x HGLRC Draco HD FPV VRX Ground Unit
- 2x HGLRC Long-Range Antenna
- 1x HDMI Cable
- 1x DC Power Cable
More Info
- SKU: G24552CN1Z
- Barcode: 723326380556
