Description

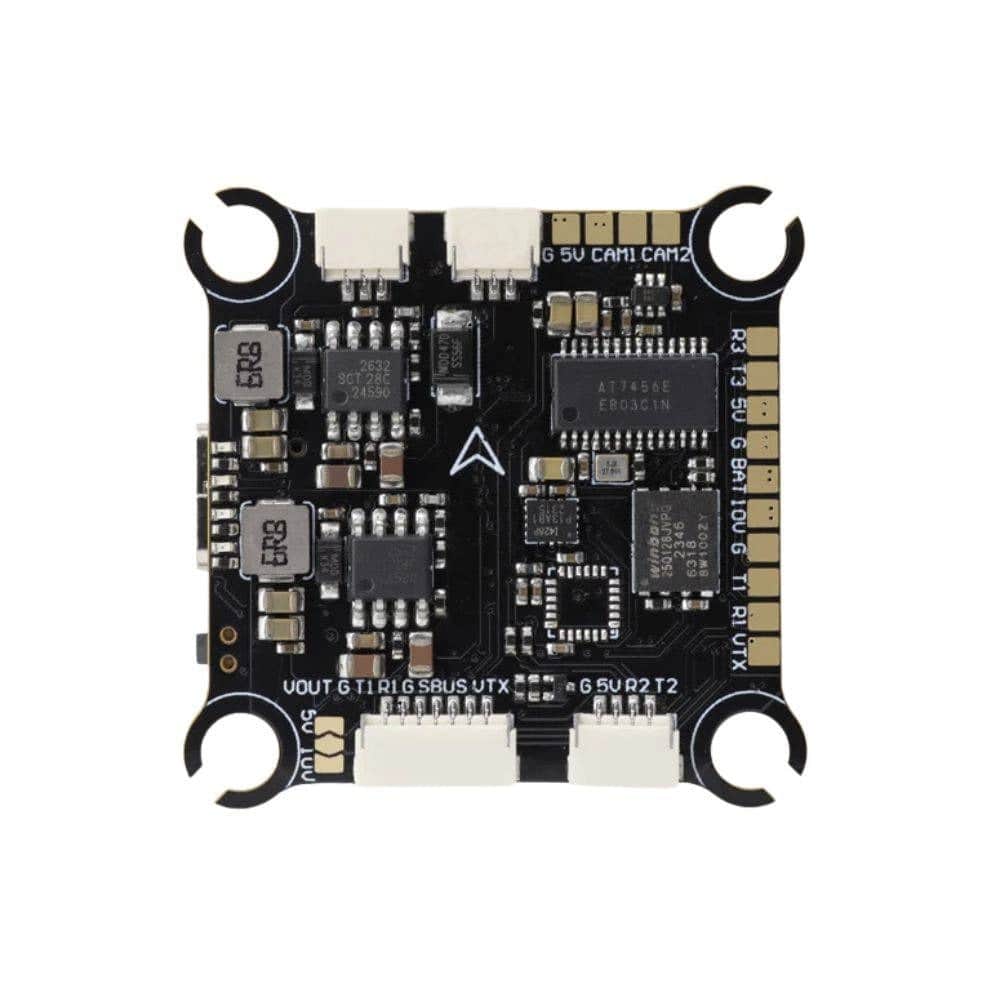

This HGLRC F405 V1 flight controller features a high-precision ICM42688P gyroscope for smooth, stable handling, with optional support for the MPU6000. Its fully modular, plug-and-play design eliminates solder pads for a cleaner build. A built-in 16MB blackbox logs detailed flight data, while 8S support ensures fast response and consistent control for demanding freestyle and racing setups.

Browse all our 30x30 flight controllers and all our HGLRC products!

Features

• Equipped with a high-performance ICM42688P gyroscope for precise, stable flight performance, with pads available for an MPU6000 gyro.
• Supports up to 8S high-voltage input with fast signal response, delivering smooth, consistent control for high-speed and aggressive flying.
• Fully modular, direct-connect layout with plug-and-play integration—no solder pads required.
• Built-in 16MB blackbox storage provides ample space for detailed flight data logging.


Specifications

• Voltage: 7.4V-33.6V (2-8s)

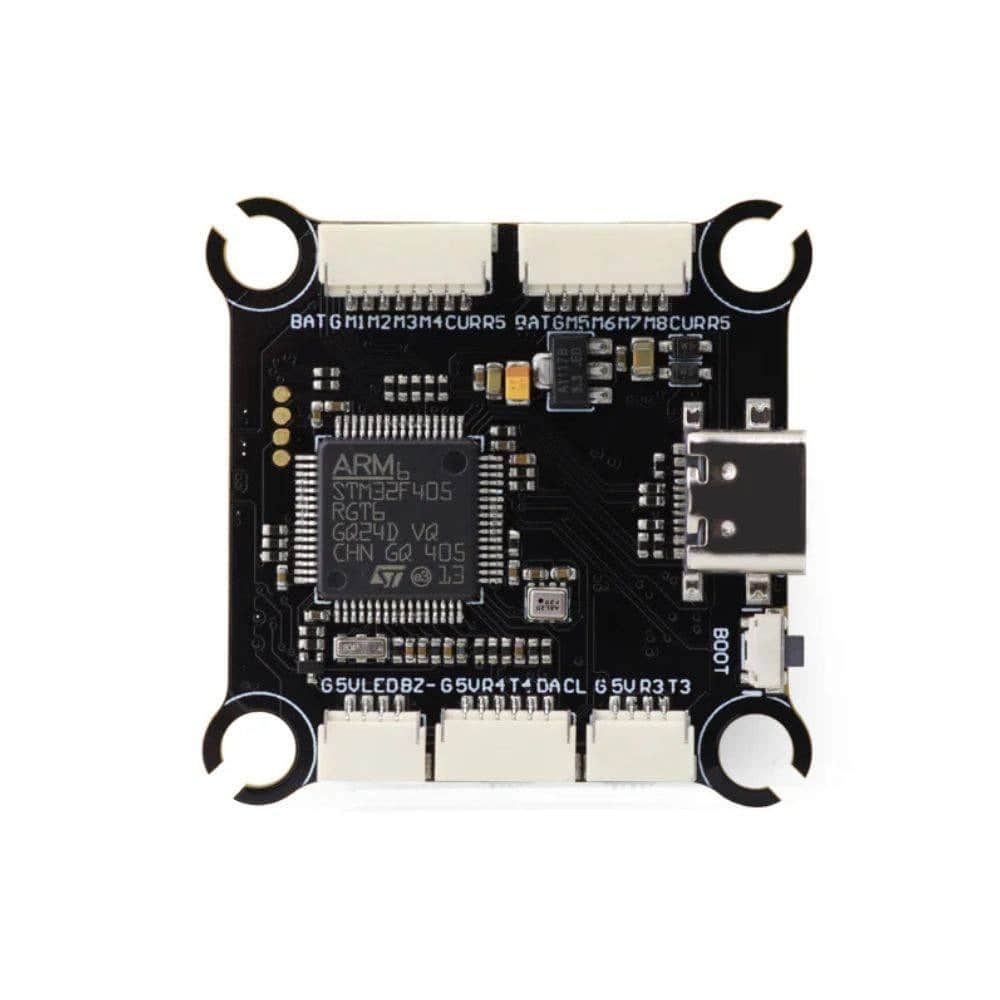

• MCU: STM32F405
• GYRO: ICM42688P
• OSD: AT7456E
• Barometer: SPL06-001
• Black Box: 16MB
• UART: 5
• Flight Controller Firmware: HGLRCF405V2

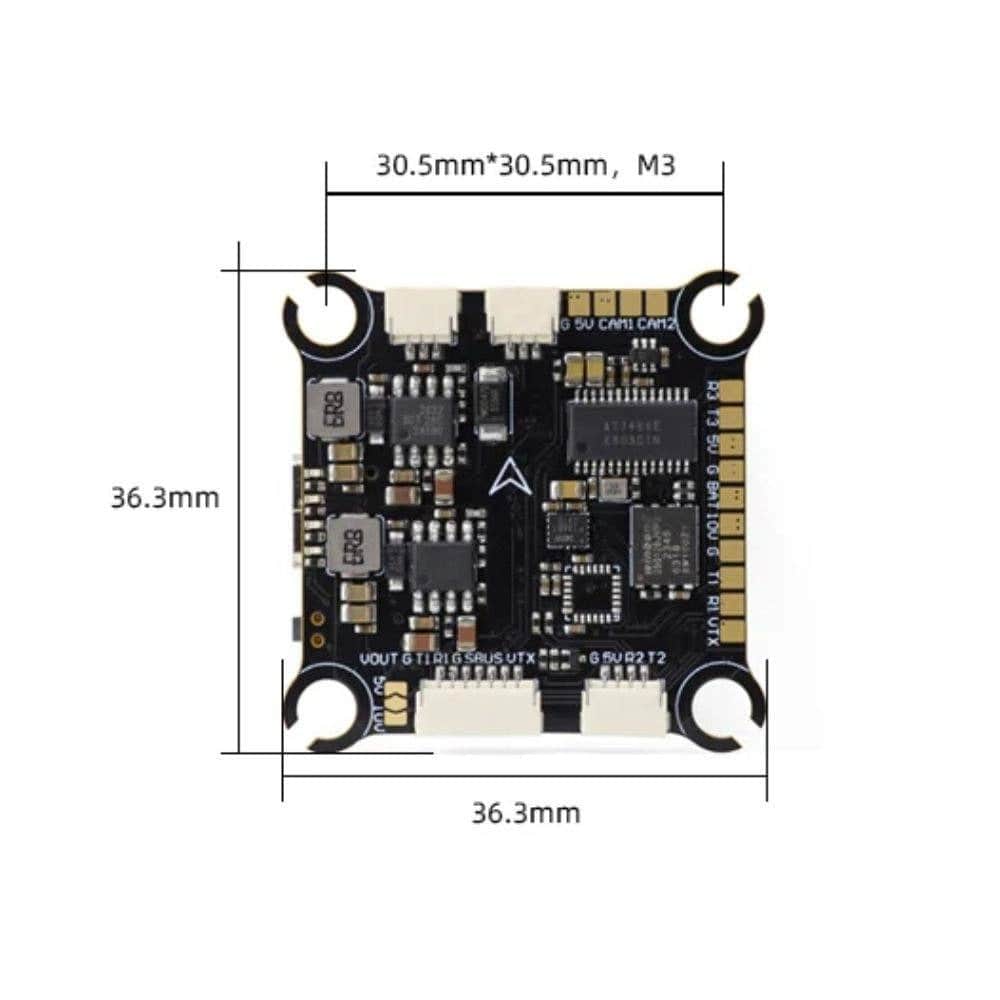

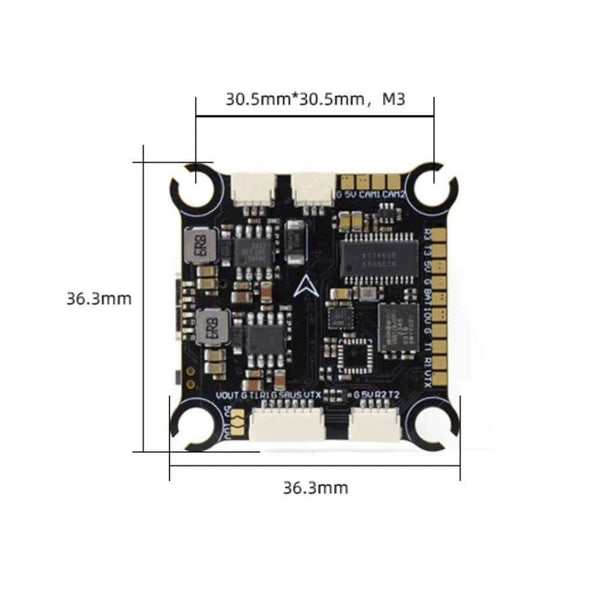

• Dimensions: 36.3x36.3mm
• Mounting Holes: 30.5x30.5mm, M3
• Weight: 9.5g

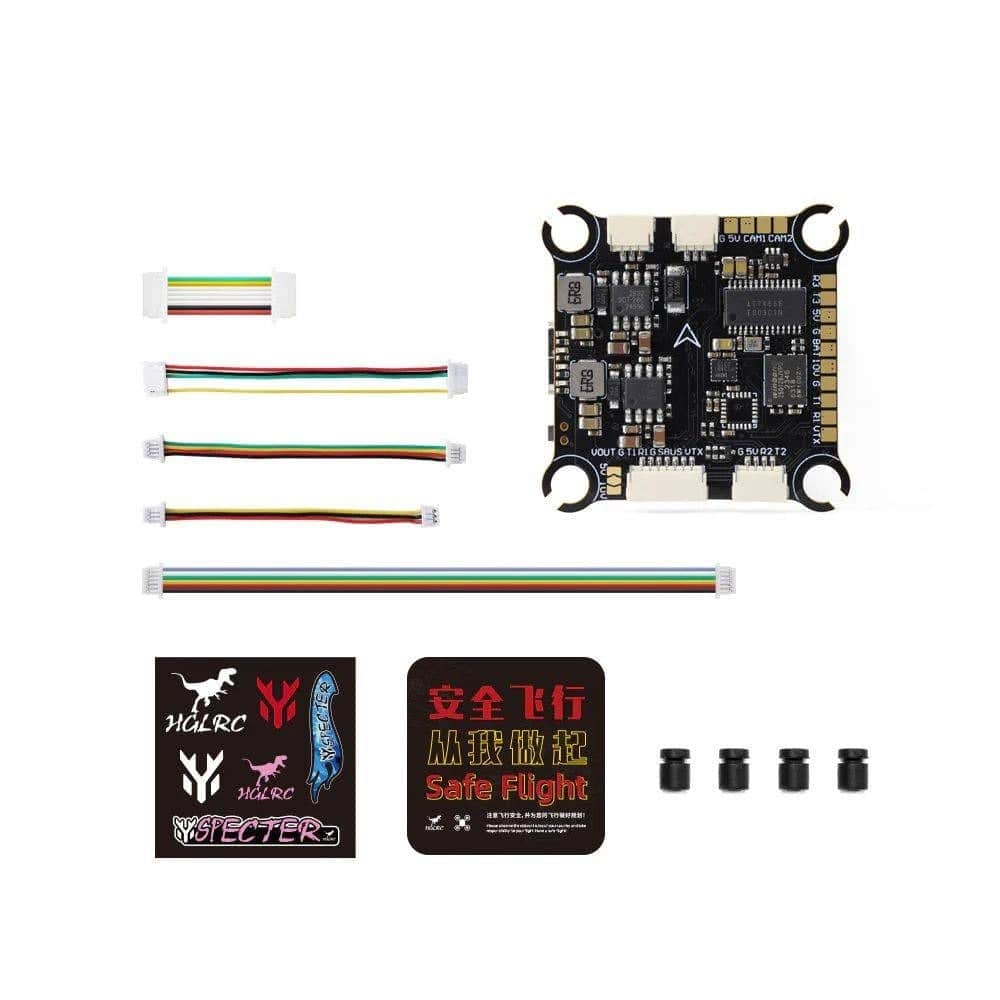

Includes

• 1x 1x HGLRC F405 V1 2-8S Flight Controller
• 1x 30AWG 70mm, single-ended GH1.25-6P/single-ended SH1.0-7P
• 1x 30AWG, 60mm Single-End SH1.0-3P/Single-End SH1.25-3P
• 1x 30AWG, 70mm Dual-End SH1.0-4P Flex Cable
• 1x 30AWG 25mm Dual-End SH1.0-8P Flex Cable
• 1x 30AWG 140mm, double-ended SH1.0-6P
• 1x HGLRC  sticker
• 1x QR Code Card
• 4x Grommets
