Description

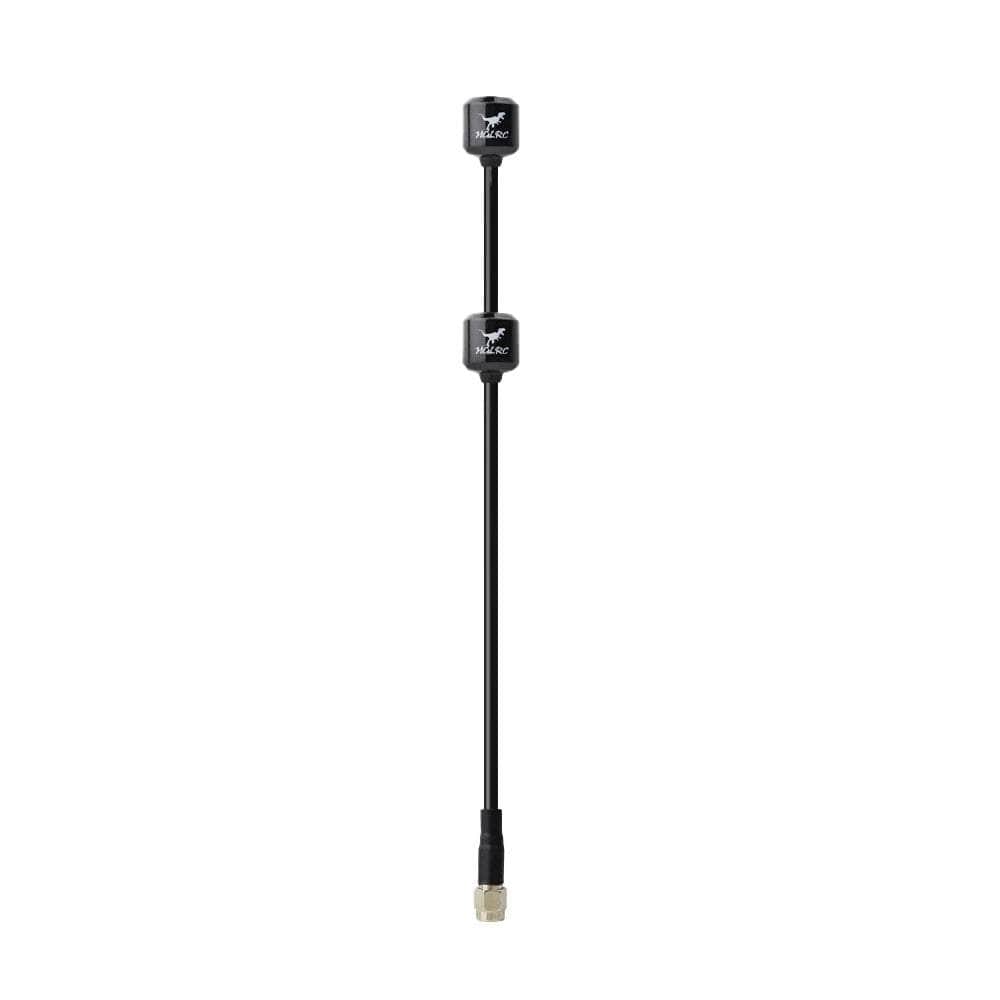

Reach new heights with HGLRC Hammer 5.8GHz Dual Antenna - SMA RHCP.  Industrial-grade quality ensures stable output of high-frequency signals. Experience 30% increased signal coverage compared to similar single antenna. Drop the HGLRC Dual Antenna Hammer and get an incredible reception now.

Check out all our VTX Antennas and our collection of HGLRC products!

Features

• Dual RF architecture increases signal coverage by 30% compared to a single antenna
• Anti-interference for stable signal output
• Superposition technology achieves omnidirectional signal coverage
• Improved signal radiation efficiency and transmission distance

Specifications

• Center Frequency: 5.65GHz
• Bandwidth: 5.3GHz~6GHz
• Polarization: RHCP
• GAIN: 3.8dbi
• VSWR: <1.43
• Radiation efficiency: 85% on average
• Cross-polarization suppression: -25dB

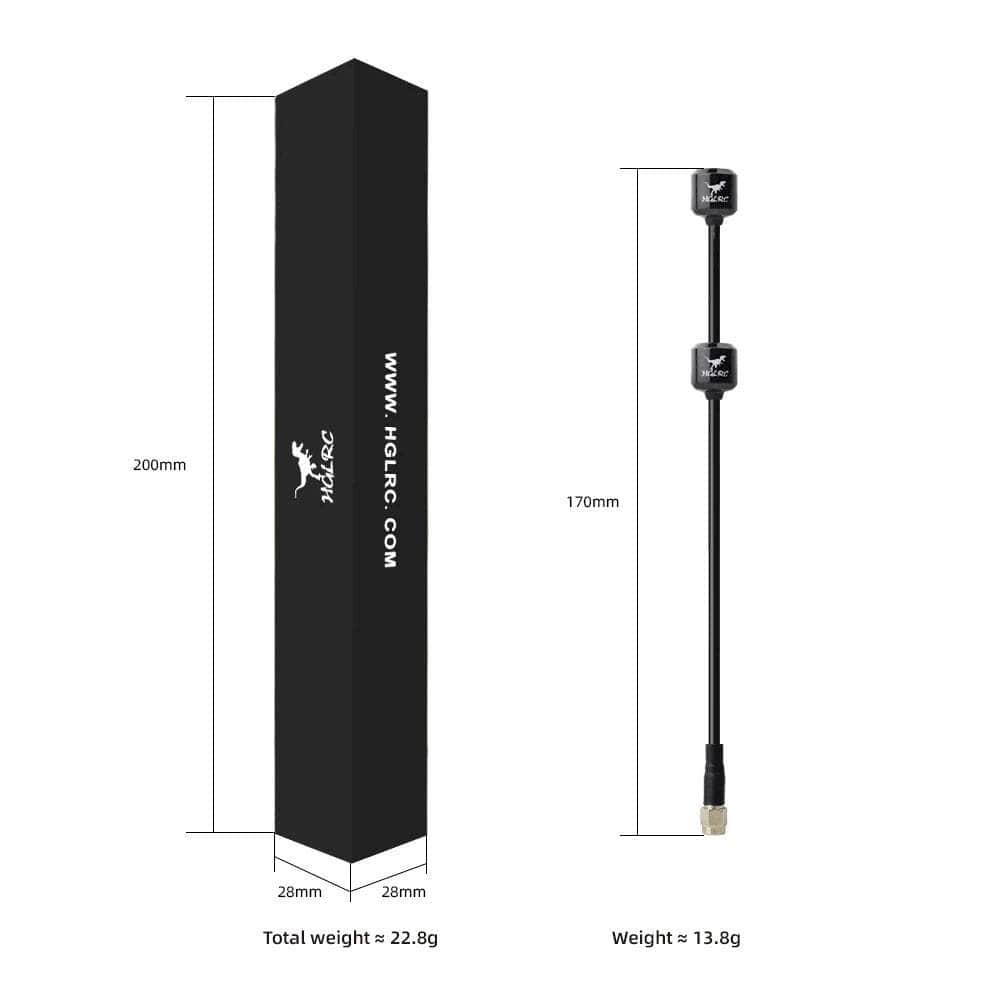

• Length: 170mm
• Antenna design process: FPC + PCB
• Casing Material: ABS
• Interface type: SMA
• Weight: 13.8g

Includes

• 1x HGLRC Hammer 5.8GHz Dual Antenna - SMA RHCP
