Description

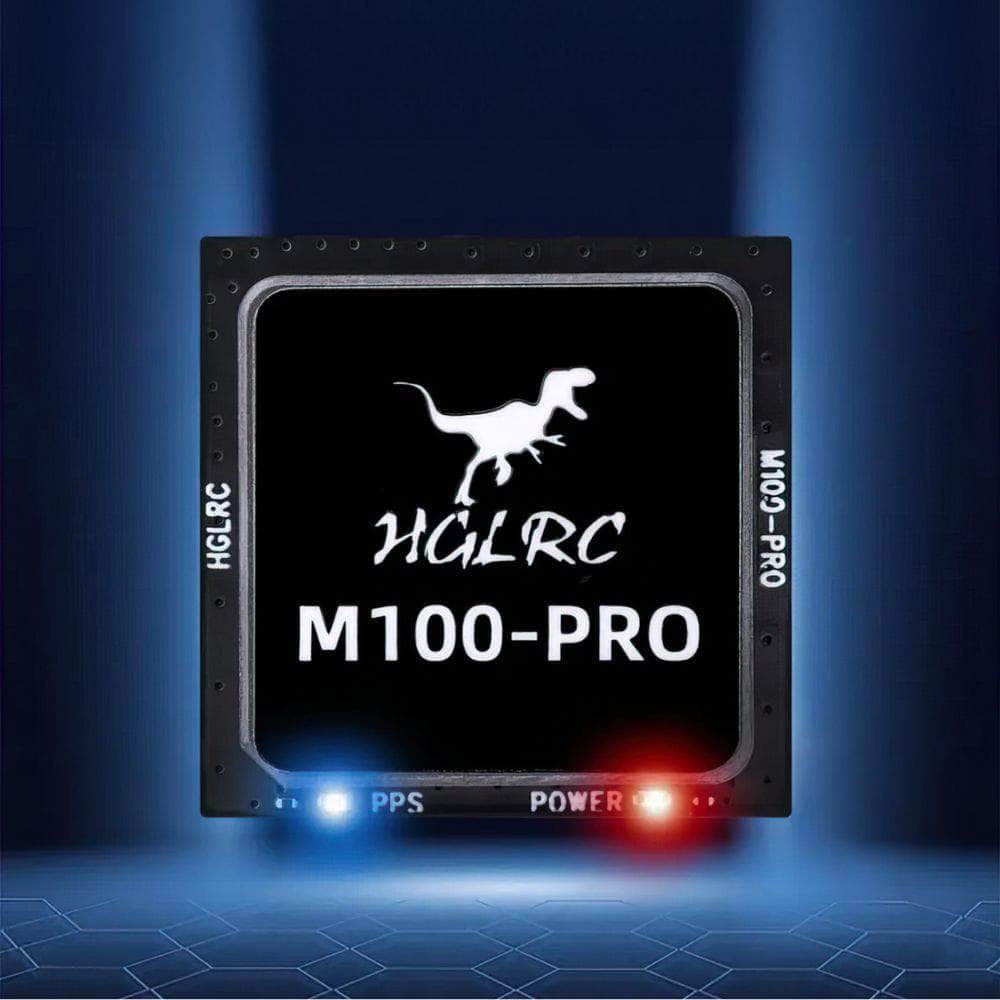

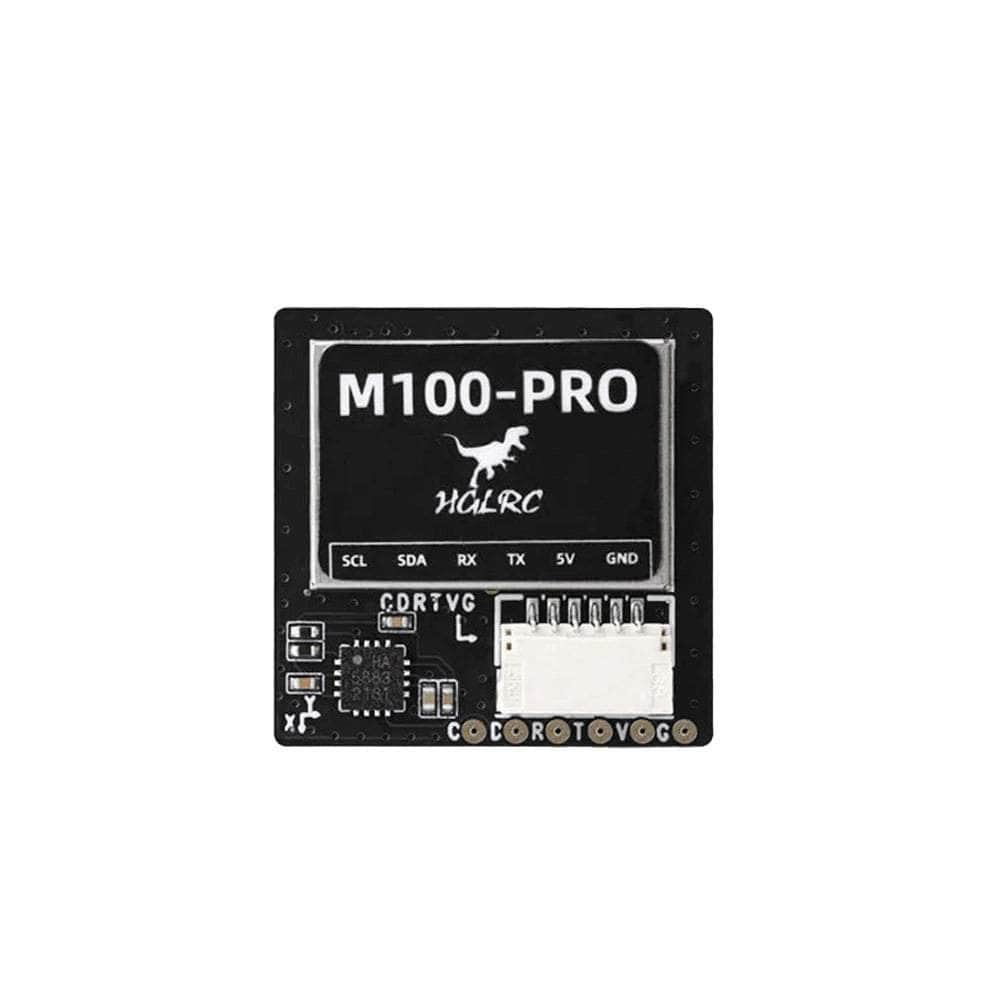

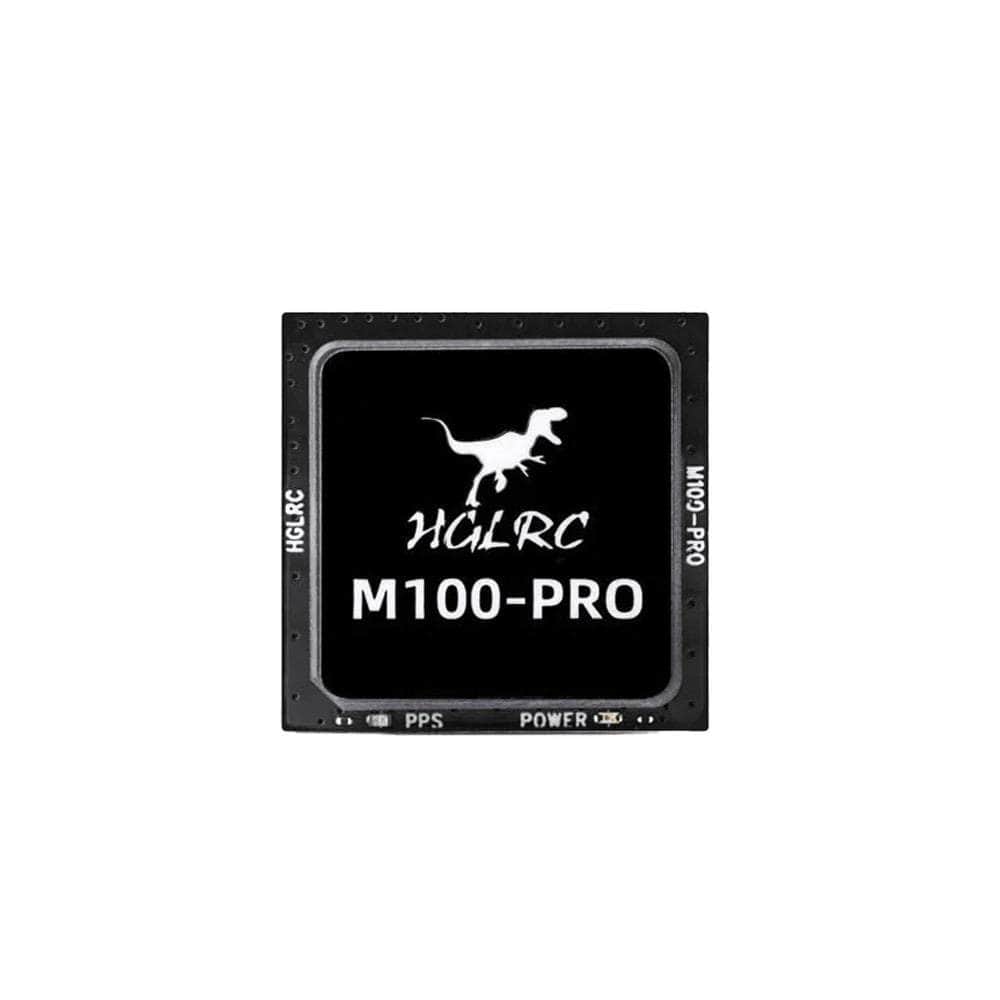

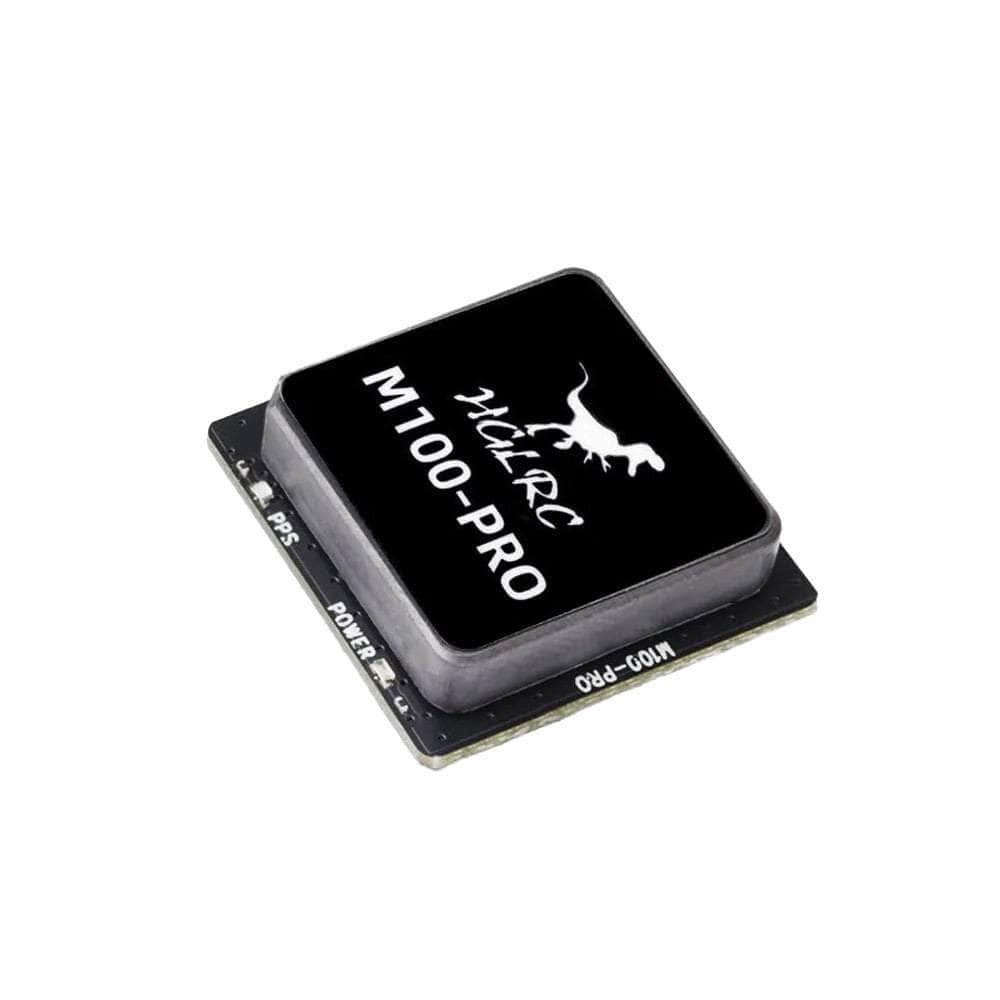

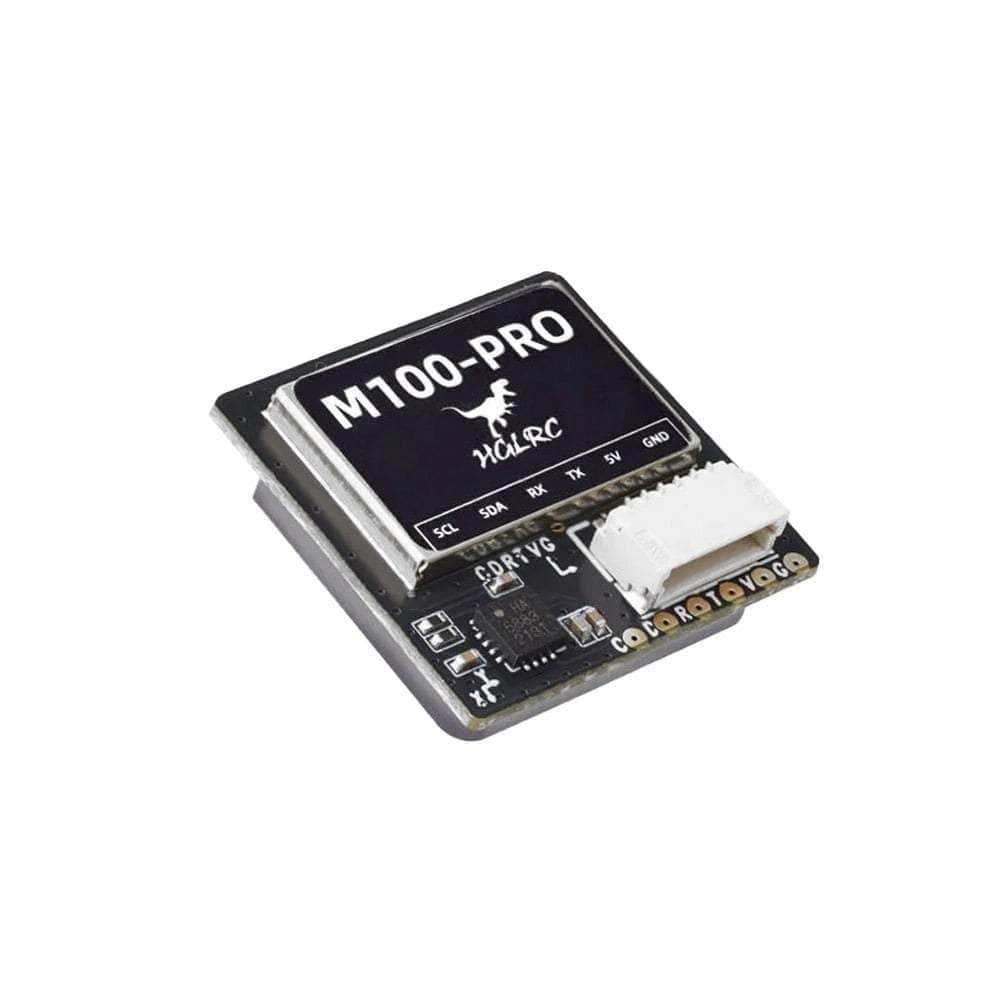

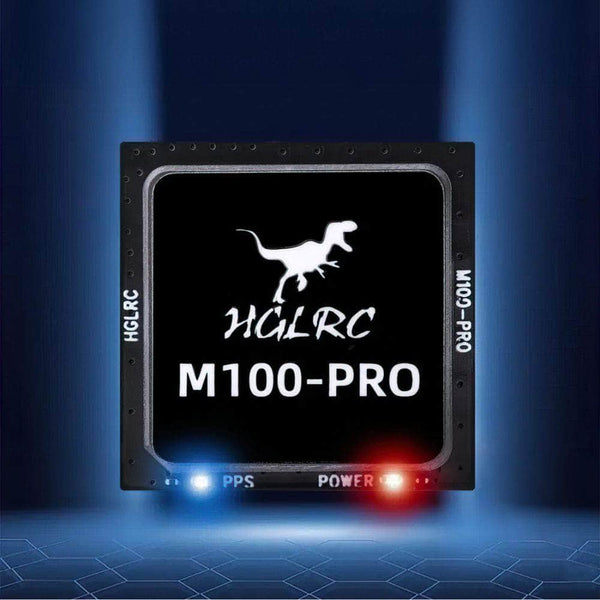

Unlock next-level navigation performance with the HGLRC M100Pro GPS Module. Powered by a cutting-edge 10th-generation chip, this compact module supports 120 channels and effortlessly tracks over 50 satellites for lightning-fast, accurate positioning. Featuring five-mode global positioning and an integrated QMC5883L compass, it delivers precise orientation and rock-solid signal stability, even in challenging environments. Whether you're flying long range or building a reliable autonomous rig, the M100Pro ensures you're always on course.

Check out our GPS selection and all our HGLRC products!

Features

• Integrated QMC5883L Compass
• Next-Gen Performance
• Five-Mode Positioning
• Strong & Stable Signal
• 50+ Satellite Tracking
• 120 Channel Support

Specifications

• Supported Frequencies: GPS L1, GLONASS G1, BDS B1, GALILEO E1, QZSS L1, SBAS L1, IRNSS
• Operating Temperature: -40℃ to +85℃
• Storage Temperature: -40℃ to +105℃
• Dimensions: 21.2 × 21.2 × 8.2 mm
• Chipset: B101 (10th Generation)
• Output Frequency: 10Hz
• Power Input: 3.6V – 5.5V
• Receiving Channels: 120
• Acceleration: Up to 4G
• Max Speed: 500m/s
• Baud Rate: 115200
• Antenna: Ceramic
• Protocol: UBX
• Weight: 7.9g

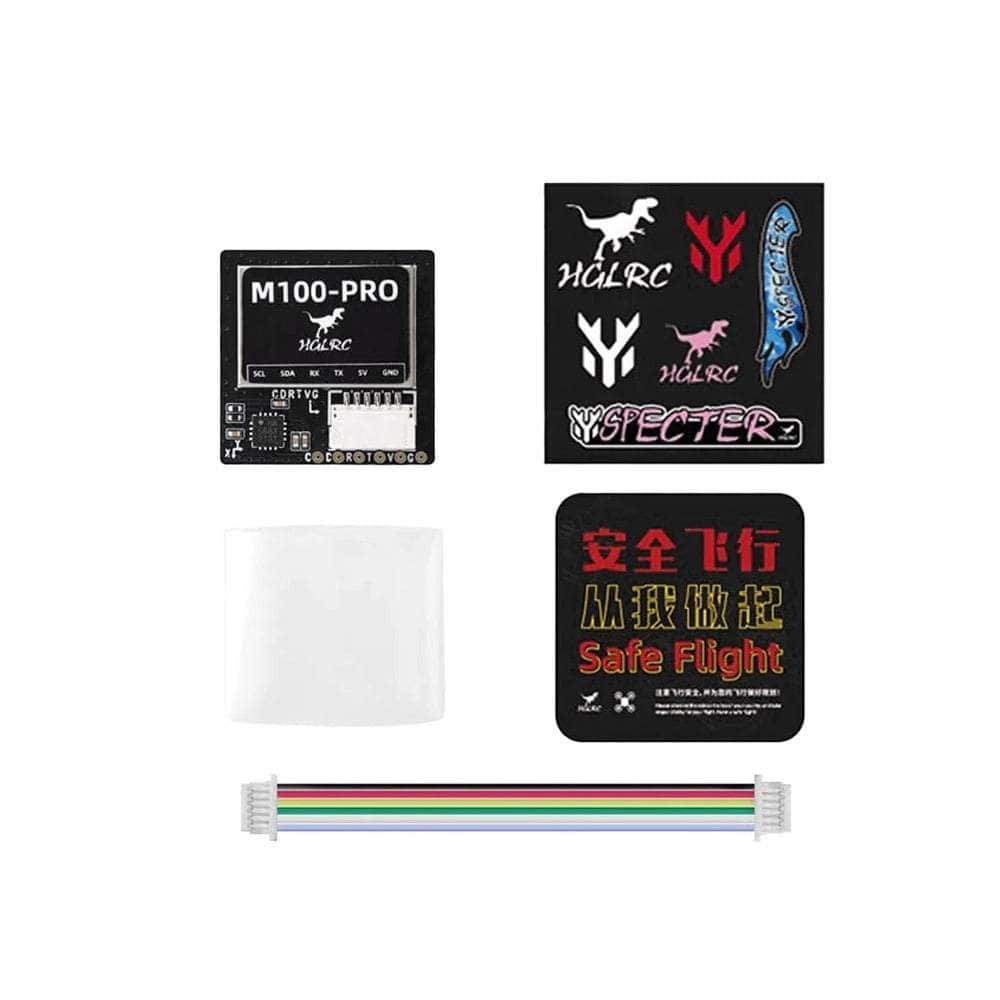

Includes

• 1x HGLRC M100 PRO GPS Module
• 1x Heat Shrink Tube
• 1x SH1.0-6pin Cable
• 1x HGLRC Manual
• 1x HGLRC sticker
