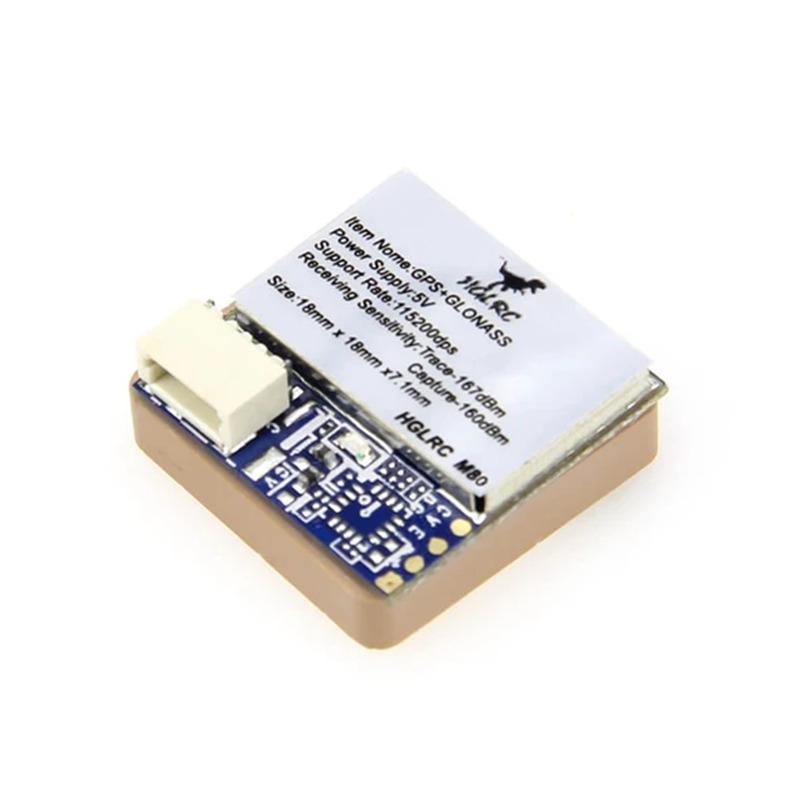

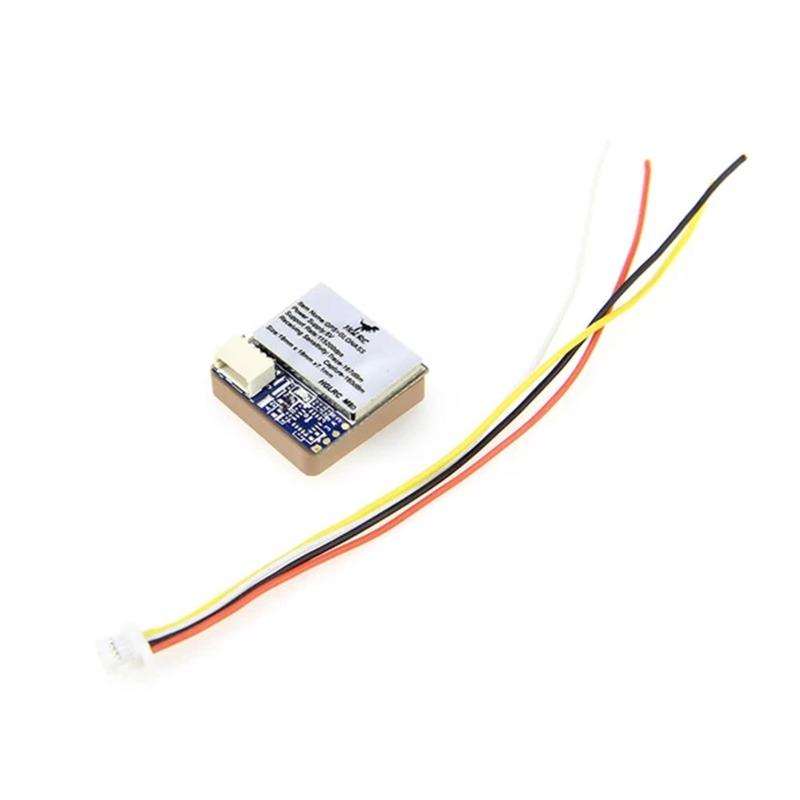

HGLRC M80 GPS Module

HGLRC M80 GPS Module

$21.99
$21.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

Compact GPS Module from HGLRC.

Check out our GPS selection and all our HGLRC products!

Specifications

  • Chip: M8030
  • Power Supply: 5V
  • Antenna: Ceramic Antenna
  • Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
  • Receiving Channel: 72 Searching Channel
  • Support Rate: 115200dps
  • Output Protocol: UBLOX
  • Output Frequency: 1Hz-10Hz,Default 10Hz
  • Speed Precison: 0.05 m/s
  • Level Positioning Precison: 2D Acc1.5m(ln Open Sky)
  • Receiving Sensitivity: Trace -167dBm
  • Capture-160dBm
  • Dynamic Characteristics: Max Height:50000m
  • Max Speed: 500m/s
  • Max Acceleration: 4G
  • Working Temperature: -40℃-+85℃
  • Storage Temperature: -40℃-+105℃
  • Size: 18.5mm x 18.5mm x 7.1mm

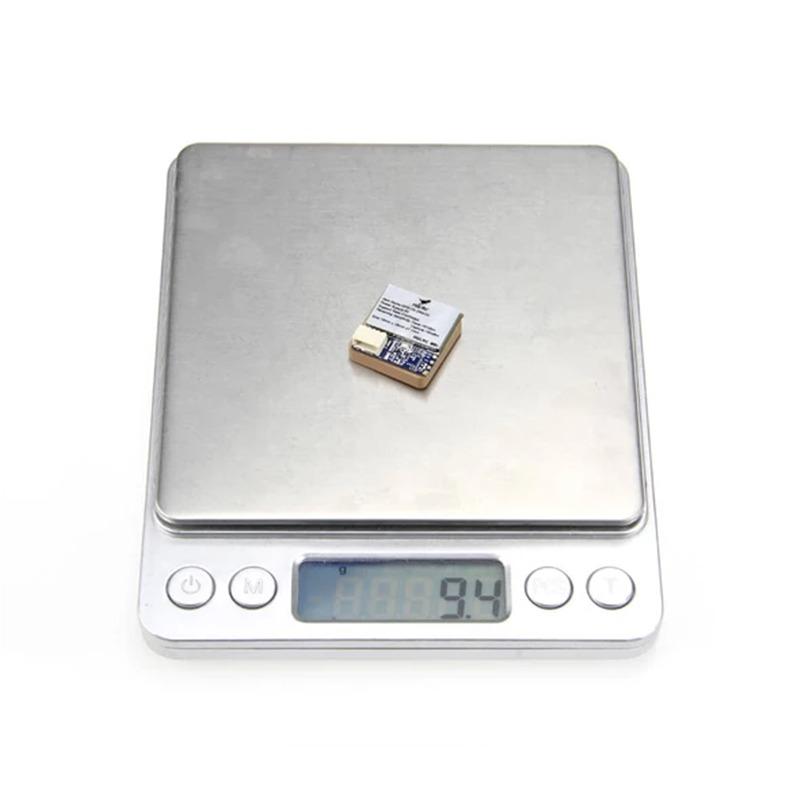

  • Weight: 9.4g

Includes

  • 1x HGLRC M80 GPS Module

More Info

  • SKU: 14874
  • Barcode: 691023517882


Overall rating: 4.8157897 / 5 from 38 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["light","issues","works","gps","satellites","unit","solution","receiver"].

Review highlights

Reviews

Great budget gps, this is

"Great budget gps, this is my go-to, always locks enough satellites"

— Ty D. (5/5)

M80 GPS

"14 satellites in less than a minute works great"

— John R. (5/5)

Easy set up and gathers

"Easy set up and gathers satellites very quickly."

— Samuel S. (5/5)

Even better than the original

"So, I was flying my Rekon 6 and it only crashed once (per flight), and the connector to my M80 GPS broke off, so I needed a new one. The one delivered has improvements, like having the GPS in shrink wrap to make the physical package stronger. It does fit into the Rekon 6's GPS holder a little more tightly than before, but it's all good. The whole process took about 15 minutes to replace it, and my son and I are back flying again! Shipping from getfpv was fast (we had it within 3 days with normal shipping - we're in South Carolina), and getfpv is the first place I check when buying my stuff."

— Jeff D. (5/5)

As described

"Works as it should, just plug into the module, solder the other end to the FC as per the instructions, then configure in your computer."

— Farnley V. (5/5)

Great product!

"Worked great, nice and small."

— Dan H. (5/5)

Bit confusing....

"In red letters is stated power source should be 3v, but power consumption is stated at 5v??? I mean I have been using them for a long time, & I do understand, they're trying to cover their 6' for liability, but doesn't all electronics do can wor or not at a given time...no desire to insult anyone.."

— Marco C. (5/5)

More sat.

"The new ones get Galileo satellites now"

— Chris N. (5/5)

Great little receiver.

"Works surprisingly well for such a small device. Was testing it on the bench inside a two story house on the bottom floor, away from windows. Got a 11 sat lock within a minute."

— constantin l. (5/5)

great!

"great!"

— Adrian m. (5/5)

Q&A

Does it have a compass
no, this does not have compass
