Description

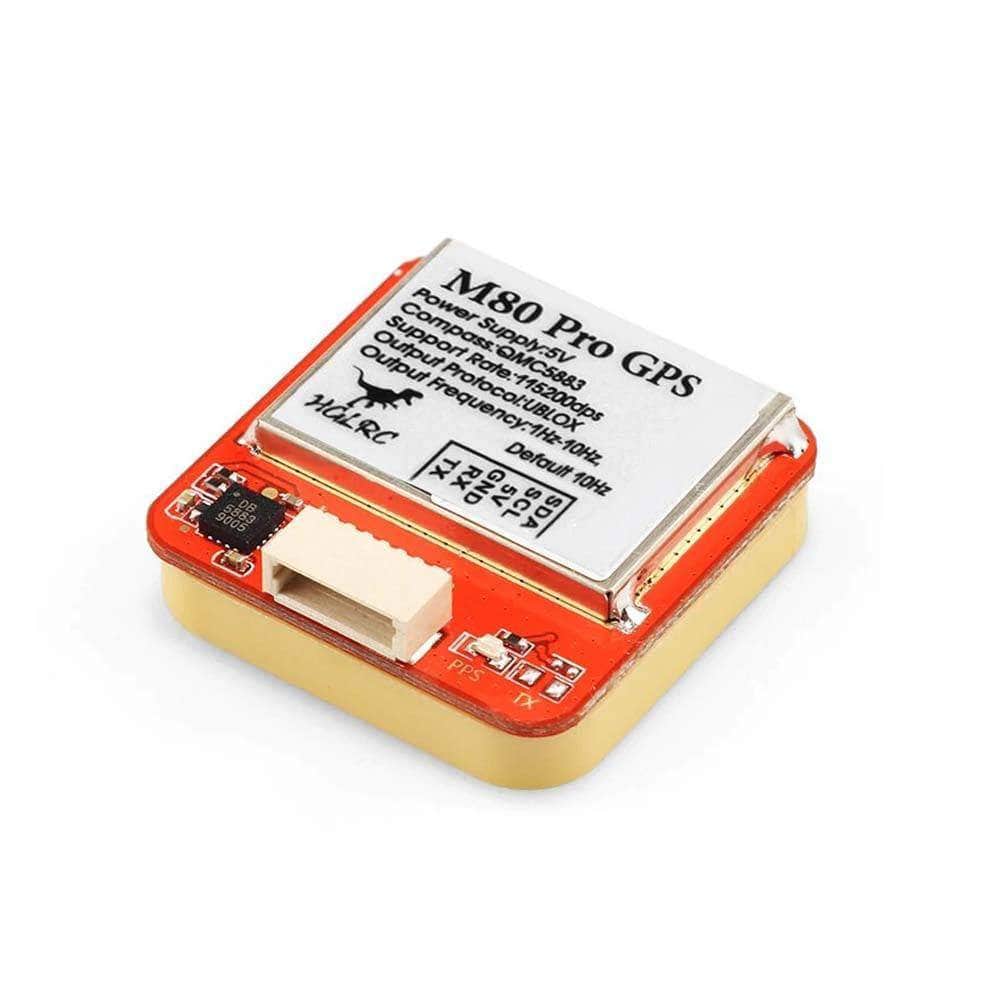

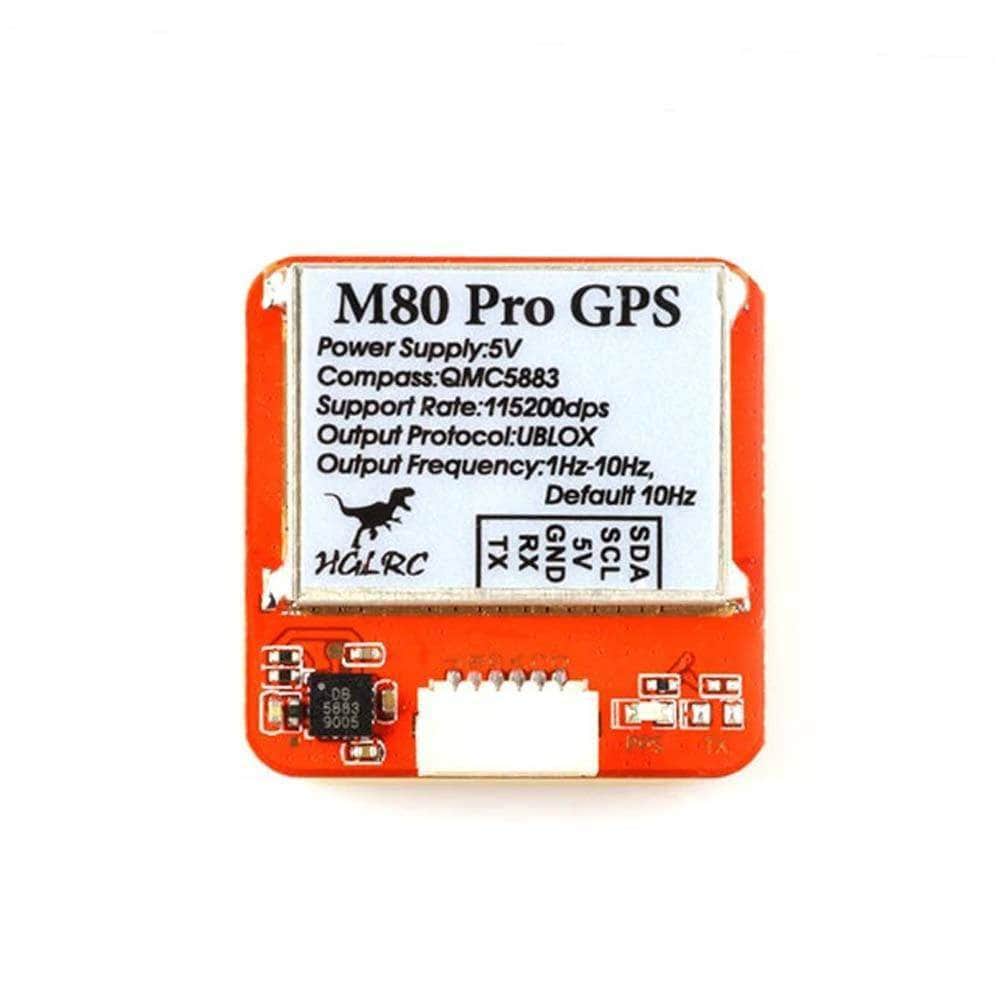

Compact GPS Module from HGLRC.

The HGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Receives a stronger antenna signal to make it easier to be found by satellites. No soldering needed just plug directly and use.

The HGLRC M80 PRO GPS Module is ideal for FPV racing drones!

Check out our GPS selection and all our HGLRC products!

Specifications

• Item: HGLRC M80PRO GPS
• Chip: M8030

• Power Supply: 5V

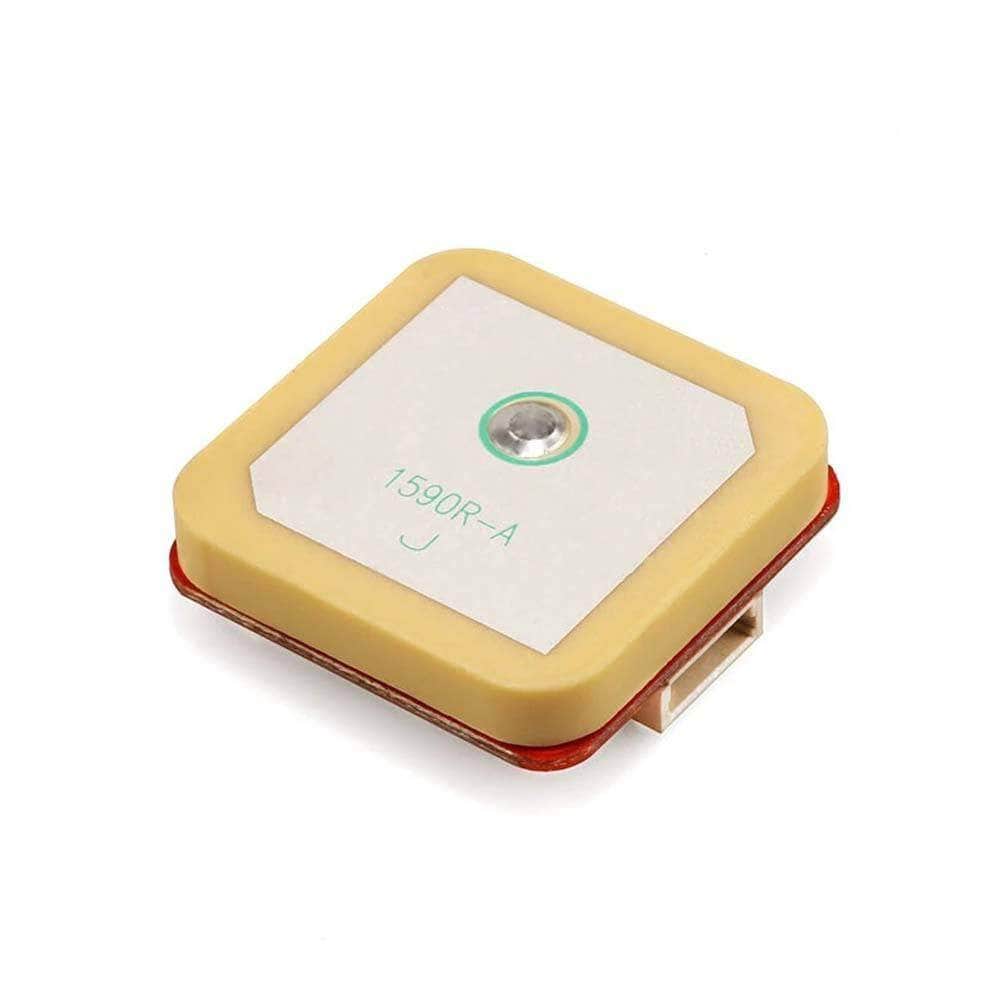

• Antenna: Ceramic Antenna

• Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS

• Receiving Channel: 72 Searching Channel

• Compass: QMC5883

• Support Rate: 115200dps

• Output Protocol: UBLOX

• Output Frequency: 1Hz-10Hz,Default 10Hz

• Speed Precison: 0.05 m/s

• Level Positioning Precison: 2D ACC1.5m(ln Open Sky)

• Receiving Sensitivity: Trace -162dBm
• Capture: -160dBm

• Dynamic Characteristics: Max Height:50000m

• Max Speed: 500m/s

• Max Acceleration: 4G

• Working Temperature: -40℃-+85℃

• Storage Temperature: -40℃-+105℃

• Size: 25mm x 25mm x 8.3mm

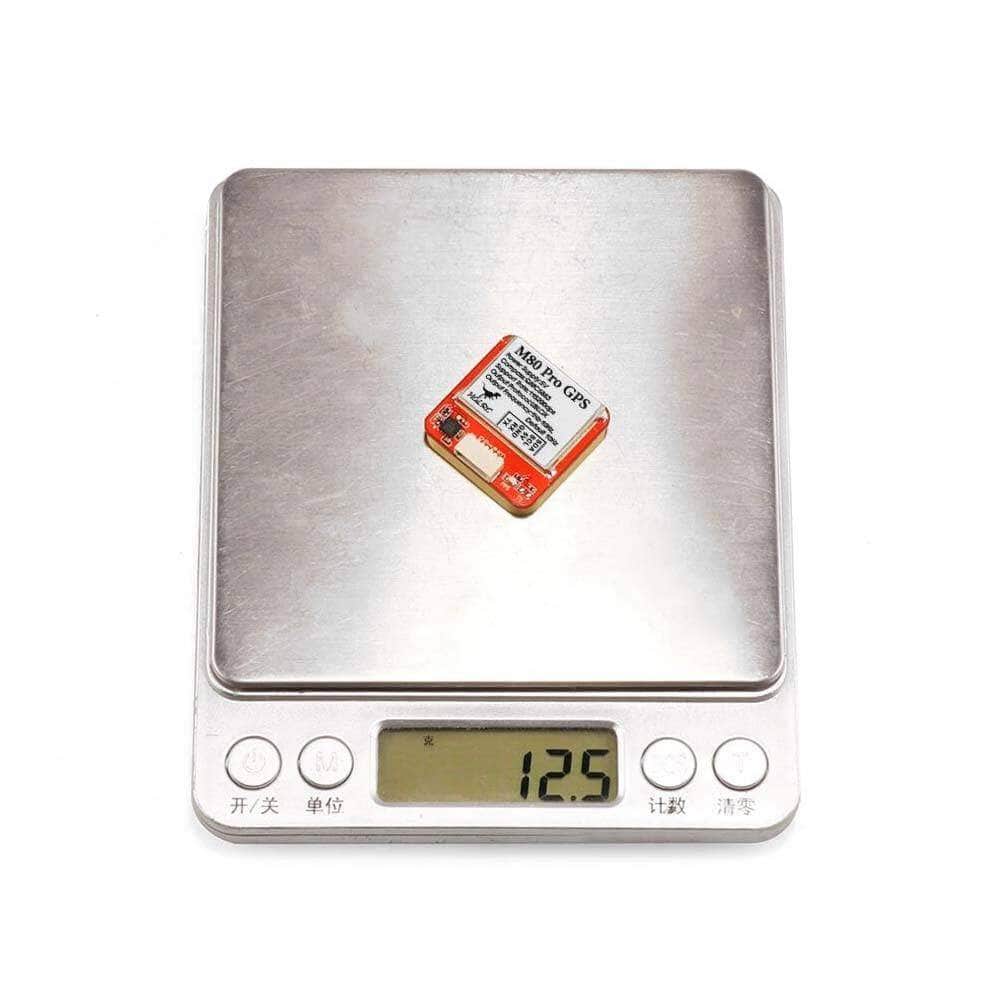

• Weight: 12.5g

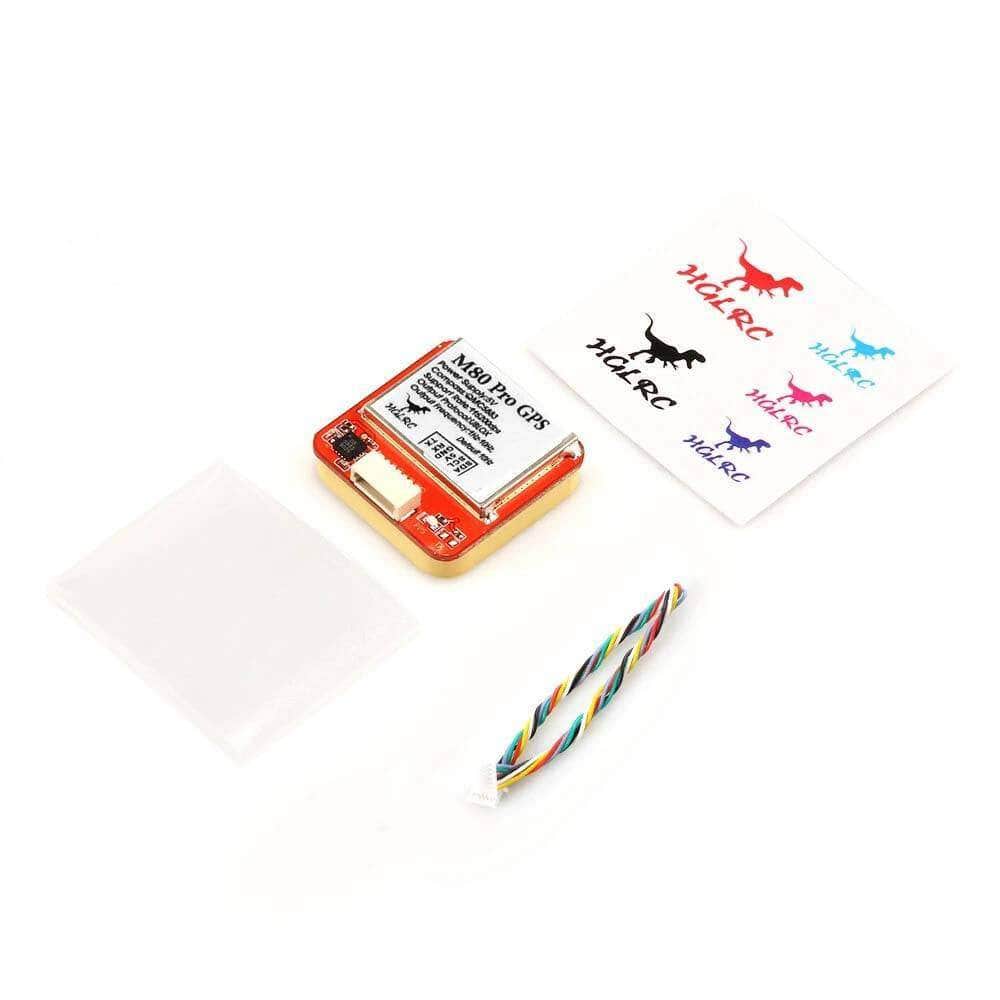

Includes

• 1x HGLRC M80 Pro GPS Module
