Description

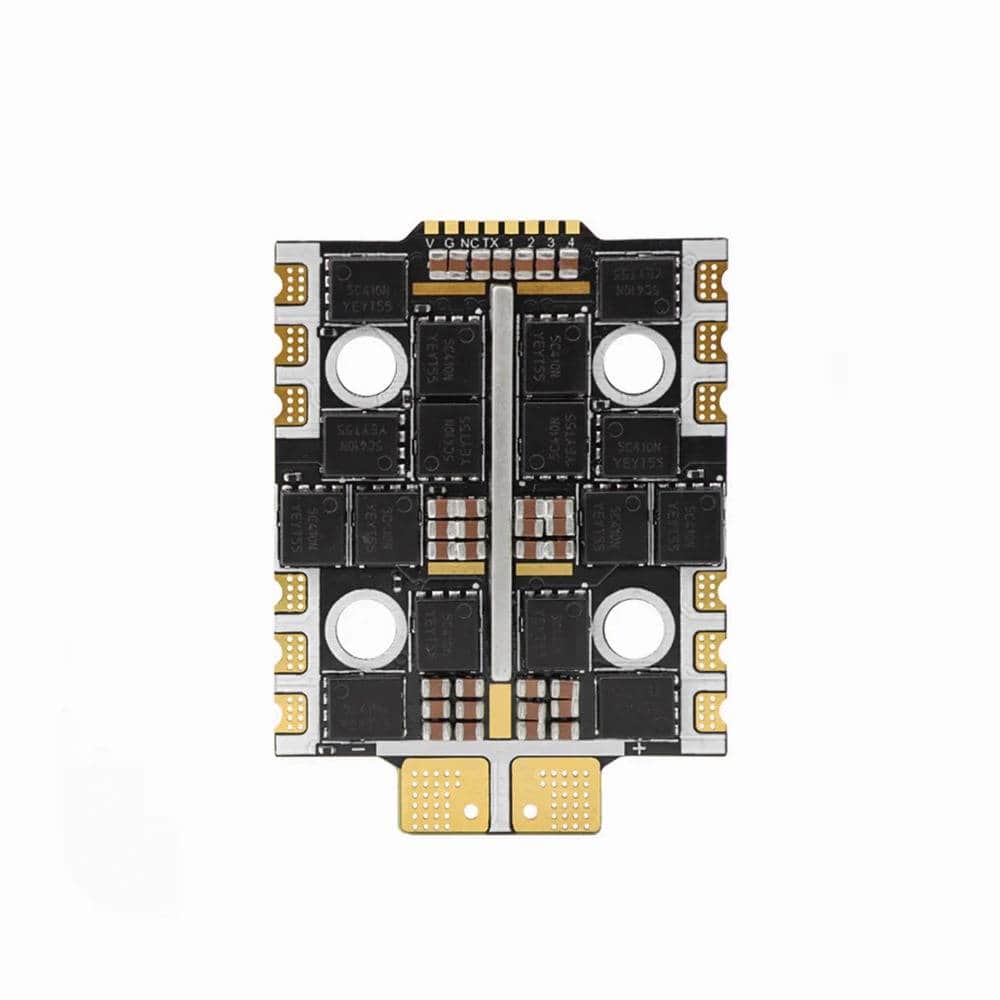

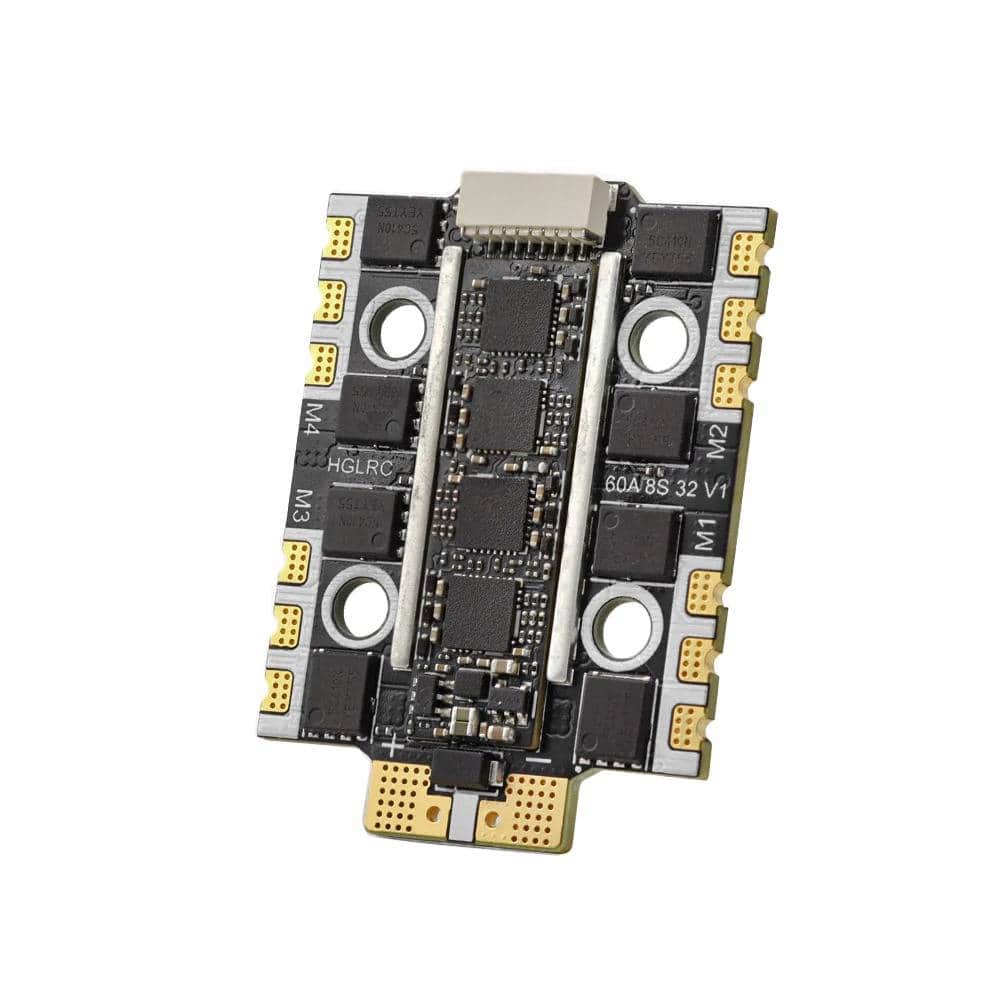

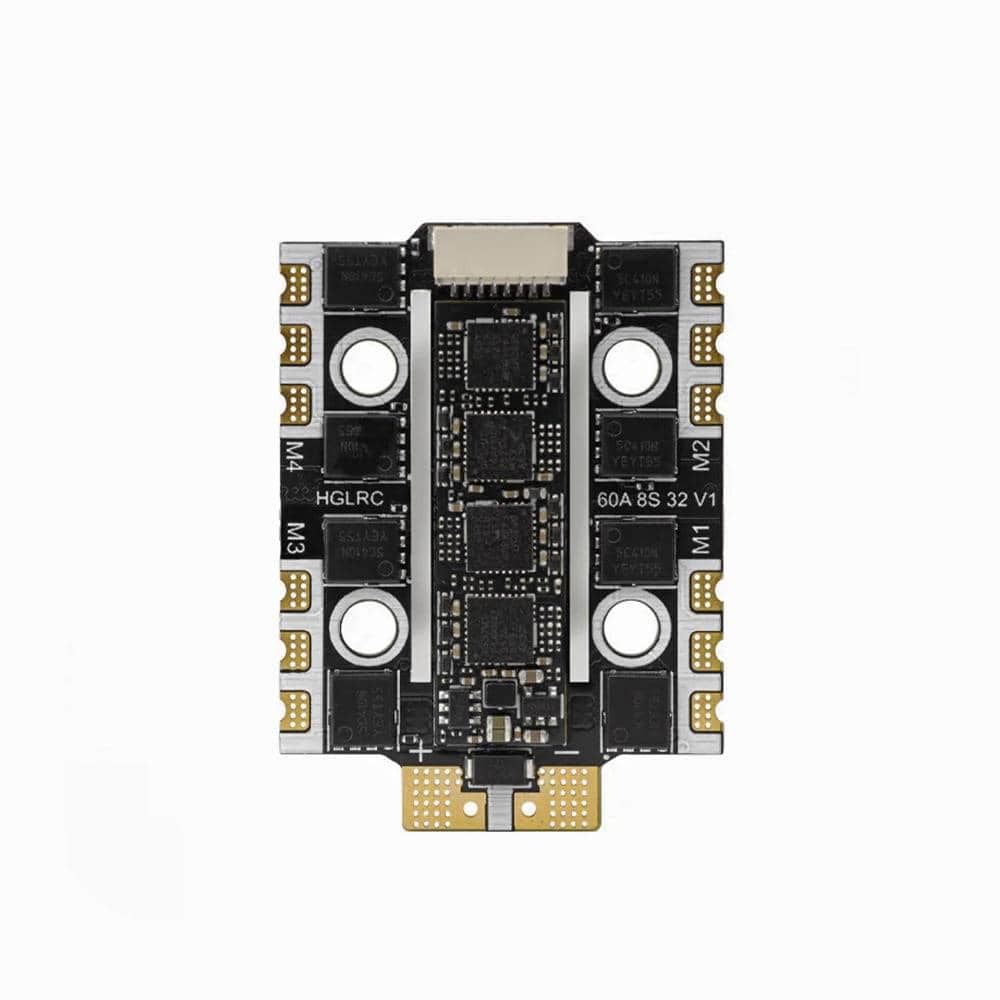

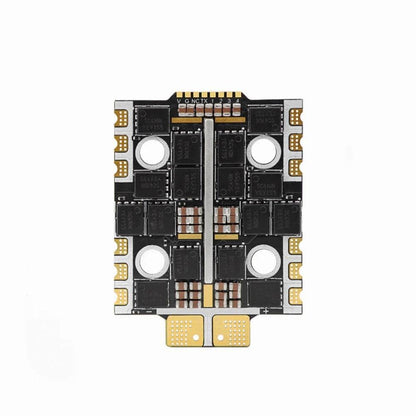

The HGLRC Mini V1 60A 8S BL32 ESC is a compact 4-in-1 speed controller built for reliable 3–8S performance. With 60A per channel output and a lightweight 14g design, it delivers smooth power for freestyle and racing builds while fitting standard 20mm mounting patterns.
Check out the rest of our 20x20 ESCs and all our HGLRC products!
Features
- 3-8S high-voltage wide input range compatible with most drone types
- High-current copper bars provide efficient heat dissipation
- Compact and lightweight 20x20mm size
- Compatible with BL32 and AM32 firmware (shipped with BL32)
- 6+4 Layer PCB provides efficient anti-interference performance
Specifications
- Input Voltage: 3-8S
- Continuous Current: 60A
- Peak Current: 65A (for 10 seconds)
- Firmware: BL32
- MCU: QF32MTF4AK8U7
- Telemetry: Supported
- Mounting Hole Pattern: 20x20mm, M3
- Supported Protocols: DShot300 / DShot600 / Oneshot / PWM
- Dimensions: 46.8mm x 34mm x 6.5mm (LxWxH)
- Weight: 14g
Links
Includes
- 1x HGLRC Mini V1 60A 8S BL32 4-in-1 ESC
More Info
- SKU: G24737CN1Z
- Barcode: 723326380921
