Description

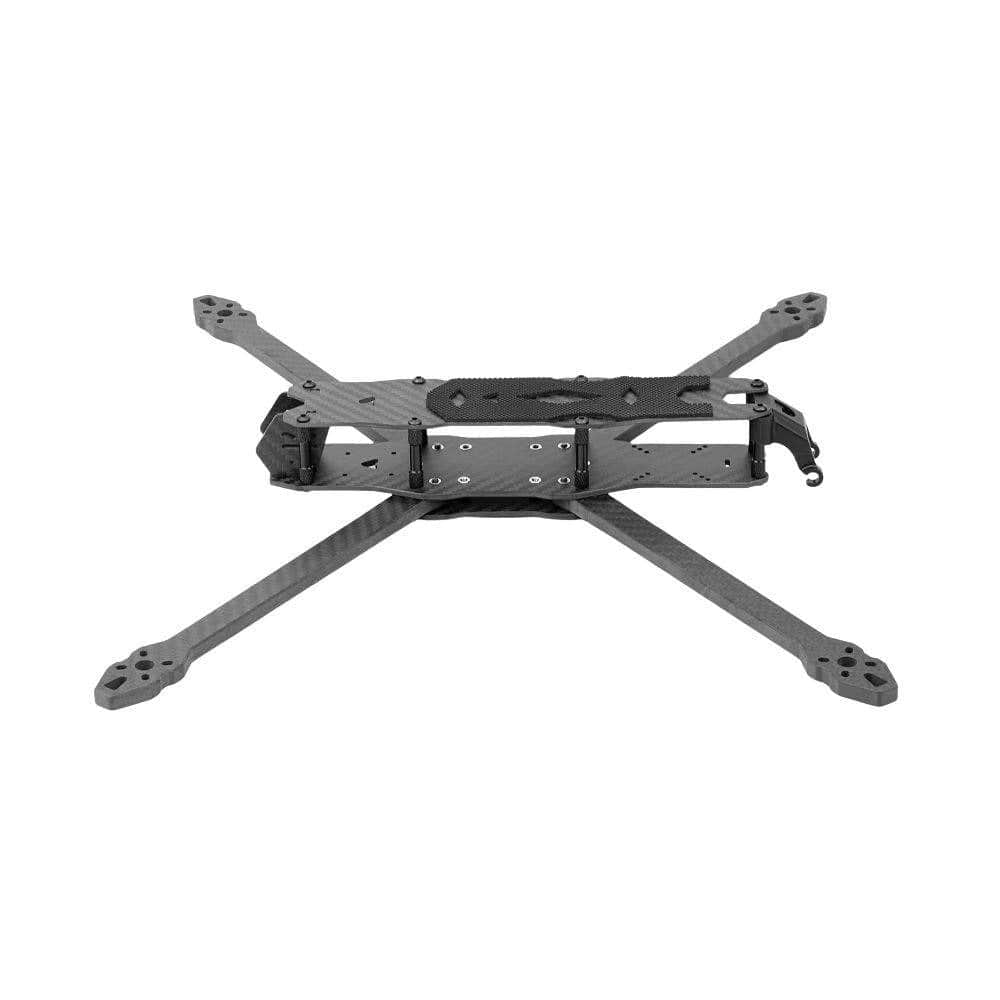

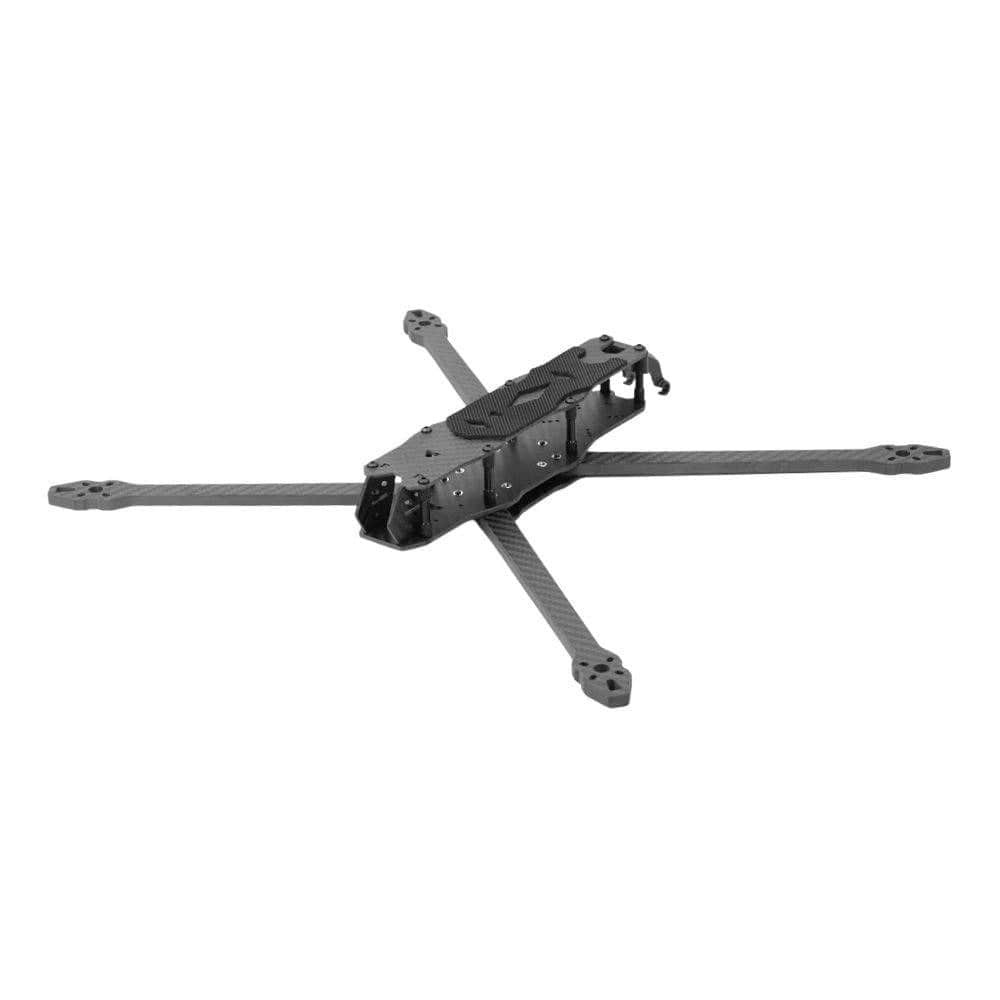

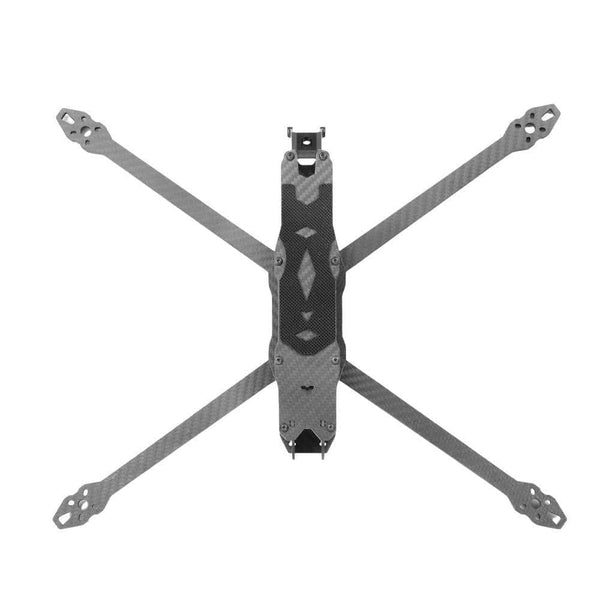

The HGLRC MY10 Frame Kit is a lightweight, durable 10‑inch frame designed for long‑range builds. Its rigid construction and optimized layout make installation easy while supporting a wide range of components.

Check out all our 8+" frames, as well as our whole HGLRC product line!

Features

• Designed for 10-inch long-range and heavy-lift builds
• 7mm thick arms for added strength and rigidity
• Supports multiple FC and VTX mounting patterns
• Spacious layout for clean electronics installation
• Includes antenna mount and battery pad for a complete setup

Specifications

• Frame: HGLRC MY10 Frame
• Type: 10-inch Frame
• Top Plate Thickness: 2mm
• Middle Plate Thickness: 3mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 7mm
• Camera Side Plate Thickness: 2mm
• Wheelbase: 415mm
• FC Mounting Pattern: 30.5mm x 30.5mm (M3)
• VTX Mounting Pattern: 30.5mm x 30.5mm (M3) / 25.5mm x 25.5mm (M2) / 20mm x 20mm (M2)
• Motor Mounting Pattern: 16mm x 16mm (M3)
• Camera Mounting Size: 19–20mm
• Overall Dimensions (L x W): 310mm x 365mm
• Frame-Only Weight: 217g ±5g (includes antenna mount, screws, anti-slip pad)

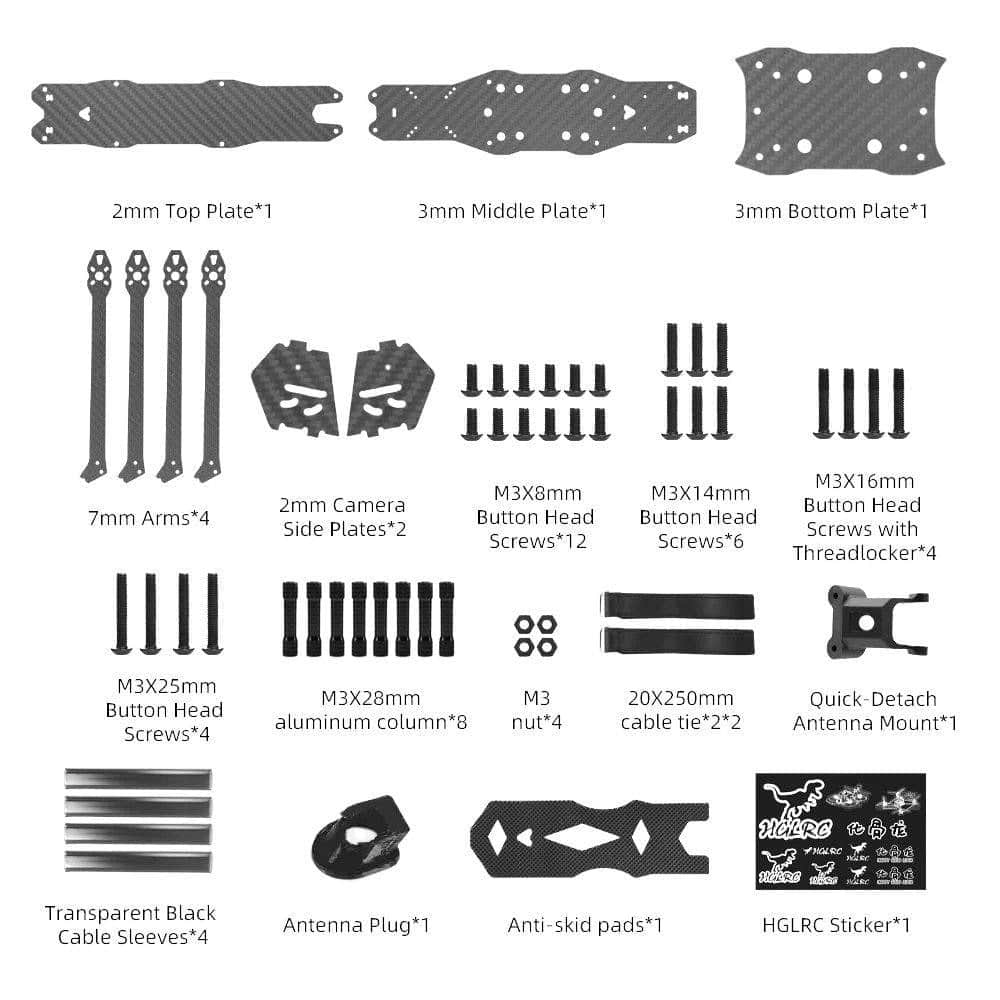

Includes

• 1x HGLRC MY10 Frame Kit
• 12x M3x8mm Button Head Screws
• 6x M3x14mm Button Head Screws
• 4x M3x16mm Button Head Screws
• 4x M3x25mm Button Head Screws
• 8x M3x28mm Aluminum Standoffs
• 4x M3 Nylon Lock Nuts
• 1x Antenna Mount
• 1x Antenna Cap/Plug
• 4x Motor Wire Tubes/Guides
• 2x 440mm Cable Ties
• 1x Anti-Slip Battery Pad
• 1x HGLRC Large Sticker Sheet
