Description

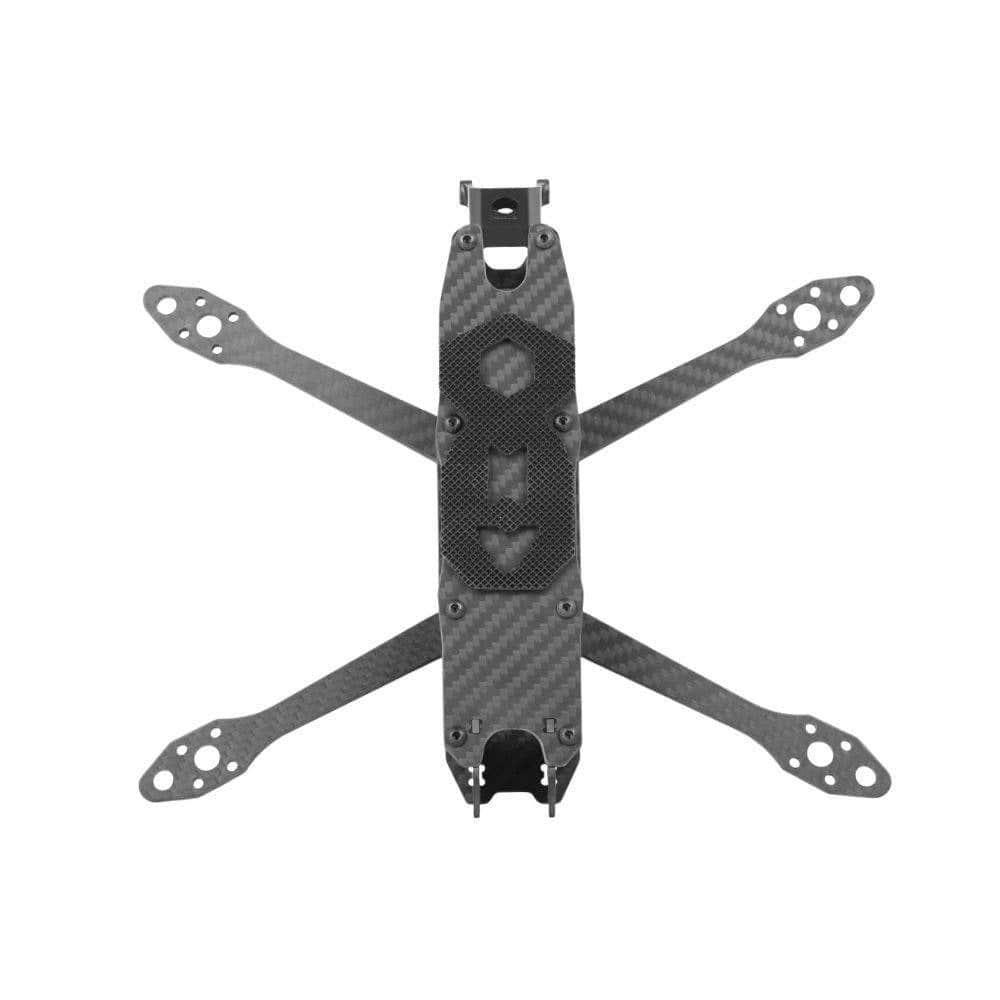

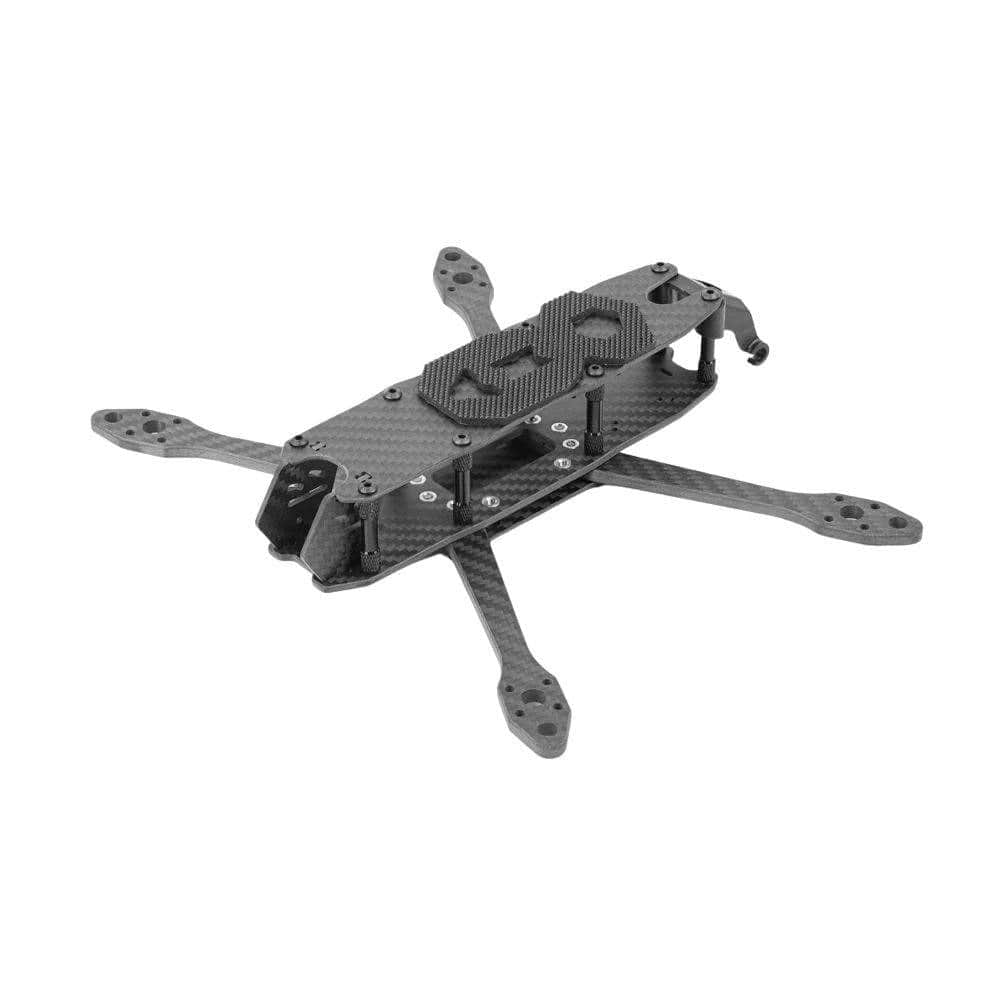

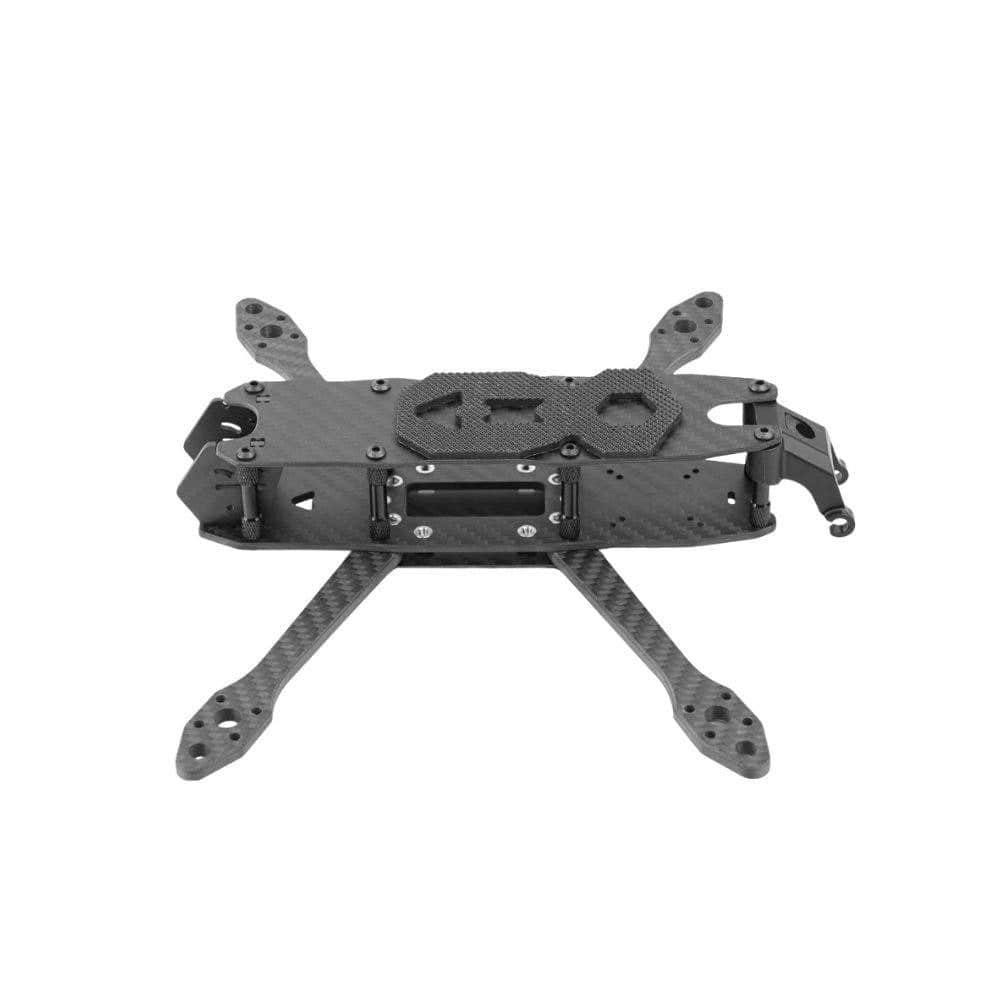

The HGLRC MY5 Frame Kit is a lightweight, durable 5‑inch frame designed for freestyle builds. Its rigid construction and optimized layout make installation easy while supporting a wide range of components.

Check out all our 5" frames, as well as our whole HGLRC product line!

Features

• Lightweight 5-inch frame optimized for freestyle and racing
• Durable carbon fiber construction with reinforced arms
• Supports standard 30.5mm x 30.5mm flight controllers and multiple VTX mounting patterns
• Easy camera installation with 19–20mm mount size
• Includes antenna mount, screws, and anti-slip pads for quick assembly

Specifications

• Frame: HGLRC MY5 Frame
• Type: 5-inch Frame
• Top Plate Thickness: 2mm
• Middle Plate Thickness: 3mm
• Bottom Plate Thickness: 2mm
• Arm Thickness: 5mm
• Camera Side Plate Thickness: 2mm
• Wheelbase: 225mm
• FC Mounting Pattern: 30.5mm x 30.5mm (M3)
• VTX Mounting Pattern: 25.5mm x 25.5mm (M2) / 20mm x 20mm (M2)
• Motor Mounting Pattern: 16mm x 16mm (M3)
• Camera Mounting Size: 19–20mm
• Overall Dimensions (L x W): 225mm x 200mm
• Frame-Only Weight: 140g ±5g (includes antenna mount, screws, anti-slip pad)

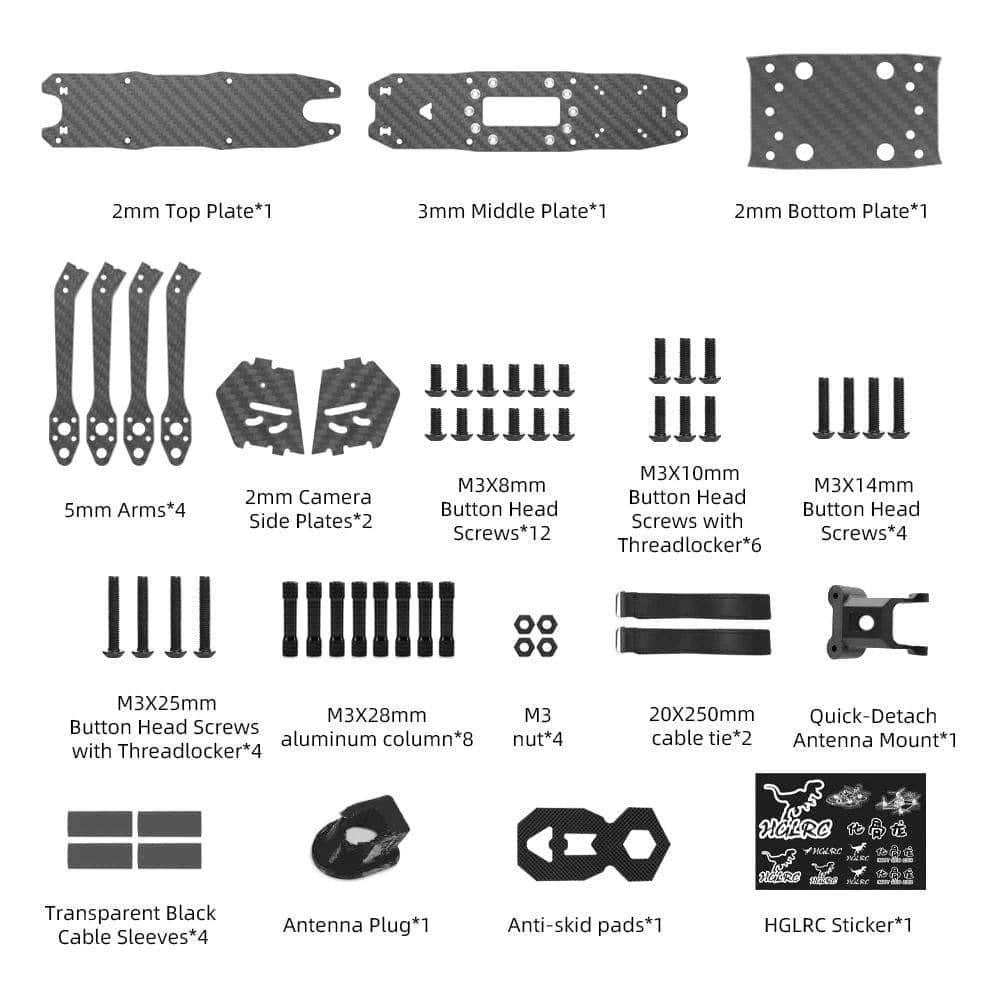

Includes

• 1x HGLRC MY5 Frame Kit
• 12x M3x8mm Button Head Screws
• 6x M3x10mm Button Head Screws
• 4x M3x14mm Button Head Screws
• 4x M3x25mm Button Head Screws
• 8x M3x28mm Aluminum Standoffs
• 4x M3 Nylon Lock Nuts
• 1x Antenna Mount
• 1x Antenna Cap/Plug
• 4x Motor Wire Tubes/Guides
• 2x 250mm Cable Ties
• 1x Anti-Slip Battery Pad
• 1x HGLRC Large Sticker Sheet
