Description

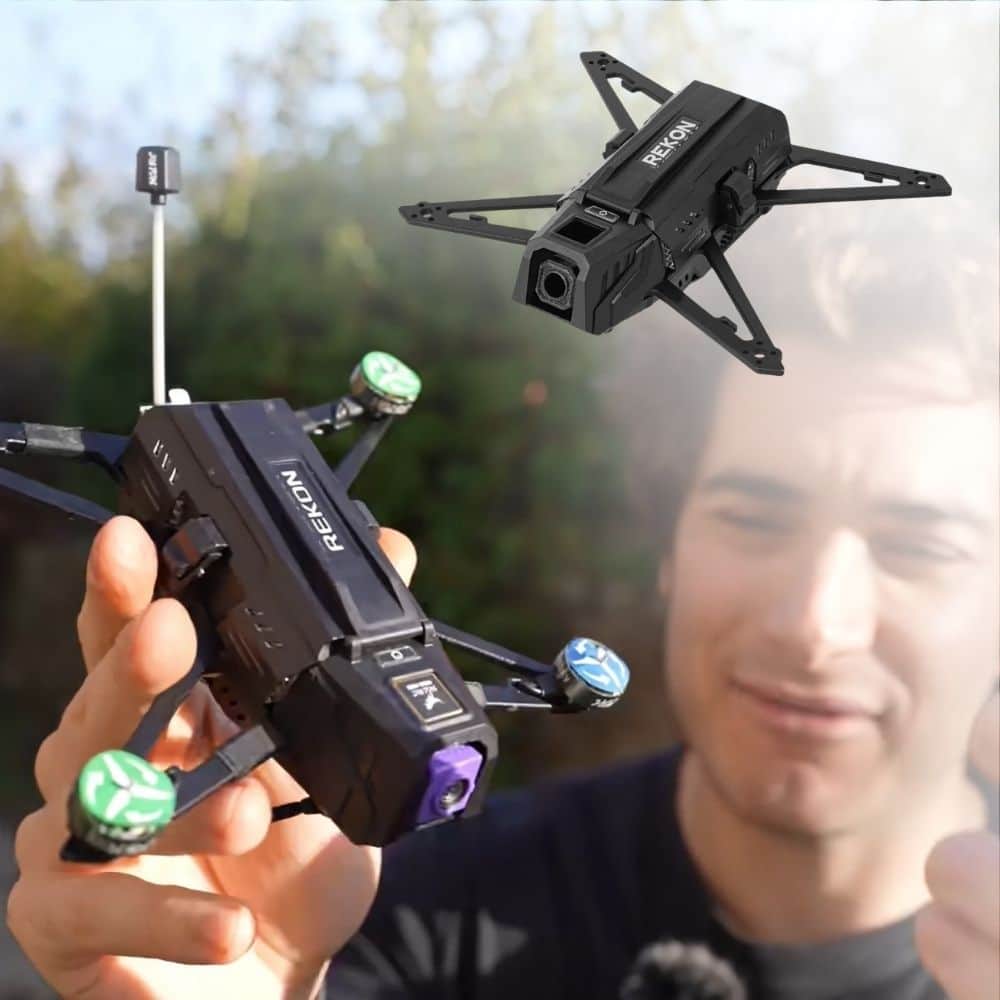

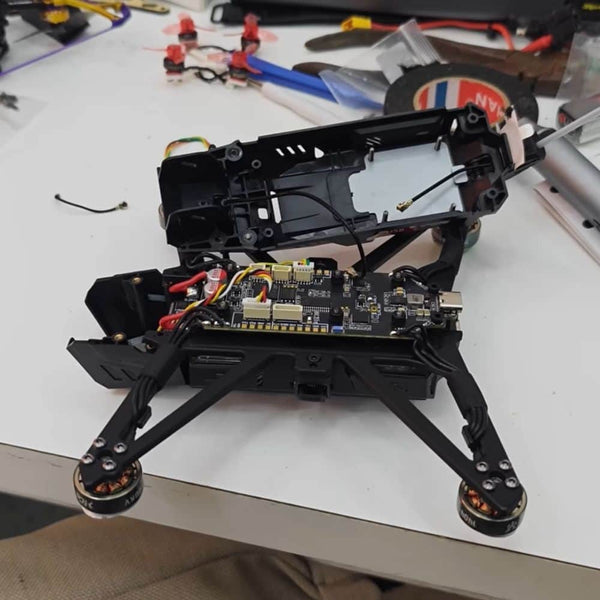

The HGLRC Rekon35 v2 frame is constructed from high-strength carbon fiber combined with injection-molded components. It features a dedicated power button and an integrated 2S power module supporting charge/discharge functions for 18650 batteries, complete with LED and buzzer status indicators. The internal battery placement reduces in-flight drag. As a 3.5-inch propeller drone, it offers precise handling and confidently tackles complex flying environments.

Be sure to check out all our 3.5" frames and all our HGLRC products!

Features

• Injection-molded body components
• Integrated 2S charge/discharge power module
• LED and buzzer status indicators
• Compatible with analog and DJI O4 FPV systems
• Compatible with multiple FC/VTX mounting hole patterns

Specifications

• Model: Rekon35 v2 frame
• Material: Carbon fiber with spray coating + injection-molded parts
• Wheelbase: 174.24mm
• FC Mounting Pattern: 20 x 20 (M2)
• VTX Mounting Pattern: 25.5 x 25.5 (M2)
• Motor Mounting Pattern: 9 x 9 (M2)
• Camera Mount Spacing: 20mm
• Overall Dimensions (LxWxH): 140mm × 160mm x 50mm
• Carbon Plate Thickness: 3mm
• Frame Weight: 95±5g (Includes 3D printed parts, power board, and screws)

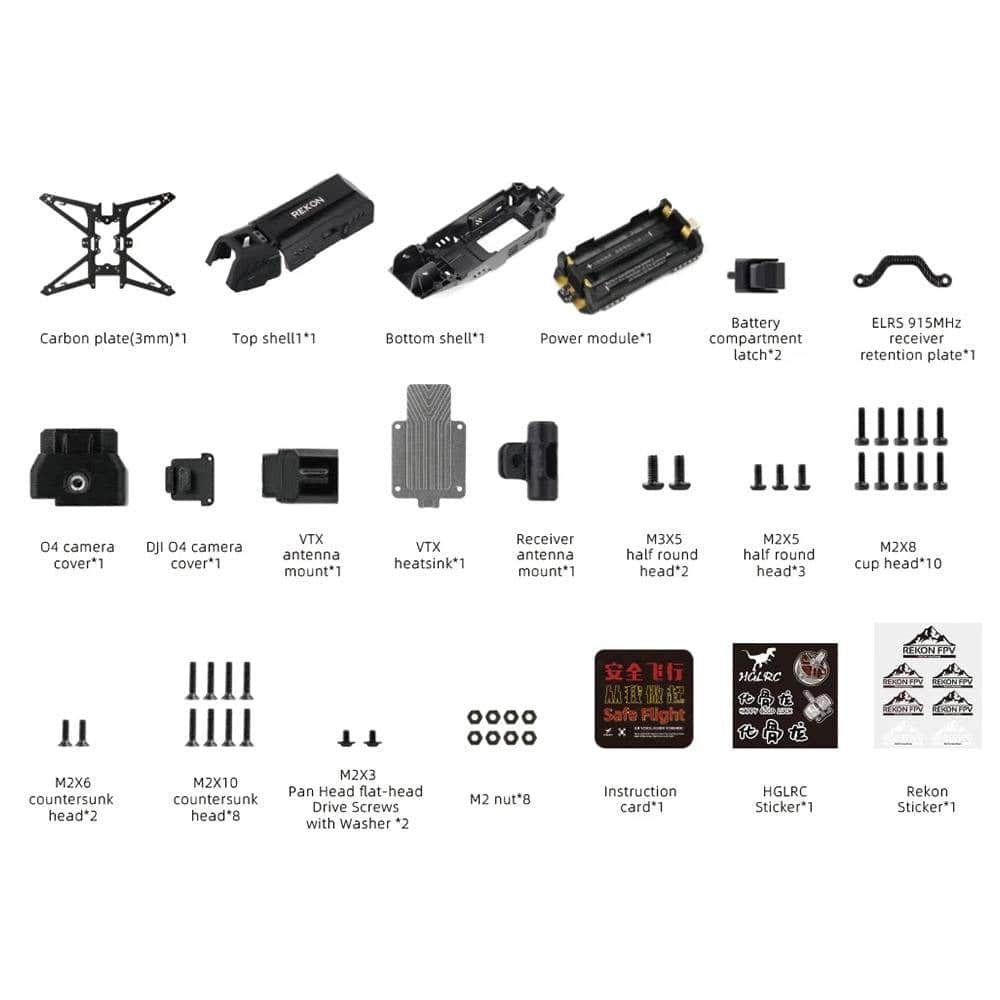

Includes

• 1x HGLRC Rekon35 Frame Kit
• 10x M2x8mm Cup Head Screws
• 8x M2x10mm Countersunk Head Screws
• 3x M2x5mm Half Round Head Screws
• 2x M2x6mm Countersunk Head Screws
• 2x M2x3mm Flathead Screws w/ Washers
• 2x M3x5mm Half Round Head Screws
• 8x M2 Nuts
• 1x Receiver Antenna Mount
• 1x VTX Antenna Mount
• 1x VTX Heatsink
• 1x O4 Camera Cover
• 2x Battery Compartment Latch
• 1x Instruction Card
• 2x HGLRC/Rekon Sticker Sheet
