Description

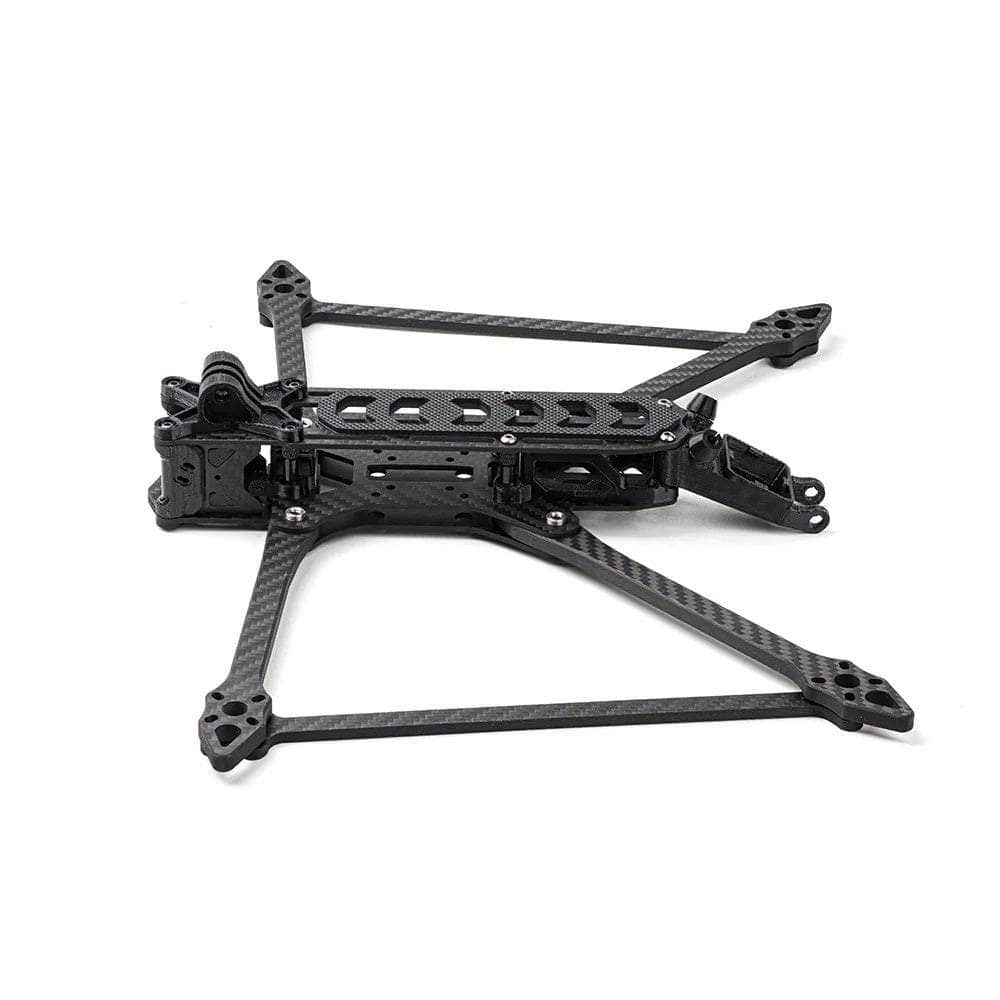

The HGLRC Rekon7 Pro frame kit. This Long range cruiser is made to carry your O3 unit and still have crazy flight times. Including a gopro mount to get those HD scenic shots with or without the O3 keeping all bases covered.

Check out our other DJI-compatible frames, electronics, and accessories as well as the rest of our HGLRC gear!

Features

• 7 inch
• 3K Carbon fiber
• Carries O3 unit

Specifications

• Wheelbase:324mm

• Size:337x246mm

• Top plate thickness:2mm

• Bottom plate thickness:2mm

• Middle plate thickness:2mm

• Front arm:6mm

• Rear arm:6mm

• Frame protection bar:2mm

• Camera side plate:2mm

• Top and middle plate space:20mm

• Flight controller mounting hole:20x20mm

• Camera mount:19x19mm/20x20mm

• Motor mounting hole:16x16/19x19mm

• Weight:0g

Includes

• 1x HGLRC Rekon7 Pro Long Range 7" Frame Kit

Included in Box

• 1x 2mm top plate
• 1x 2mm base plate

• 1x 2mm mid plate

• 2x 6mm front arm

• 2x 6mm rear arm

• 2x 2mm rack protection board

• 2x 2mm camera side panel

• 2x 4mm Arm Reinforcement rod

• 2x M3x28mm black mesh aluminum column

• 4x M3x20mm black mesh aluminum column

• 2x M3x18mm black mesh aluminum pillar

• 4x M4x12 Screws

• 4x M3x20 Screws

• 4x M3x16 Screws

• 4x M3x10 Screws

• 8x M3x8 Screws

• 4x M2x20 Screws

• 1x M2x16 Screws

• 1x M2x10 Screws

• 2x M2x4 Screws

• 1x M5 lock nut (red)

• 4x M3 self-locking nuts

• 5x M2 self-locking nuts

• 8x M3x8 shock-absorption balls

• 4x M2x4 shock-absorption balls

• 2x battery straps 20x250mm

• 1x Battery Anti-slip pad

• 1x TPU black GoPro holder mount

• 1x TPU black GPS mount

• 1x TPU black antenna mount

• 1x TPU black T-antenna mount

• 1x TPU black buzzer mount
• 1x TPU black DJI Air unit Block A

• 1x TPU black DJI Air unit Block B

• 1x TPU black DJI O3 holder mount

• 1x TPU black Camera converting seat
