Description

Check out all our 5" frames and other DJI O3 Compatible Quads also our whole HGLRC product line!

Need Spare parts for your Sector Frame? Check out our spare parts list for all your needs.

Features

• Replaceable arms for quick disassembly without taking apart the whole frame.

• A fixed power outlet for convenience and protecting your power cable from cutting by propellers.

• Dust-proof straps covering both sides to better protect your rig and keep them clean.

• CNC aluminum side plates combined with 3D printed parts to make your drone look dope!

• The Sector D5 optimized body aluminum parts for DJI O3 VTX. The lens is fixed by the print to effectively reduce low-frequency vibration, enhance shooting stability and reduce in-flight video jelly.

Specifications

• Brand name: HGLRC

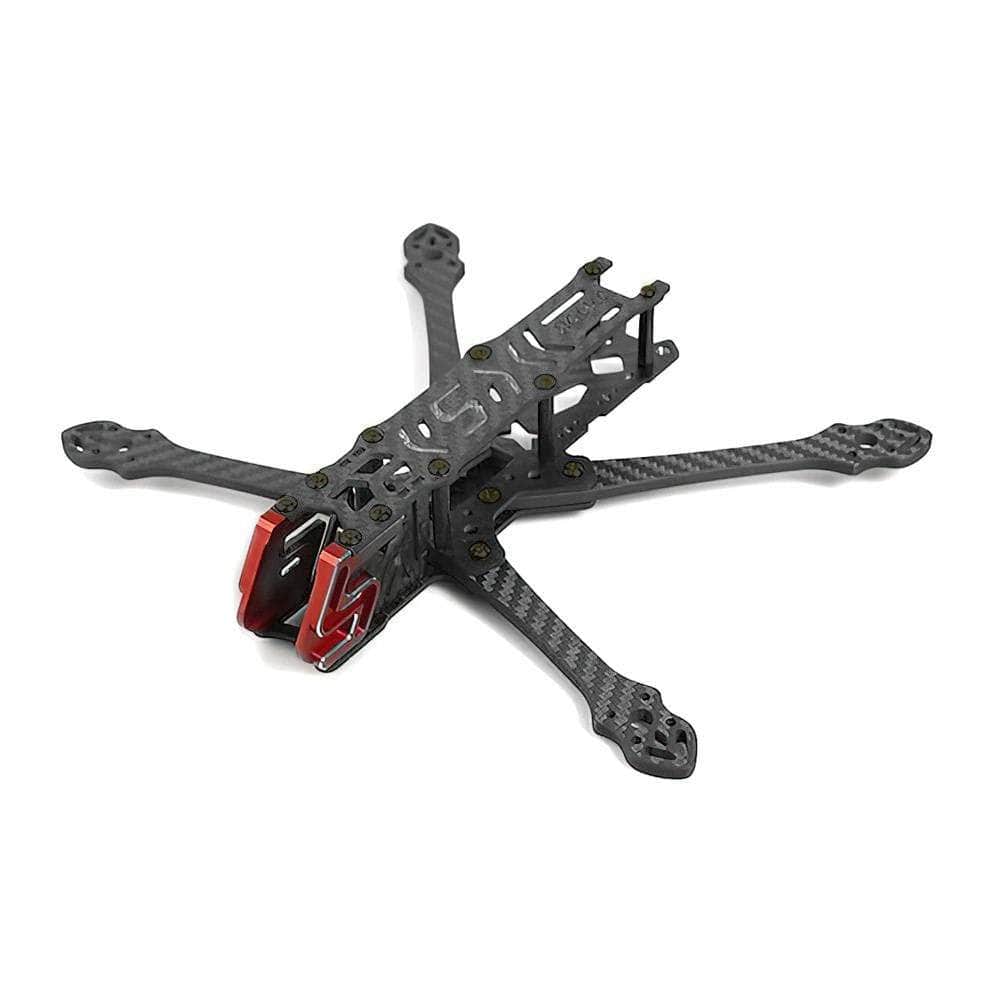

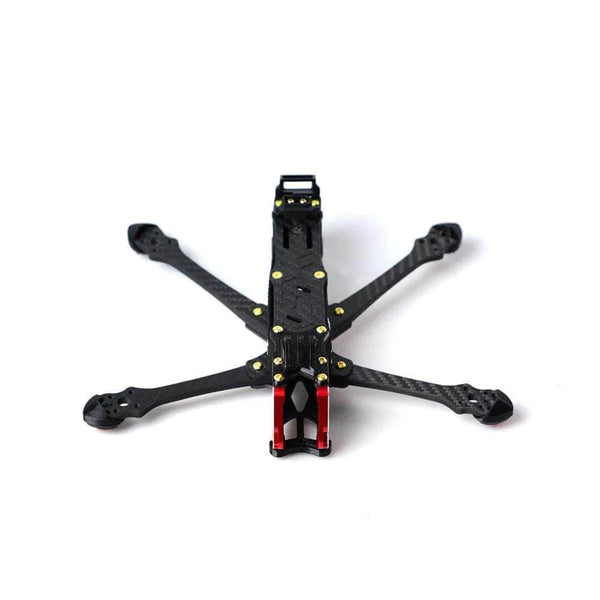

• Model: Sector D5 FR Freestyle Frame
• Material: 3K Carbon Fiber
• Type: 5-inch
• Wheelbase: 225 mm
• Size: 230x184 mm
• Top plate: 2.5mm
• Middle plate: 2mm
• Bottom plate: 2.5mm
• Top and middle plate space: 25mm
• FC mounting hole: 30.5mmx30.5mm/20x20mm M3
• VTX Mounting: 20x20
• Camera mount: 19x19mm & 20x20mm
• Motor mounting hole: M3X16

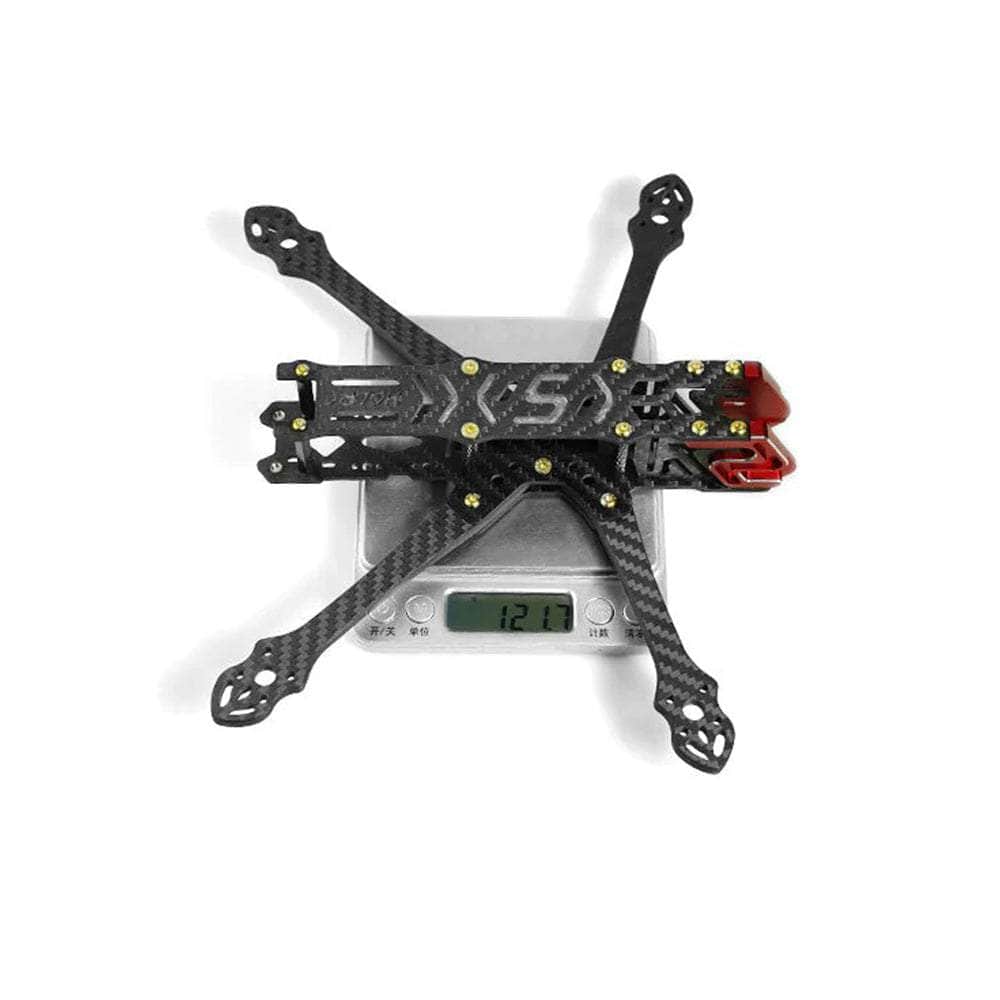

• Weight: 121.7g

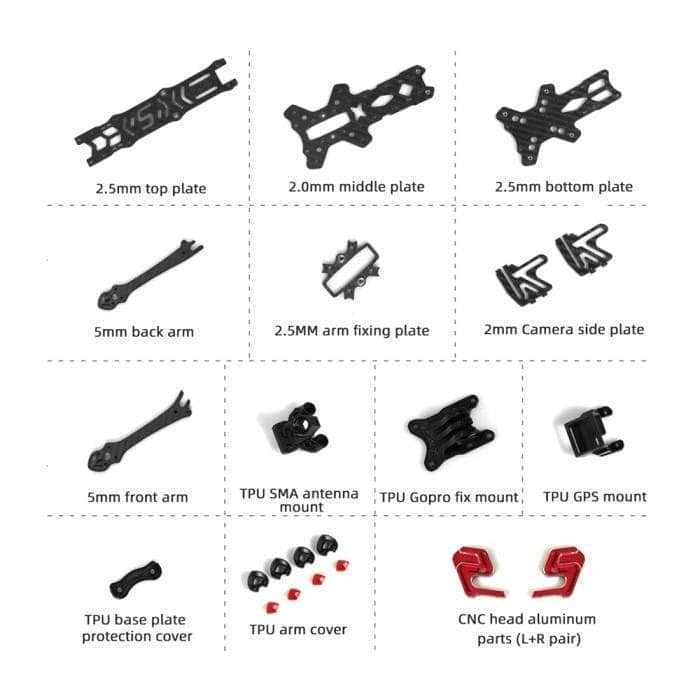

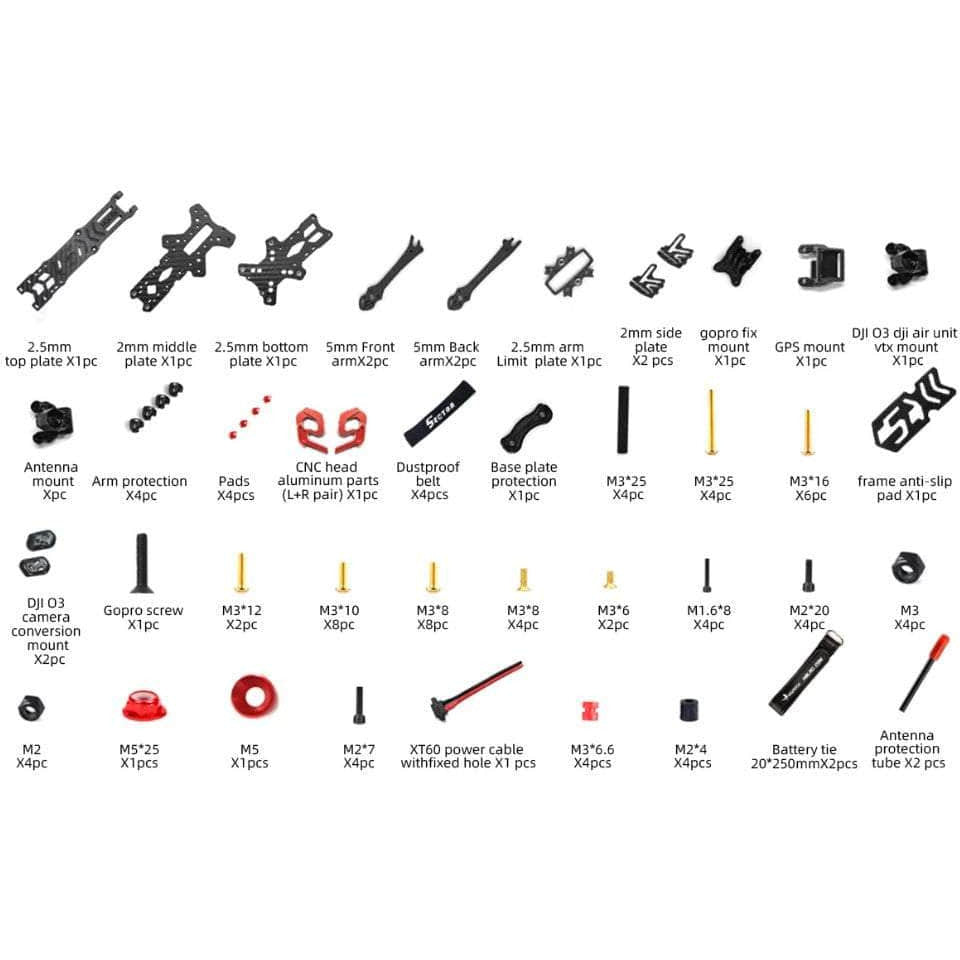

Includes

• 1x HGLRC Sector D5 5" Freestyle Frame Kit
• 1 x 2.5 mm Top plate
• 1x 2 mm Mid plate

• 1x 2.5 mm Base plate

• 2x 5 mm Front arm

• 2x 5 mm Rear arm

• 1x 2.5mm Arm limit plate

• 2x 2mm Camera side panel

• 1x Frame head CNC aluminum parts (one pair)

• 1x TPU Black GOPRO holder mount

• 1X TPU black Cam Conversion board (one pair)

• 1x TPU black SMA antenna mount

• 1x TPU black GPS mount

• 1x TPU black bottom mount

• 4x TPU black arm protection

• 4x TPU Red footpad

• 2x Battery straps 20x250mm
• 1x Battery Anti-slip pad

• 1x Screw Accessory package
