Description

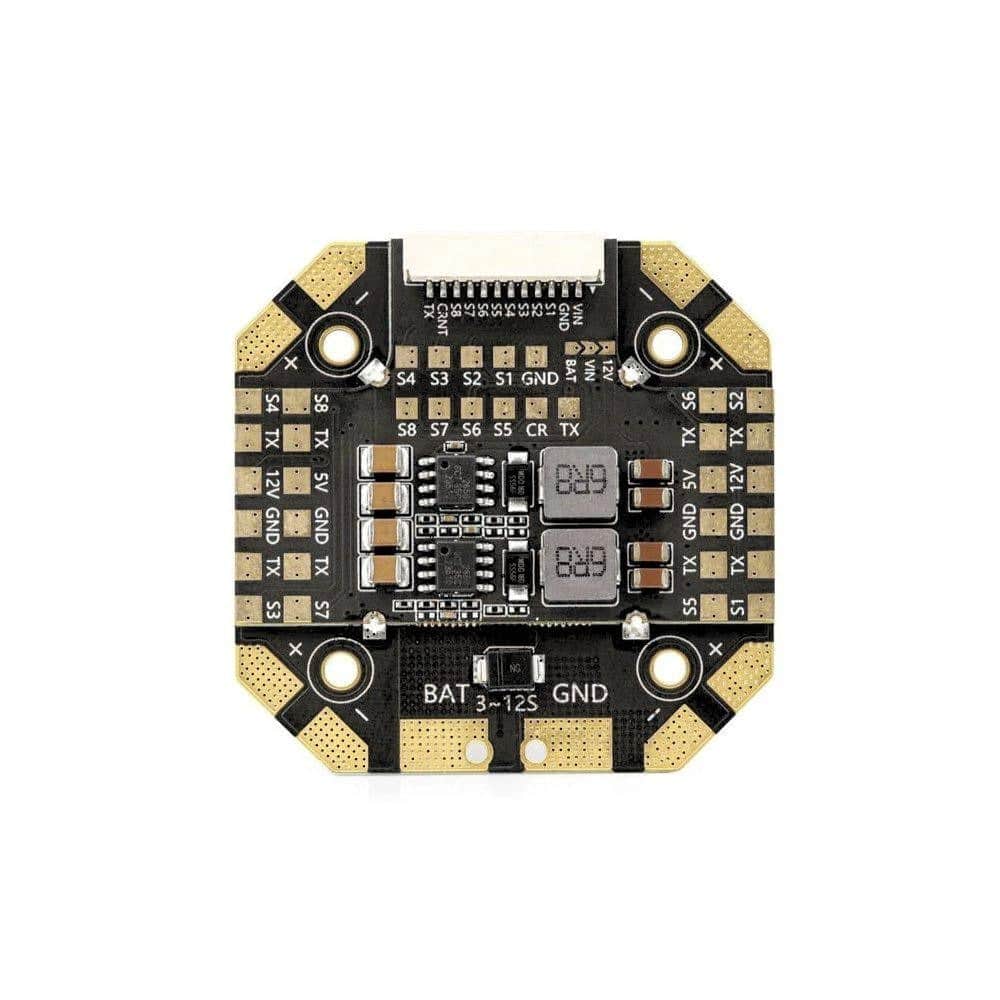

The HGLRC Specter 100A 12S PDB is a compact distribution board designed for high-performance builds. It supports up to 8 ESCs with telemetry feedback, offers 5V/5A and 12V/4A BEC outputs, and includes an integrated amperemeter. The board handles continuous 100A per rail (120A peak) and fits standard 30.5mm M3 mounting patterns.

Check out the rest of our BECs and PDBs and all our HGLRC products!

Features

• Supports up to 8 ESCs for multi-motor builds
• Integrated 5V and 12V BEC outputs for clean power distribution
• Telemetry feedback capability for compatible ESCs
• Built-in current sensor for real-time power monitoring
• 30.5mm x 30.5mm mounting pattern for standard frame compatibility

Specifications

• Product Name: Distribution Board
• ESC Support: Up to 8 ESCs
• Telemetry Feedback: Supported (ESCs must support telemetry)
• 5V BEC Output: 5A
• 12V BEC Output: 4A
• Amperemeter: Supported
• PCB Current: Continuous 4 × 100A (Instantaneous 120A)

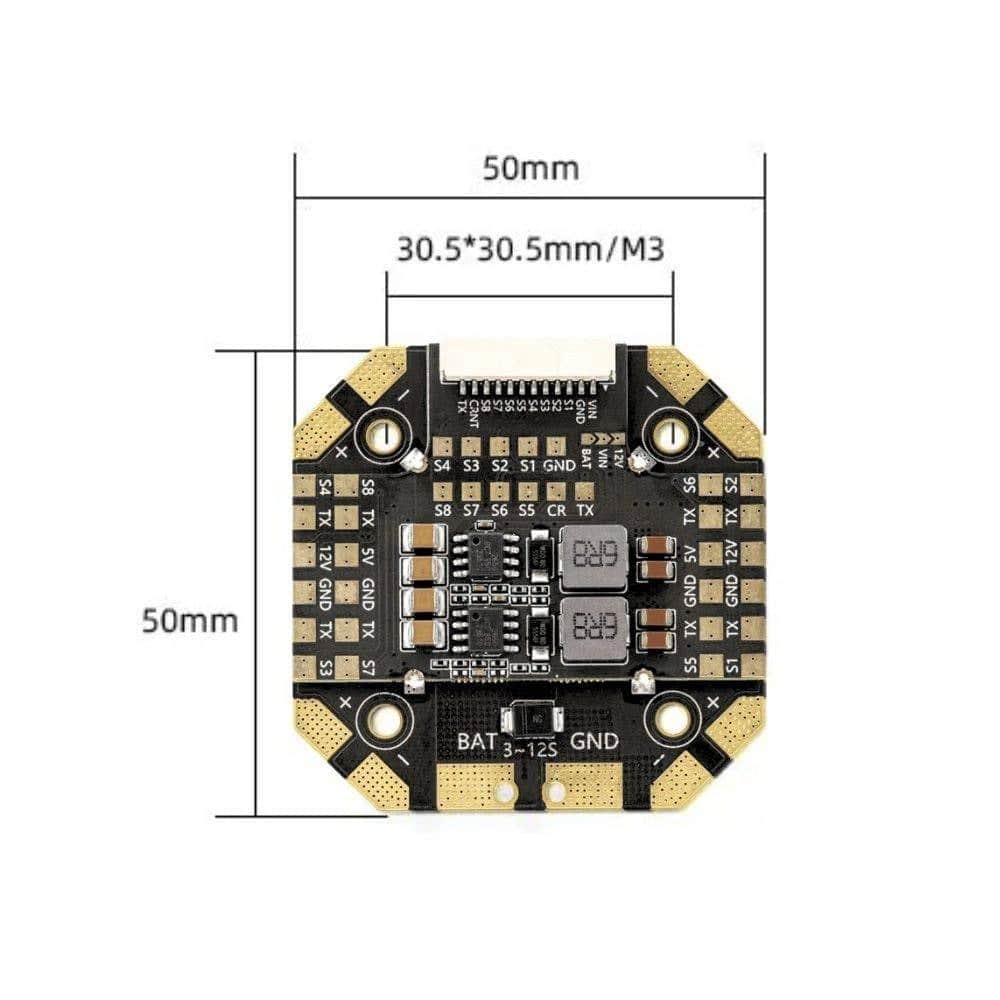

• Board Size: 50mm × 50mm × 9.8mm
• Mounting Hole Pattern: 30.5mm × 30.5mm (M3)
• Weight: 24g (±2g)

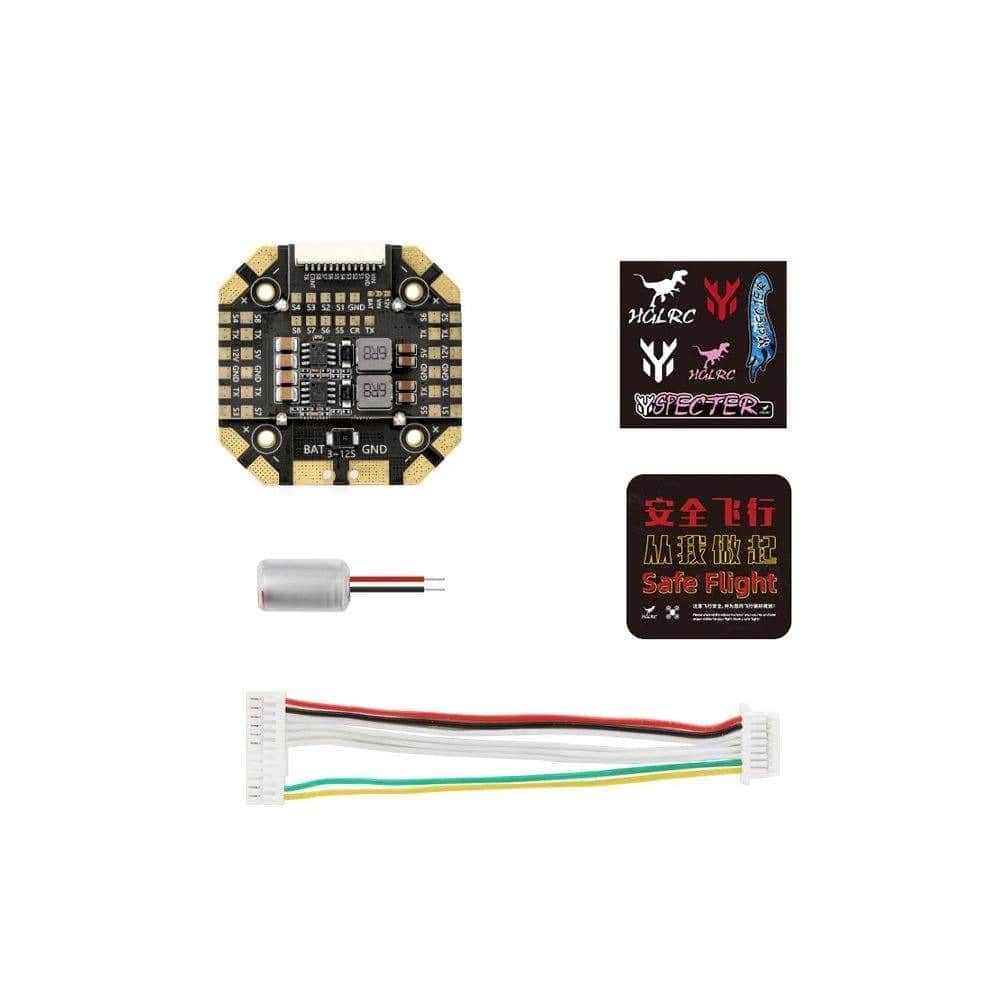

Includes

• 1x HGLRC Specter 100A 12S Power Distribution Board
• 1x Capacitor
• 1x Cable
