Description

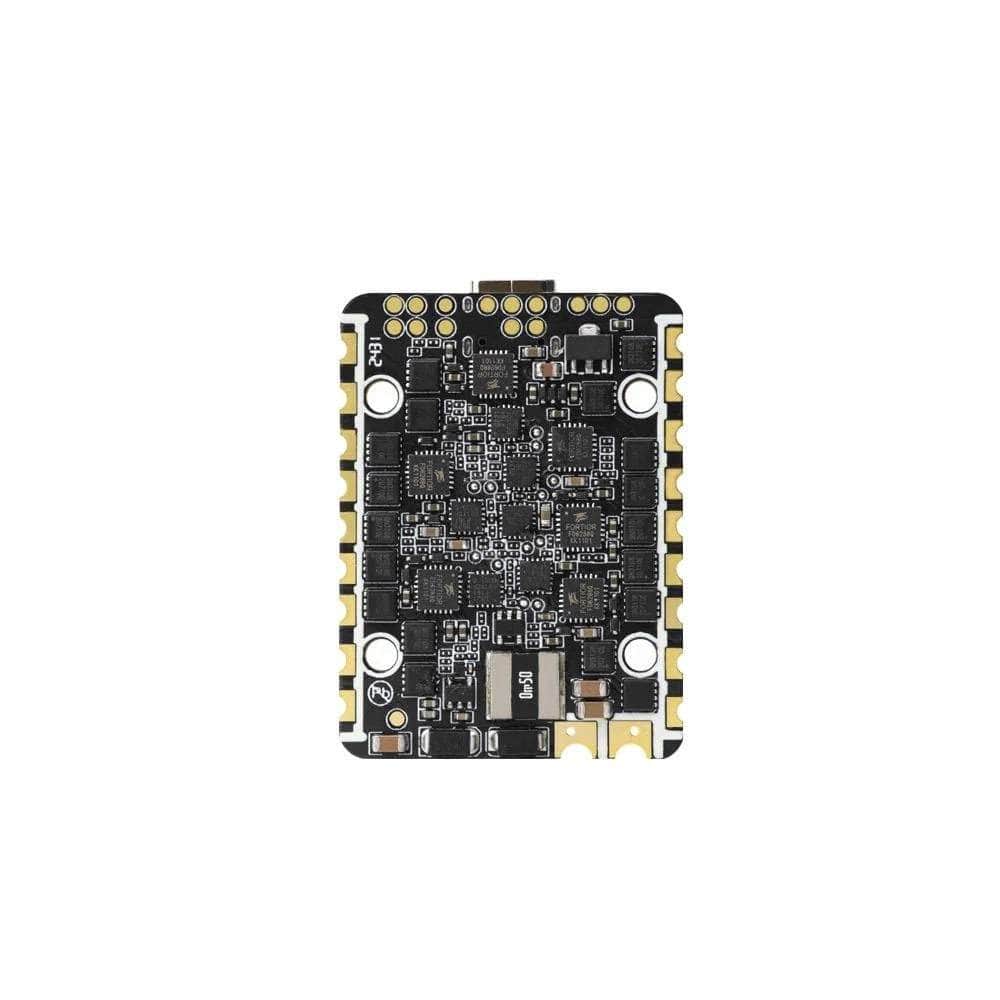

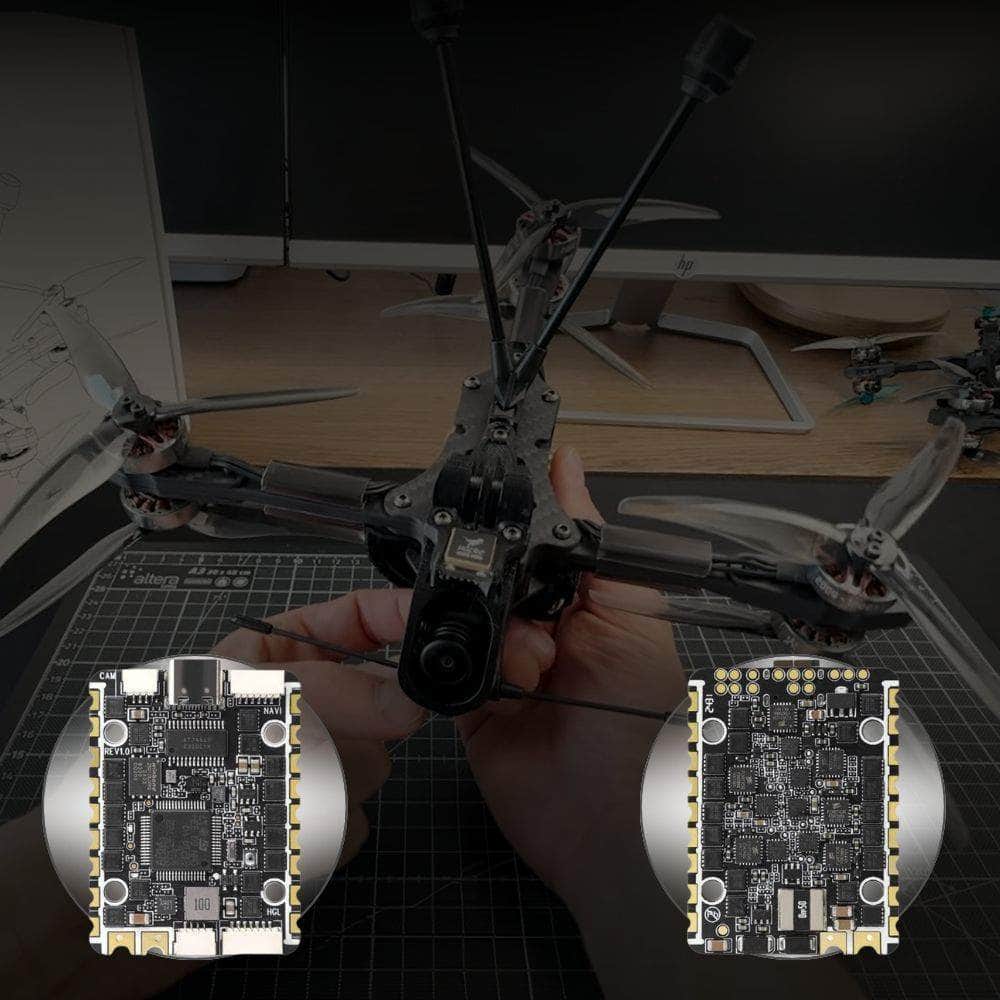

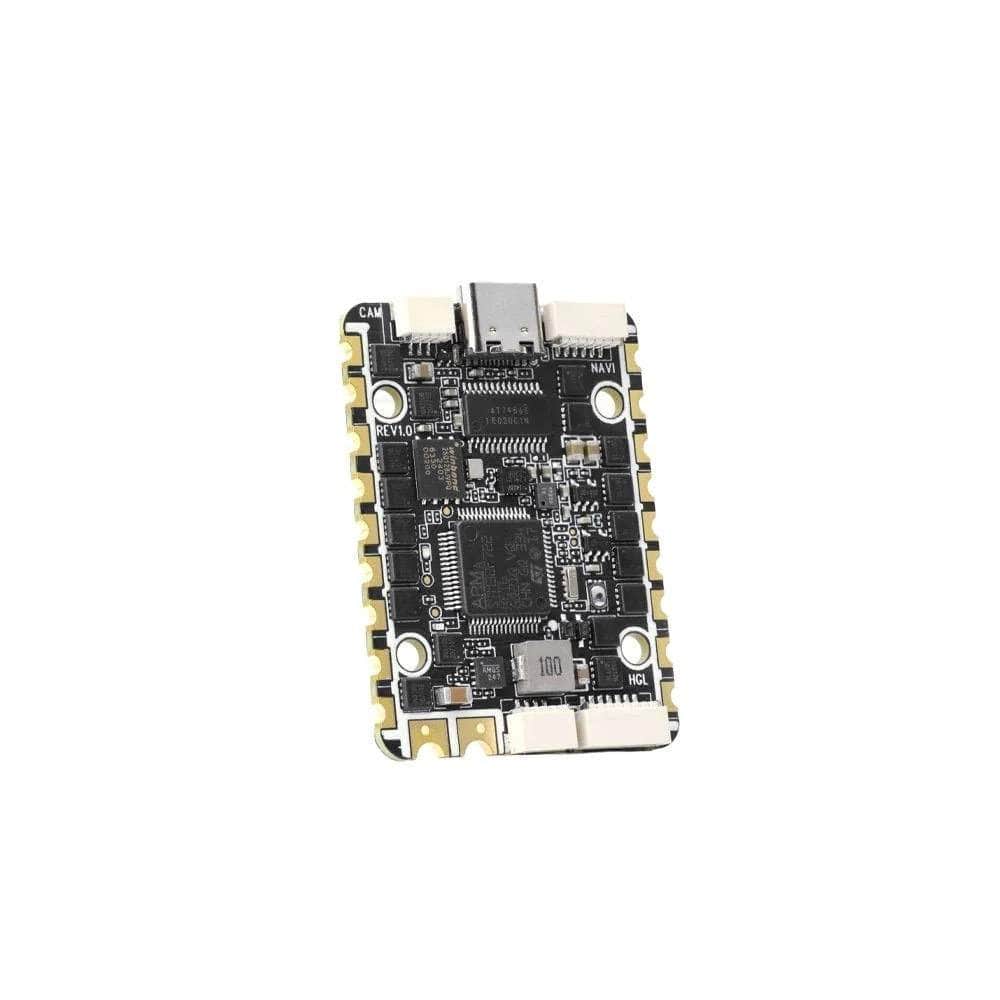

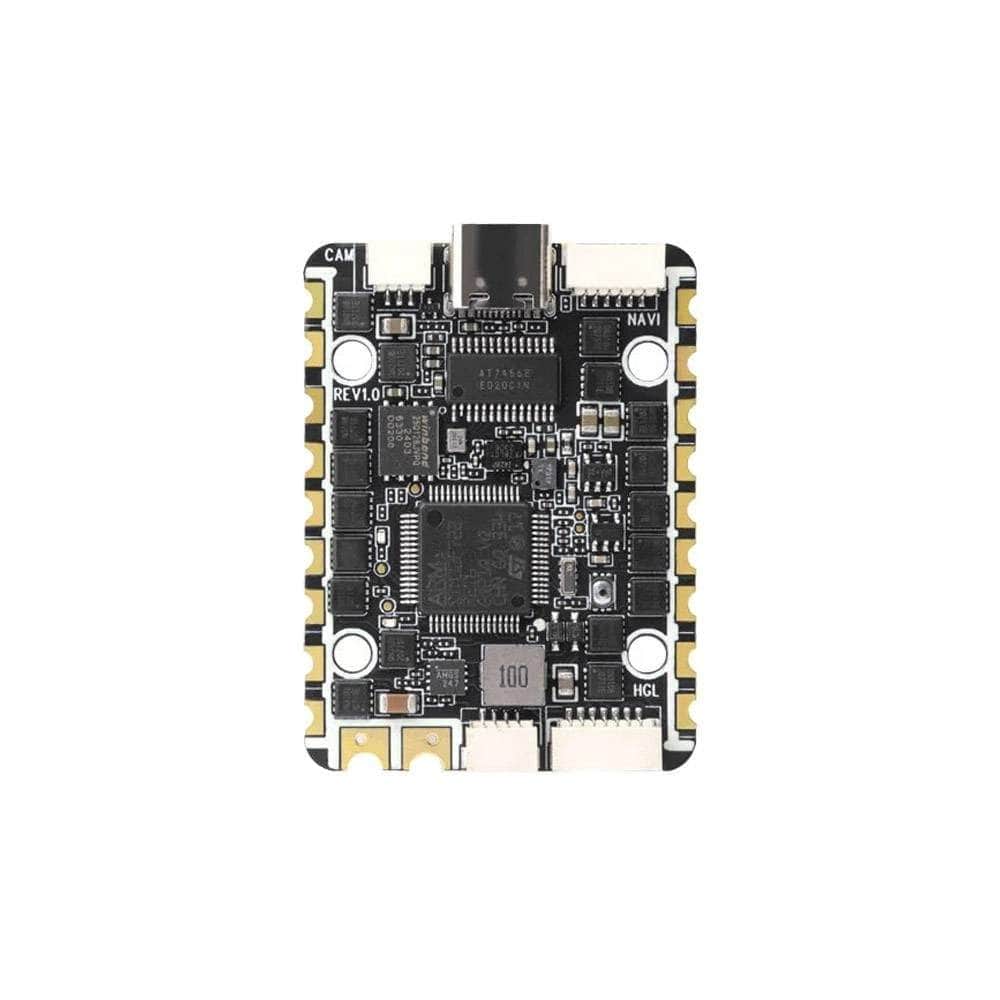

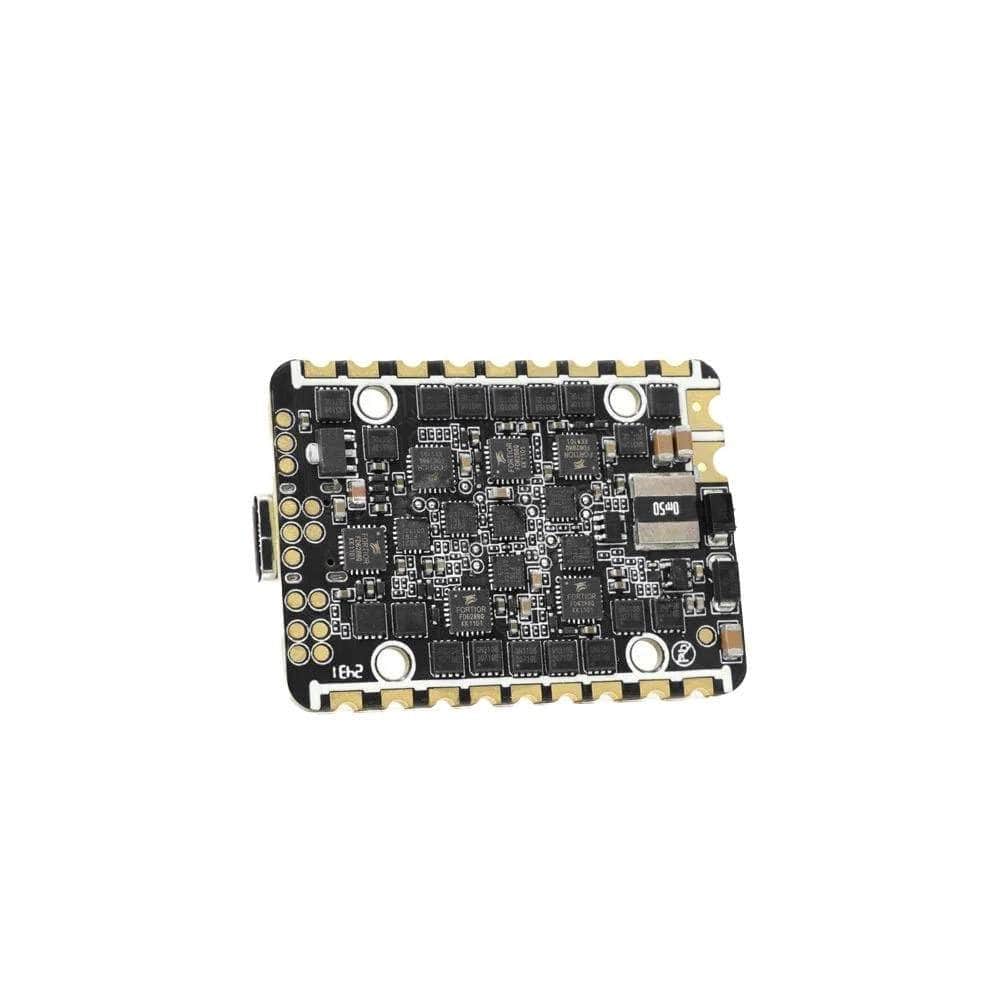

The HGLRC Specter 6-in-1 AIO is a high-performance all-in-one flight controller built specifically for Y6, hexacopter, and other complex multirotor configurations. Combining an F722 flight controller with a powerful 40A 6-channel ESC, the Specter eliminates messy wiring while delivering unmatched power and reliability. With direct plug support for HD VTX Air Units or analog systems, this compact unit is engineered for performance, simplicity, and versatility in advanced builds.

Check out all our whoop flight controllers, and our GEPRC products!

Features

• 6-channel ESC output supports Y6, hexacopter, and mixed configurations
• Direct plug support for HD VTX Air Unit and analog VTX terminals
• Each channel supports up to 40A for high-current performance
• Compact 2-in-1 FC and ESC design—no complex wiring needed

Specifications

• Name: HGLRC SPECTER F722 40A 6 channel AIO
• Size: 34 x 48mm
• Mounting hole: 25.5 x 25.5mm, M2
• Weight: 14g
• Flight control MCU: STM32F722
• Gyroscope: ICM42688P
• Barometer: dps310
• Working voltage: 8.4V—26V (2S-6S lipo)
• Maximum working current of single ESC: 40A
• Flight control firmware: HGLRCF722AIO_X6 4.4.3
• ESC firmware: F-H-40- Bluejay, 0.19, 48kHz
• Black box: 16MB
• UARTS: 3

Includes

• 1x HGLRC Specter 6-in-1 AIO - F722 FC + 40A ESC
• 1x Power Connector
• 2x USB-C Adapters
• 1x Hardware Set
• 1x Wiring Set
• 4x Grommets
• 1x Capacitor
• 1x Stickers
