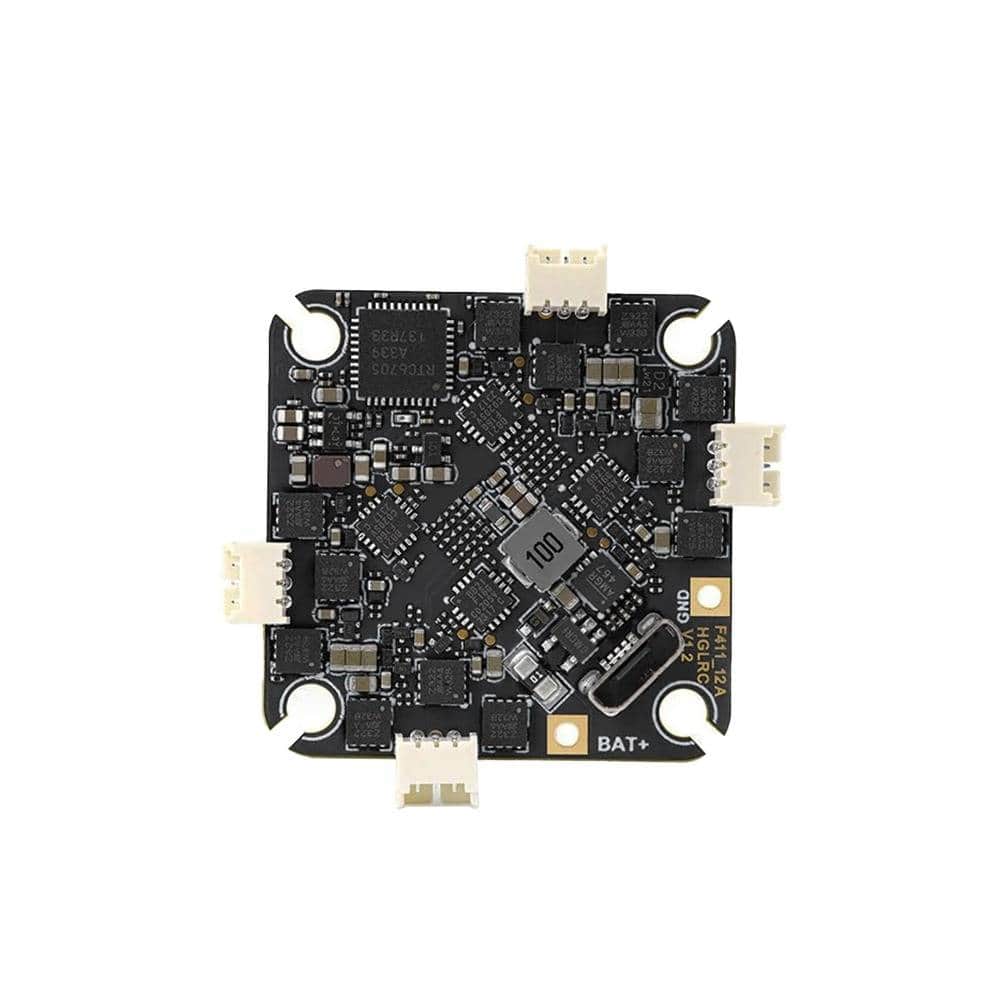

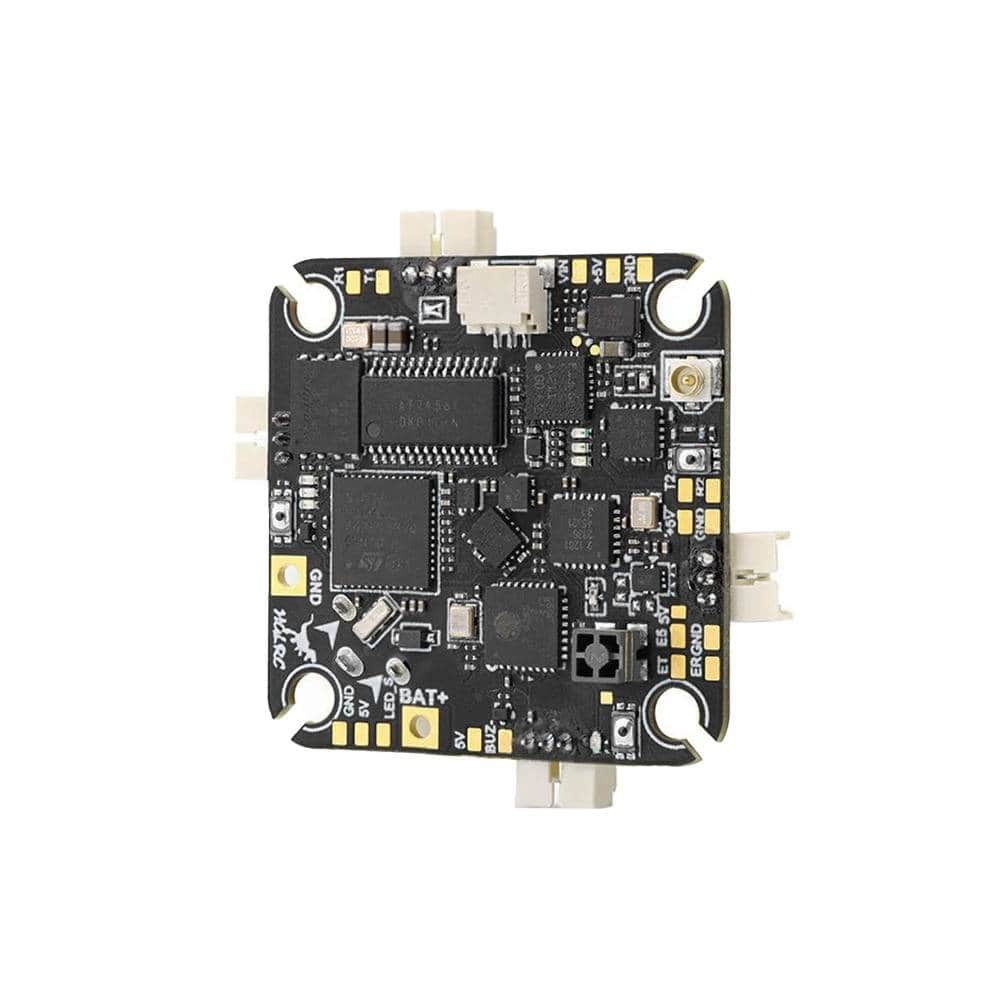

The HGLRC Specter F411 12A 2-4S ELRS AIO integrates a flight controller with a UART serial port ExpressLRS 2.4G receiver that provides a more stable performance than SPI. The board has a reserved IPEX seat and a T-shaped antenna for navigating harsh indoor environments. This all-in-one can support 2-4S batteries, and is widely compatible with 75mm/85mm whoops and other lightweight drones.
Check out all of our HGLRC products and all our whoop flight controllers.
Features
- Uses native BLHeli_S firmware and supports Bluebird firmware
- Wide compatibility with whoops, toothpick drones, and other frames
- Built-in 400mW 5.8GHz analog image transmission
- Integrated UART ELRS 2.4G receiver
Specifications
- MCU: STM32F411
- MPU: ICM42688P
- BEC: 5V 1.5A
- Black Box: 16MB
- OSD: Supported
- Buzzer: Supported
- UARTs: 1 image transmission OSD assistant / 2 CRSF protocol receiver
- Built-In Receiver: UART ExpressLRS 2.4GHz
- Continuous Current: 12A
- Peak Current: 15A (5S)
- ESC Protocol: Dshot150/300/600
- Installation Hole Position: 25.5 x 25.5 mm, M2
- Flight Control Firmware: HGLRCF411SX1280_15A
- ESC Firmware: Z-H-30 (BLHeli_S)
- Input Voltage: 2-4S LiPo
- Size: 32 x 32mm
- Weight: 5.6g
Links
Includes

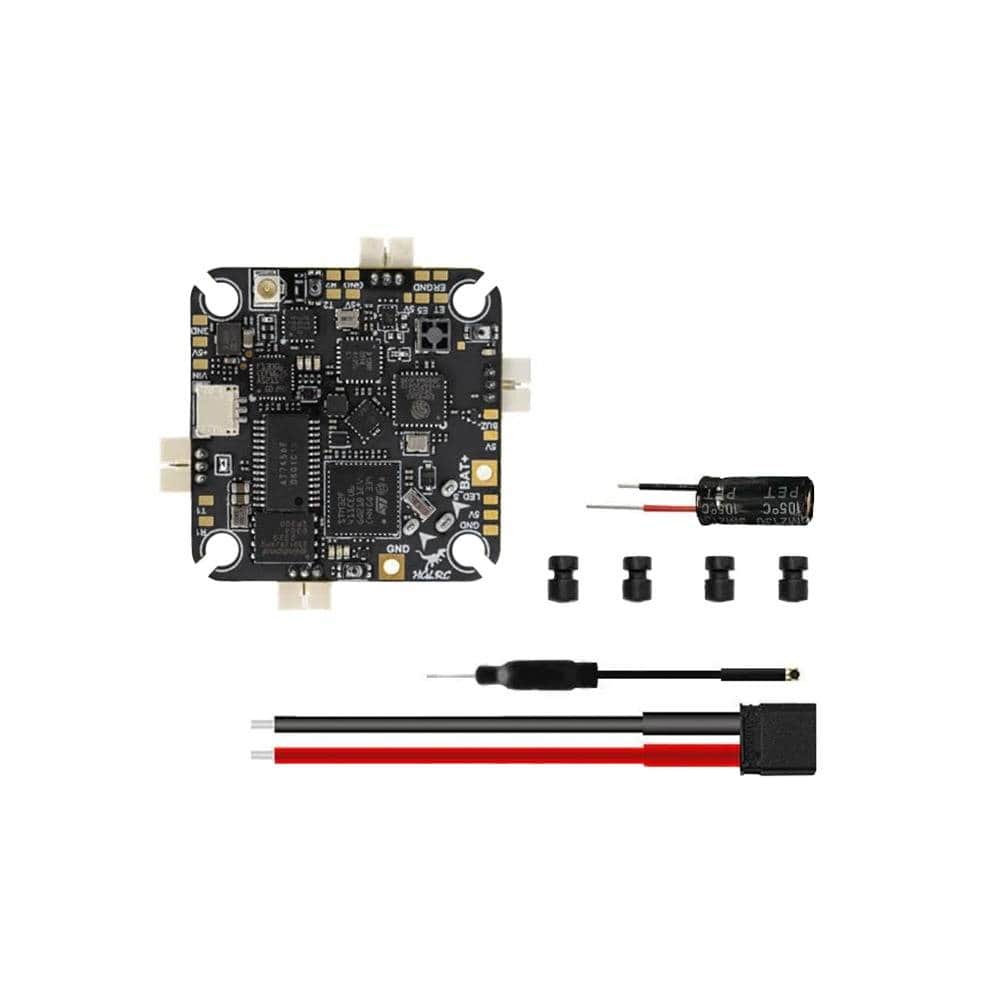

- 1x HGLRC Specter AIO - F411 FC + 12A 2-4S BLHeli_S ESC + ELRS RX
More Info
- SKU: G24960CN1Z
- Barcode: 723326381218
