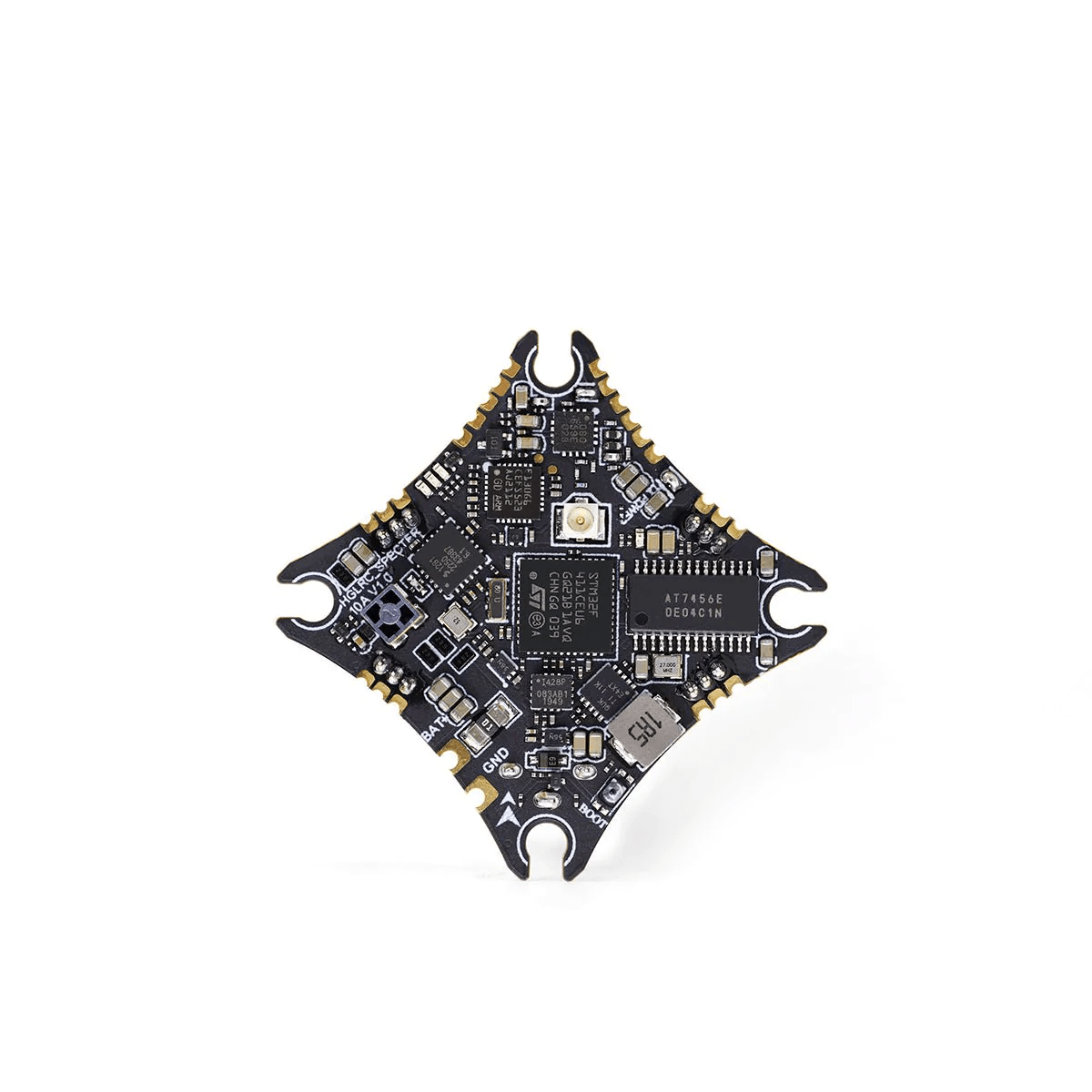

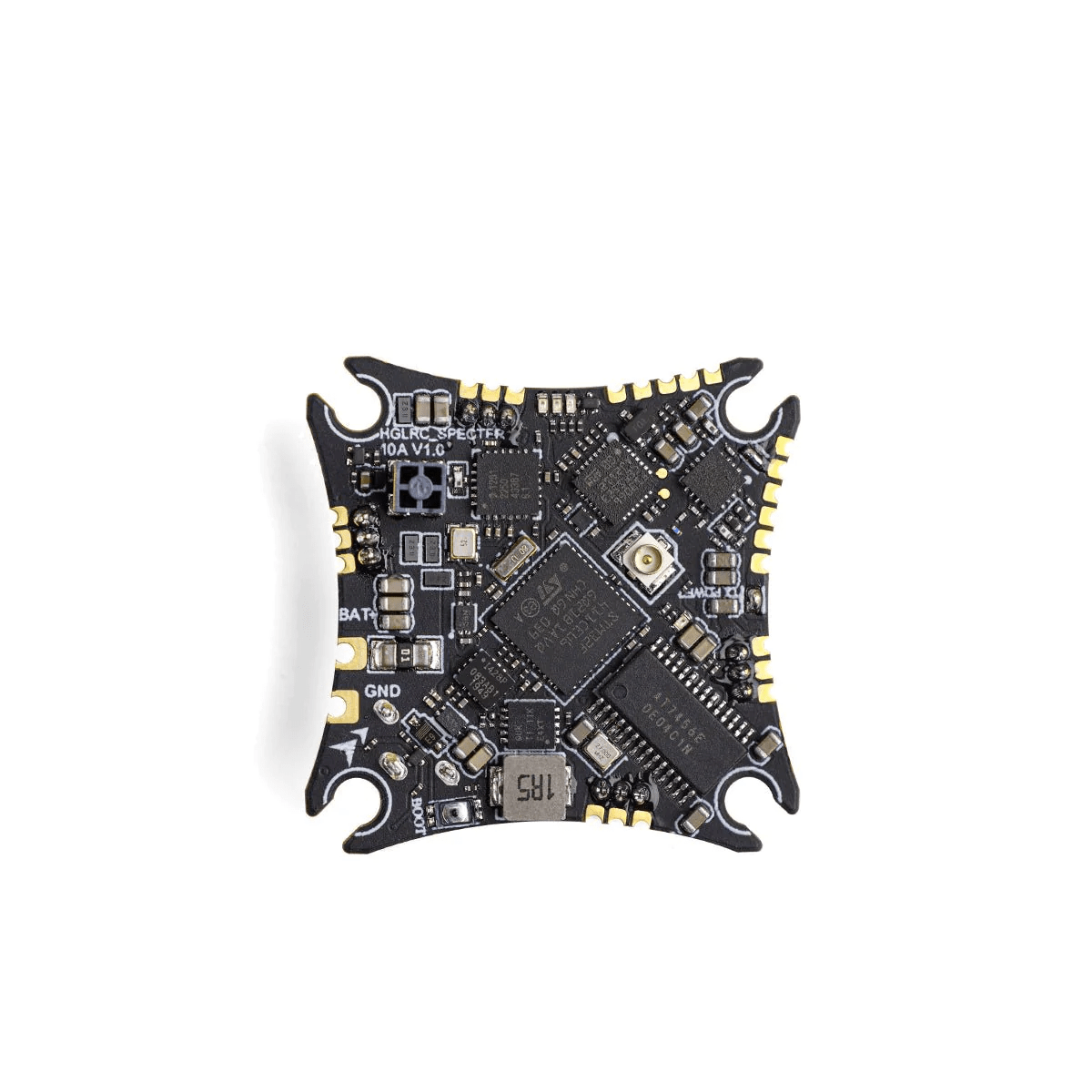

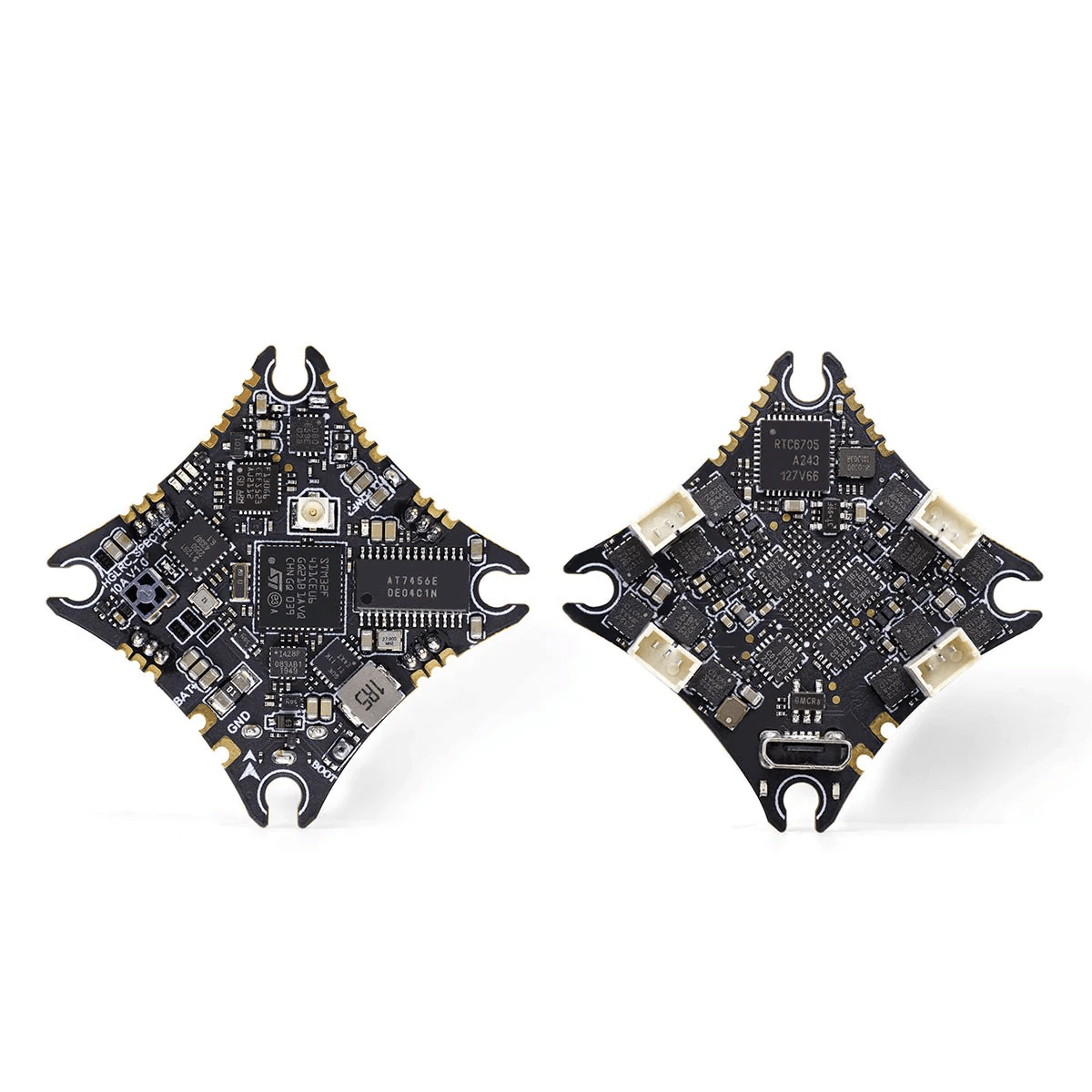

HGLRC Specter F411 1-2S AIO Whoop/Toothpick Flight Controller (w/ 10A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz (SPI)

Description

This ultra-light F411 10A 1-2S AIO integrated flight controller comes with ExpressLRS 2.4G receiver and 400mW 5.8GHz adjustable power video transmission. The SPI ELRS receiver uses ceramic antennas for superior short-distance performance compared to older D8/D16 protocols. The built-in receiver offers high sensitivity, refresh rate and low latency — perfect for FPV enthusiasts. Compatible with 65/75/85mm/lightweight toothpick drone/whoop series and other frames.

Check out all of our HGLRC products and all our whoop flight controllers.

Features

• Built-in SPI ELRS receiver/or external CRSF protocol receiver

• Built-in integrated TBS 400mW 5.8GHz analog video transmission

• Independent 3P socket, which can be directly connected to the motor

• By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone

• Compatible with all 65mm-85mm hoop/toothpick frames

• Maximum support for an input voltage of 1-2S

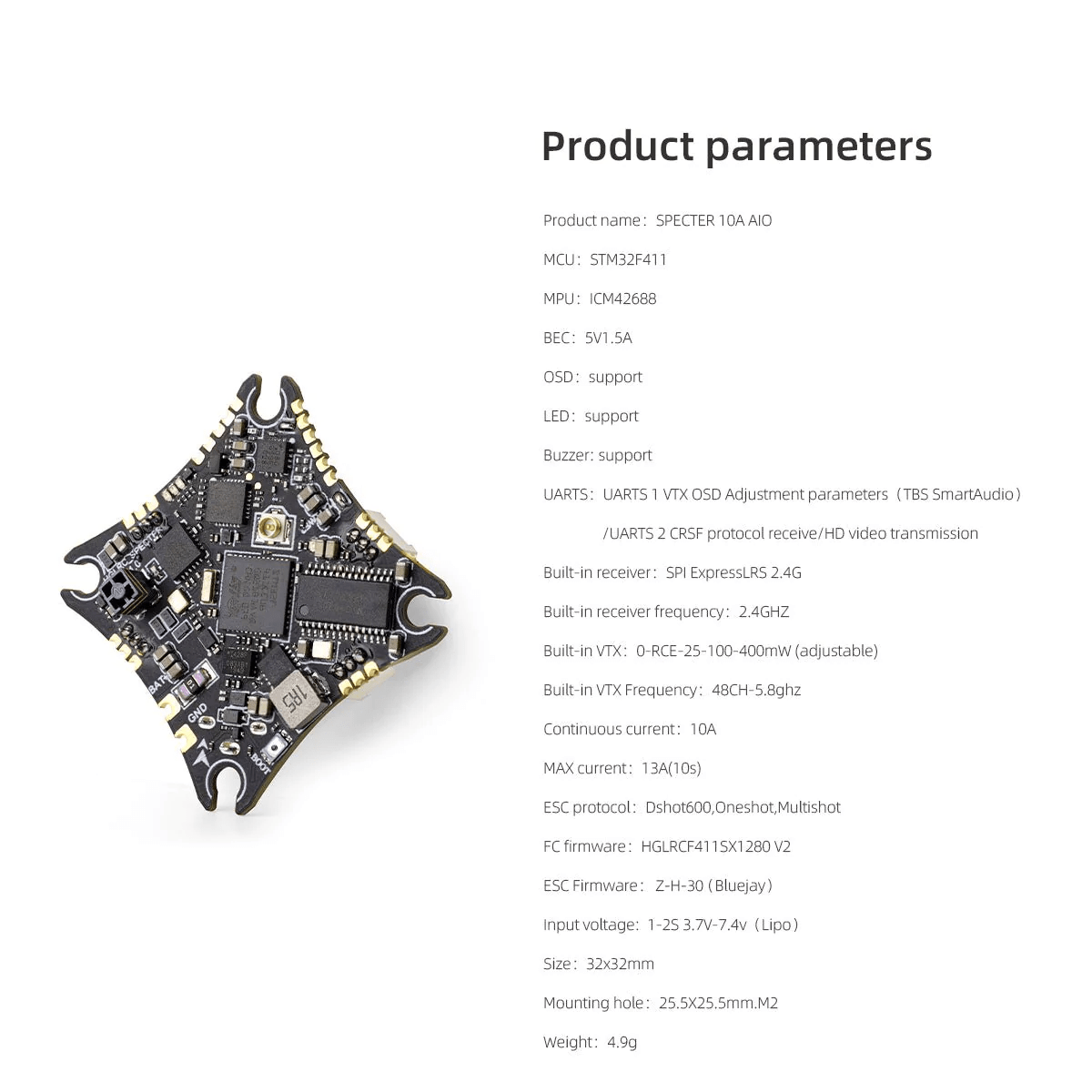

Specifications

• Product name: SPECTER 10A 1-2S AIO

• MCU: STM32F411

• MPU: IXM42688

• BEC: 5V1.5A

• OSD: support

• LED: support

• Buzzer: support

• UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF
• protocol receiver/ VTX HD

• Built-in receiver: SPI ExpressLRS 2.4G

• Built-in receiver frequency: 2.4GHZ

• Built-in image transmission: 25-REC-100-400mW (adjustable)

• Built-in image transmission frequency: 48CH-5.8ghz

• Continuous current: 10A

• Peak current: 13A (10s)

• ESC protocol: Dshot600, Oneshot, Multishot

• Flight control firmware: HGLRCF411SX1280 V2

• ESC firmware: Z-H-30 (Bluejay)

• Input voltage: 1-2S 3.7V-7.4V (Lipo)

• Size: 32x32mm

• Mounting hole: 25.5X25.5mm.M2

• Weight: 4.9g

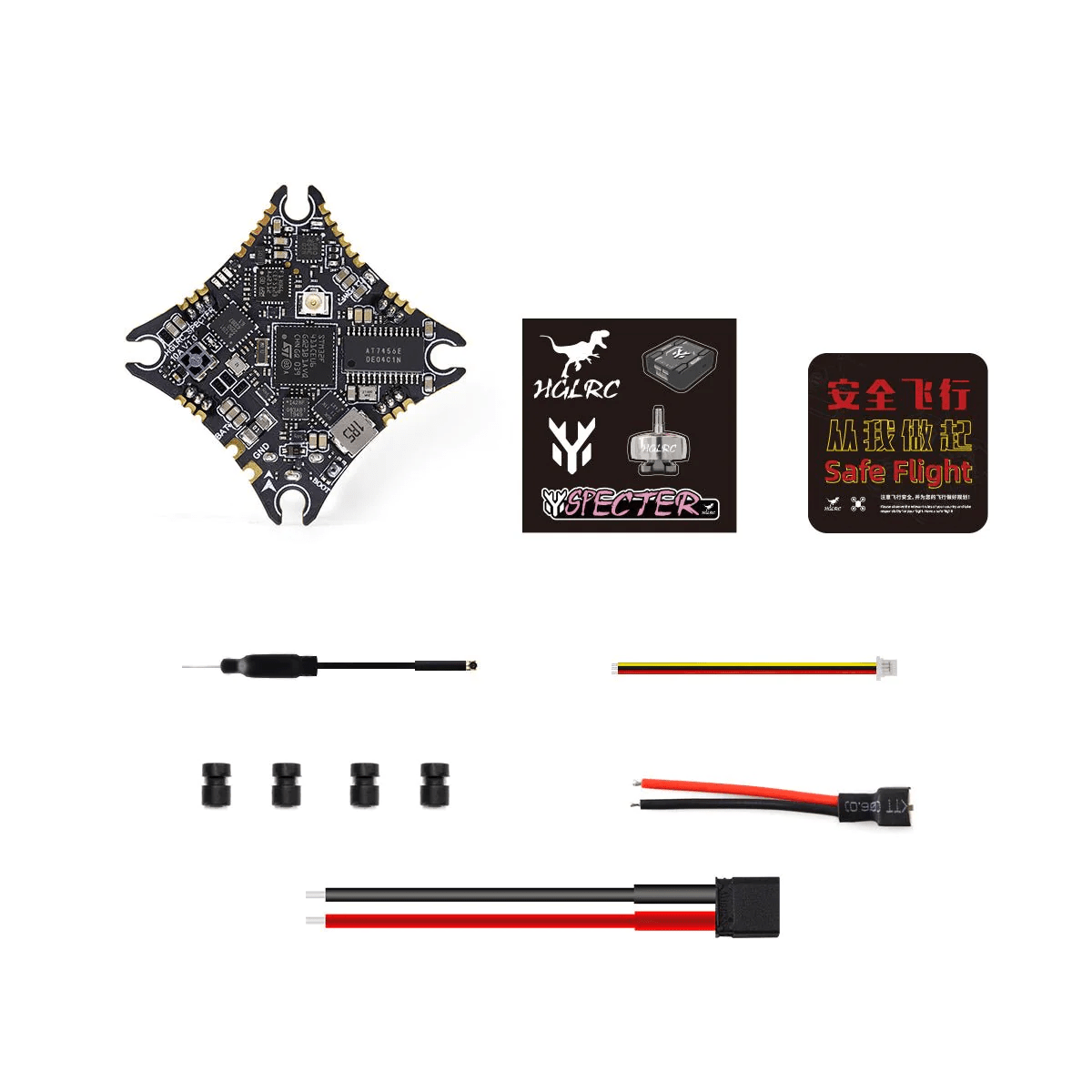

 Includes

• 1x SPECTER 10A 1-2S AIO

• 1x XT30U-M 22AWG 70mm male power cord

• 1x PH2.0-2P 22AWG 35mm male power cord

• 1x MX1.25-3P 30AWG 75mm camera cable

• 4x M2x6.6 Shock-absorbing column

Wiring Diagram
