Description

Experience unparalleled flight performance with the HGLRC Specter AIO, designed to elevate your flying experience. This advanced flight controller features the high-performance STM32F722 processor, boasting a computing speed of up to 216 MHz. This ensures smoother control, enhanced responsiveness, and a superior feel during operation.

Check out all of our HGLRC products and all our whoop flight controllers.

Features

• High-Performance Processor

• Dual Camera Signal Outputs

• Large-Capacity Black Box

• Enhanced Stability

• Modular Design

Specifications

• Installation Hole Position: 25.5 x 25.5 mm, M2

• Flight Control Firmware: HGLRCF722AIOV2

• Flight Controller: HGLRC SPECTER 25A AIO

• Input Voltage: 11.1V-22.8V / 3-6S LiPo

• Flight Control Size: 34 x 34 x 6.7mm

• ESC Firmware: Q-H-30-Bluejay

• Barometer: DPS310

• MCU: STM32F722

• Black Box: 16MB

• UARTs: 5 groups

• Gyro: MPU6000

• Weight: 12.05g

• OSD: AT7456E

• BEC: 5V 2A

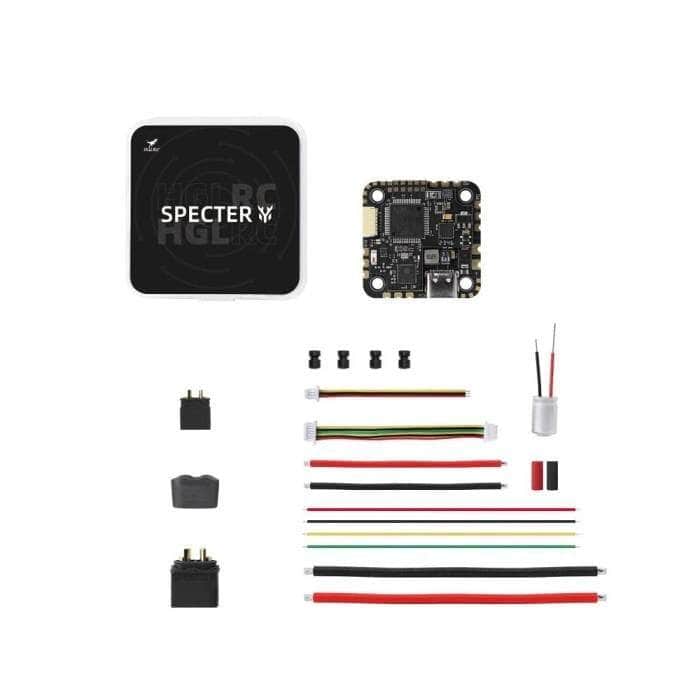

Includes

• 1x HGLRC Specter F722 3-6S AIO Whoop/Toothpick Flight Controller (w/ 25A 8Bit 4in1 ESC)
• 1x 30AWG 75mm Single-Headed 1.25-3P Camera Cable

• 1x 30AWG 70mm Double-Ended SH1.0-6P DJI Cable

• 1x 14AWG 100mm XT60 Power Cord

• 1x 18AWG 70mm XT30 Power Cord

• 1x Hardware Kit
