Description

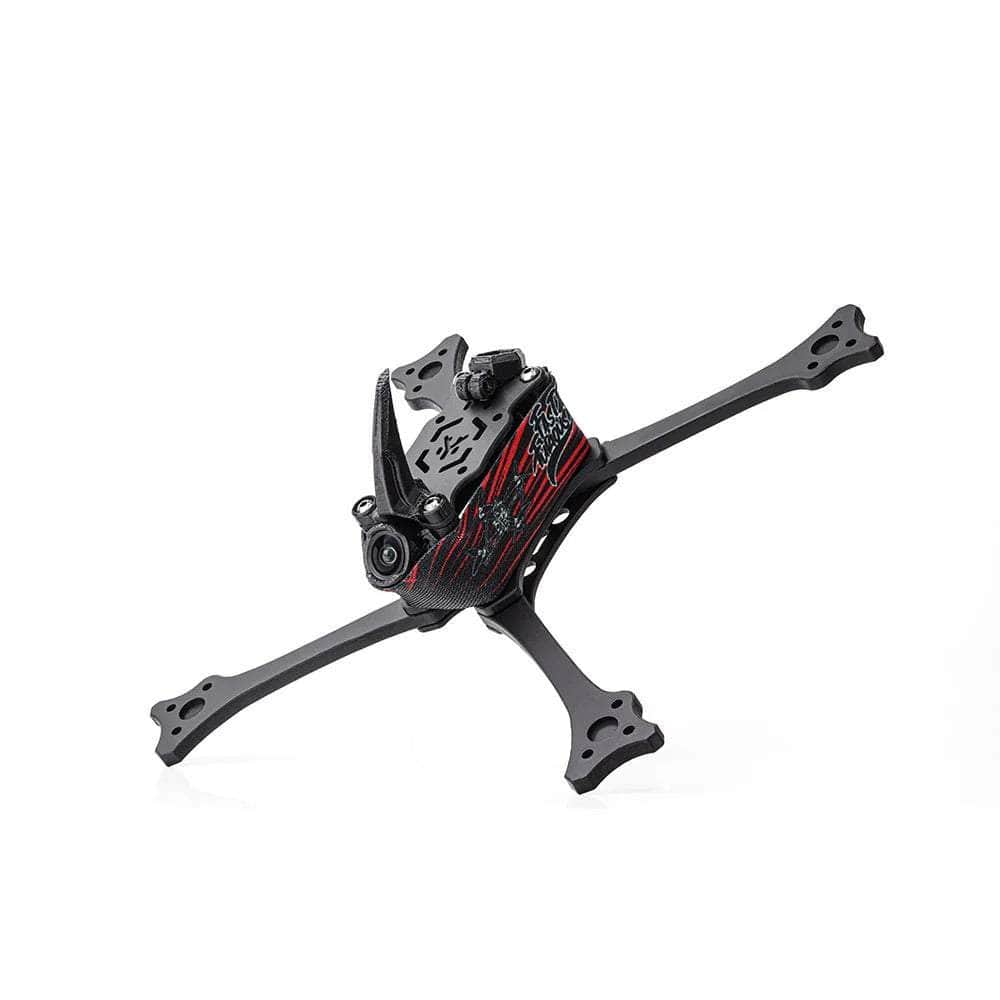

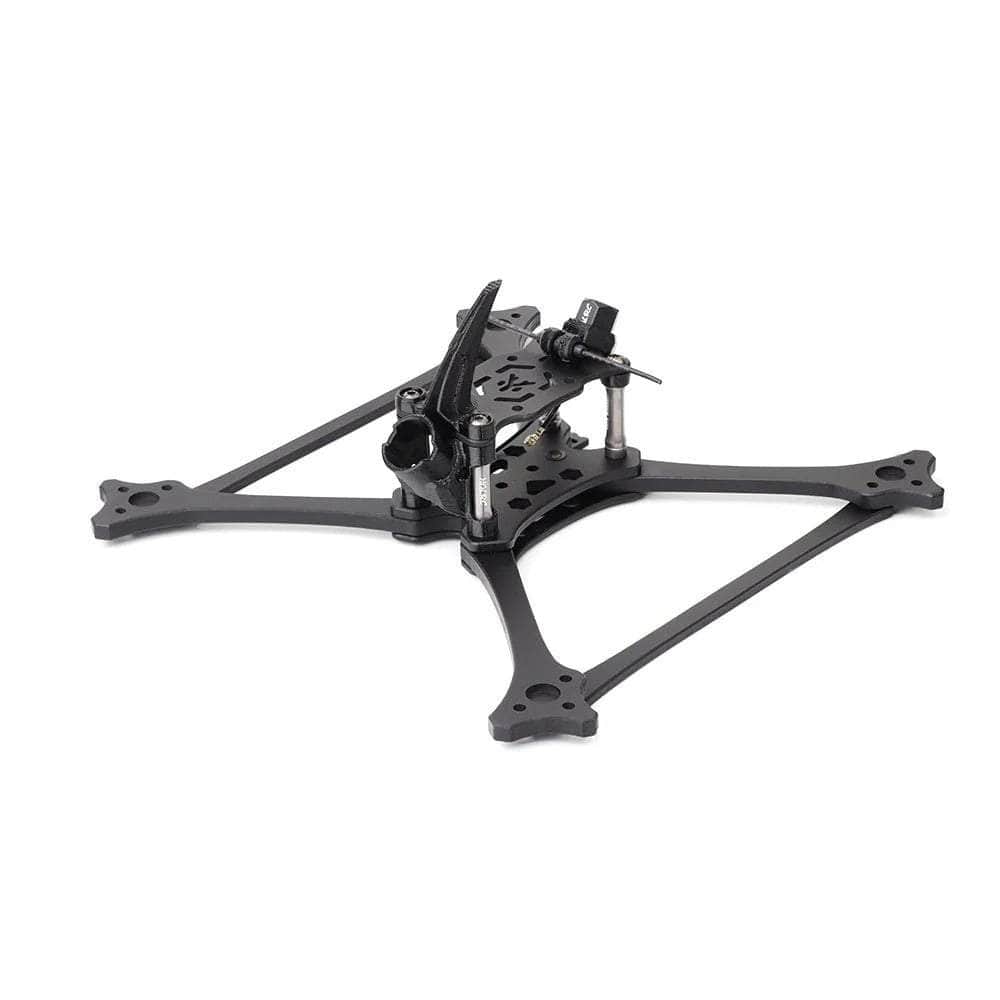

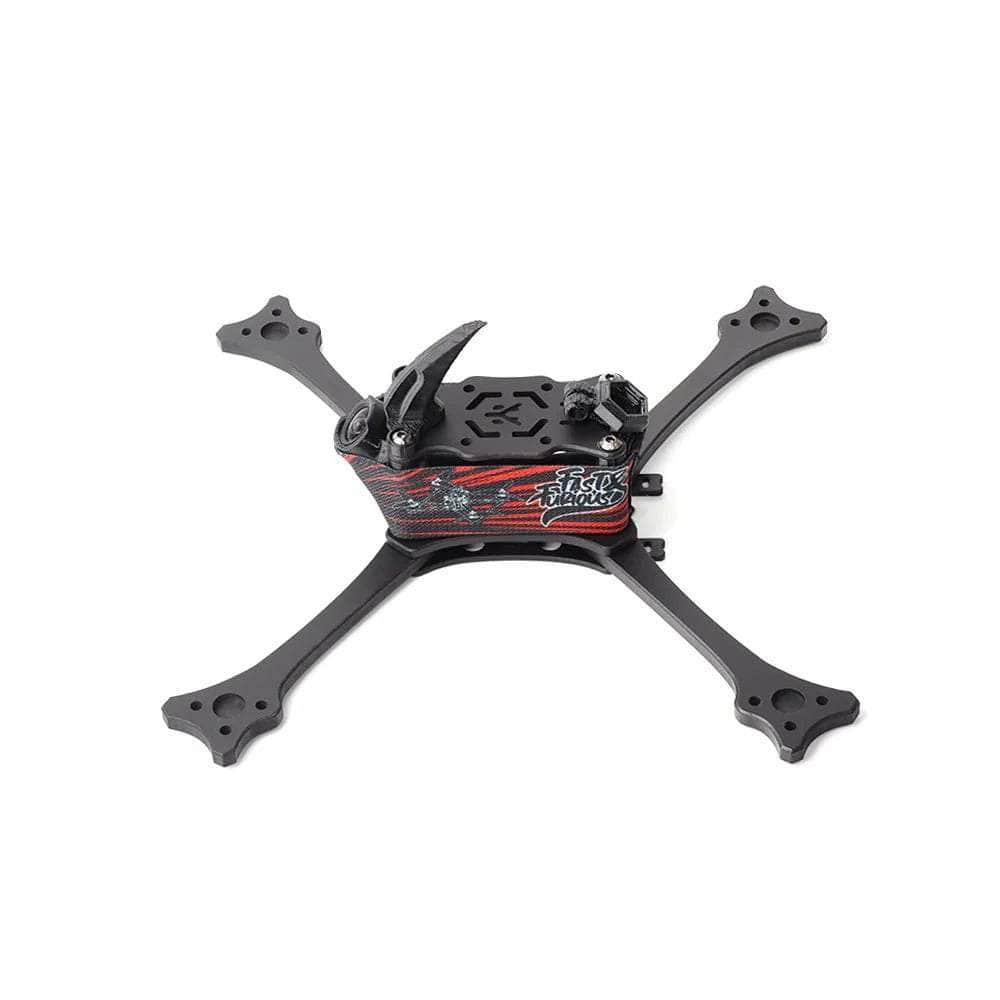

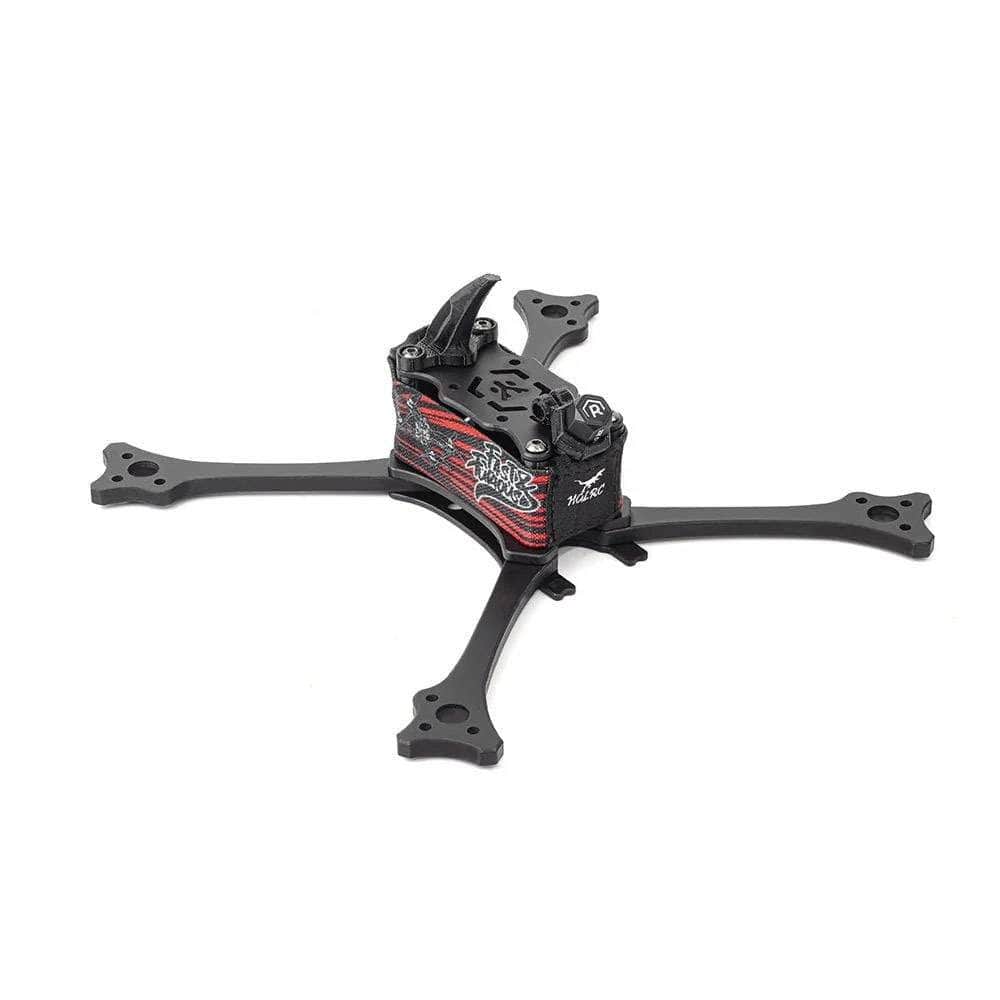

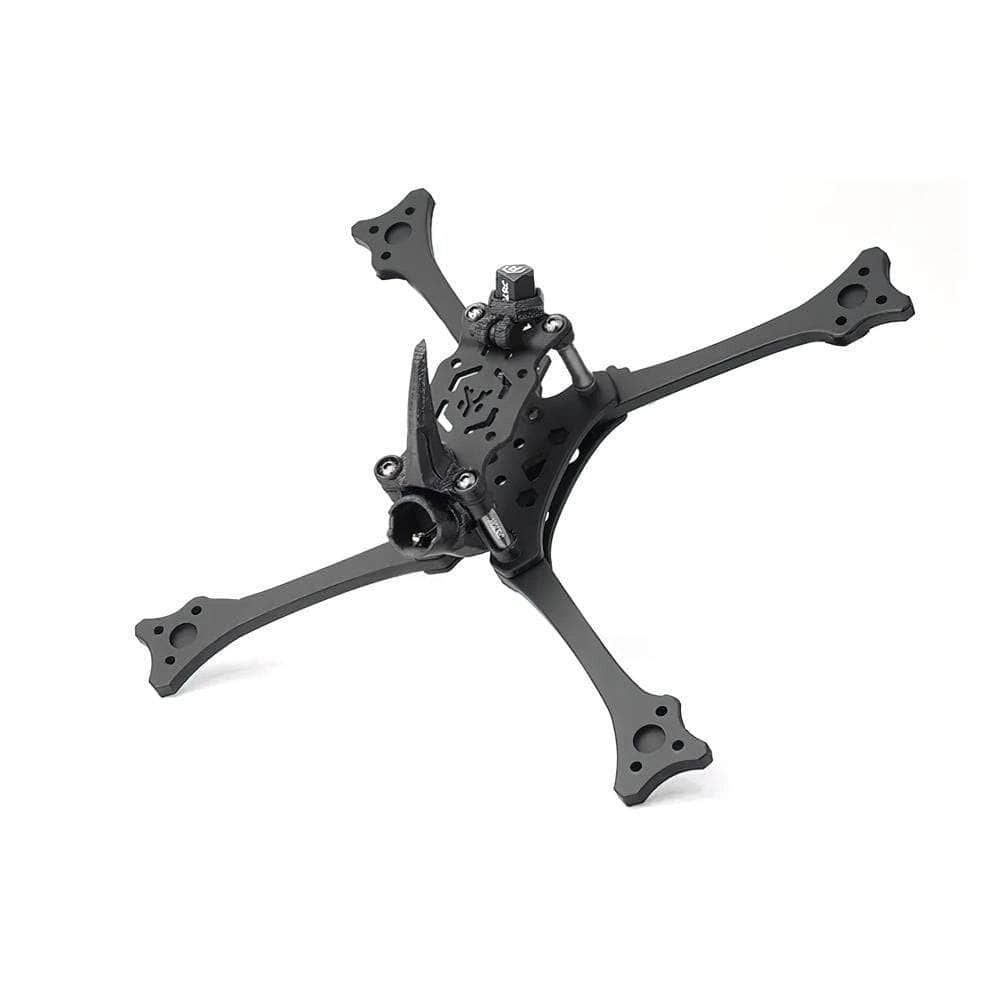

The HGLRC Wind5 Lite V2 is a lightweight racing frame, ready to get you on the podium. Its 195mm positive-X design, Toray-T700 carbon fiber, and 7075 aluminum make this frame durable and extremely stable in flight. The frame features an arm protection rod and quick-release arms for easy repairs and building.

Check out all our 5" frames and our whole HGLRC product line!

Features

• Aviation-Grade Aluminum Components
• Durable Carbon Fiber Material
• Optimized Antenna Design
• HDZero Compatibility
• Secure Battery Mount
• Quick-Release Arms
• Protective Arm Bar

Specifications

• Frame Thickness: Top plate 2mm / middle plate 3mm / bottom plate 2 mm/arm 5mm / protective rod 3mm

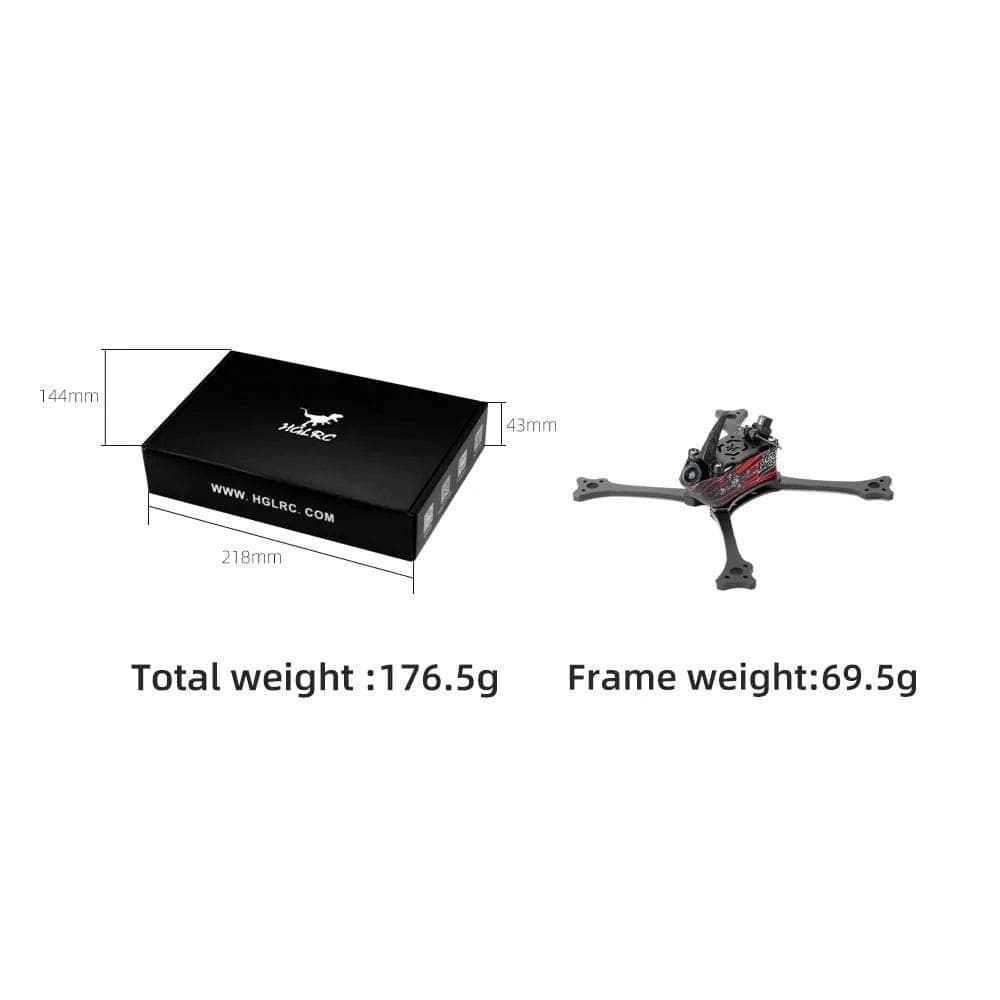

• Single Frame Weight: 69.5g (including printed parts, aluminum column, and screws)
• Default Standard: FOXEER Predator 5 Nano 45-degree camera mount
• Frame Size (L×W×H): 172.5mm × 169mm × 70mm
• Flight Control Mounting Hole: 20x20mm (M3)
• Motor Mounting Hole: 16x16mm (M3)
• VTX Mounting Hole: 20x20mm (M3)
• Model: Wind5 Lite V2 Racing Frame
• Material: Toray-T700 spray paint
• Frame Wheelbase: 195mm
• Installation Space: 26mm

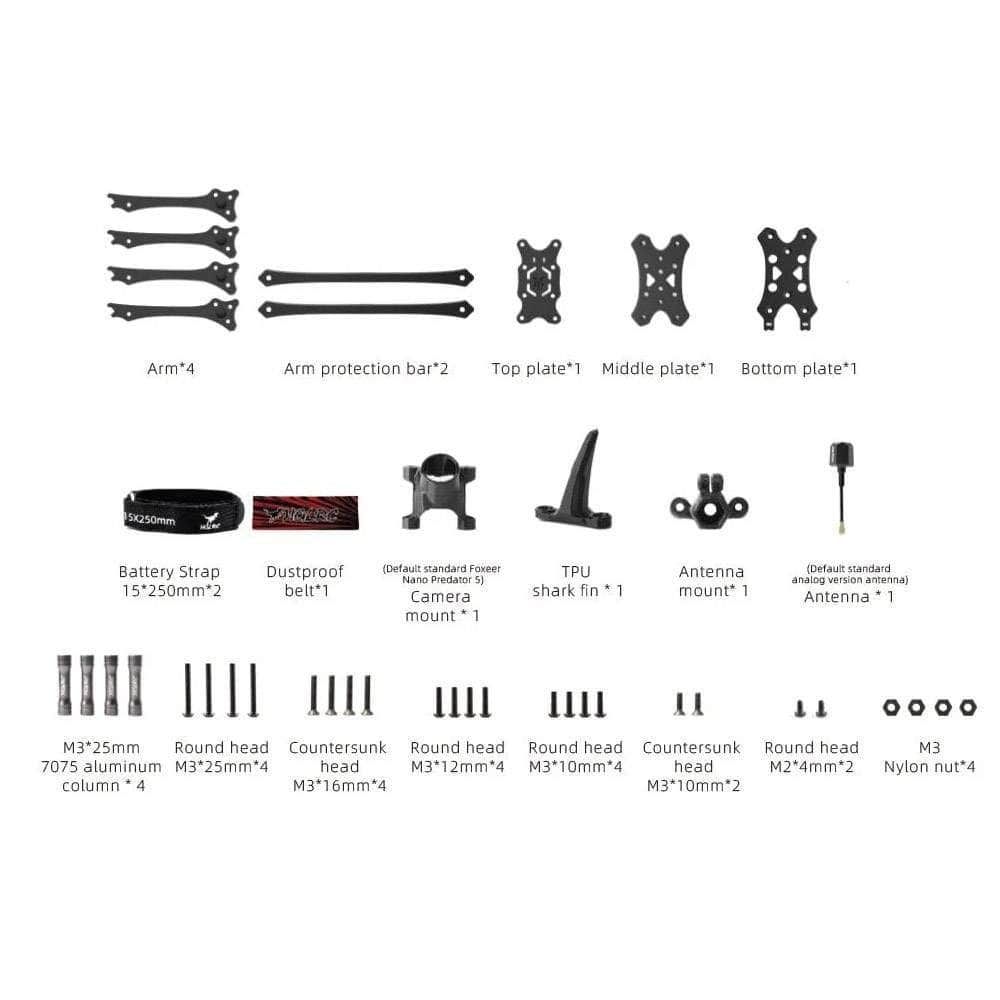

Includes

• 1x HGLRC Wind5 Lite V2 Racing Frame Kit
