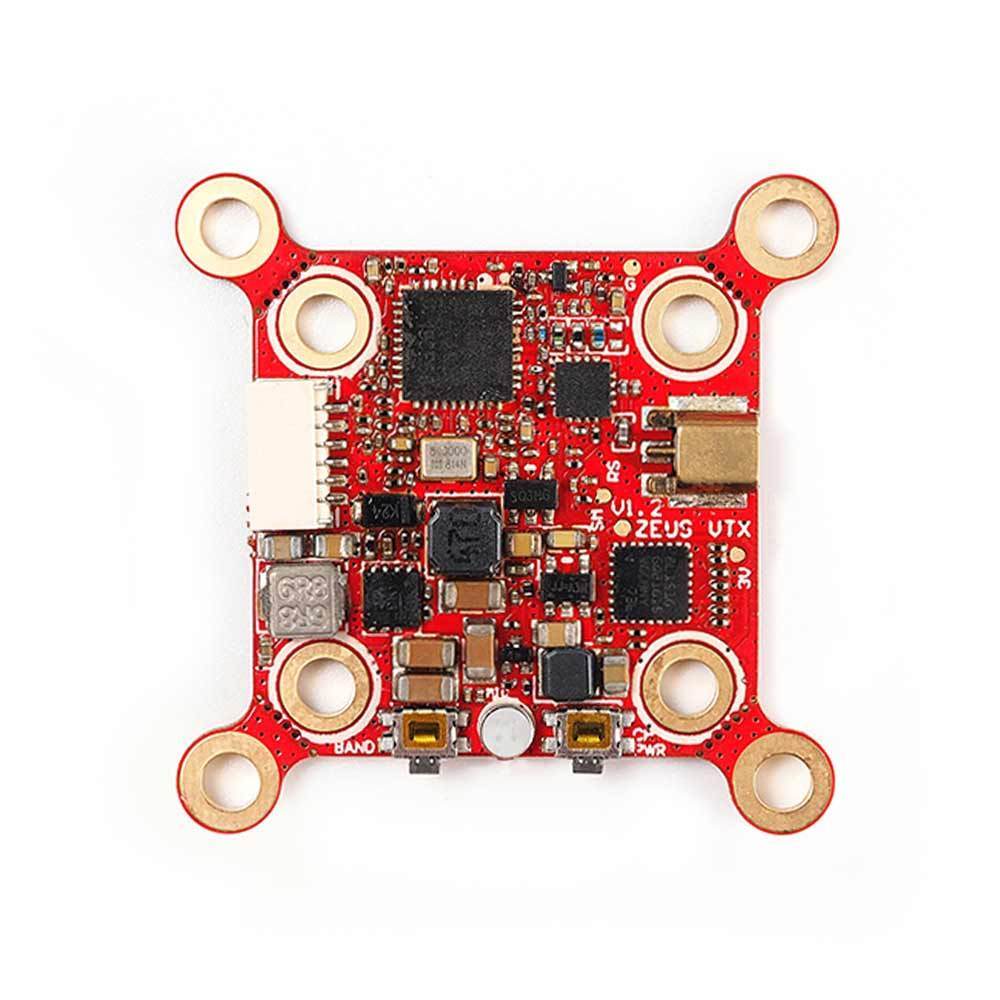

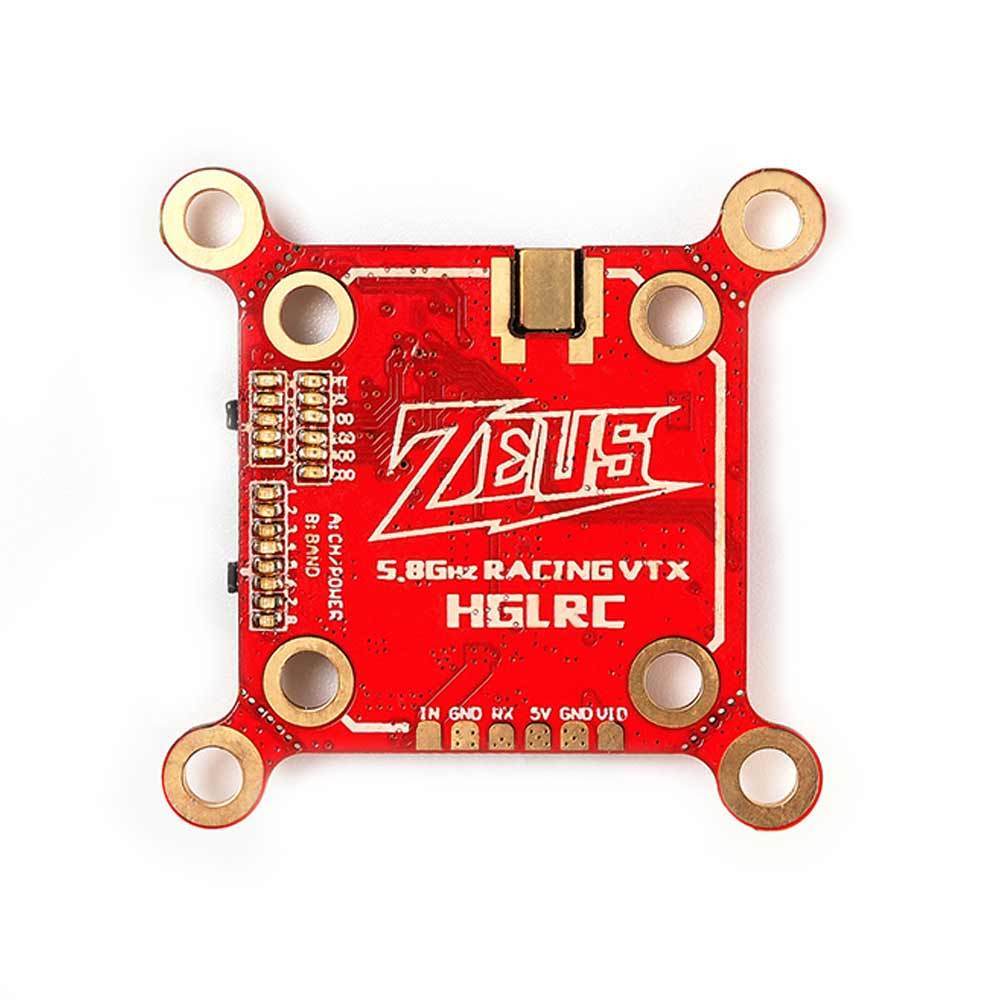

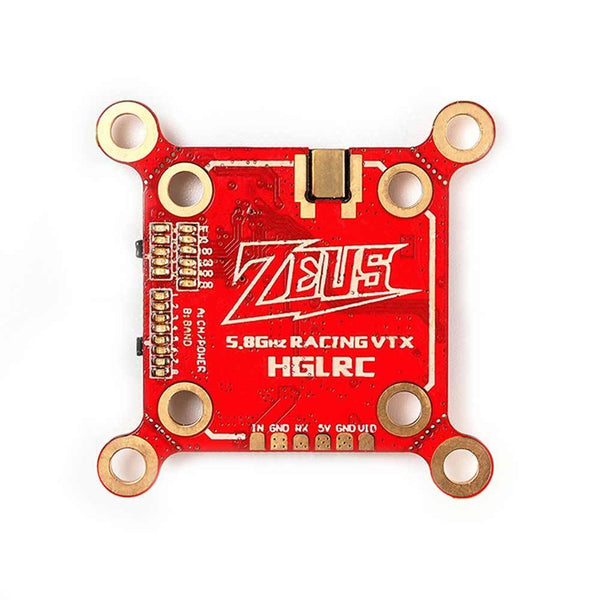

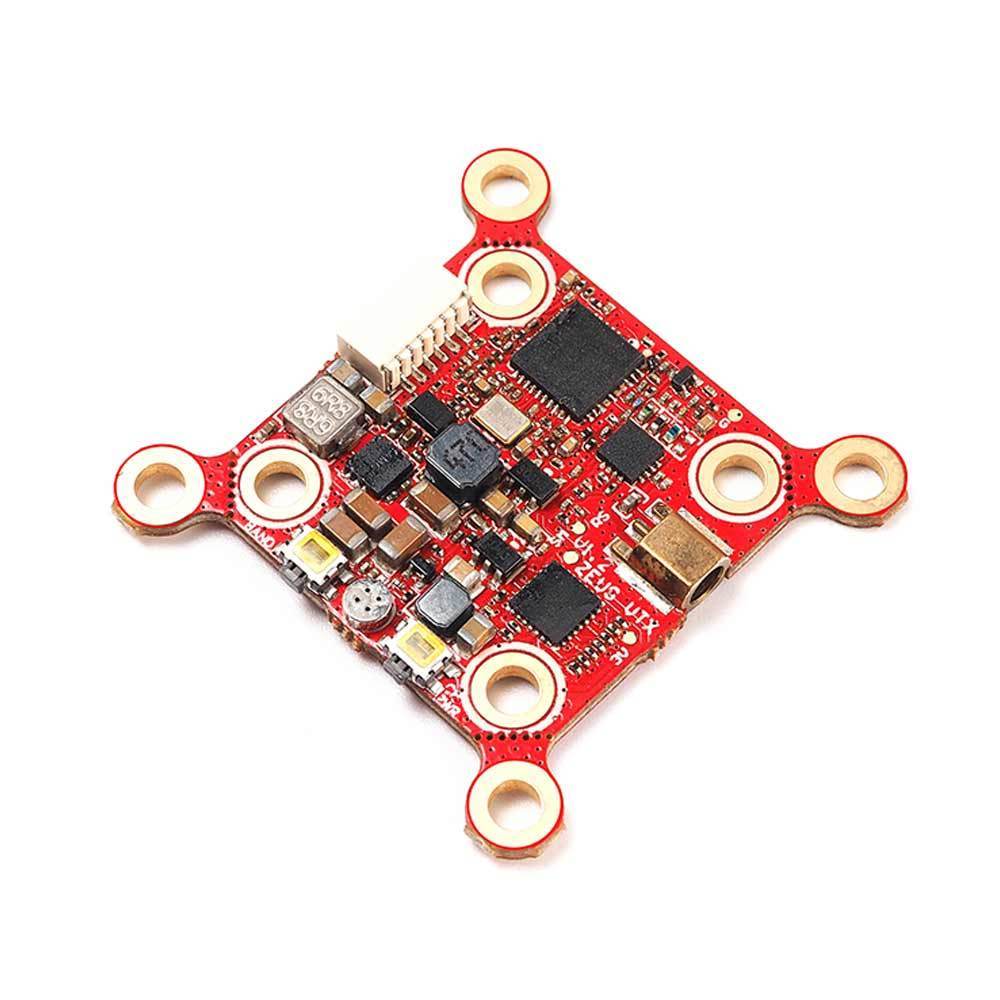

HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz VTX

HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz VTX

$29.99 - $29.99
$29.99
$29.99 - $29.99
$29.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Smart mounting VTX, fits both 20x20 and 30x30 mounting patterns.

Checkout our VTX section and our full collection of HGLRC products!

Specifications

  • Built-in Microphone
  • Input voltage: DC 6-26V
  • Output voltage:5V/2A
  • PIT@94mA
    • 25mW@169mA/14dBm
    • 100mW@199mA/20dBm
    • 200mW@216mA/23dBm
    • 400mW@279mA/26dBm
    • 800mW@387mA/29dBm
  • Antenna interface: MMCX
  • Output power: PIT/25/100/200/400/800mW
  • Frequency: 5.8GHz 5 bands, 40 channels
  • Installing Hole: 20X20/30X30mm.M3
  • Size: 37mm x 37mm x 5mm
  • Weight: 4.8g

Includes

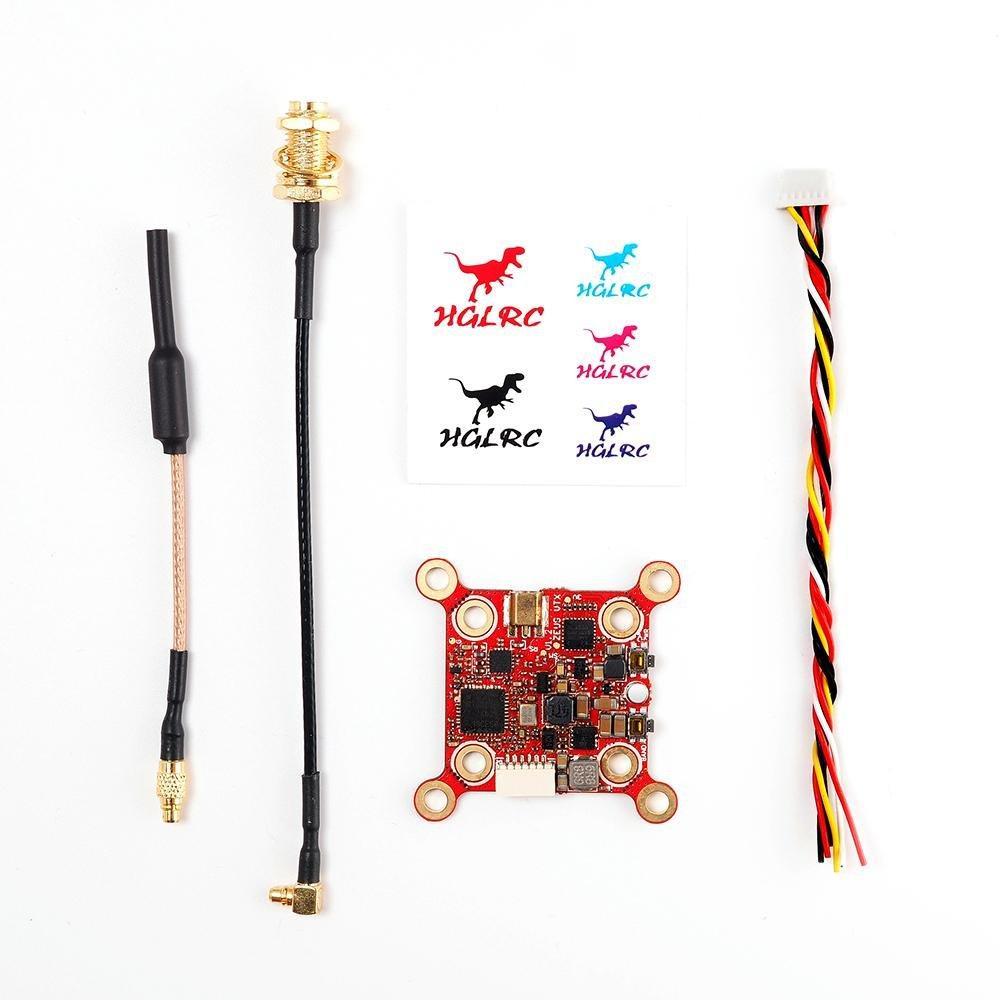

  • 1x HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz VTX With MMCX to SMA Adapter

>
