HGLRC Zeus 60A 3-6S 30x30 4in1 ESC

HGLRC Zeus 60A 3-6S 30x30 4in1 ESC

$75.99
$75.99
Add To Wishlist
View full details

Details

Description

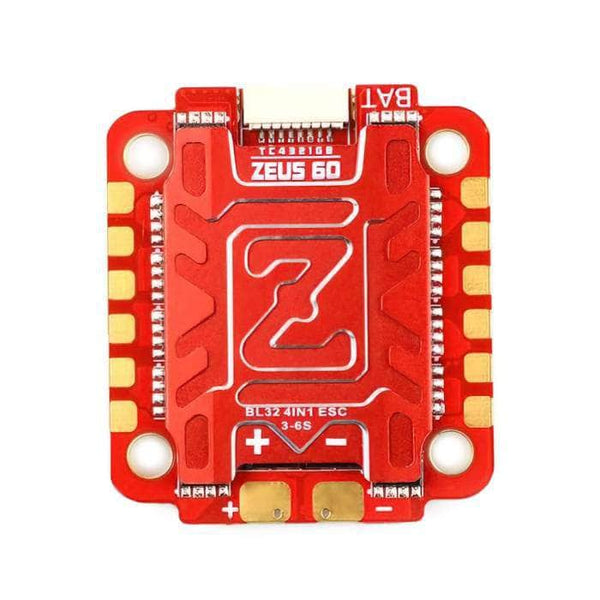

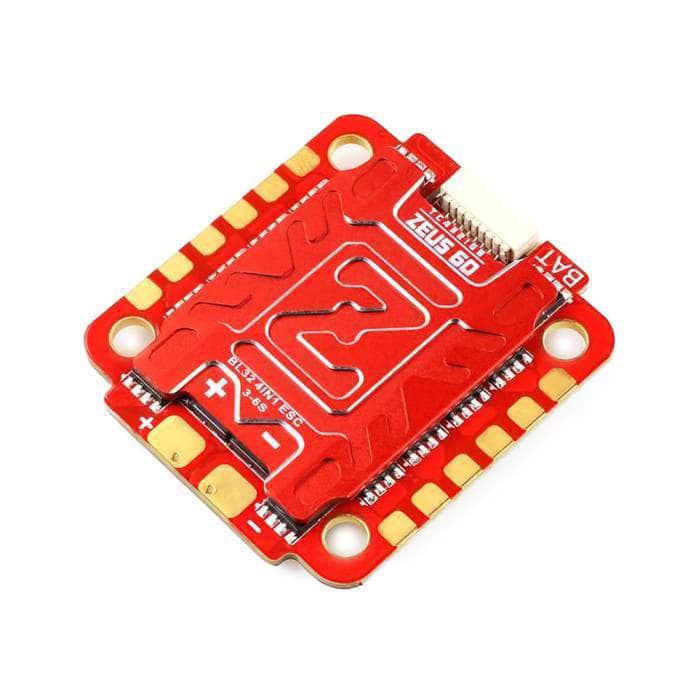

The HGLRC Zeus ESC is a 60A 4-in-1 ESC with a 30.5x30.5 mounting pattern. The heat sink design makes this perfect for freestyle FPV racing by providing heat dissipation for high power and improved stability, and increased shock absorption.

 Make sure to check out our other 30x30 ESCs and the rest of our HGLRC FPV Products.

Specifications

  • Input Voltage: 3-6S
  • Max Continuous Current: 60A
  • Max Burst Current: 65A (10s)
  • MCU: STM32F051
  • Firmware: BLHELI32
  • Weight：18g
  • Dimensions: 45x40x6.5mm

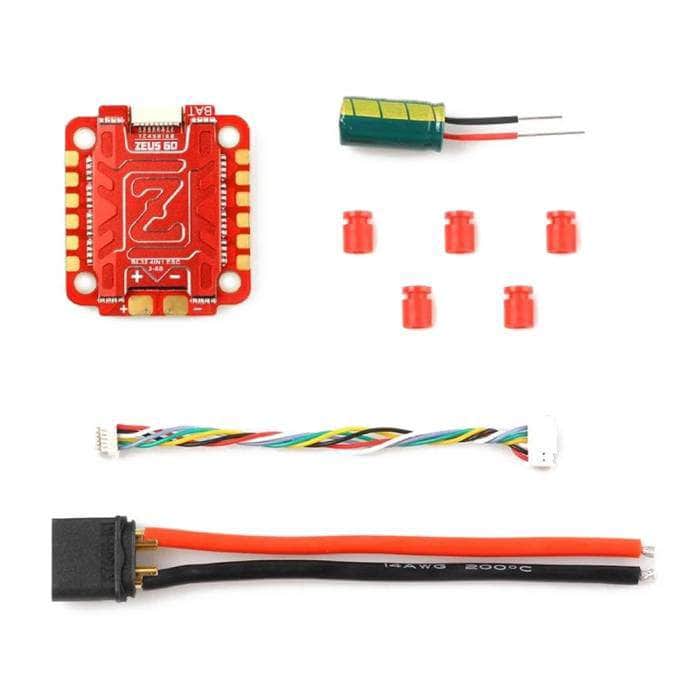

Includes

  • 1x HGLRC Zeus 60A 3-6S 4-in-1 BLHeli_32 ESC
  • 4x M3 Shock Absorption (Red)
  • 1x Connecting Wire (XT60H)
  • 1x SH1.0 8PIN Cable 60mm
  • 1x Capacitor

More Info

  • SKU: 16487
  • Barcode: 691023460386


Overall rating: 4.0 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["build","works","esc","pads","heatsink"].

Review highlights

Reviews

Nearly caught the build on fire

"I built a 10-inch heavy lifter frame with some Cine66 TMotors and the ESC nearly caught the build on fire. The capacitor totally blew off the leads and it thoroughly toasted the motor. Manufacturer denied my warranty claim b/c they didn't like the solder work ON A DIFFERENT CHANNEL. I tested all the joints and they were sound and it passed the smoke stoper. I will never use their products again. It was cheaper, but there's a reason for that. Spend $10 more and buy a good one from someone else."

— Mansnes (1/5)

Nice build

"Nice heatsink, big solder pads."

— Gabriel C. (5/5)

Good esc

"Firsts time running this esc but so far so good."

— Justin V. (5/5)

So Far So Good

"The pads are large making it super easy to solder to. It is smooth and holding up so far!"

— Joseph L. (4/5)

Great ESC

"This ESC is a Beast! I have it on my 6s freestyle quad pushing the HGLRC 1900KV motors. Never had any Desync issues and out of box it seems to work very well. The 60a is a bonus, the Pads are nice and easy to access with tons of spacing inbetween. The heatsink is an added bonus. For the price point maybe there is better ESCs but I would absolutely buy this again."

— MANDOXsquid (5/5)

Q&A

Does it have a BEC? It says 5V BEC in the description but BEC: No in the specs
No BEC per the mfg product page: https://www.hglrc.com/products/hglrc-forward-60a-3-6s-blheli-32-4in1-esc-for-fpv-racing-drone
