Description

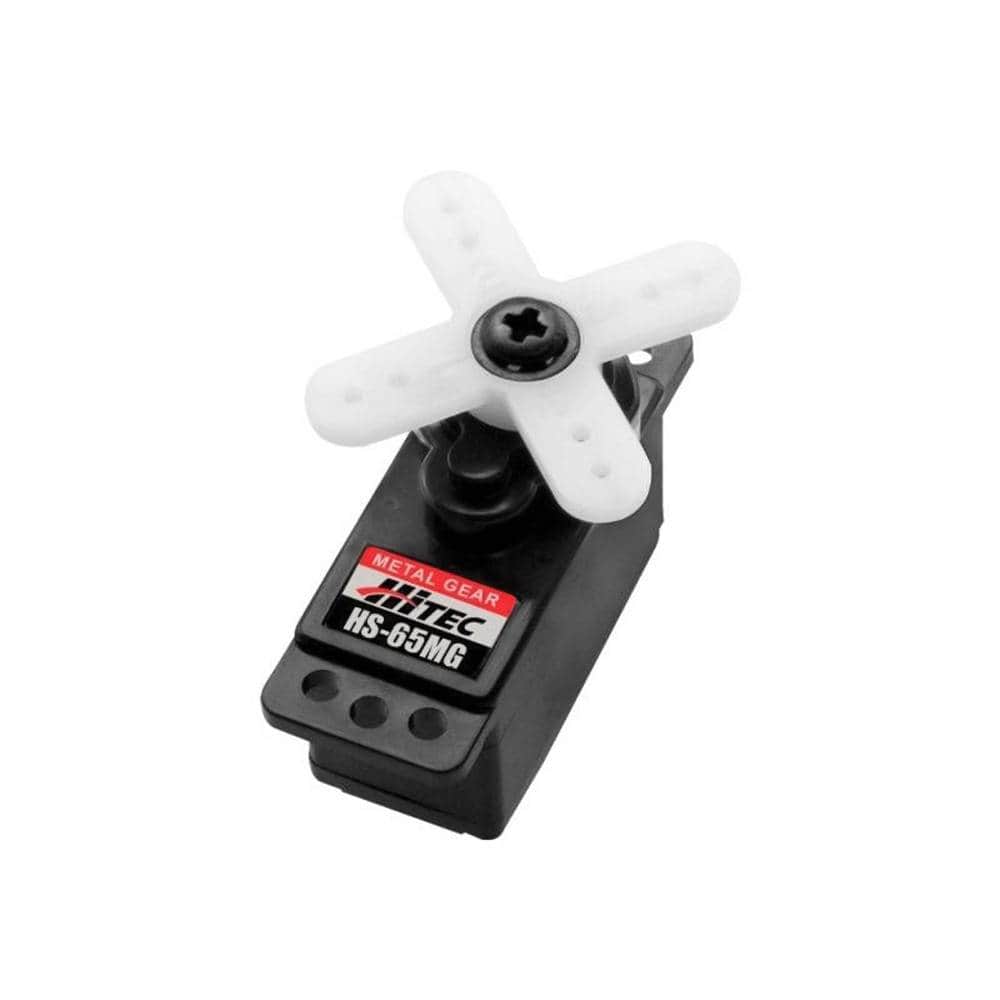

Considered one of the most powerful servos in the micro class, the Hitec HS-65MG+ Metal Gear Analog Micro Servo features a top-ball bearing for long life and positive centering. With 31 ounces/inches of power at 6 volts, it is an excellent choice for higher- performance micro helicopters, sport planes, and 1/18 scale cars.

Check out all our Servos & Accessories at RDQ!

Features

• High-Performance Three-Pole Motor
• Rugged Metal Gear for Added Durability
• Ball Bearing-Supported Output Shaft
• High-Efficiency Neodymium Magnet Motor

Specifications

• Operating Voltage Range: 4.8V ~ 6.0V
• Speed (@ 60°): 0.14 ~ 0.11 sec
• Torque:

  • @4.8V: 24.99oz/in (1.8kg/cm)
  • @60.V: 30.55oz/in (2.2kg/cm)
• Current Draw at Idle: 8 mAh
• No Load Operating Current Draw: 220 mAh
• Stall Current Draw: 1200 mAh
• Dead Band Width: 5 µs

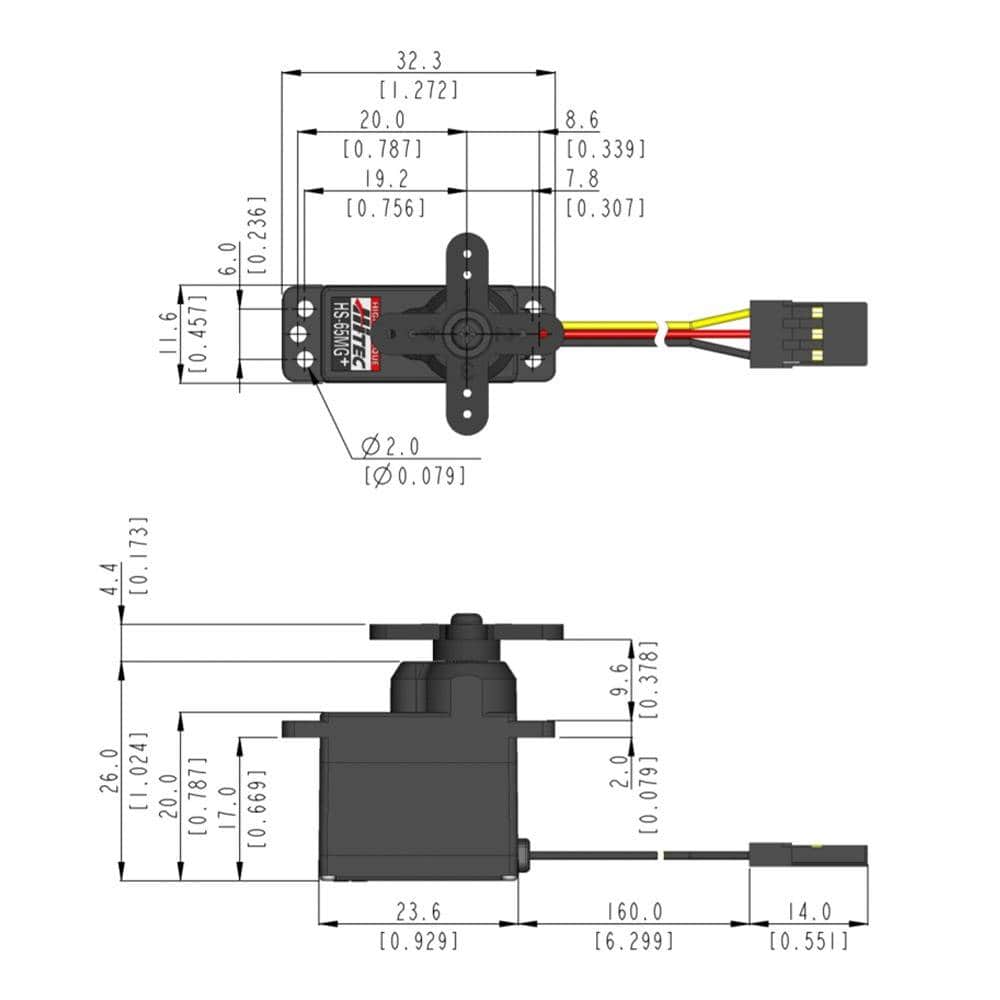

• Dimensions: 0.92 x 0.45 x 0.94in (23.6 x 11.6 x 24.0mm)
• Weight: 0.44oz (12.5g)
• Circuit Type: HT7003 Analog SMT
• Motor Type: 3 Pole Metal Brush Neodymium
• Bearing Type: Top Ball Bearing
• Connector Gauge (AWG)/Strand Count: 28/20

Includes

• 1x Hitec HS-65MG+ Metal Gear Analog Micro Servo
