Description

The Holybro Kakute H7 has integrated Bluetooth, dual 4in1 ESC ports, HD camera plug, barometer, OSD, 6 UARTs, MicroSD card, 5V & 9V BEC, easy soldering layout, etc. Supporting DJI HD, its 9V regulator powers FPV Air Unit & Caddx Vista. With 6 UART ports & inversion, it offers unlimited Blackbox data logging. BetaFlight OSD displays info on FPV display, and barometer helps autonomous flight. LED & buzzer pad, I2C pad for external GPS/Magnetometer.

Check out all our 30x30 Stacks and the rest of our HolyBro selection!

Features

• This V1.3 now has USB-C, 9V 3A BEC for VTX, and JST-SH connector for VTX port.

Specifications for HolyBro Kakute H7 V1.3 FC

• MCU - STM32H743 32-bit processor running at 480 MHz
• IMU - MPU6000
• Barometer - BMP280
• OSD - AT7456E
• Onboard Bluetooth chip - ESP32-C3
  • SpeedyBee IOS & Android App Compatible
  • Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
• 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
• 9x PWM Outputs (8 Motor Output, 1 LED)
• 2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
• 1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
• Battery input voltage: 7V to 42V
• BEC 5V 2A Cont.
• BEC 9V 3A Cont
• USB Type-C
• Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
• Dimension - 35x35mm
• Weight - 8g

Specifications for Tekko32 F4 4in1 50A ESC

• Continuous Current: 50A x4
• Burst Current: 60A x4
• Supports 4-6S battery
• Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC telemetry Supported
• Onboard analog current sensor
• No output BEC
• BLHeli_32 firmware
• 1000uf 35v capacitor included (highly recommended for 6s setup)
• Amperage meter scale ratio: 120 (V1.9 Version)
• Dimensions: 48x37x6mm / Weight: 13.8g
• Mounting holes: M4 30.5x30.5mm (M3 grommets included)

Firmware Targets

• BetaFlight: KakuteH7 (v4.2.11 and above)

• INAV: KakuteH7 (4.0.0 & above) SD card support added in 4.1.0.

• ArduPilot: KakuteH7 (4.2.0 & above)

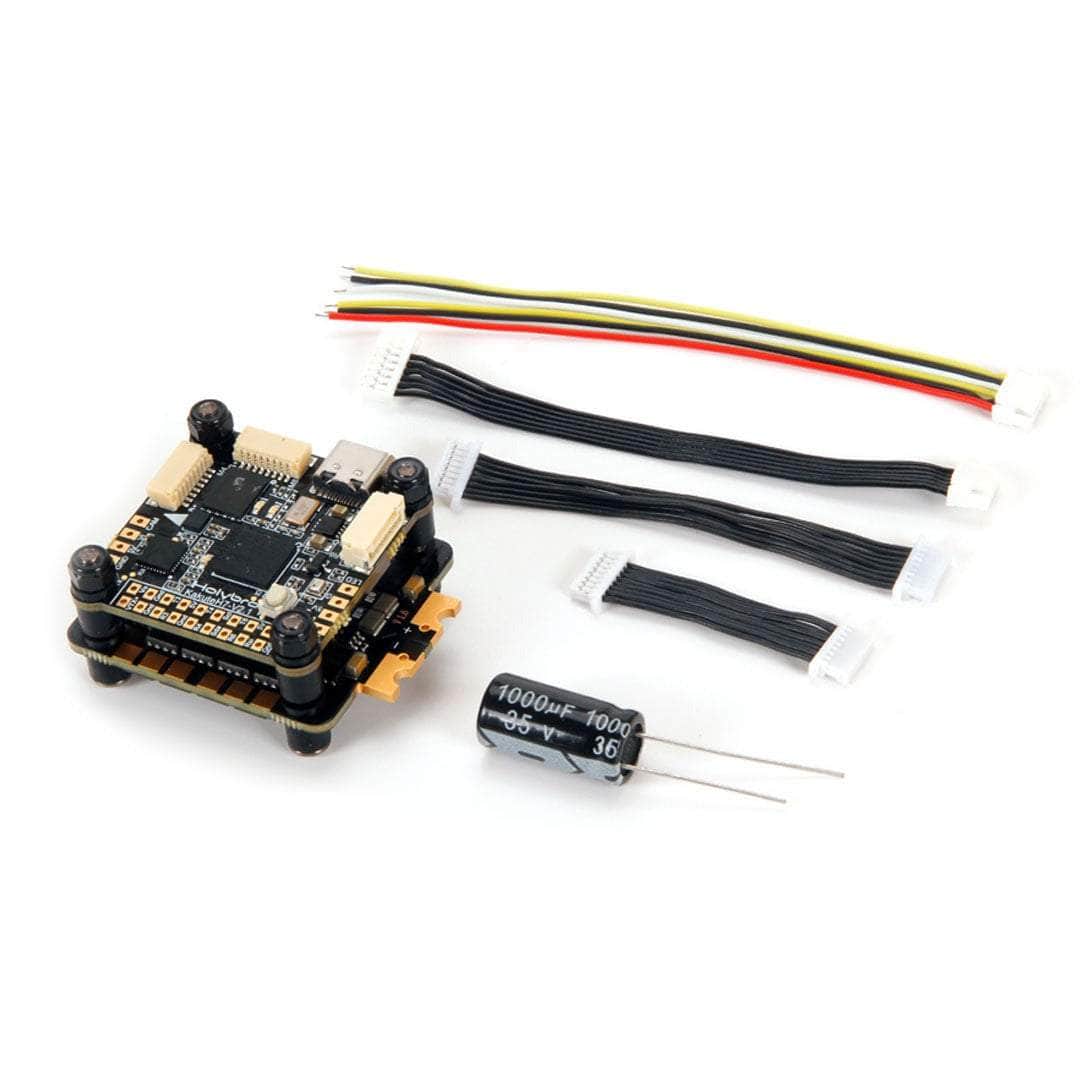

Includes

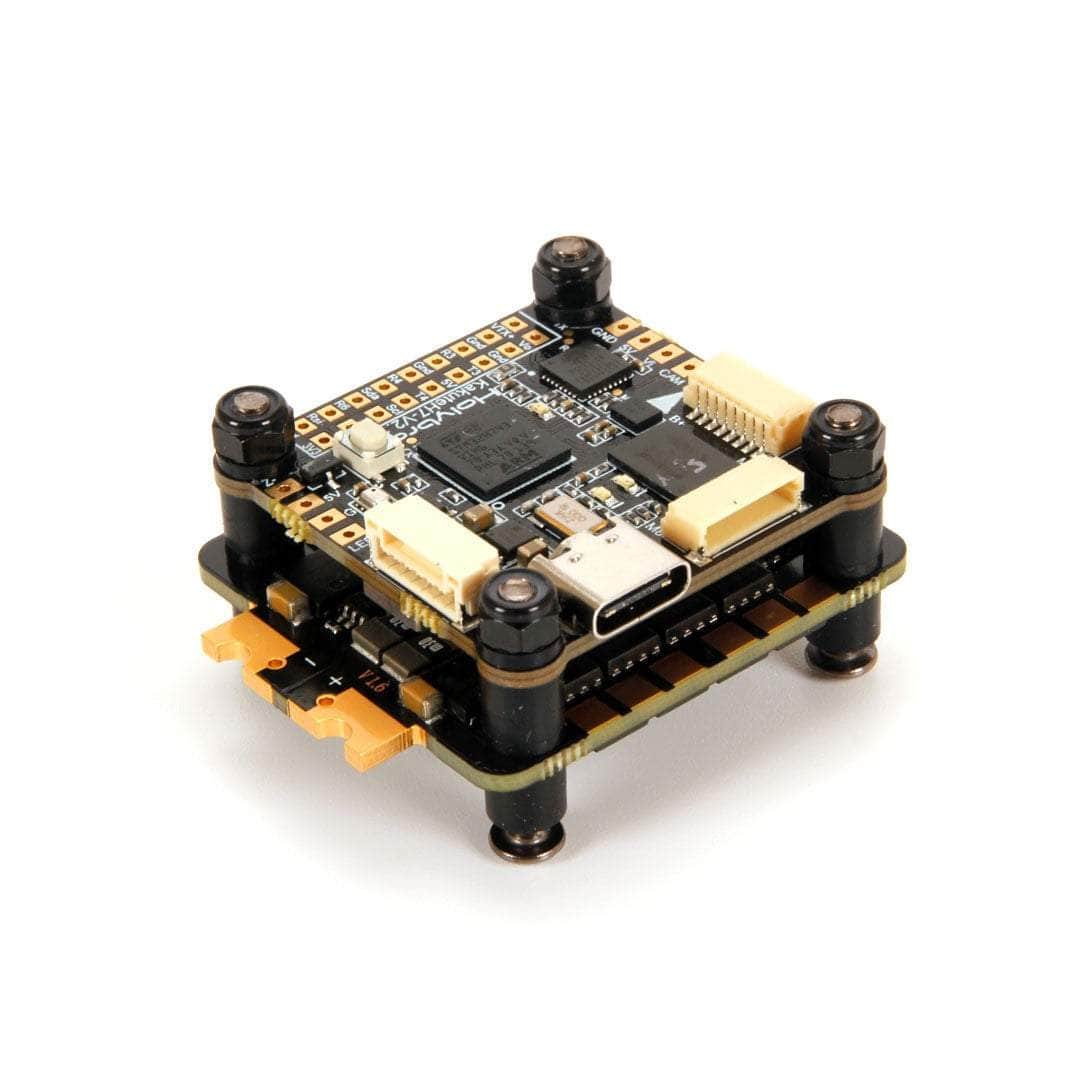

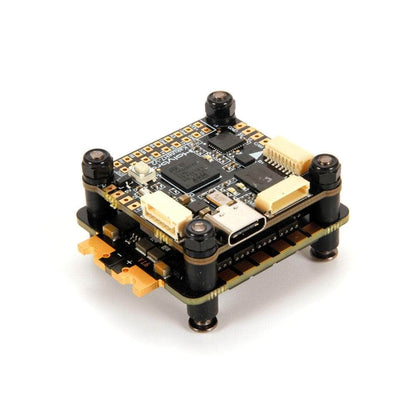

• Holybro Kakute H7 V1.3 Tekko32 F4 50A 4-6S 30x30 Stack/Combo (H7 FC / 50A F4 32bit 4in1 ESC)
• 1x Wiring Kit

Wiring Diagram
