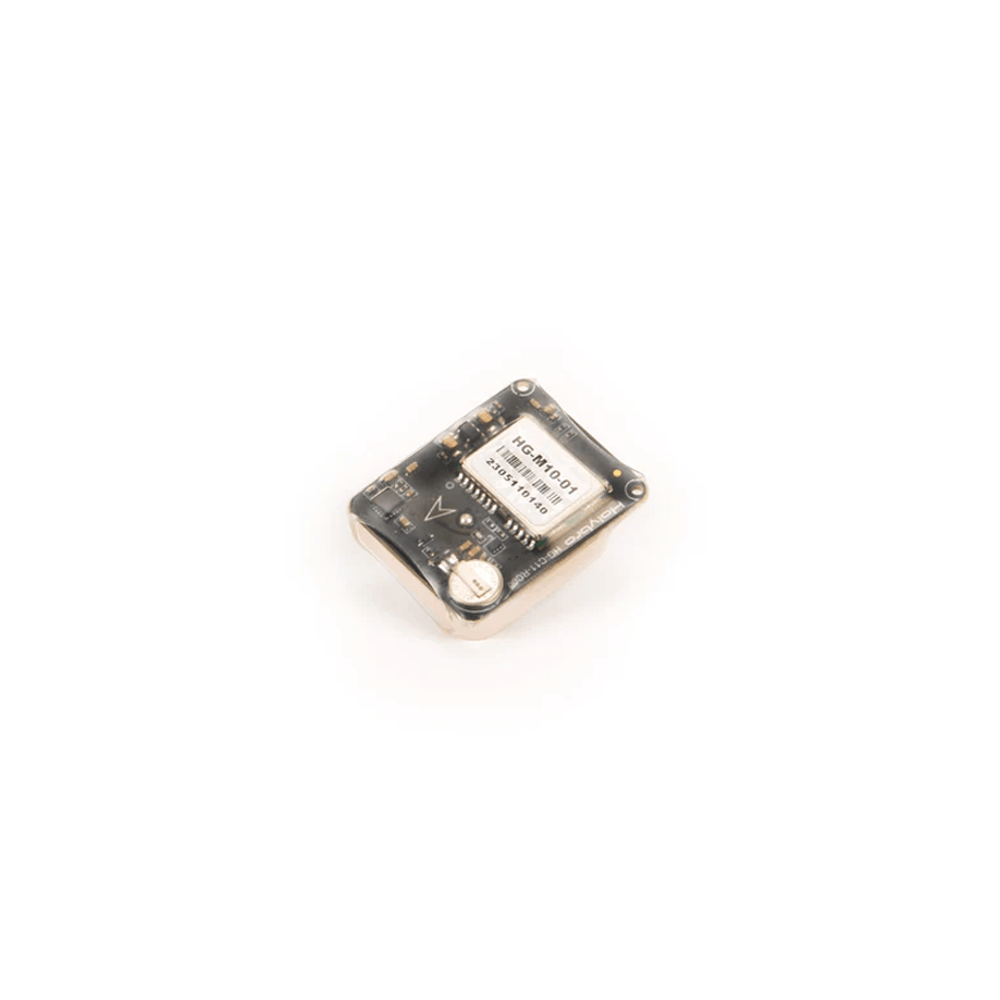

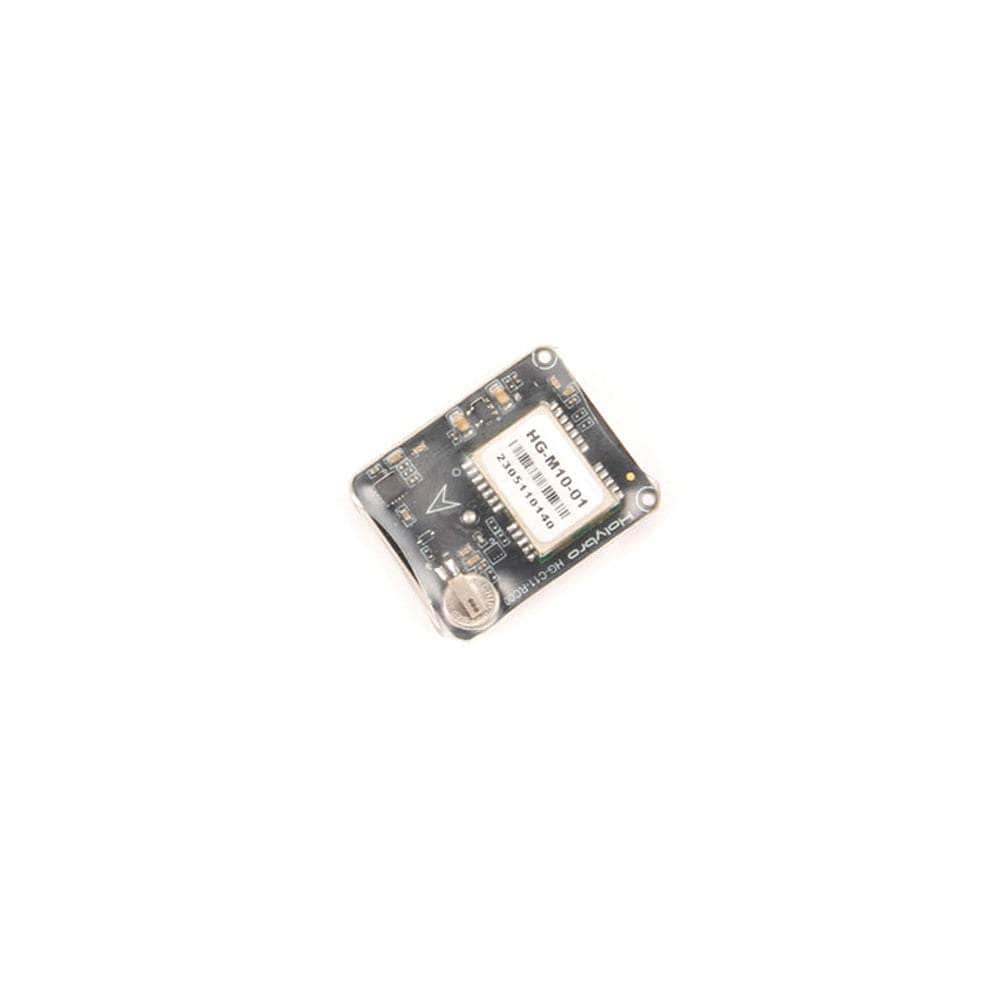

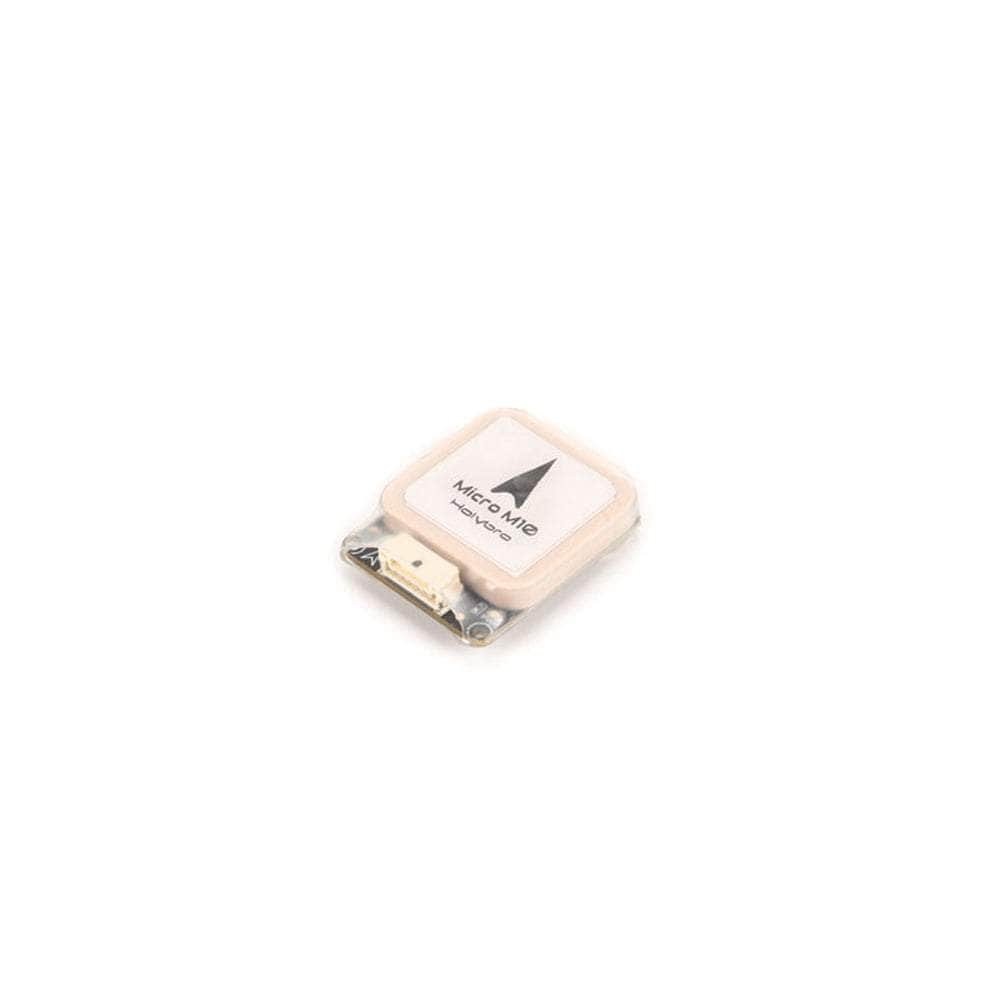

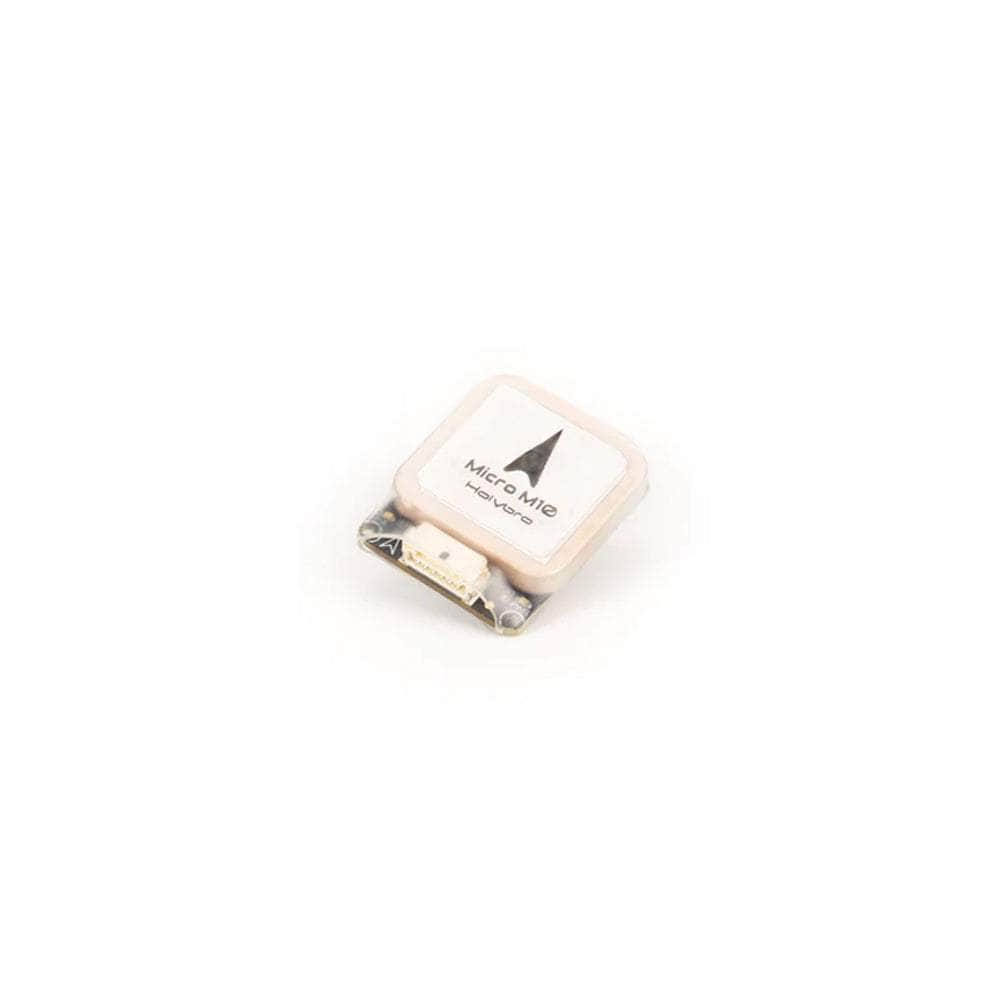

Holybro M10 Micro GPS w/ IST8310 Compass (10th Gen)

Description

Check out our other GPS options and the rest of our HolyBro selection!

Features

• Newest Ublox 10th Gen GNSS
• Fast & Accurate Positioning
• IST8310 Compass
• Small Form Factor
• Plug and Play

Specifications

• GNSS Receiver: Ublox M10 Receiver
• Number of Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)

• Compass: IST8310
• Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1

• Output Protocol: UBX (U-blox), NMEA

• Nav. Update Rate: Up to 25 Hz (single GNSS) and Up to 10 Hz (4 concurrent GNSS)
• GNSS Augmentation System (SBAS): WAAS, EGNOS, MSAS
• GNSS Augmentation System (QZSS): L1S (SLAS)

• Default Baud Rate: 38400
• Input Voltage: 4.7-5.2V
• Accuracy: 1.5m

• Speed Accuracy: 0.05 m/s
• Port Type: JST-GH-6P
• Antenna: 25 x 25 x 4mm ceramic patch antenna
• Power consumption: Less than 200mA @ 5V
• Port Type: JST-GH-6P

• Operating Temperature:  -40~80C
• Dimension: 32 x 26 x 9mm

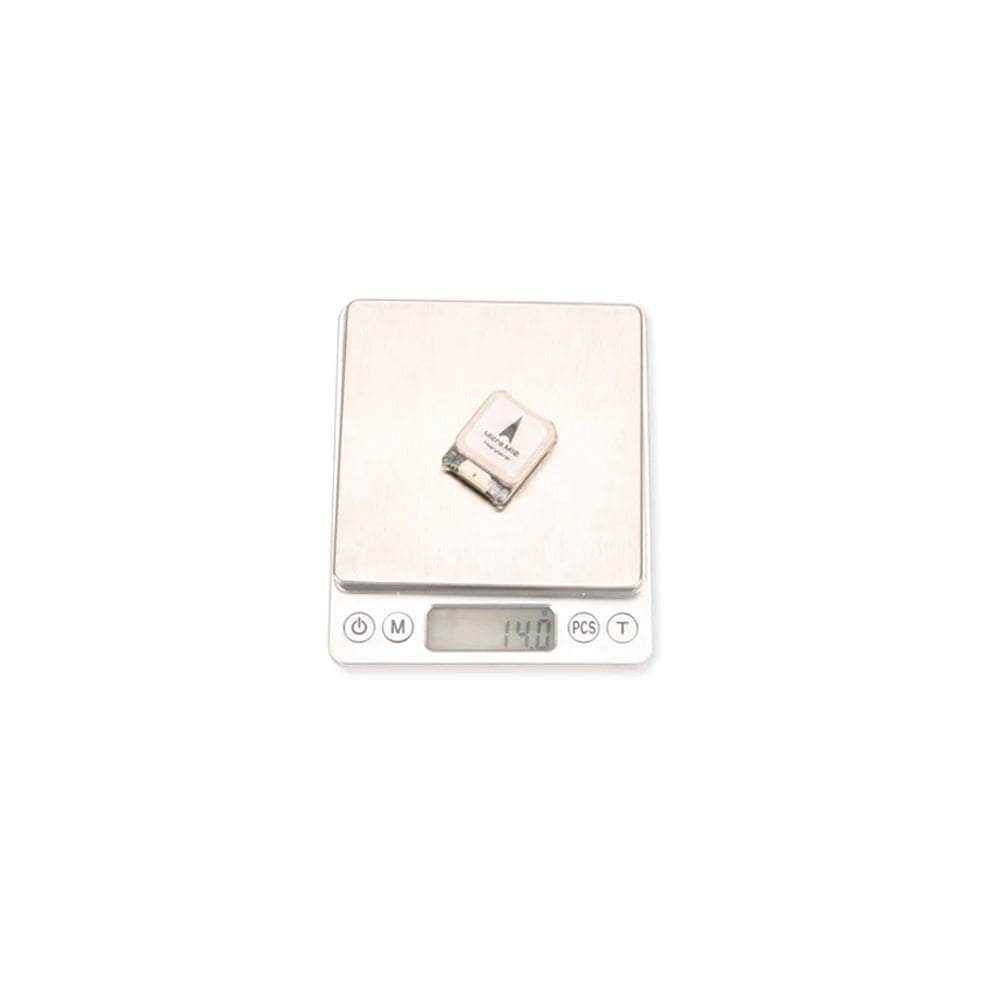

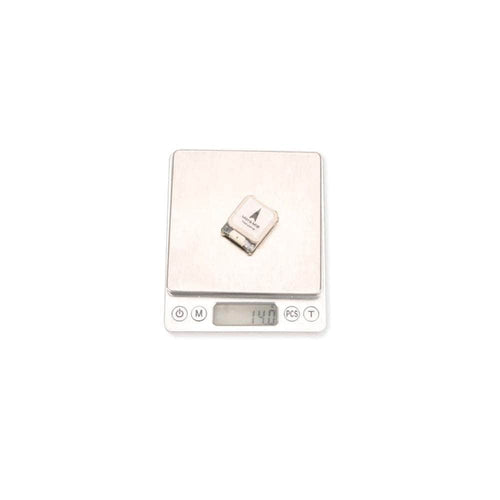

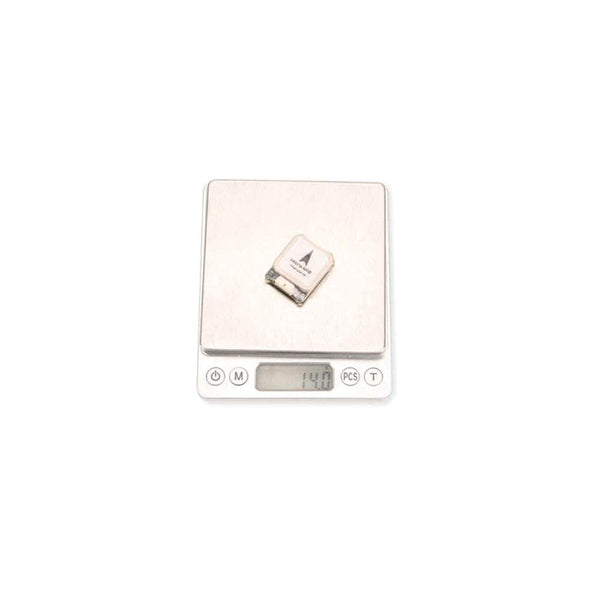

• Weight: 14g
• Other Notes: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance, Rechargeable Farah capacitance

Includes

• 1x Holybro M10 Micro GPS w/ IST8310 Compass (10th Gen)

Wiring Diagram
