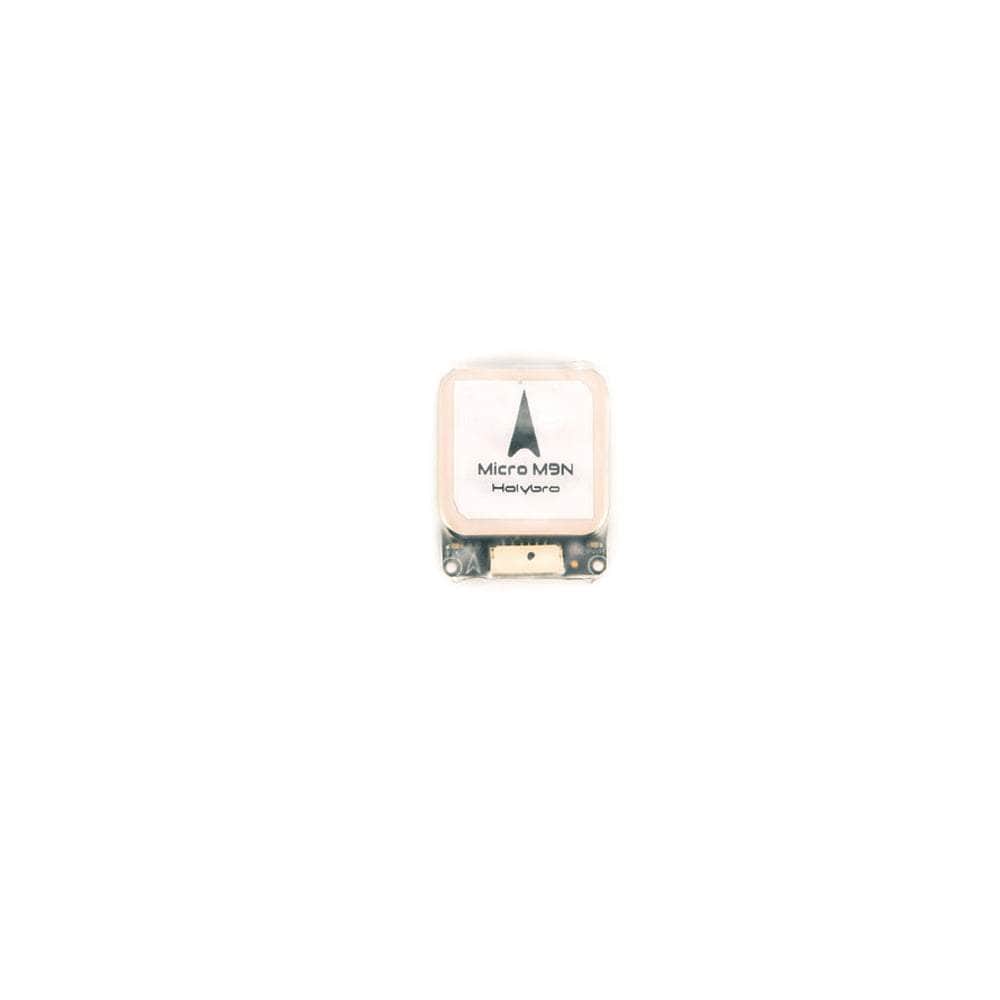

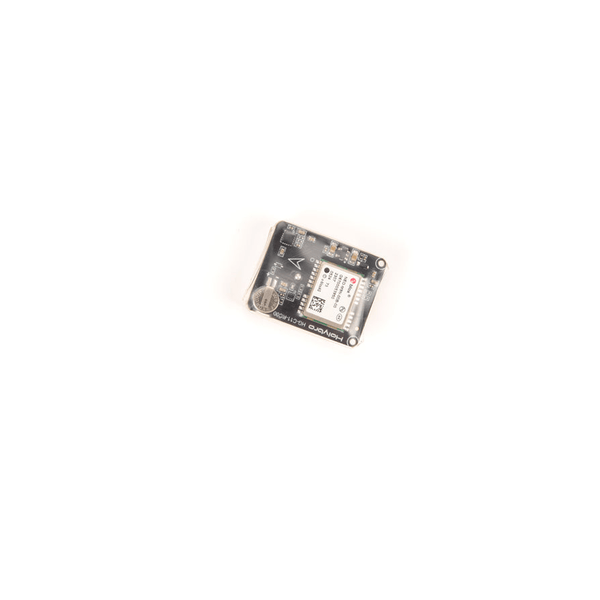

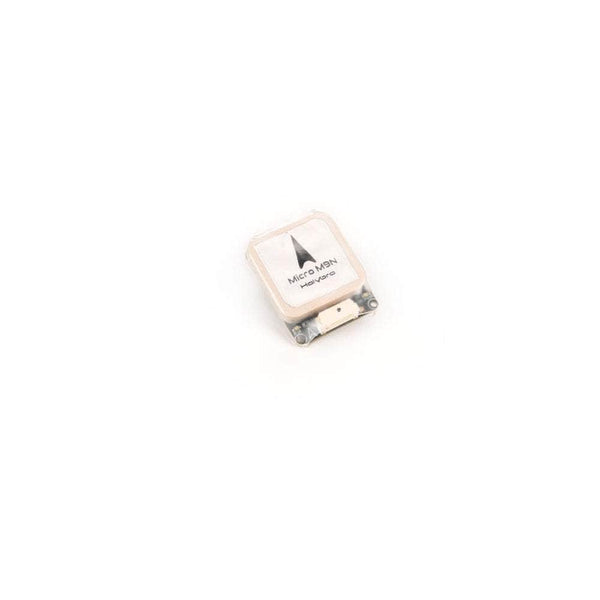

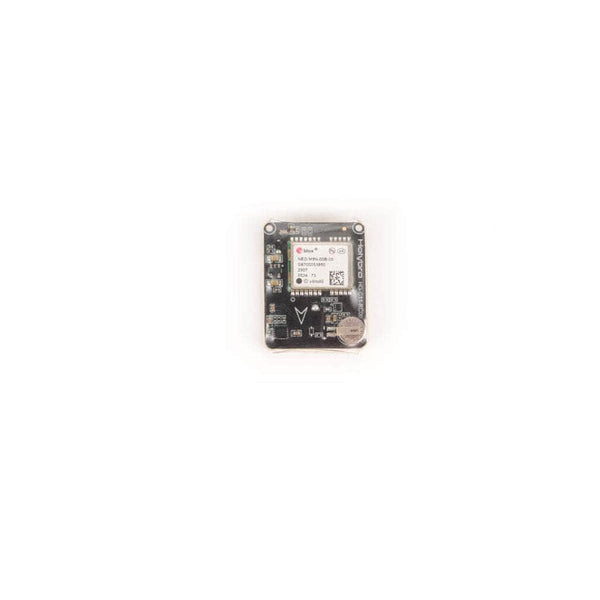

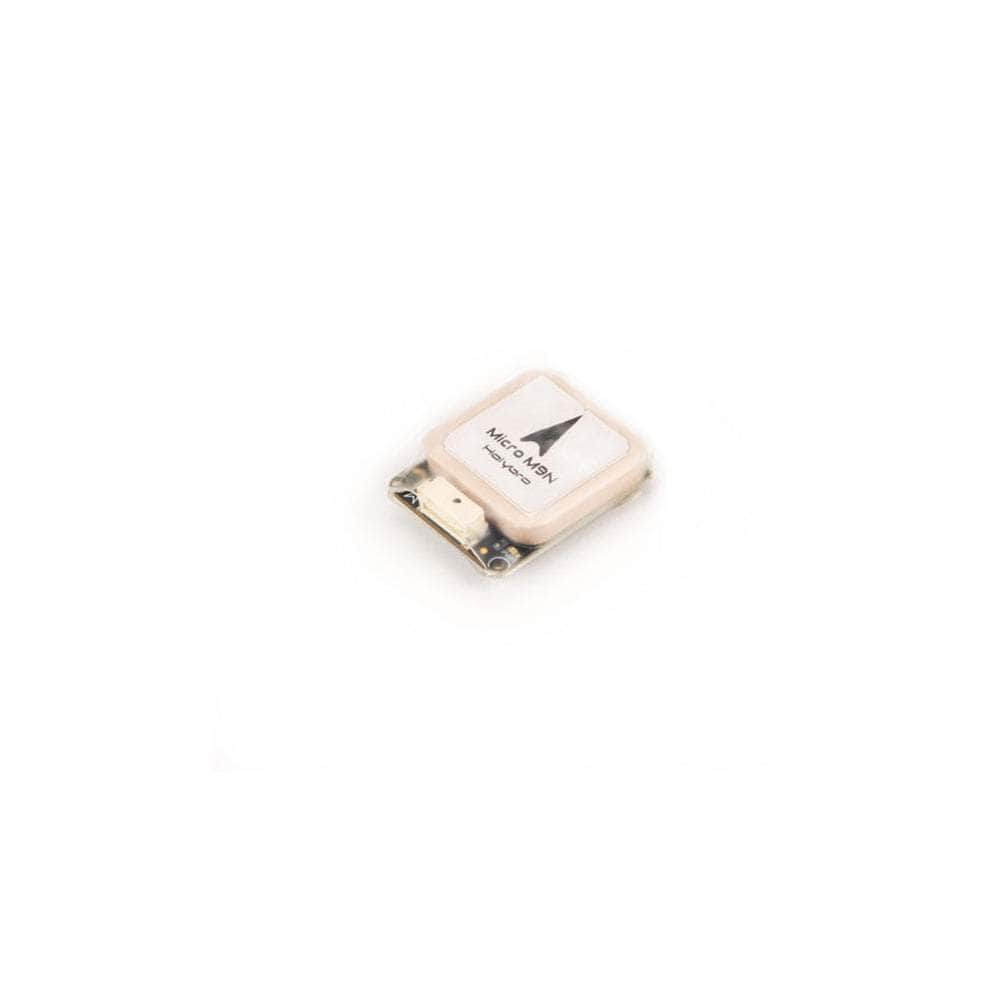

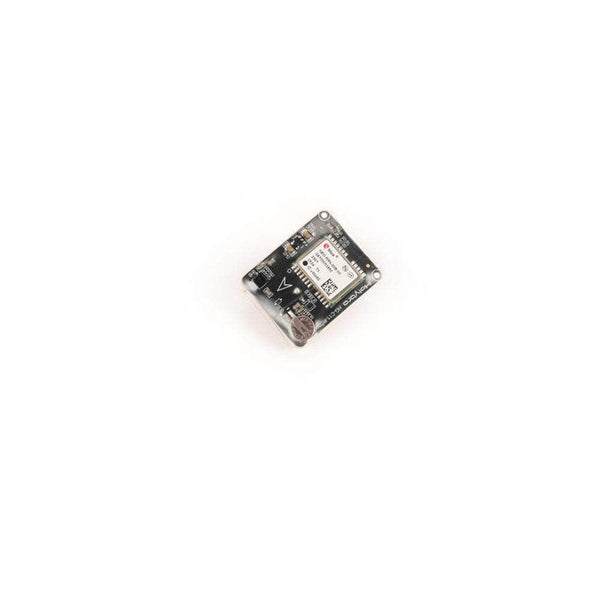

Holybro M9N Micro GPS w/ IST8310 Compass (10th gen)

0 Reviews
Original price $0
Current price $38.99
Original price $38.99 - Original price $38.99
Original price
$38.99 - $38.99
Current price $38.99
In Stock

Pickup available at RDQ Warehouse

Usually ready in 4 hours
Add to Wishlist
Ask a Question

Details

Description

Holybro M9N Micro GPS w/ IST8310 Compass is the perfect navigation solution for professionals looking for maximum precision. This 10th gen GNSS module is built on the reliable u-blox M9N chip for exceptional sensitivity and acquisition times. It supports concurrent reception of four GNSS systems which maximizes accuracy under difficult conditions.

Check out our other GPS options and the rest of our HolyBro selection!

Features

  • Ublox M9N GNSS Receiver
  • Fast & Accurate Positioning
  • IST8310 Compass
  • Small Form Factor
  • Maximum position availability with concurrent reception of 4 GNSS
  • Ultra-robust GNSS positioning
  • Excellent RF interference mitigation

Specifications

  • GNSS Receiver: Ublox M9N Receiver
  • Number of Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)
  • Compass: IST8310
  • Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
  • Output Protocol: UBX (U-blox), NMEA
  • Nav. Update Rate: Up to 25 Hz
  • GNSS Augmentation System (SBAS): WAAS, EGNOS, MSAS
  • GNSS Augmentation System (QZSS): L1S (SLAS)
  • Default Baud Rate: 38400
  • Input Voltage: 4.7-5.2V
  • Accuracy: 1.5m
  • Speed Accuracy: 0.05 m/s
  • Port Type: JST-GH-6P
  • Antenna: 25 x 25 x 4mm ceramic patch antenna
  • Power consumption: Less than 200mA @ 5V
  • Port Type: JST-GH-6P
  • Operating Temperature: -40~80C
  • Dimension: 32 x 26 x 9mm
  • Weight: 14g
  • Other Notes: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance,
  • Rechargeable Farah capacitance

Includes

  • 1x Holybro M9N Micro GPS w/ IST8310 Compass (10th gen)

Wiring Diagram

More Information:

  • SKU: 22570
  • Barcode: 691023474512
Review Highlight
5.0 star rating

Best midsize GPS/Compass

I have tried a couple of midsize serial GPS/Compass from Holybro and Matek and this M9N has the most options I am looking in a GPS/Compass.
. Quick lock to multiple GNSS and augmentation
. On board battery for quick reboots.
. Accurate Compass (magnetometer).
.25x25mm GNSS antenna.

A good GNSS/magnetometer is essential for Ground Control and Planned Missions using Ardupilot or iNAV.
