Description

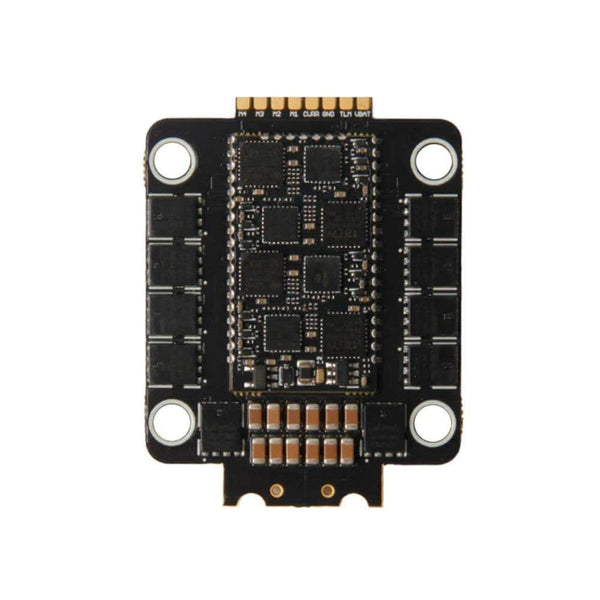

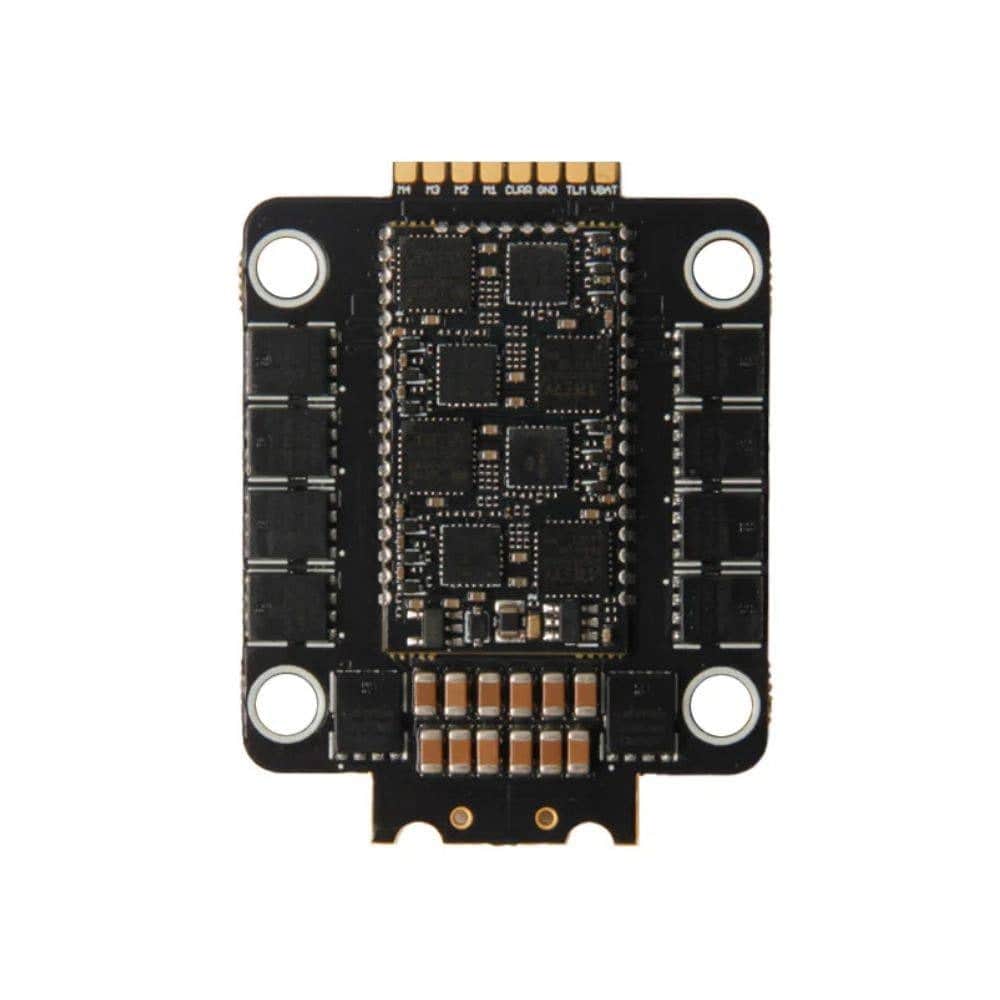

The HGLRC Tekko32 F4 ESC delivers reliable 50A continuous (60A burst) power per channel for 4–6S setups. Featuring AM32 firmware, full DShot and OneShot compatibility, onboard current sensing, and telemetry support, it’s a lightweight, compact solution for high-performance freestyle and racing builds.

Check out all our 30x30 ESCs and the rest of our HolyBro selection!

Features

• 50A continuous / 60A burst current per channel (4-in-1)
• Supports 4–6S LiPo input
• AM32 firmware (AM32_TEKKO32_4IN1_F421 target)
• DShot150/300/600/1200 plus MultiShot, OneShot, ProShot & PWM support
• Onboard analog current sensor with ESC telemetry support

Specifications

• Continuous Current: 50A ×4
• Burst Current: 60A ×4
• Input Voltage: 4–6S LiPo
• Signal Support: DShot150/300/600/1200, MultiShot, OneShot, ProShot, PWM
• ESC Telemetry: Supported
• Current Sensor: Onboard analog sensor
• Firmware: AM32 (Target: AM32_TEKKO32_4IN1_F421)
• BEC: No onboard output
• Capacitor: 1000µF 35V included (recommended for 6S setups)
• Current Meter Scale Ratio: 120 (V1.9 version)
• Dimensions: 48 × 37 × 6mm
• Weight: 13.8g
• Mounting Pattern: 30.5 × 30.5mm (M4 holes, M3 grommets included)

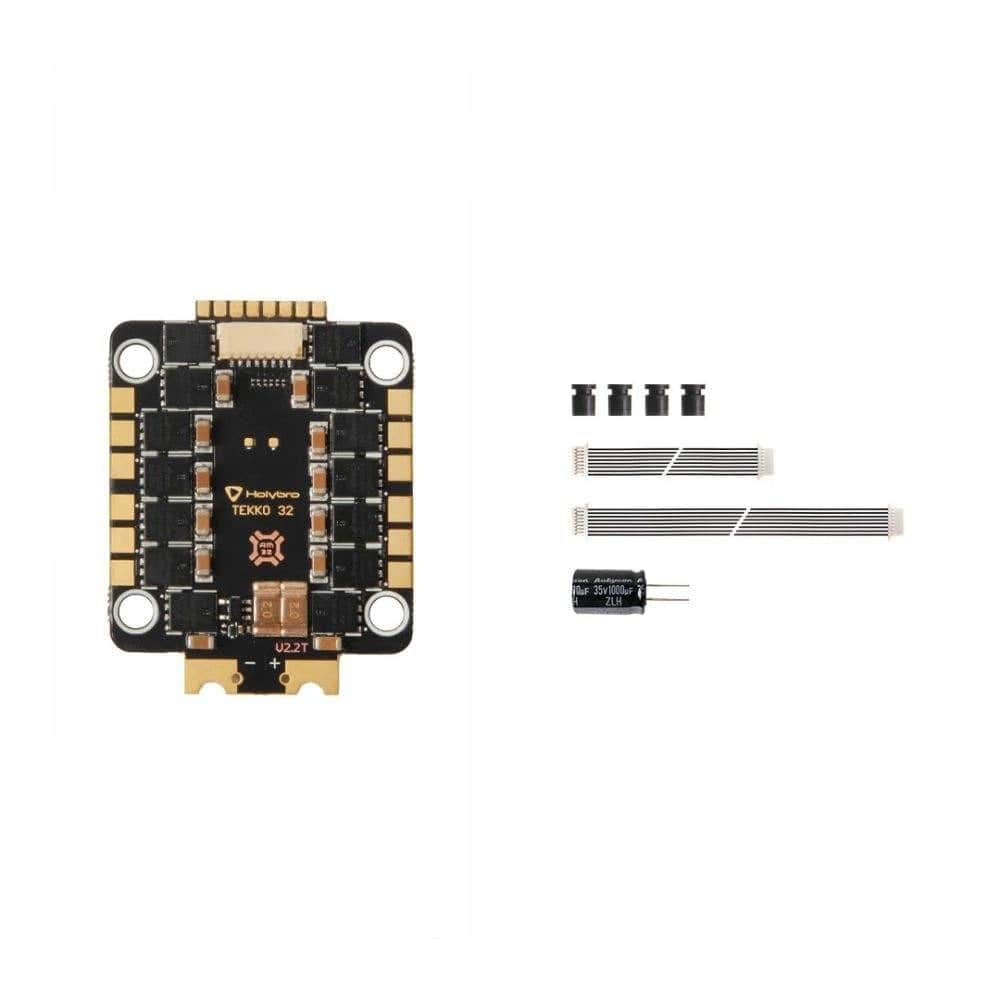

Includes

• 1x Holybro Tekko32 50A 4-6S AM32 4-in-1 ESC - 30.5x30.5 (F4 MCU)
• 1x 8-pin to 8-pin 1mm pitch 65mm Cable
• 1x 8-pin to 8-pin 1mm pitch 25mm Cable
• 4x M3 Anti-Vibration Silicone Grommet
• 1x Electrolytic capacitor: 1000uF 35v
