iFlight 2-8S Micro 5V or 12V BEC

iFlight 2-8S Micro 5V or 12V BEC

$8.49
$8.49
Add To Wishlist
View full details

Details

Description

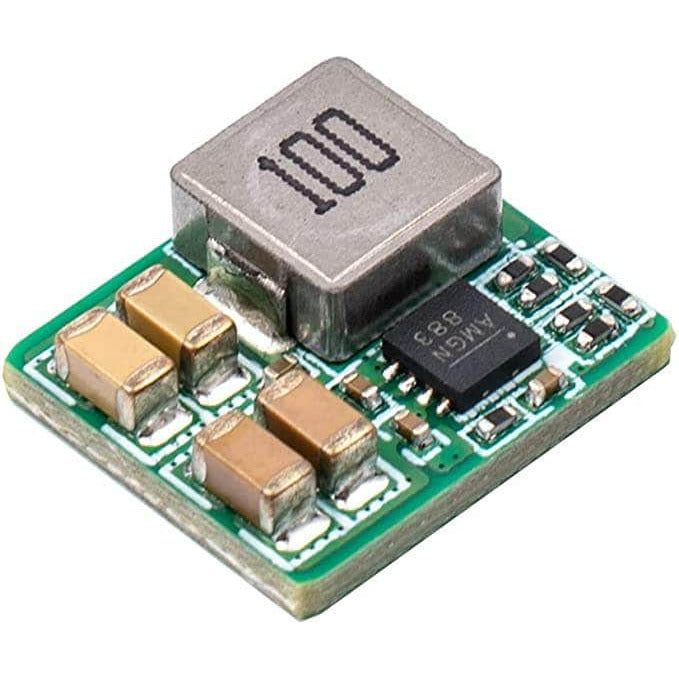

The iFlight 5V/12V Step Down Micro BEC features high-efficiency synchronous rectification and the ability to step down from a wide input voltage range of 2-8S(5-36V) and provide a lower stable output voltage. It's an incredibly compact solution for still being able to provide 3 amps at 5 volts, and 2 amps at 12 volts.

For those looking for something even smaller and only needing 5V 2A output from 3-6S input, may we suggest the iFlight 3-6S Micro 5V 2A BEC.

Check out the Rest of our iFlight product range and PDB/BEC selection while you're at it!

 Features

  • Step-down Switch Mode
  • High-efficiency Synchronous Rectification
  • Wide Input voltage range
  • Voltage output can be 5V or 12V* (default 5V)

*When the "ON-12" Jumper pads are shorted, the output voltage is 12V 2A. When open, the output voltage is 5V 3A. See enlarged image below.

Specifications

  • Input voltage: 2-8S(5-36V)
  • BEC Output: 5V/2A, 12V/3A (default 5V/2A)
  • Dimensions: 12x14x4.5mm
  • Pin Spacing: 2.55mm
  • Weight: 1.8g

Includes

  • 1x iFlight Micro 2-8S BEC - 5V/12V Output
  • 1x Connecting Cables Set

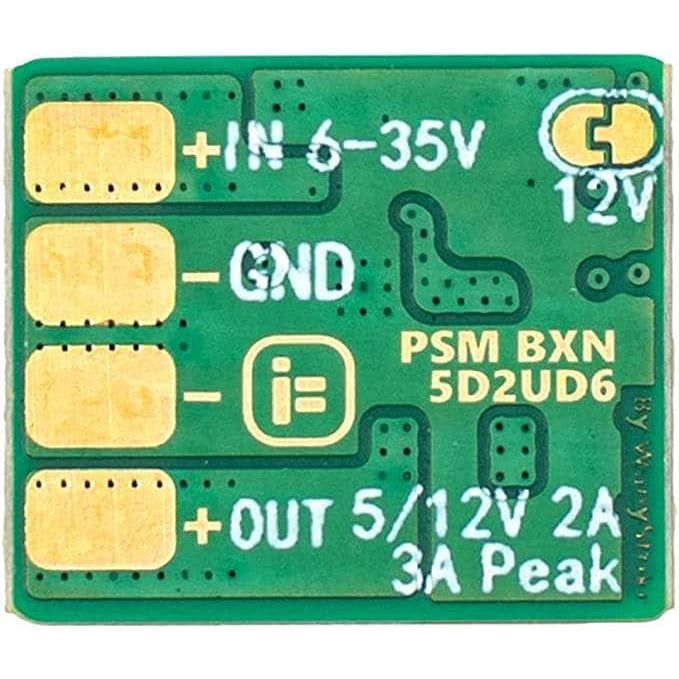

Voltage Switch Jumper:







More Info

  • SKU: IFLI-B012912
  • Barcode: 691023522695


Overall rating: 4.672414 / 5 from 58 reviews.

AI Generated Review Summary

The iFlight 2-8S Micro BEC is praised for its compact size and excellent soldering ease. Customers highlight its high-efficiency performance and reliable connection to flight controllers.

Summary topics

  • Compact Size: 12%
  • BEC Performance: 18%

Review topics: ["size","power","output","install","issues","works","bec"].

Review highlights

  • "Size and weight are excellent." — Thomas E.
  • "Good size easy to solder to." — Shawn S.
  • "Worked out nice came with heat shrink to make a nice BEC ." — Lisa G.

Reviews

Good size easy to solder to.

"Good size easy to solder to."

— Shawn S. (5/5)

Easy to install and does its job

"The built-in BEC on my flight controller fell off during a crash which made the FC only power up completely when connected via USB. I wired up this BEC and was able to fix the problem and save the FC. If you ever have a similar problem, this part will do the job for $6 rather than $65+ for a new FC."

— Tyler A. (5/5)

Works as expected

"Simple way to convert to 12V"

— Michael H. (5/5)

One star if I could

"These boards claim 8S capable but instantly pop and smoke when powered with 8S."

— Jon D. (1/5)

Bad customer service

"Race day quads lied to me"

— Alex R. (1/5)

Perfect!

"Used this to make a field vtx cooling fan. I have a 12 v fan with this inline so I can run it off my 4-6s flight packs."

— Ian M. (5/5)

Just what I needed!

"I was looking for a small, inexpensive way to power a standalone camera/vtx from a Lipo battery. This fits the bill in a small package with the option to provide 5V or 12V power. I bought a few so I have them handy for future projects."

— Ryan H. (5/5)

I will not install a

"I will not install a VTX without one on the power. Helps regulate power output."

— Harold I. (5/5)

Worked great

"Shipped quickly. Works as advertised. Installation was easy on a scratch built dlg glider with a 2s lipo because my servos were only rated for 5v. I didn’t actually test the output but it worked great. I was pleasantly surprised by the tiny size"

— Mitch K. (5/5)

Must have when dealing with

"Must have when dealing with LEDs. Thanks for the quick shipping RDQ"

— Bradley W. (5/5)

Q&A

can this step up voltage as well or only step down? Can I use a 4s liion to get steady 12v output or no?
Yes, 4s will put out a steady 12 volts.
"It's an incredibly compact solution for still being able to provide 3 amps at 5 volts, and 2 amps at 12 volts." And under specifications it says BEC Output: 5V/2A, 12V/3A (default 5V/2A). Is this a typo?
Yes it is. The default voltage is 5v.
