Description

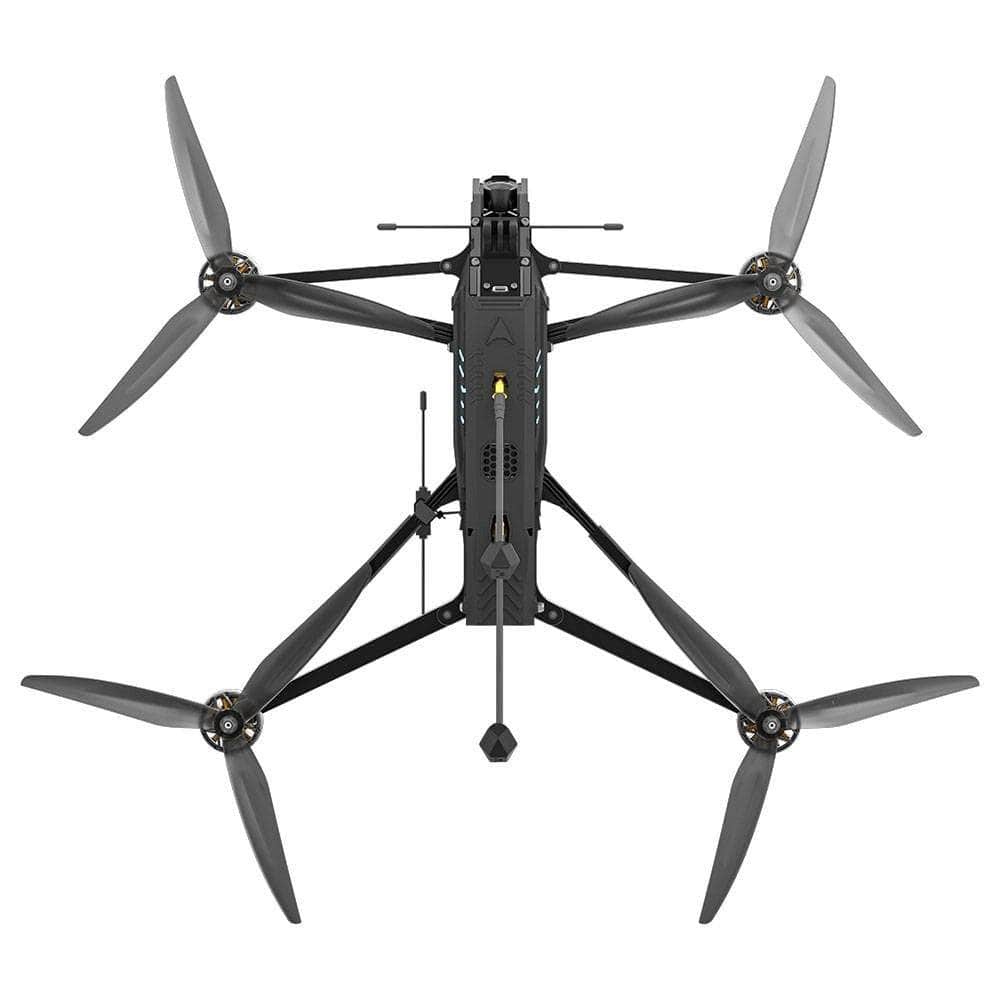

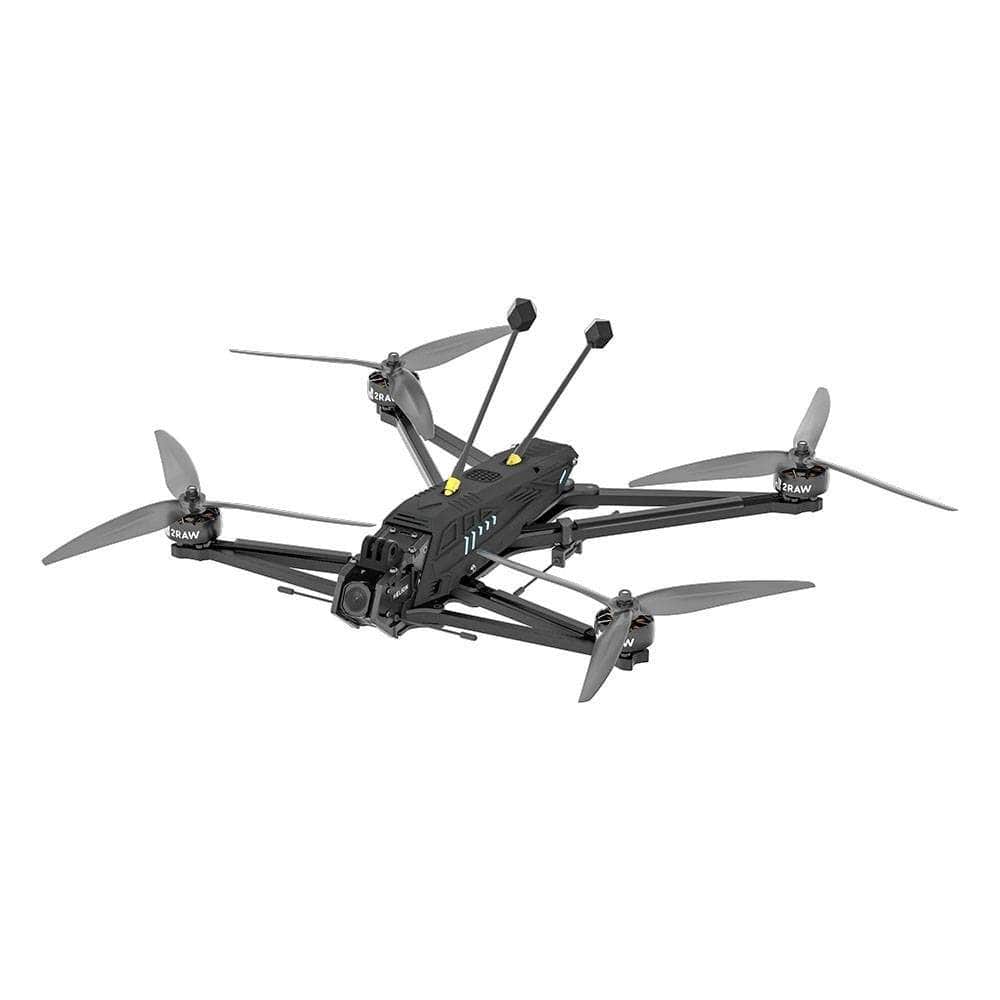

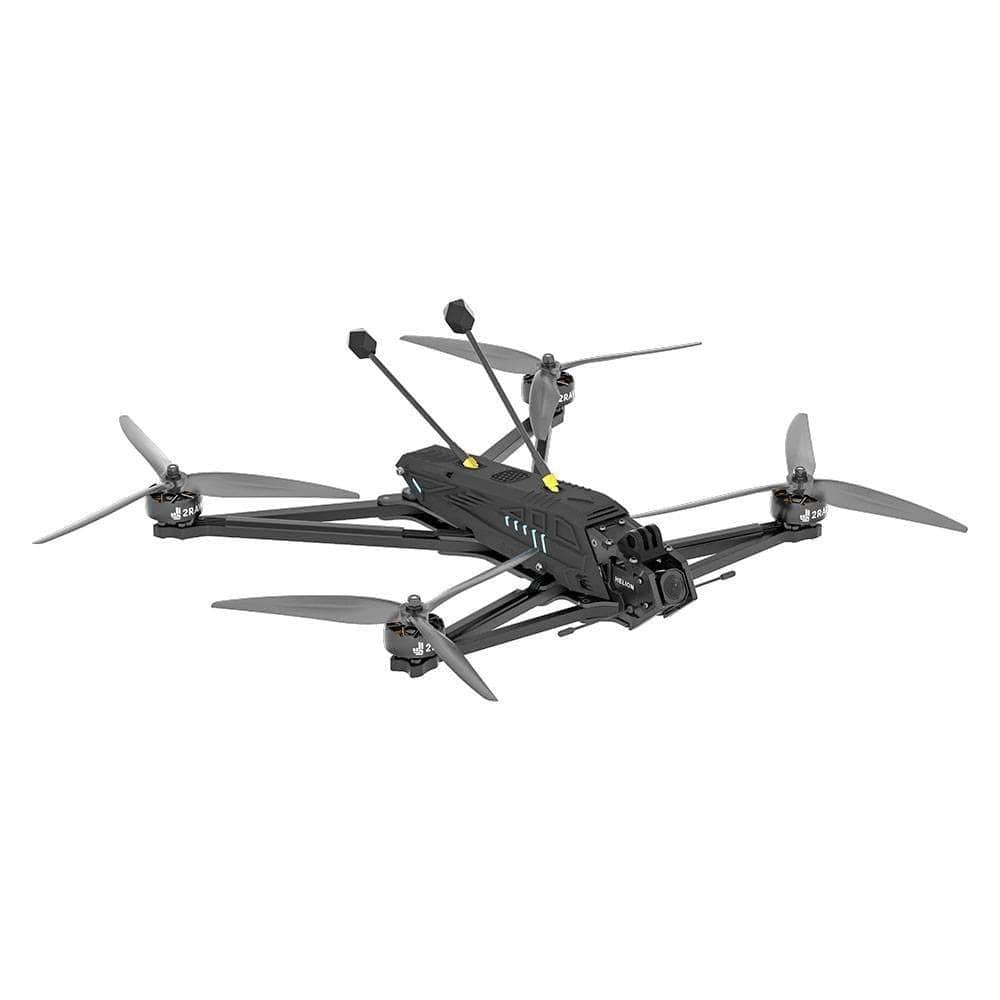

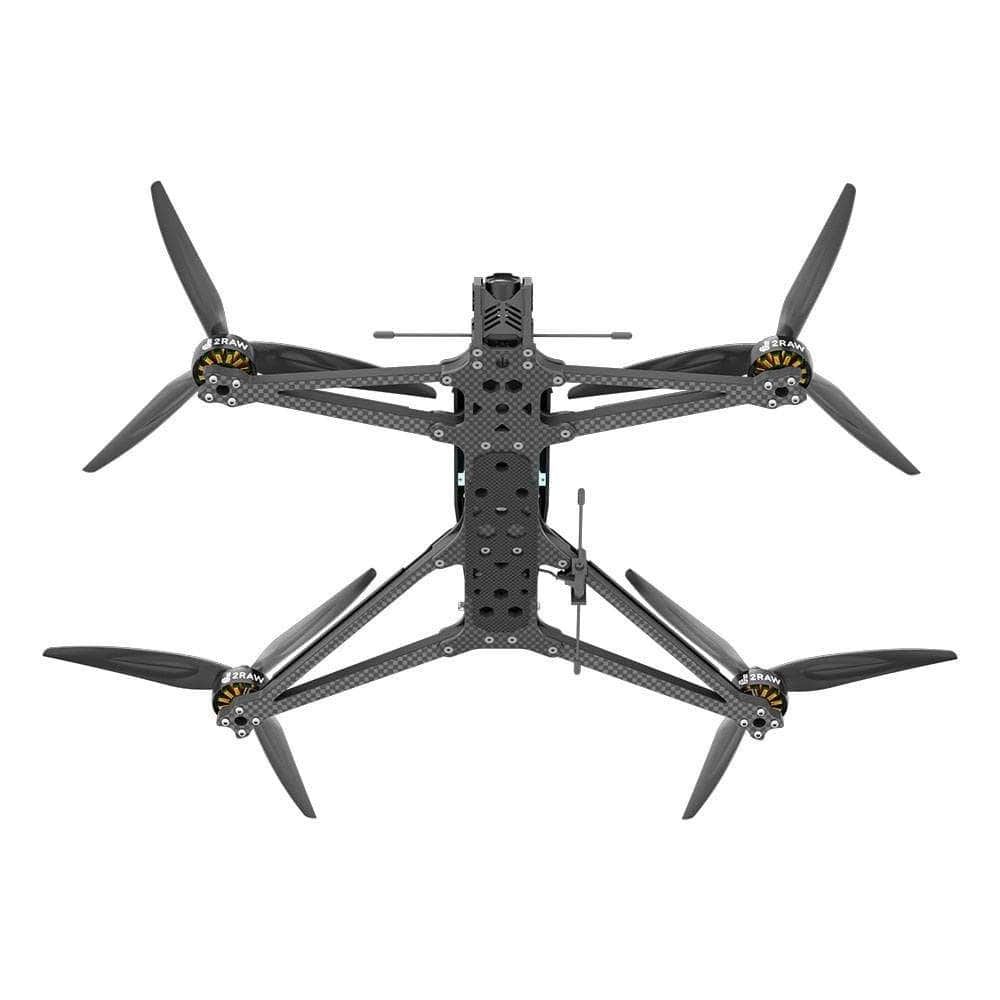

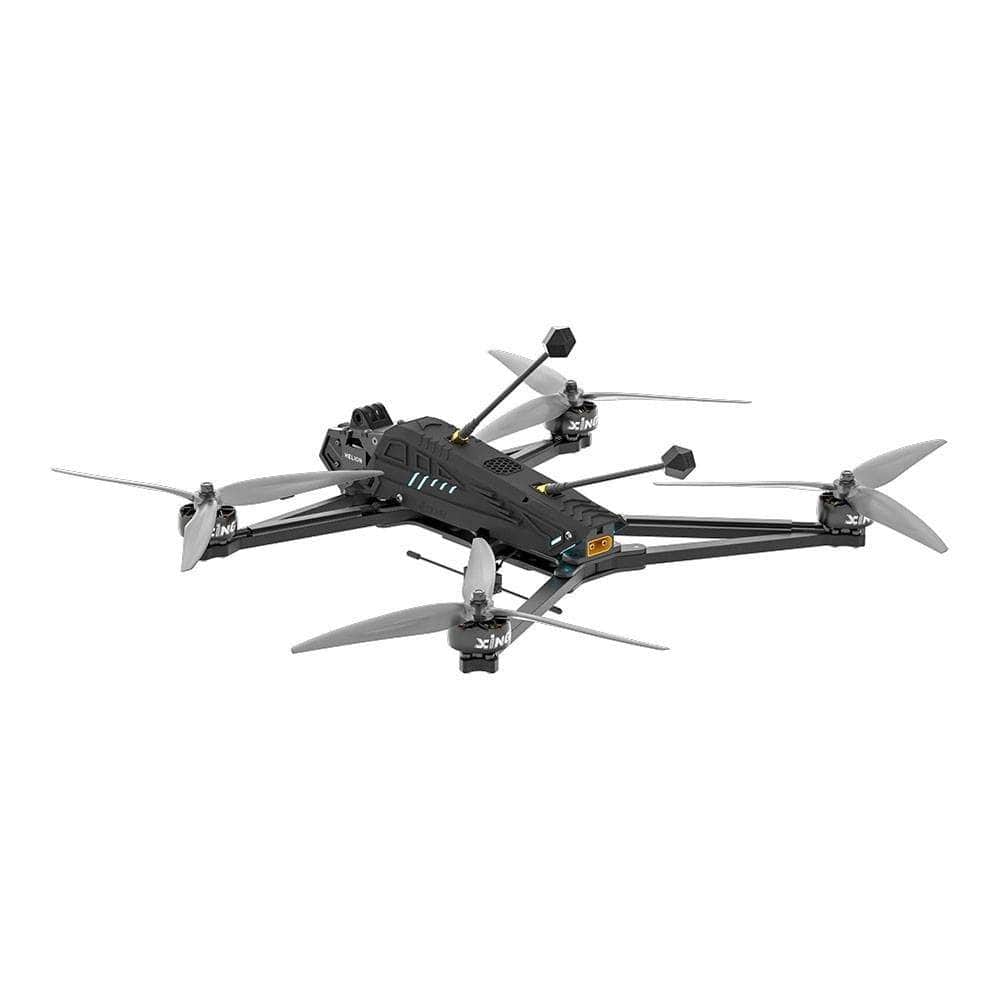

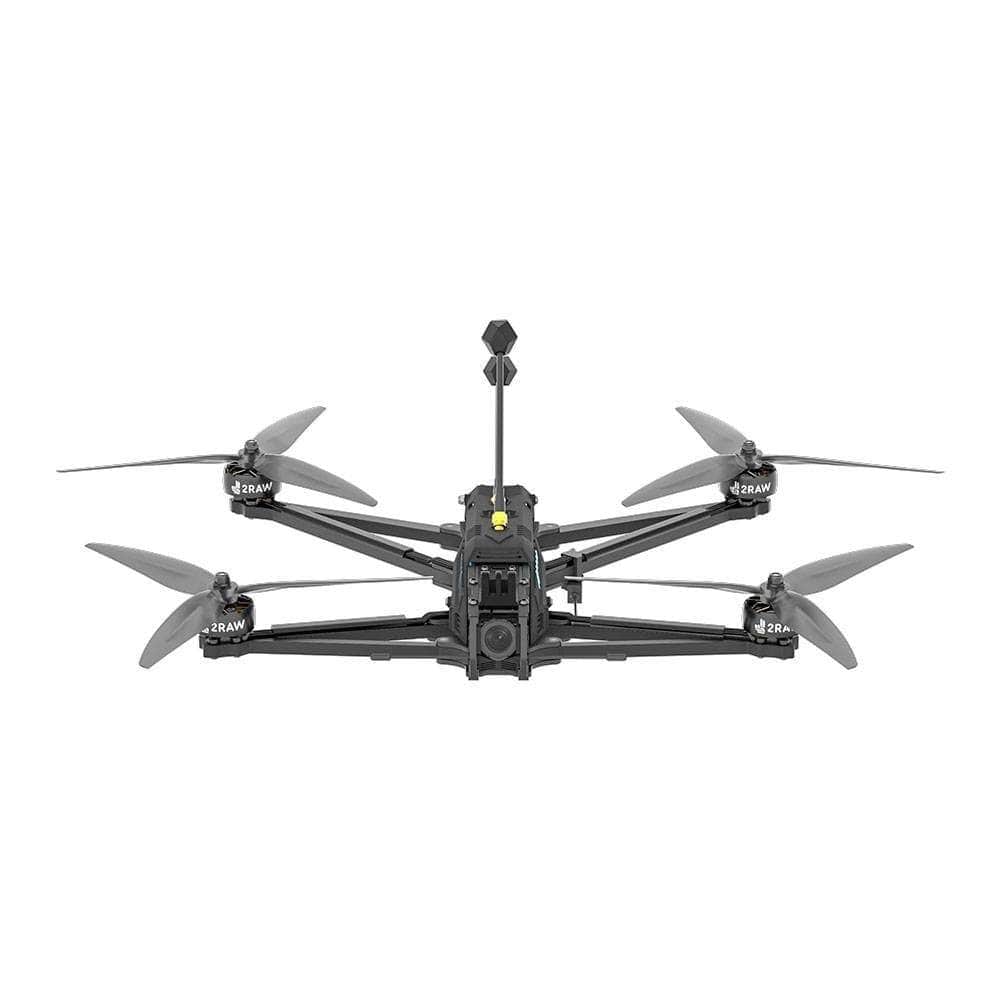

The iFlight 2RAW Helion 10 is a long-range flagship drone built to push the limits of endurance, stability, and cinematic performance. Featuring massive 10-inch props paired with optimized XING motors, it carries large batteries for extended flight times of up to 30 minutes while maintaining rock-solid control—even in windy conditions. Its aerodynamic shell protects key components while allowing easy access for maintenance, and the innovative A-frame design ensures strength and low vibrations.

Be sure to check out our Bind-n-Fly collection as well as our iFlight Products!

Features

• DJI O4 Air Unit Pro HD video with 155° ultra-wide lens
• Aerodynamic shell for airflow & protection
• Long-range flagship design with 10" props
• GPS with long-range safety & rescue mode
• Strong A-frame design reduces vibrations
• Extended flight times up to 30 minutes
• Optimized XING motors + Gemfan props
• USB-C power for action cameras

Specifications

Drone

• Product Name: Helion10 O4 6S HD

• FC: BLITZ F7 Flight Controller

• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

• Video Transmission: DJI O4 Air Unit Pro

• Geometry: A-Frame

• Frame: 418mm wheelbase

• Motor: Helion 10 3110 900KV motors

• Prop: GEMFAN 1050 propellers

• Weight: 1072±20g

• Takeoff Weight: Approx.1912±5g (With 6S 8000mAh)

• Dimensions (L×W×H)：324x264x63mm

• Max Speed: 140km/h

• Maximum Takeoff Altitude: 7000 m

• Max Hover Time: Approx. 26min with 6S Lipo 5600mAh battery / 30mins with 6S 8000mAh Liion battery

• Max Cruising Time: Approx. 23min with 6S Lipo 5600mAh battery / 26mins with 6S 8000mAh Liion battery

• Operating Temperature Range: -20° to 40° C

• Antennas: Dual Antennas

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmitter

• Product Name: DJI O4 Air Unit Pro
• Image Sensor: 1/1.3-inch

• Lens: FOV: 155°

• ISO: 100-25600

• Video Resolution: 1080p/100fps H.265

• Video Format: MP4, Max Video Bitrate: 130Mbps

• Color Mode: Normal Mode/D-Log M

• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

• Live View Quality: 1080P@100fps

• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

• Communication Bandwidth: Max 60 MHz

• Antenna: Dual antennas

• Built-in Storage: 4GB

• Supported SD cards: microSD (up to 512GB)

• Operating Temperature: -10° to 40° C

• Weight: Air Unit (camera module included): Approx. 32 g

• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Includes

• 1x iFlight 2Raw Helion 10 Long Range 10" 6S BNF HD w/ DJI O4 Pro
• 1x Battery pad
• 2x GEMFAN 1050 propellers (Pairs)
• 2x Battery strap
• 1x Screw bag
• 1X Amass XT90 to XT60 H Adapter Cable
