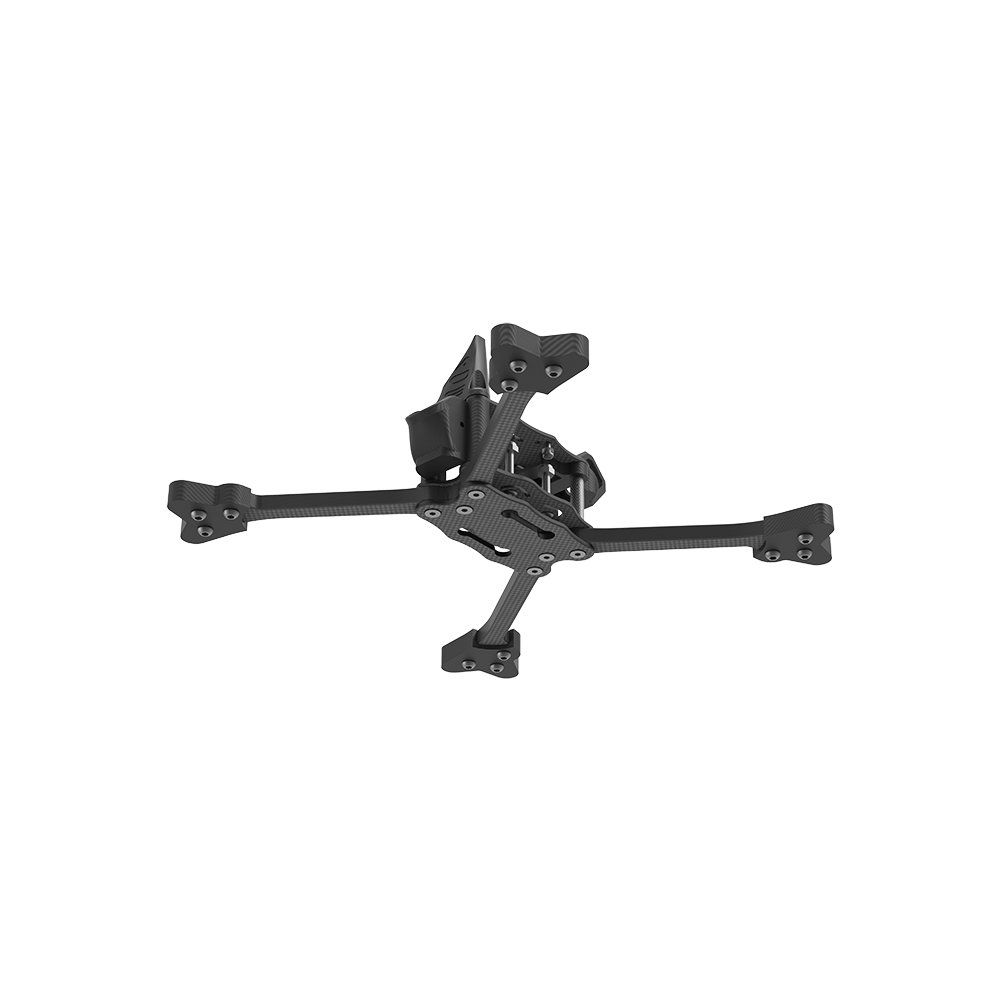

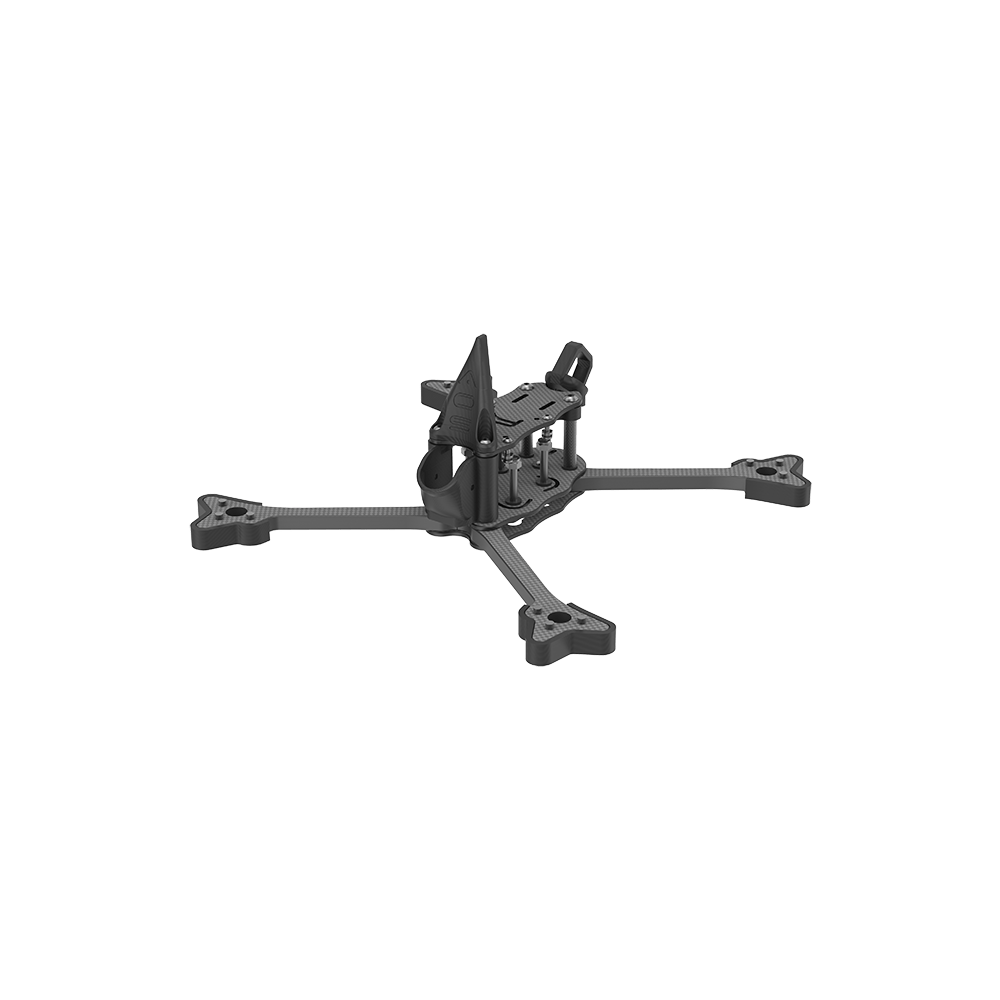

iFlight AOS 5R 5" Frame Kit

Original price $68.99 - Original price $68.99
Original price
$68.99 - $68.99
Current price $68.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Redefining state of the art in FPV drone racing. The AOS 5R V5 is designed with cutting-edge patent pending technology to give you an edge over the competition.

Be sure to browse the rest of our iFlight products and DJI compatible frames, electronics and accessories.


  • Supports up to 5.3" Props
  • AOS X-Cell Anti-Vibration Technology
  • 20x20 mm M3 flight stack
  • 25.5x25.5 mm OR 20x20 mm M2 top plate mounting
  • 20mm standoff spacing fits most existing 3D prints for 14mm camera, shark fin, and VTX antenna
  • 50mm stack clearance front to rear fits even the largest 20x20 M3 ESCs
  • ⌀16mm motor mounting (supports all standard 5" motors)


  • Product Name: AOS 5R Frame Kit
  • Frame wheelbase: 201mm
  • Frame Dimension: L142xW142xH38 mm
  • Arm Thickness: 6mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2mm
  • Upper Plate Thickness: 2mm
  • Max Flight Stack Height: 25mm
  • Max VTX Height: 25mm
  • Motor Mounting: 16x16-φ3mm
  • Flight Stack Mounting: 20x20 Φ3mm
  • VTX Mounting: 20x20/Φ2mm 25.5x25.5/Φ2mm
  • Weight: 90g
  • Compatible: Vista HD system/ BLITZ mini 1.6W VTX


  • 1x iFlight AOS 5R 5" Frame Kit
