Description

The iFlight BLITZ BEC Module is a compact, high-efficiency step-down converter designed for stable voltage regulation. With step-down switch mode and synchronous rectification, it efficiently reduces input voltages up to 26V, providing a reliable 5V or 12V output. Capable of delivering 2A continuous and 3A peak current, this module is perfect for powering sensitive electronics in a wide range of FPV and RC applications.

Check out the Rest of our iFlight product range and PDB/BEC selection while you're at it!

 Features

• High-Efficiency Synchronous Design
• Adjustable Output Voltage
• Wide Input Voltage Range
• Step-Down Switch Mode

Specifications

• Output Voltage/Current: 5V or 12V, Average: 2A / Peak: 3A
• Pin Distance: 2.55mm
• Size: 16 × 12 × 4.5mm
• Input Voltage: 6-26V
• Weight: 1.8g ± 0.1g
• Conversion Efficiency:

  • 12V Output: Above 92% (average efficiency)
  • 5V Output: Above 88% (average efficiency)

Important Notes:

• If sparking occurs when powering on, it is recommended that the input voltage not exceed 26V.

Includes

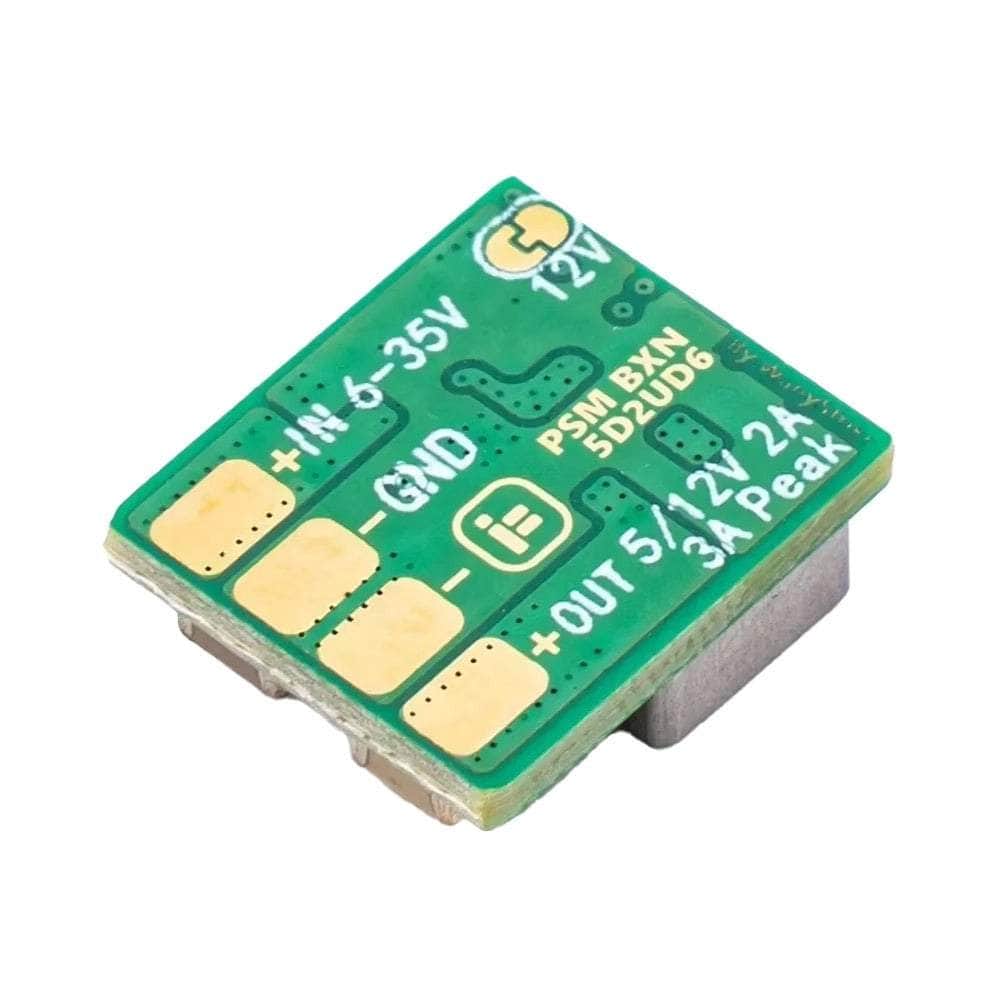

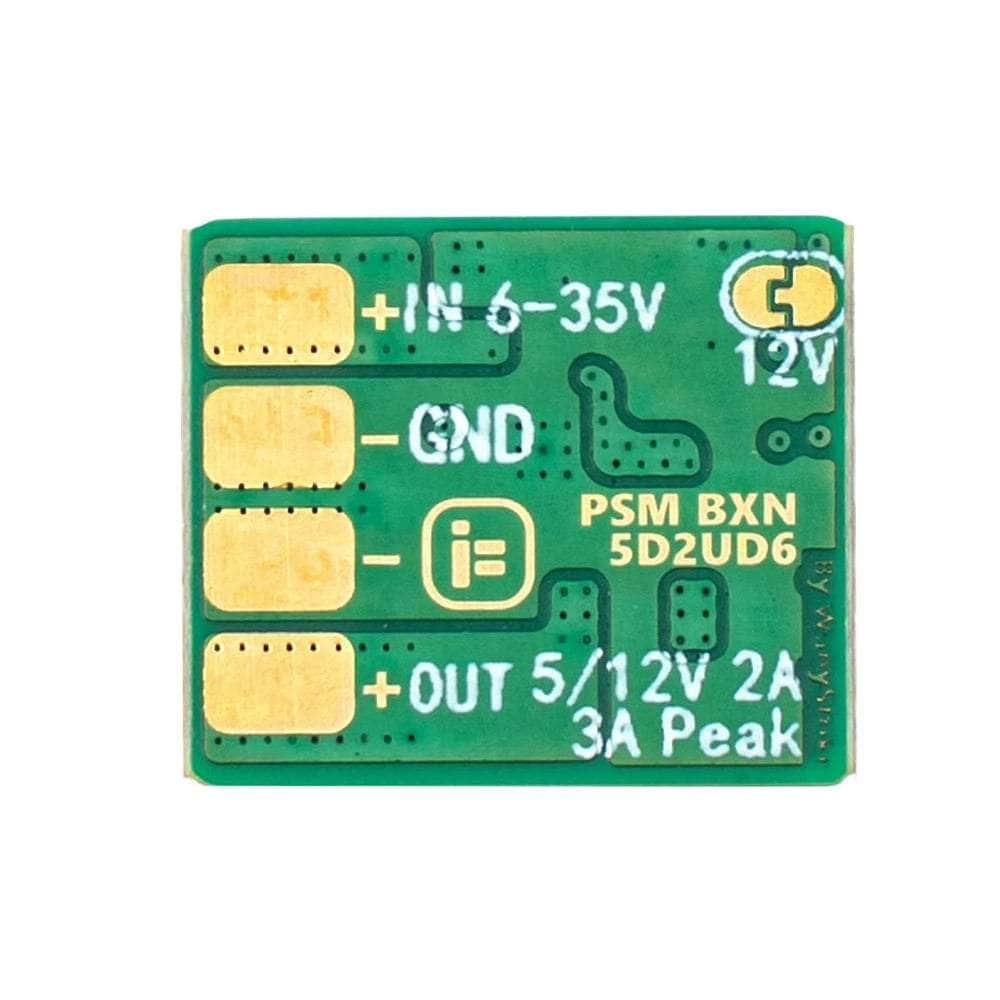

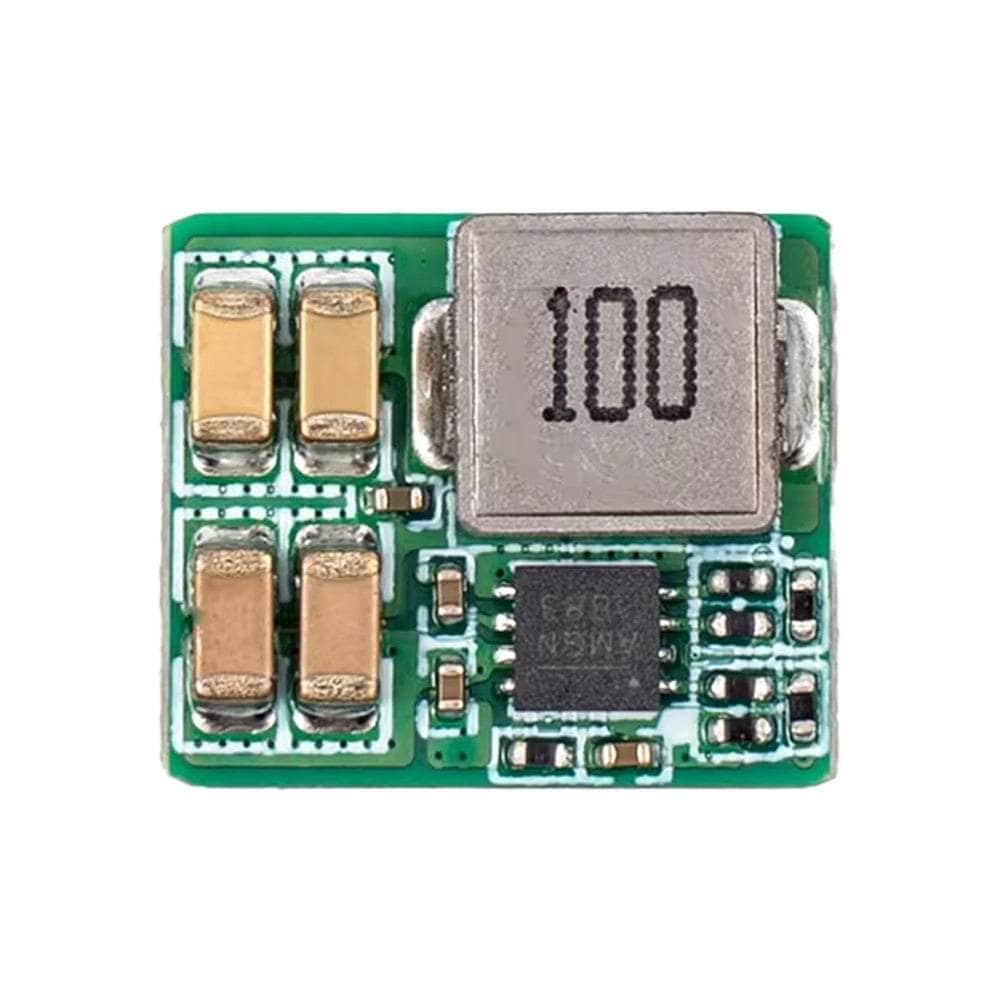

• 1x iFlight Blitz 5V-12V 2A V1.1 BEC Module w/ Step-Down Switch
• 1x Connecting Cable
