iFlight Blitz E45S 45A 2-6S 30x30 4in1 ESC

iFlight Blitz E45S 45A 2-6S 30x30 4in1 ESC

$55.99
$55.99
Add To Wishlist
View full details

Details

Description

Another great addition to iFlight's ESC lineup. With 2-6S input, up to 55A bursts, and an integrated capacitor, the iFlight BLITZ E45S 45A 2-6S 30x30 4in1 ESC is a great value option for a 30x30 ESC.

Check out all our 30x30 ESCs and all out iFlight gear selection!

Specifications

  • Input Voltage: 2-6S
  • Max. Continuous Current: 45A
  • Max. Burst Current: 55A
  • Firmware: BLHeli_S
  • MCU: BB21
  • Target: QH-40 16.7
  • BEC: No
  • Telemetry Output: No
  • Current Sensor: Yes
  • Current Sensor Scale: 200
  • Dimensions 40.5x42x6.5mm
  • Mounting Dimesions: 30.5x30.5mm Φ4mm
  • Weight: 14.7g

Includes

  • 1x iFlight Blitz E45S 45A 2-6S 30x30 4in1 ESC
  • 1x Wiring Set

More Info

  • SKU: IFLI-BE12234
  • Barcode: 691023522442


Overall rating: 3.625 / 5 from 8 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Great product

"It was easy to install . large pads, isolated from other componants made soldering easy. good power good responce, Great ESC."

— Scott B. (5/5)

All good here.

"I haven't used the part yet, but service has always been 5 star with me."

— Donald G. (5/5)

Arrived motor one side bad

"Arrived motor one side bad and blamed it on me not happy"

— Logan P. (1/5)

Good

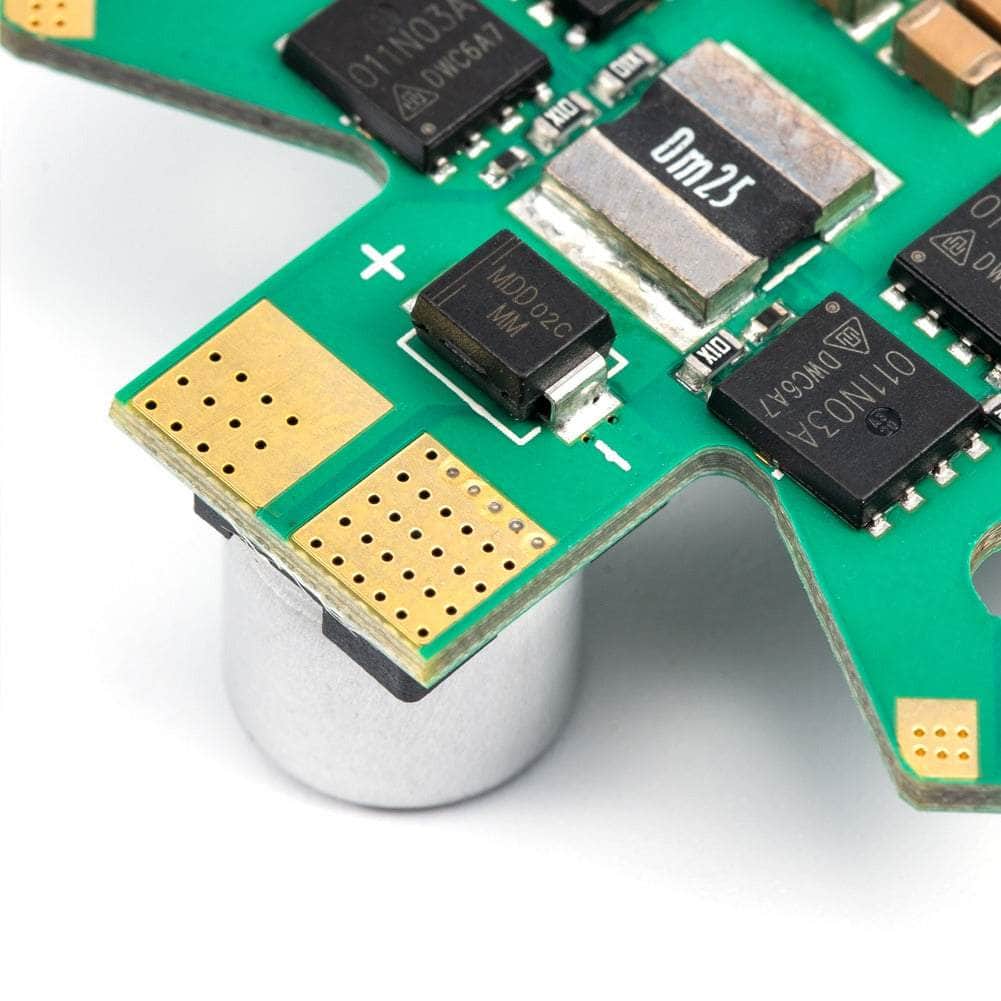

"Capacitor is in a weird place. I had to drill out my bottom frame to allow it to pass through. I like the location of the pads, as it makes the motor wiring look good."

— John N. (5/5)

I flight blitz

"I flight has never let me down. I’ve flown iflight since I started building my own quads and they are very durable easy to assemble with their plug and play connections. Almost importantly, their performance not having to do much to tuning if any at all great stack overall."

— Gary P. (5/5)

Burnt out a 5 v regulator soldering

"This arrived either doa or was damaged soldering motors? Maybe it was the lipo pigtail either way what a joke"

— Mike (2/5)

Easy to install, and worked perfectly

"As title stated. A simple install and I was up and running in no time"

— john a. (5/5)

Don't buy!

"Don't buy buy a DJI mamba 45 amp ESC instead. Beyter quality. it is only $48. Mine would not work after soldering the wires. I seriously doubt I got anything too hot on motor 4."

— Bill G. (1/5)

Q&A

Is this ESC compatible with iFlight SucceX-E F7 flight controller?
Yes. Happy flying!
