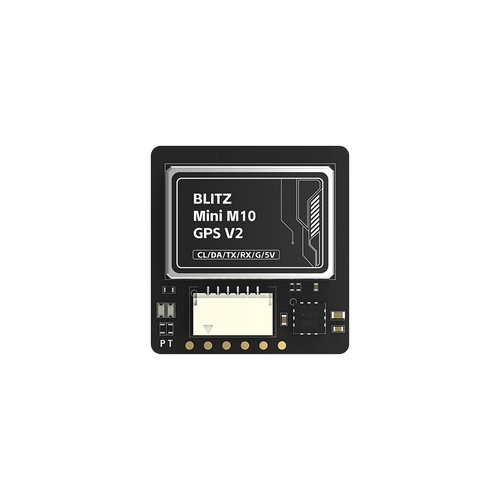

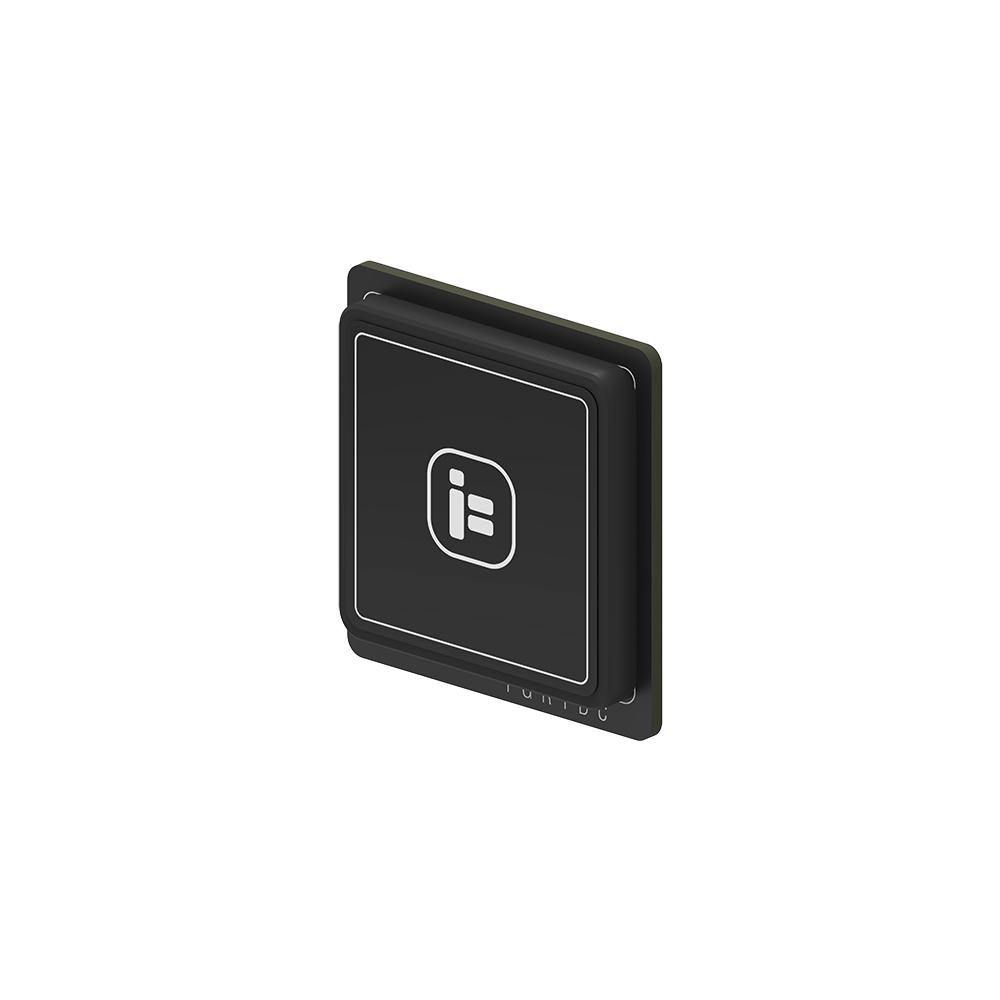

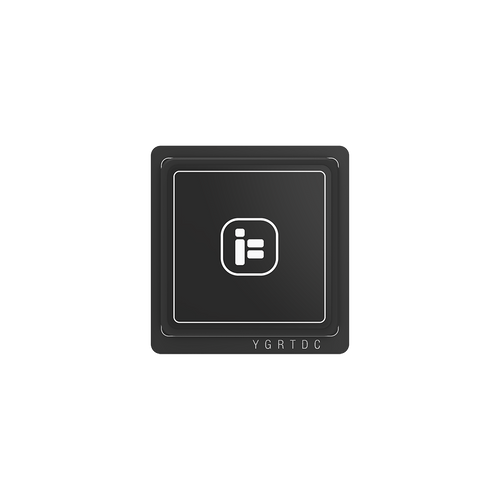

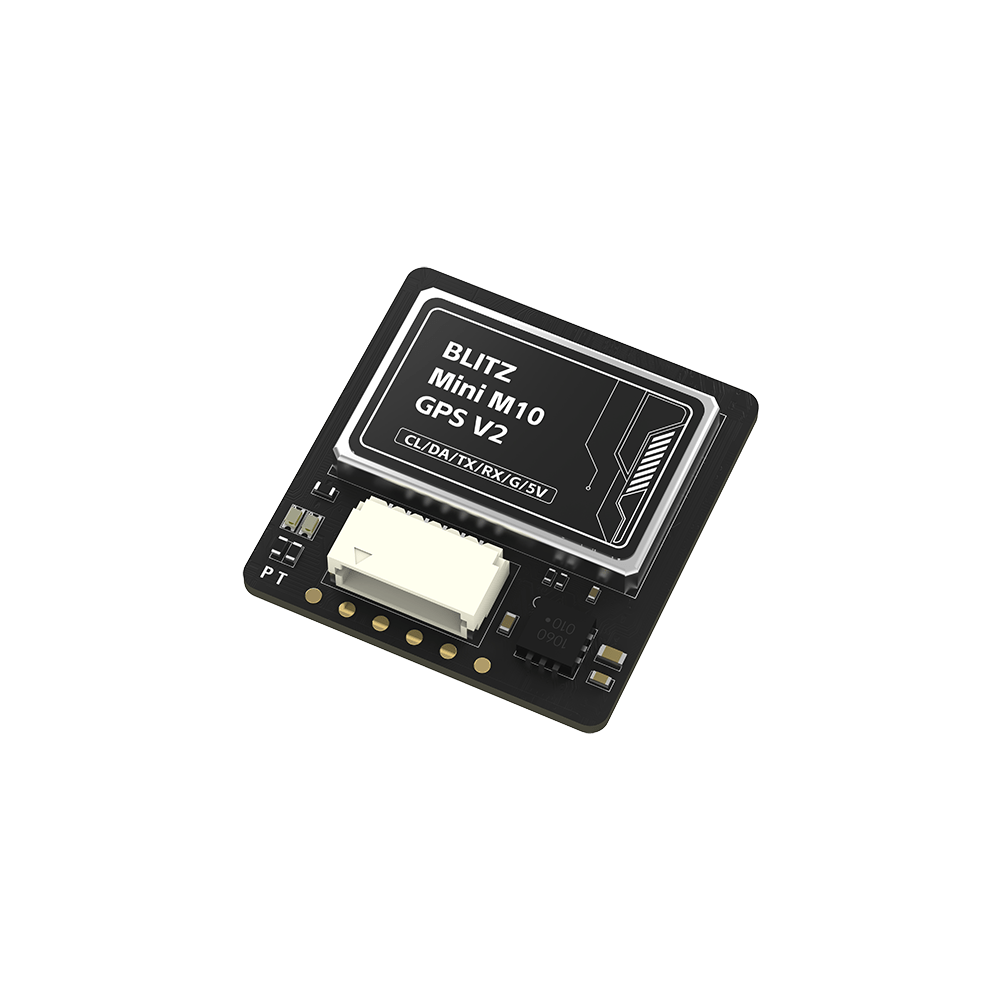

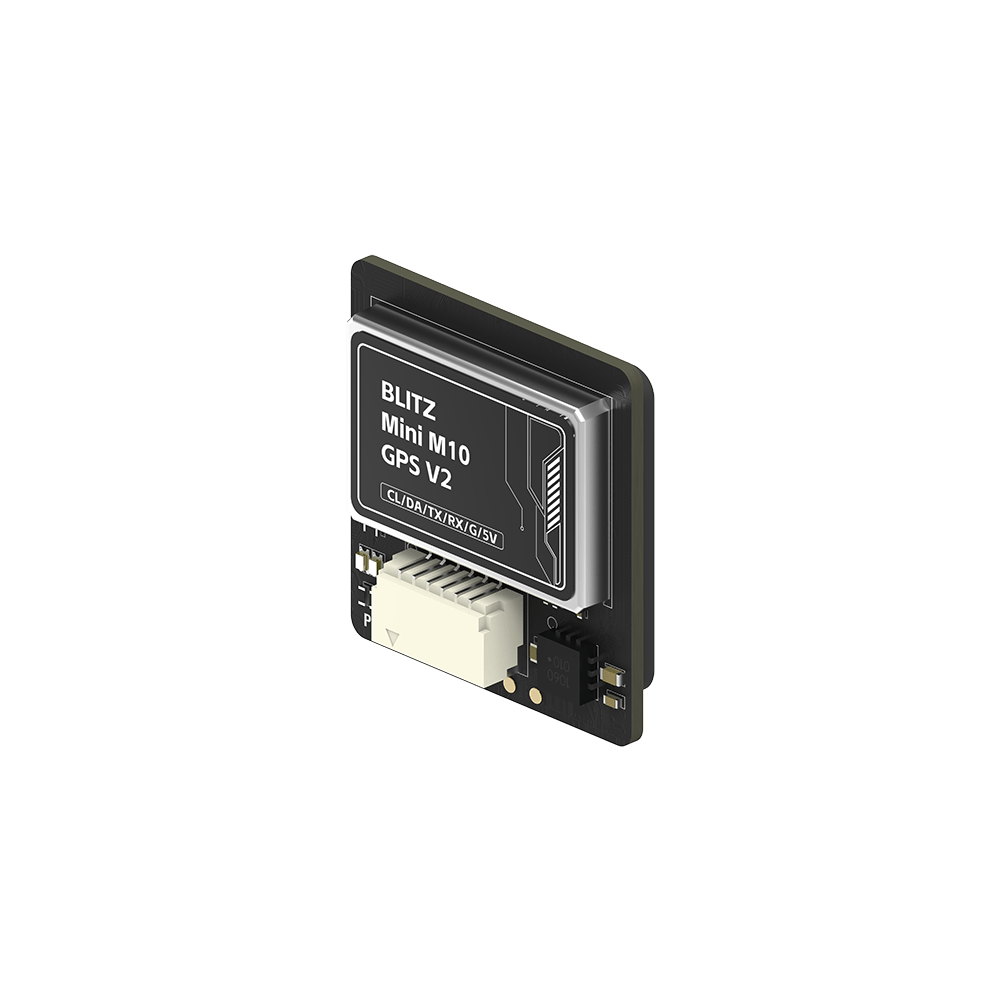

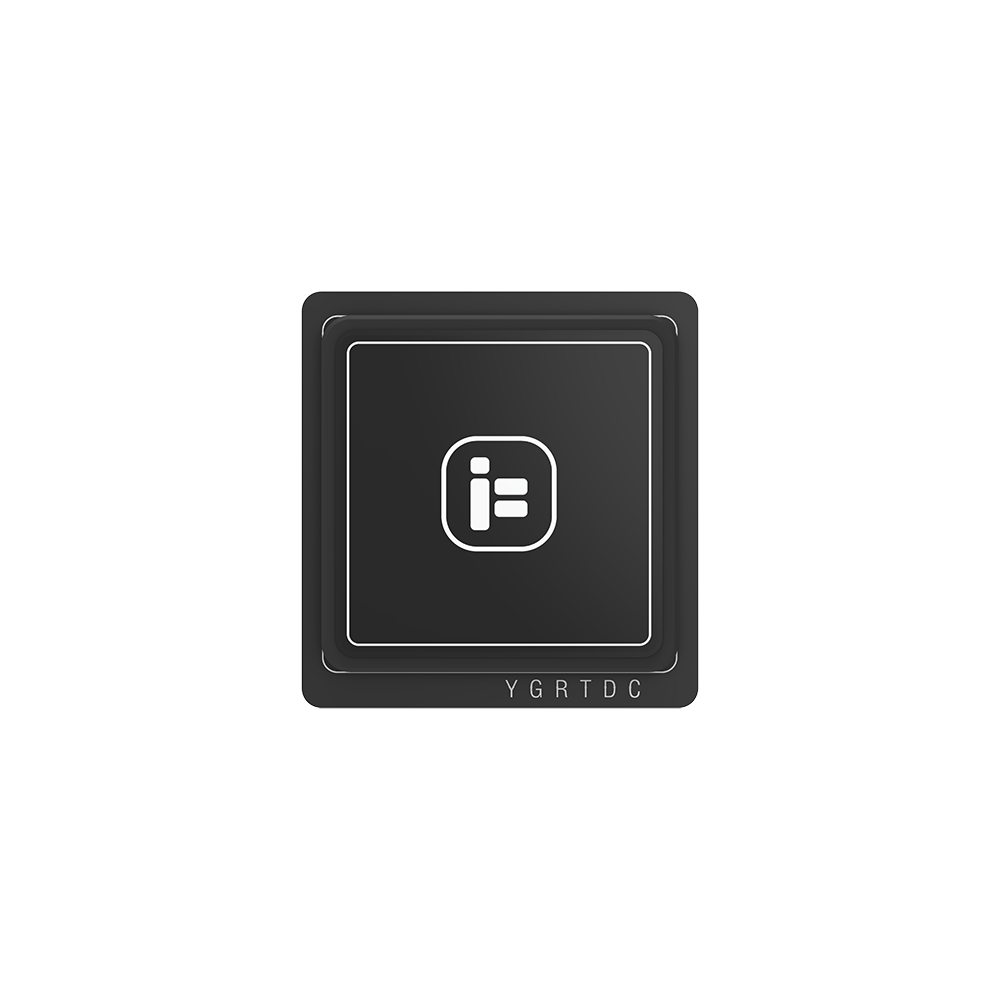

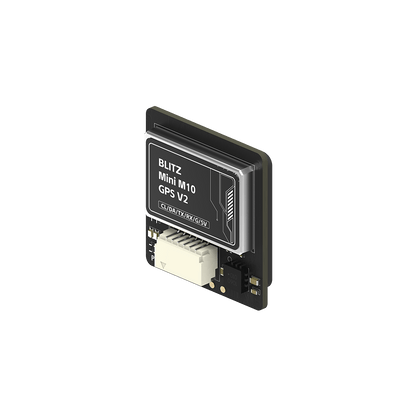

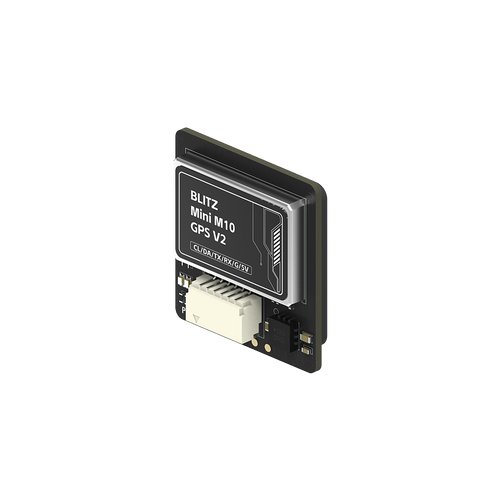

iFlight BLITZ M10 GPS & Compass (10th Gen)

Original price $39.99 - Original price $39.99
Original price
$39.99 - $39.99
Current price $39.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The iFlight BLITZ M10 GPS w/ Compass provides reliable positional and directional data for your quad. Its advanced compass and GPS module allow for precise coordinates and real-time flight information for optimal navigation. This high-performance unit helps ensure safe and accurate flight paths for your craft. Always keep a quad when you add a GPS!

Check out our other GPS modules, as well as the rest of our iFlight Products


  • Using the latest UBLOX M10 chip, lower power consumption, faster satellite search speed.
  • Built-in high precision compass QMC5883L.
  • Built-in Faraday capacitor, with 1-10Hz positioning update rate, which makes GPS have faster startup speed and satellite receiving speed.
  • 18x18mm ceramic antenna provides the best balance and performance for current GPS modules, low power consumption, strong signal and light weight.
  • On-board LNA low noise amplifier and RF filter provide excellent working environment for GPS module.
  • Up to 10HZ refresh rate.
  • Built-in Flash, users can set GPS parameters by themselves using U-center or other software, configuration modification will be stored to Flash, no loss of parameters after power failure.

Pin Definitions

  • VCC: system main power supply, supply voltage is 5V, current is about 40mA when working
  • GND: Ground
  • RXD: data input
  • TXD: Data output
  • SDA: Serial Data - I2C Master/Slave Data
  • DCL: Serial Clock - I2C Master/Slave Clock

Light Indicator

  • Blue light, TX light, the blue light blinks on power up, indicating that there is data output.

  • Red light, PPS light, not positioned red light is not lit, 3D positioning, the red light began to flash


  • Compass module: QMC5883L
  • Baud Rate: 4800bps-115200bps (Default - 115200bps)
  • Sensitivity: Tracking: -167dBm
  • Cold start: 26s
  • Hot start: 1s
  • Maximum height: 50000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Refresh Rate: 10 Hz
  • GPS patch antenna size: 18x18 mm
  • Total dimensions: 20 x 21 x 6.5 mm
  • Weight: 5.2 g(±0.5g)
  • Input Voltage: 3.3-5.5 V, current 40mA
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA


  • 1x iFlight BLITZ M10 GPS & Compass (10th Gen)
  • 1x Cable Set
