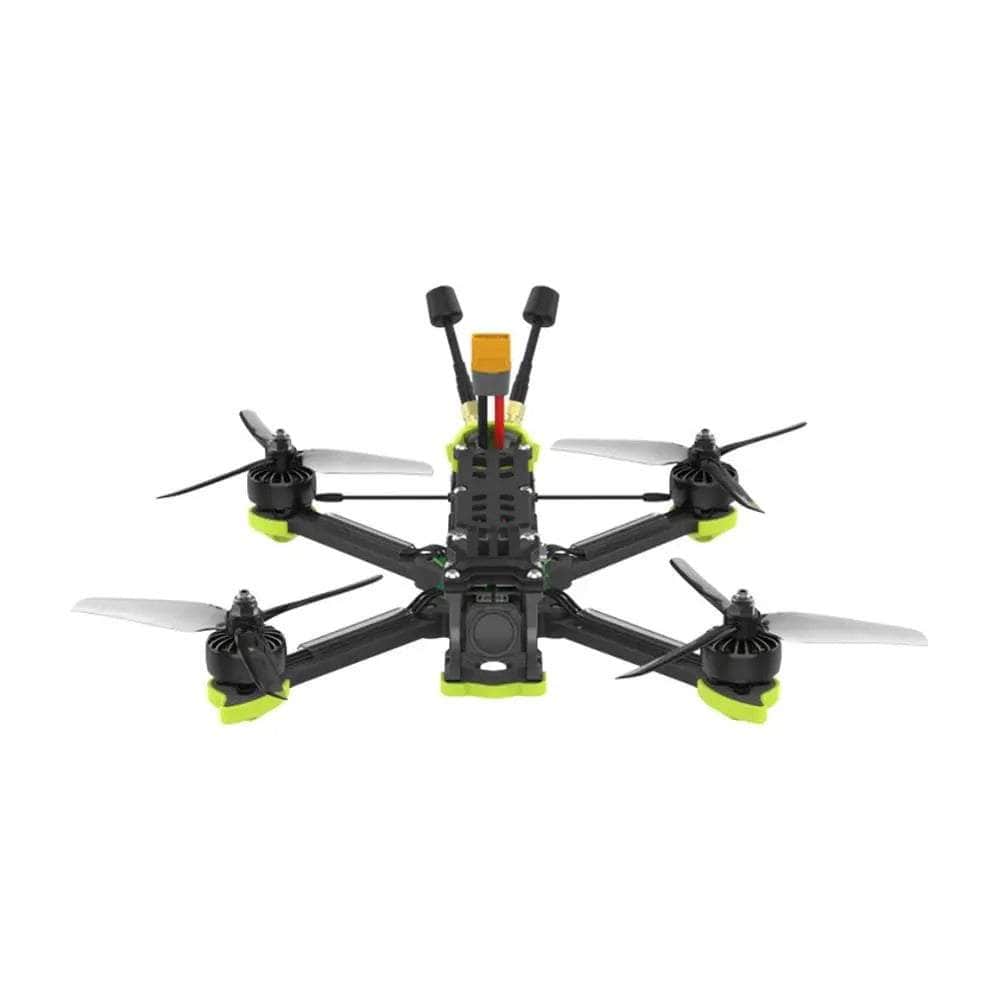

The Nazgul5 HD V3 is loaded with lots of power and performance; it comes with the XING-E Pro 2207 6S motors, BLITZ F722 FC, and BLITZ E45S 45A 4-in-1 ESC, which makes this quad a must-have! Now with the DJI O3 Air Unit! The Nazgul V3 is one of the best freestyle frames for its value. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly. The Nazgul5 V3 is a 5" freestyle frame made of super stiff carbon for minimal resonance.
Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!
Features
- XING-E Pro 2207 motors and NAZGUL F5 props
- 5" version also fits 5.1" style propellers
- Fits both 30.5x30.5 and 20x20 stacks
- 5mm arm design for more durability
- Popular True-X configuration
- LED illuminated logo
- TPU crash-guards
- Easy-Swap arms
Specifications
- Operating Temperature Range：-10° to 40° C (14° to 104° F)
- Max Wind Speed Resistance: 130 Km/H (Level 4)
- Receiver: DJI BNF, ELRS
- Dimensions (L×W×H): 180×180×80 mm
- Max Speed: 130 Km/h (Manual Mode)
- Video Transmission: DJI O3 Air Unit
- Maximum Takeoff Altitude: 5000 m
- Product Name：Nazgul5 V3 6S HD
- ESC: BLITZ E45S 45A 4-IN-1 ESC
- Max Hover Time: Approx. 8 mins
- Motor: XING-E Pro 2207 motors
- Takeoff Weight: Approx. 620 g
- Prop: Nazgul 5 inch propellers
- Diagonal Distance: 245mm
- Frame: 255mm wheelbase
- Max Flight Distance: 5 km
- Antennas: 2 Antenna
- FC: BLITZ F722
- GNSS: N/A
Video Transmission
- Product Name: DJI O3 Air Unit
- Weight: Approx. 36.4 grams（headband included）
- Dimensions (L×W×H): L32.5x W30.5xH 14.5mm
- Communication Bandwidth： Max 40 MHz
- FOV (single screen): 155°
- Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
- End-to-End Latency
- With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
- With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
- Max Video Transmission Bitrate: 50 Mbps
- Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
- Operating Temperature Range: -10º to 40º C (14° to 104° F)
- Power Input: 7.4-26.4 V
- Audio Transmission: N/A
Includes
- 1x iFlight BNF Nazgul5 V3 HD 6S 5" Freestyle Quad w/ DJI O3 Air Unit & Micro Cam - Choose Receiver
- 2x Nazgul 5 inch propellers (Set of 4)
- 2x Battery Pad
- 2x Antenna
More Info
- SKU: 19910
- Barcode: 691023517455
