Due to this item’s size or weight, it is not available for free shipping and may be shipped via ground.

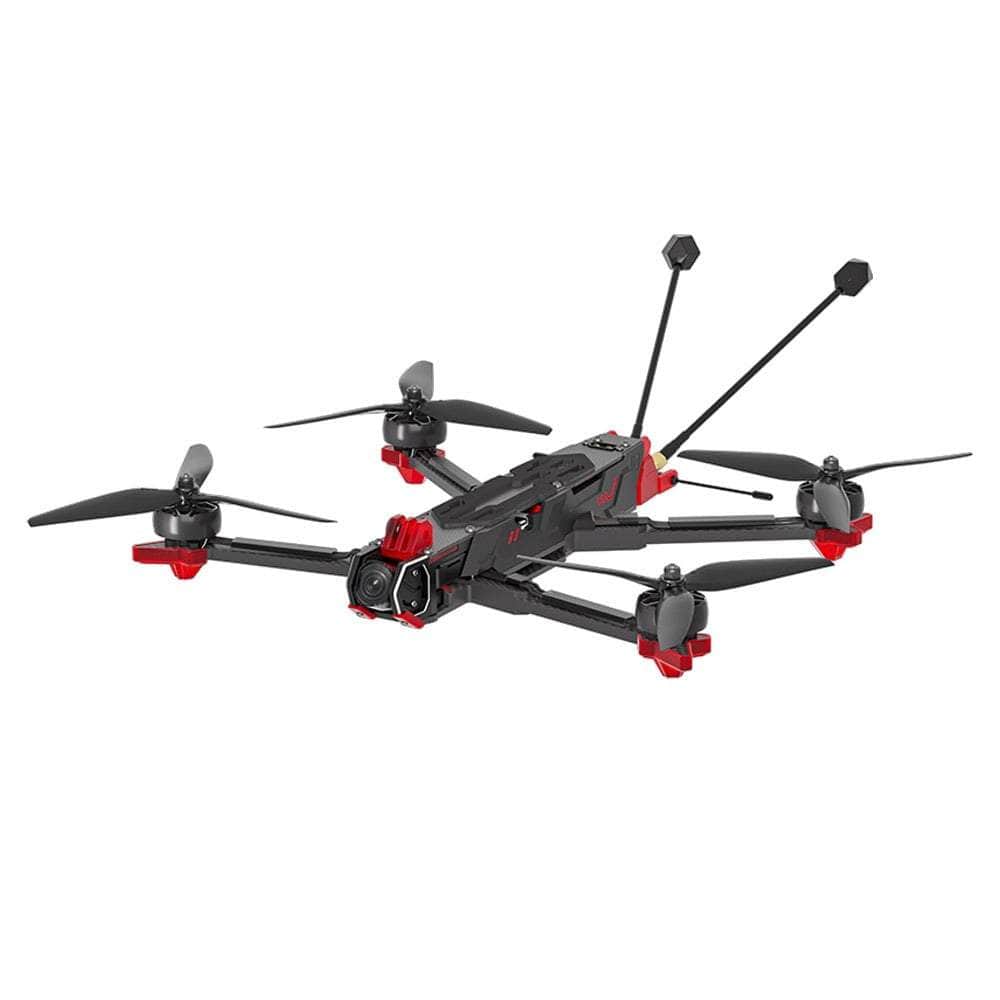

The iFlight CineLR 7 is a 7-inch long-range FPV drone. With the sleek H-shaped frame, BLITZ F7 electronics, and XING2 2809 1250KV motors, it has excellent handling and insane speeds, up to 140 km/h. With the DJI O4 Air Unit Pro, RockSteady 3.0+ stabilization, and GPS module, it ensures stunning 1080p footage, safety, and reliability for next-level FPV adventures.
Check out our iFlight selection, as well as all our other +6" frames!
Features
- High-Performance Core Electronics System
- 25 Minute Long-Range Flight Time
- Quick-Release Side Panel
- Innovative Frame Design
- DJI O4 Air Unit Pro – Cutting-Edge Video Transmission
Specifications
- Takeoff Weight: Approx. 1,628 ± 5 g (incl. 21700 6S 8000mAh battery)
- GNSS: GPS + SBAS + Galileo + QZSS + Glonass
- Dimensions (L × W × H): 285 × 196 × 45 mm
- Video Transmission: DJI O4 Air Unit Pro
- Operating Temperature Range: -20° to 40°C
- ESC: BLITZ E55 4-in-1 2-6S 55A ESC
- Maximum Takeoff Altitude: 7,000 m
- Weight: 770 ± 5 g (without battery)
- Motors: XING2 2809 1250KV
- Max Wind Resistance: Level 7
- Frame Wheelbase: 334 mm
- Flight Controller: BLITZ F7
- Recommended Load: 800g
- Antennas: Dual antennas
- Propellers: HQ 7.5X3X3
- Max Speed: 140 km/h
- Geometry: H-shaped
- Max Hover Time:
- Approx. 18 mins with a 6S 3300mAh battery
- Approx. 25 mins with a 6S 8000mAh battery
VIDEO TRANSMISSION
- With DJI Goggles 3 / DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
- Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
- Weight: Air Unit (camera module included): Approx. 32g
- Dimensions: 33.5 × 33.5 × 13 mm (L × W × H)
- Supported SD Cards: microSD (up to 512GB)
- Operating Temperature Range: -10° to 40°C
- Communication Bandwidth: Max 60 MHz
- Video Resolution: 1080p/100fps (H.265)
- Color Modes: Normal Mode / D-Log M
- Live View Quality: 1080p @ 100fps
- Max Video Bitrate: 130 Mbps
- Image Sensor: 1/1.3-inch
- Antenna: Dual antennas
- ISO Range: 100-25,600
- Built-in Storage: 4GB
- Video Format: MP4
- Lens: FOV 155°
- Transmitter Power (EIRP):
- 5.8 GHz < 33 dBm (FCC) / < 14 dBm (CE) / < 30 dBm (SRRC)
- 5.1 GHz < 23 dBm (CE)
Includes
- 1x iFlight CineLR 7 7" Drone HD w/ DJI O4 Pro - 6S (Choose Your Receiver)
- 1x Battery Strap
- 1x Hardware Kit
- 1x Battery Pad
- 4x Propellers
- 2x Antennas
