Details
Description

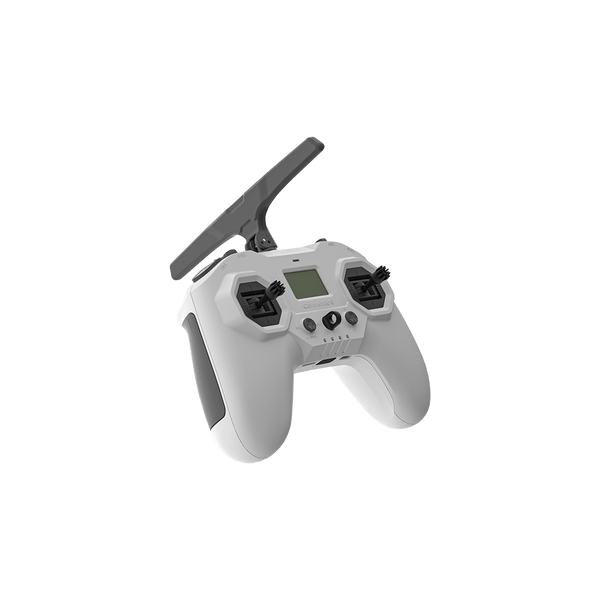

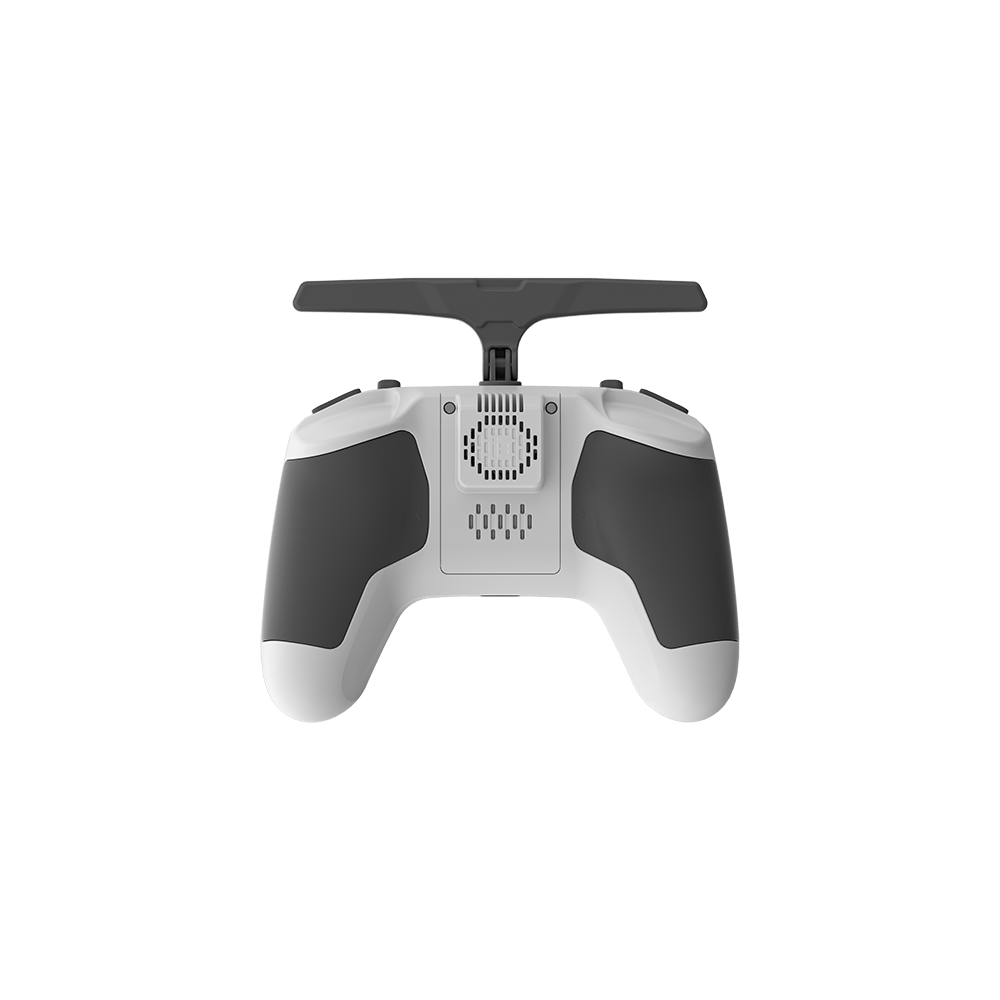

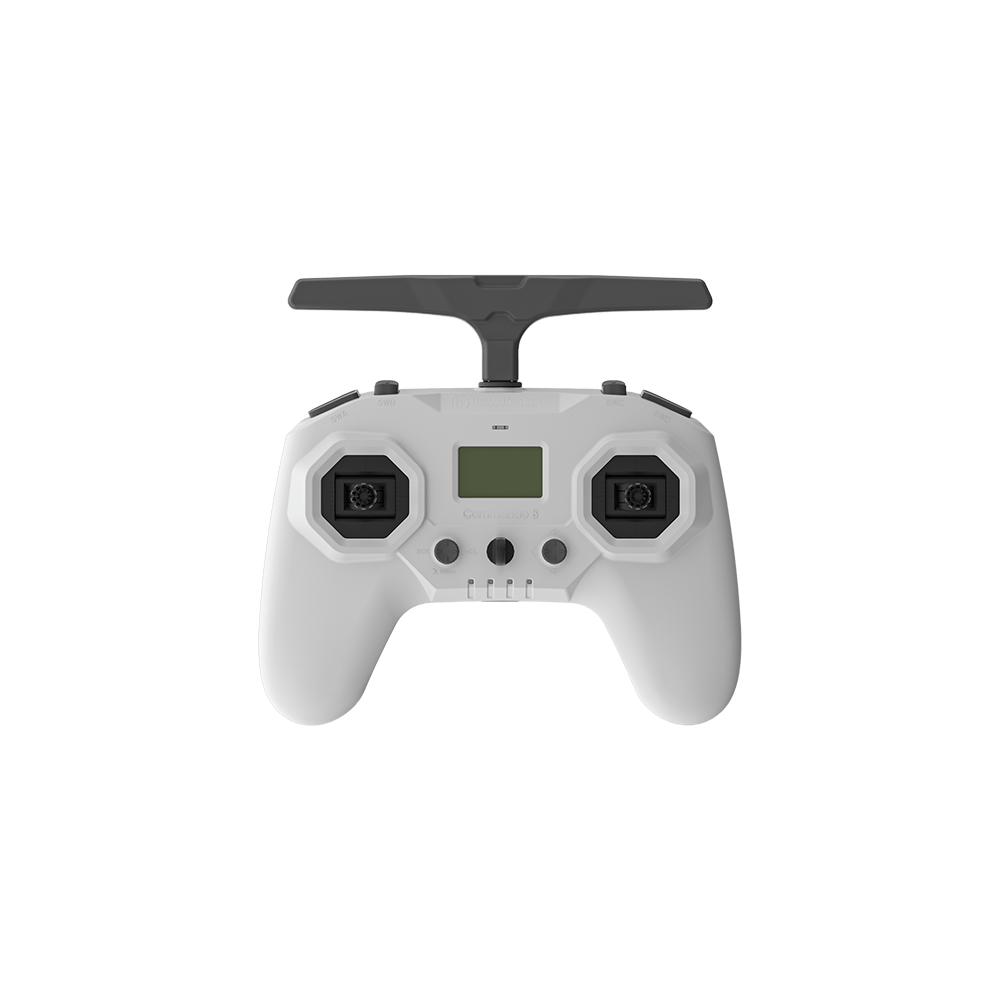

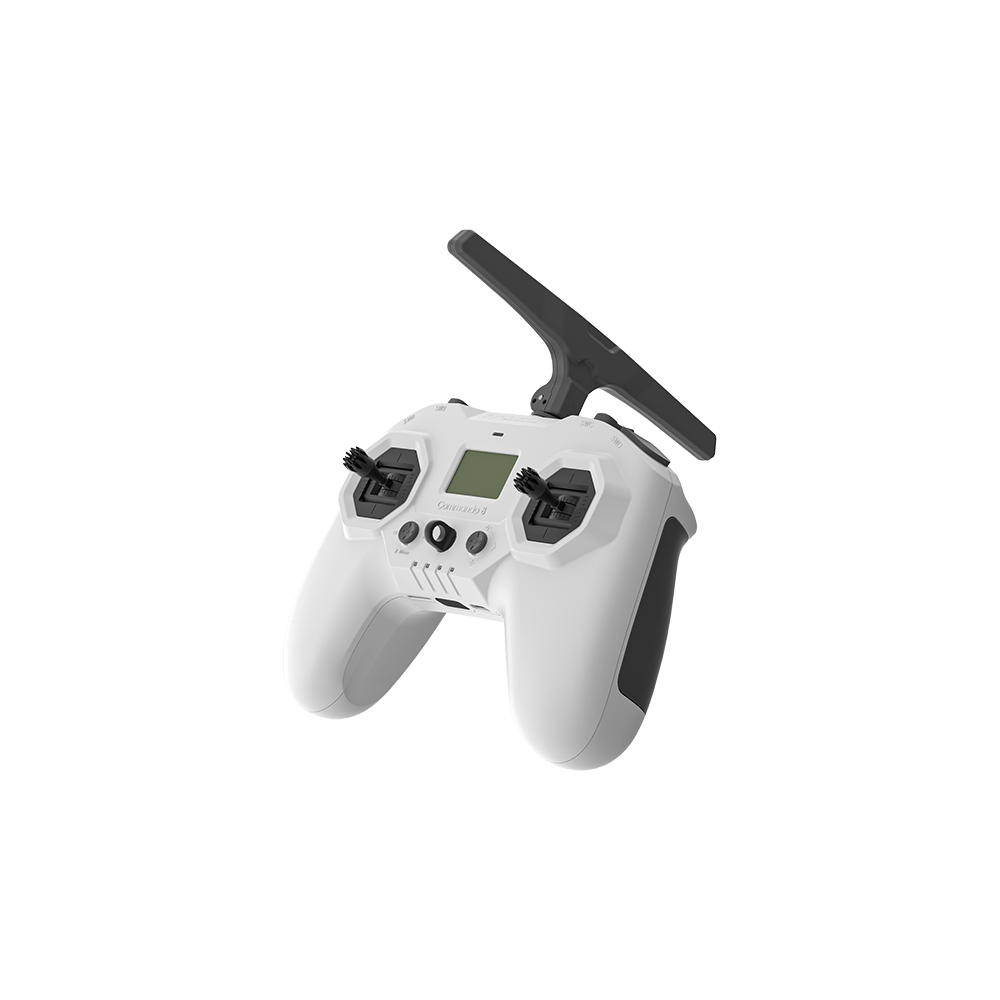

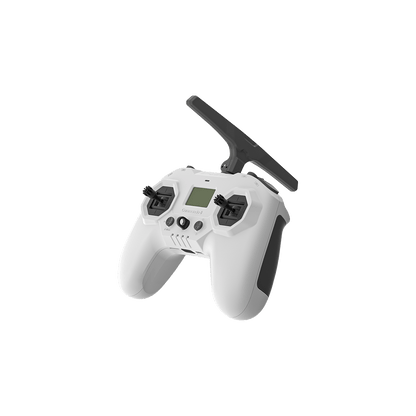

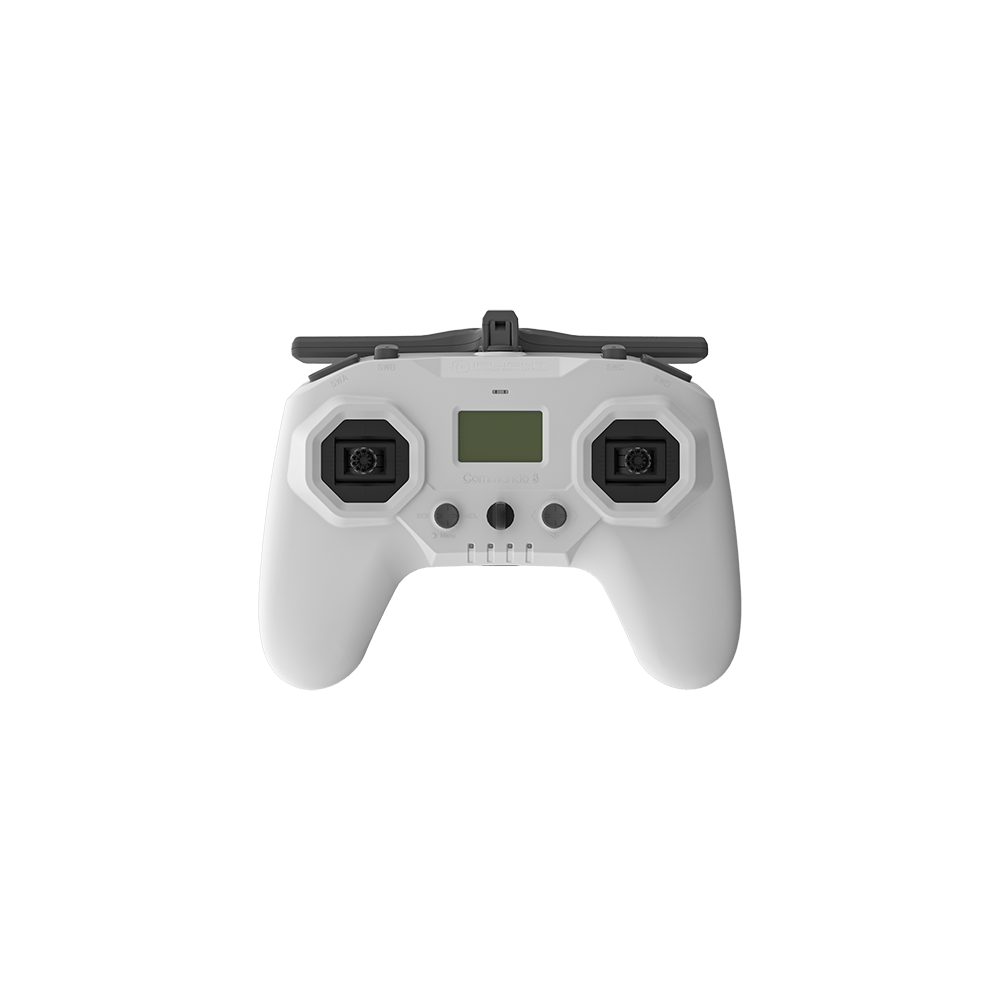

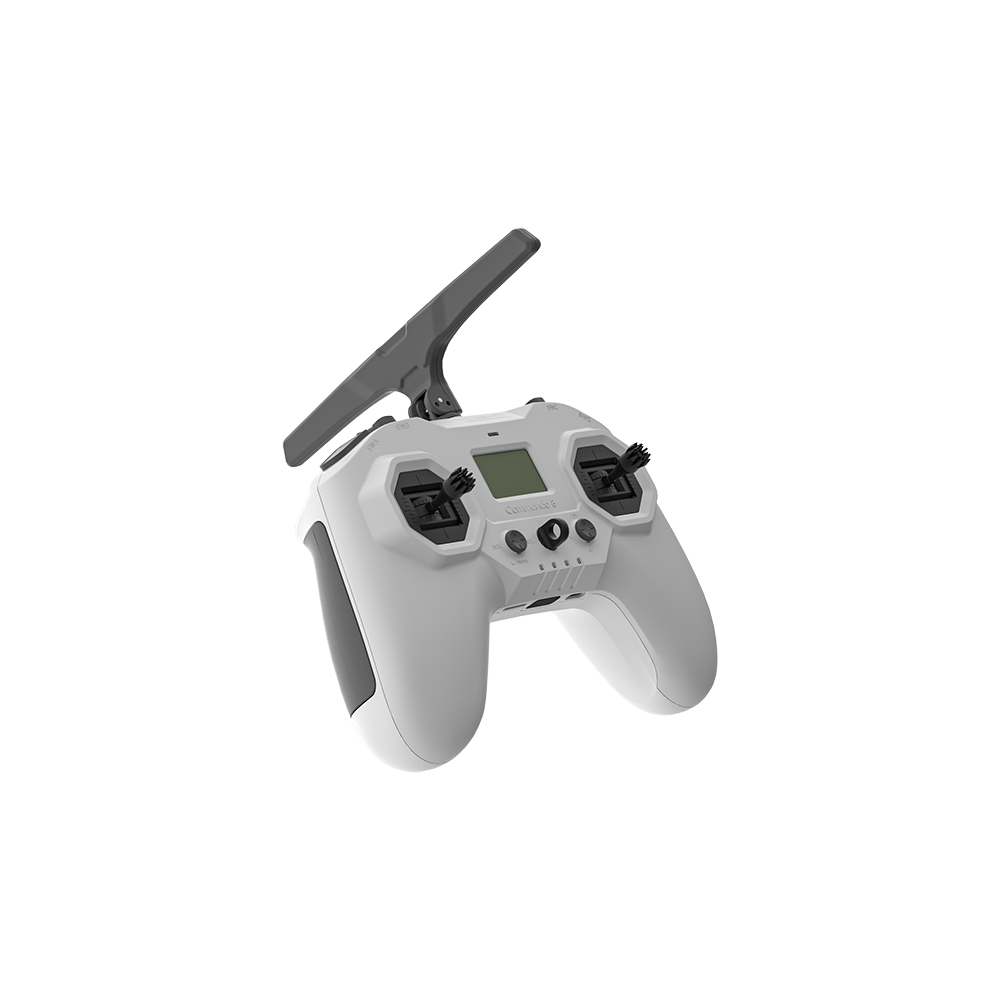

Unlock ultimate control and versatility with the iFlight Commando 8 Pro GemX TX Radio Transmitter. This powerhouse transmitter features dual-band 2.4GHz + 900MHz technology with dedicated antennas, delivering a robust 1W output power per band for exceptional signal strength, long-range stability, and superior anti-interference. Effortlessly conquer complex environments and long-distance flights.
Engineered for flexibility, the Commando 8 Pro supports multiple RF protocols and packet modes. Its advanced FSK mode is tailor-made for competitive racing, seamlessly integrating control and telemetry into a single link for streamlined performance.
Check out our iFlight collection and all our RC transmitters!
Features
-
High-Precision Digital Hall Gimbals: Smooth and accurate control for improved flight stability.
-
No Disassembly Needed to Switch Modes: Switch between mode 1 and mode 2 by adjusting the rear rubber pad with a screwdriver, then change gimbal mode in the EdgeTX menu.
-
Onboard Backpack Module: Supports wireless features like VTX, LED, OSD, and MAVLink menu, no external module required for expanded functionality.
-
Compatible with TBS TX Module
POWERFUL UPGRADE WITH DUALBAND DUAL-ANTENNA SUPPORT
Equipped with dual LR1121 RF chips, the 2.4GHz + 900MHz dualband dual antenna supports simultaneous dualband operation, each with 1W output power.
Enjoy longer range, stronger signal, and better anti-interference, ideal for complex environments and long-distance flights.
3 TRANSMISSION MODES
Supports Gemini, True Diversity, and Gemini Xrossband RF modes, delivering outstanding anti-interference capabilities and exceptional reception performance for flight control. Add additional feature descriptions here to describe the above.
MULTI-PACKET REDUNDANCY
Supports Gemini, True Diversity, and Gemini Xrossband RF modes, delivering outstanding anti-interference capabilities and exceptional reception performance for flight control.
ULTRA-LONG BATTERY LIFE, FLY WITHOUT LIMITS
Up to 3 hours of battery life at 1W output, around 6 hours at 100mW. Supports PD 20W fast charging, fully charged in just 80 minutes.
6400mAh High-Capacity Battery. PD 20W Fast Charging
COMPATIBLE WITH MULTIPLE SIMULATORS
Supports both Type-C wired and Bluetooth connection modes. Compatible with mainstream FPV simulators such as Liftoff, Velocidrone, DRL, and Uncrashed. Perfect for both indoor training and outdoor practice, all in one controller.
Specifications
- MCU: STM32F407VET6
- RF: Semtech LR1121
- Protocol: ELRS
- Frequency: 2.4GHz/900MHz
- RF power: ELRS 2.4GHz/900MHz 1W (30dBm)
- Antenna: 2.4GHz/900MHz Dual-band Dual-antenna
- Charging: PD 20W Quick Charge
- Battery: Built-in 3200mAh 1S2P 18650 Battery*2
- Size: 154mm*165mm*72mm(±0.5）
- Weight: 315g(±10g
- TCXO(Temperature Compensated Crystal Oscillator): Yes
- Firmware: iFlight ELRS Commando 8 GemX TX
- Lua Script: iF GemX C8 TX
- Dualband Dual Antennas: 2.4GHz + 900/868MHz
- Button Functionality:
- 2x 5-axis menu buttons for full OpenTX or EdgeTX control
- 2x 2-position switches (can be used for arming; not momentary)
- 2x 3-position switches
Includes
- 1x iFlight Commando 8 Pro GemX TX Radio Transmitter - ELRS 2.4GHz/900MHz 1W
More Info
- SKU: 23741
- Barcode: 723326376863
