Description

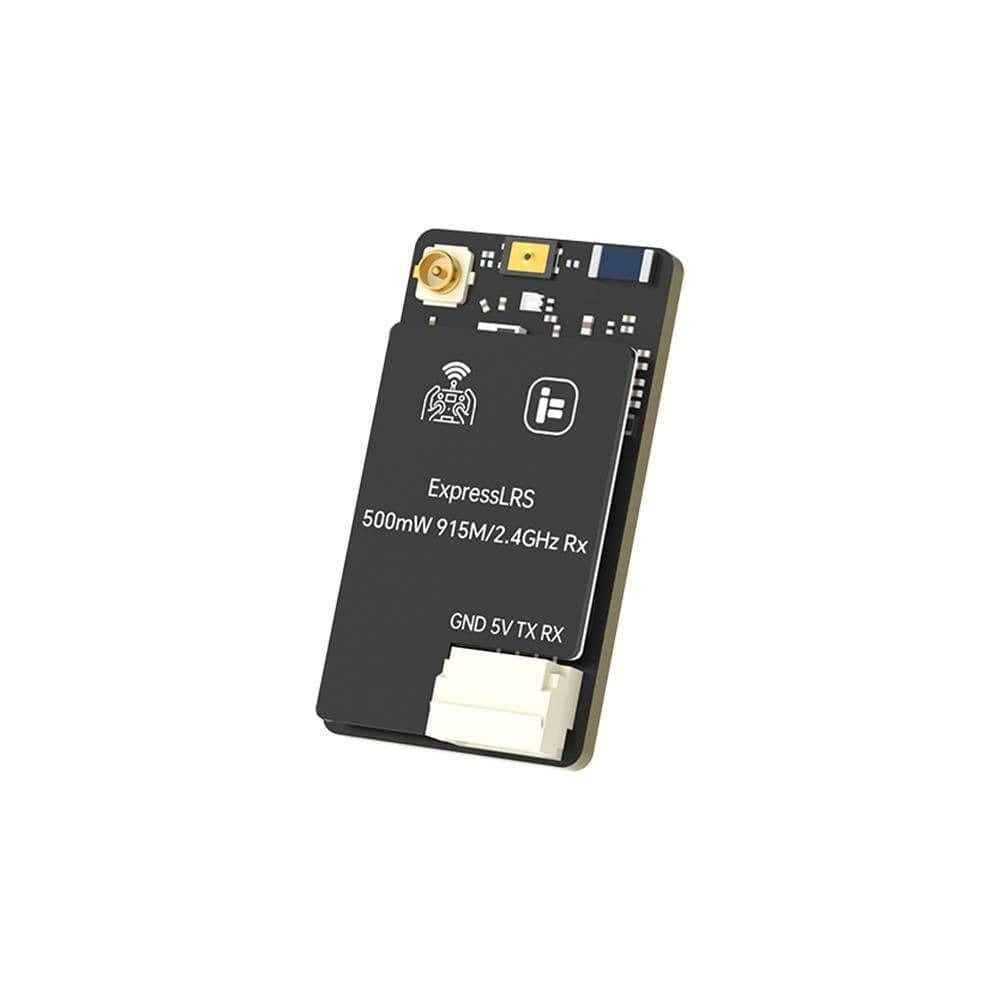

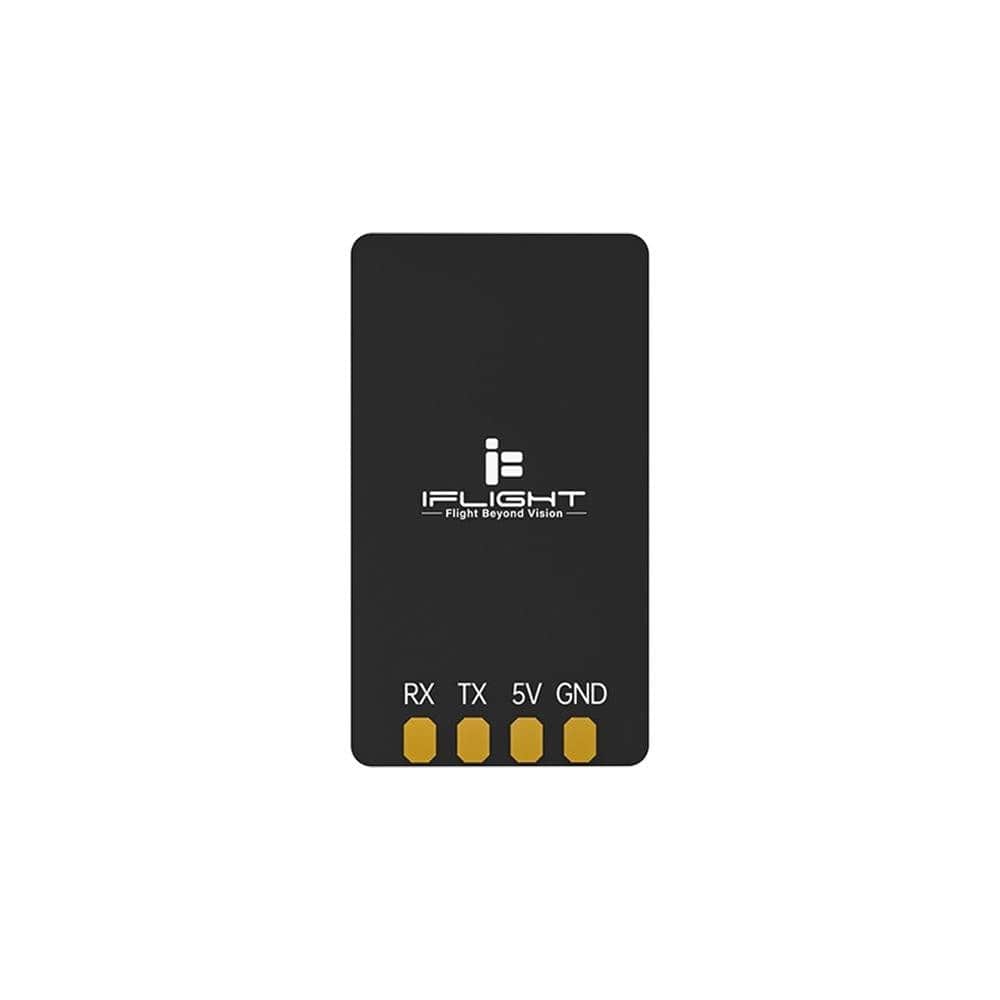

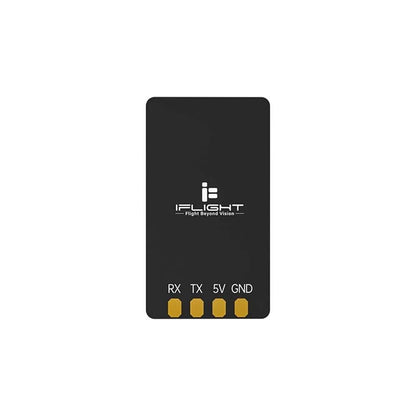

The iFlight ELRS Dualband 500mW Receiver + 220mm Antenna houses high-power telemetry inside a sleek, single-side component design. It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. An aluminum heat sink protects electronics and boosts interference resistance. The receiver's compact and ultra-lightweight design saves precious space on your aircraft. It supports 500mW telemetry return for stronger signals and reduced telemetry loss.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!

Features

• Weighs only 1.9g, saving space and reducing aircraft weight.
• SH 1.0 Connector simplifies installation and setup.
• Integrated heat sink protects electronic components and enhance anti-interference capabilities.
• Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability
• Up to 500mW telemetry transmission, resulting in stronger signals and significantly reducing instances of telemetry loss.

Specifications

• MCU: ESP32-C3
• Receiver Type: Single antenna
• Firmware: ELRS 3.5.3
• Lua Script: iF DB 500mW RX
• Frequency bands: 868MHz EU/900MHz FCC and 2.4GHz ISM
• Telemetry Power: 100-500mW (20-27dBm)
• Dimension: 14mm x 25mm x 4.3mm (±0.5）
• RF: LR1121
• LNA: YES
• Weight: 1.9g (±0.5g)

Includes

• 1x iFlight ELRS Dualband 500mW Receiver
• 1x 220mm Antenna
