Description

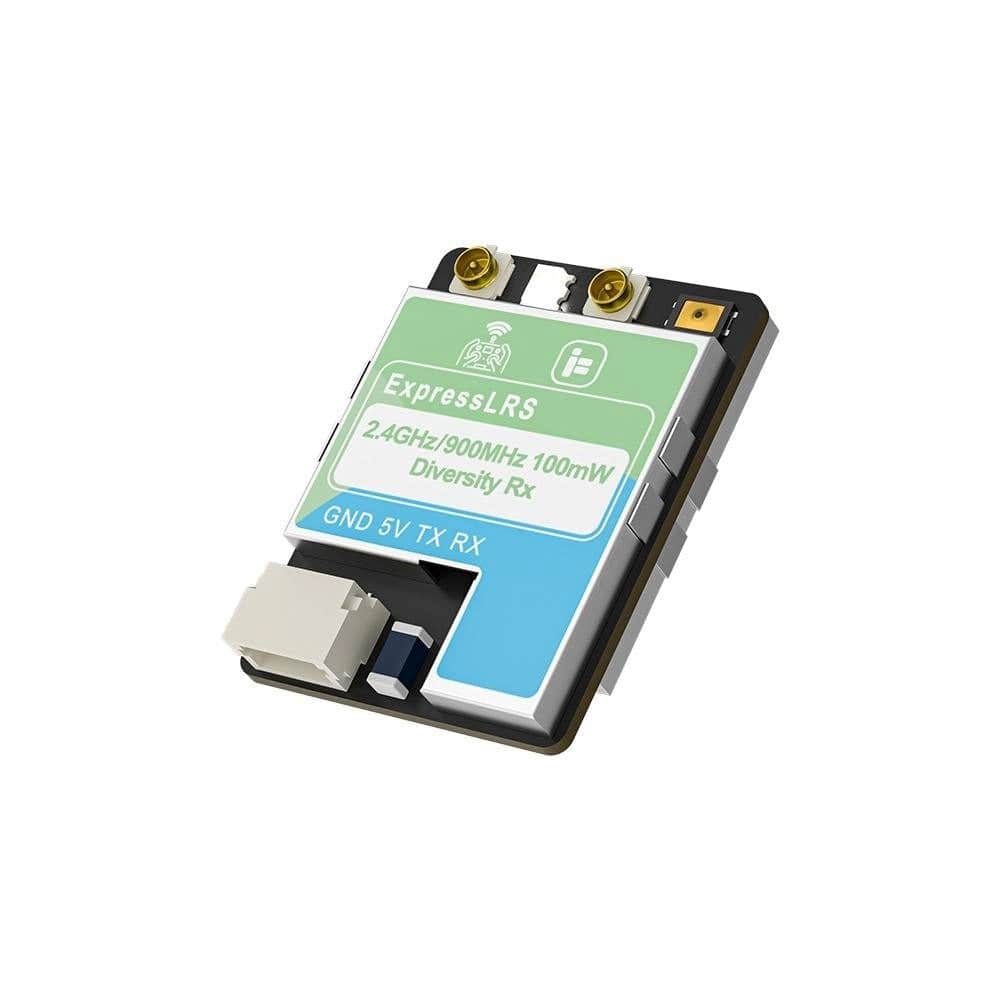

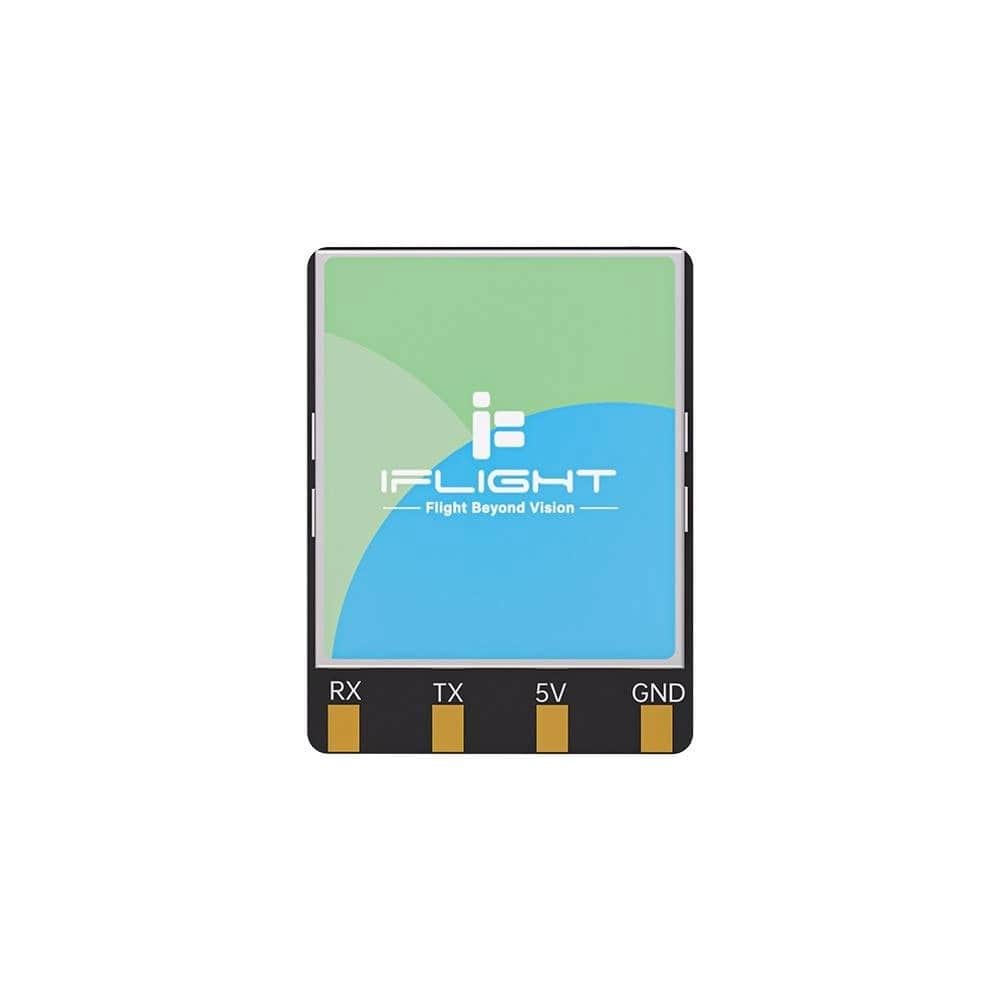

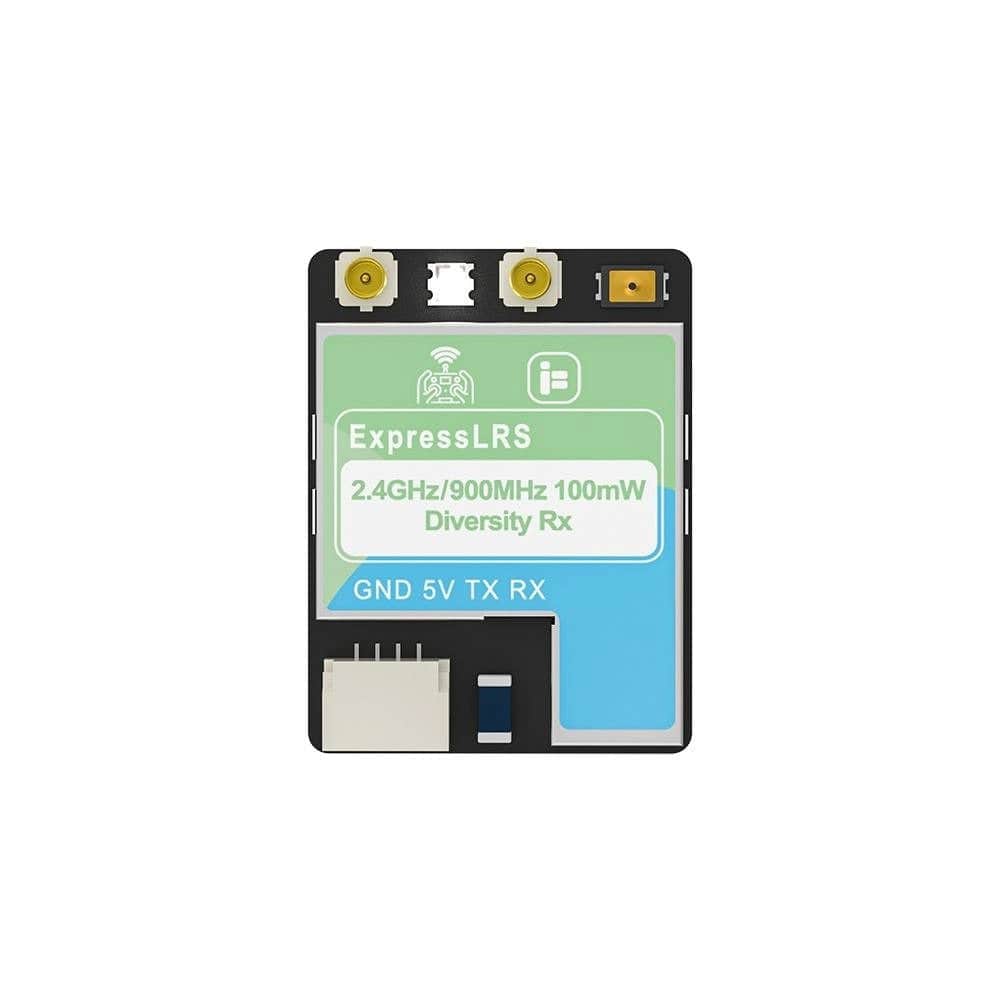

The iFlight ELRS Dualband Diversity 100mW Receiver - 2x70mm Antenna supports 2.4GHz, 868MHz, and 900MHz frequencies for exceptional stability and reliability. The ELRS diversity receiver features well-placed dual antennas with shielding covers, enhancing its resistance to interference, widening signal reception, and ensuring a more stable connection compared to conventional single-antenna receiver systems. It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. It sufficiently meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!

Features

• Advanced Diversity Modes: Supports GemX, Gemini, and True Diversity RF modes for superior interference resistance and reception (Note: To use GemX, a high-frequency transmitter module that supports GemX mode is required).
• Integrated shields protect electronic components and enhance anti-interference capabilities.
• TCXO Technology: Minimizes frequency deviation for precise and stable performance.
• SH1.0 Connector: Ensures easy and reliable installation.
• Multi-Frequency Support: Compatible with 2.4GHz, 868MHz, and 900MHz for versatile use.

Specifications

• MCU: ESP32-Pico D4
• Receiver Type: GemX
• Firmware: ELRS 3.5.3
• Lua Script: iF GemX 100mW RX
• Frequency bands: 868MHz EU/900MHz FCC and 2.4GHz ISM
• Telemetry Power: 100mW (20dBm)
• Dimension: 24.3 x 18.5 x 6.5mm (±0.5)
• LNA: N/A(868/900MHz) / YES (2.4GHz)
• Weight: 4.9g(±0.5g)

Includes

• 1x iFlight ExpressLRS Dualband Receiver
• 2x Antenna
