Description

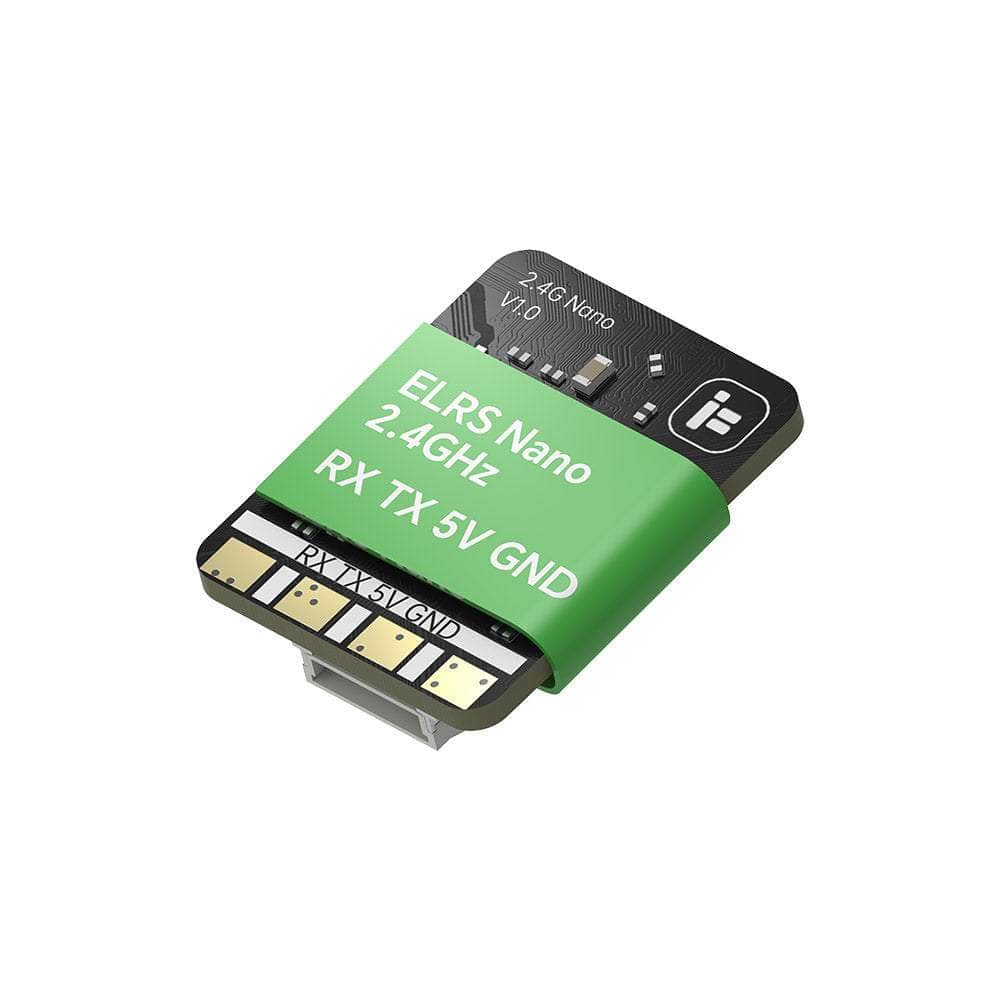

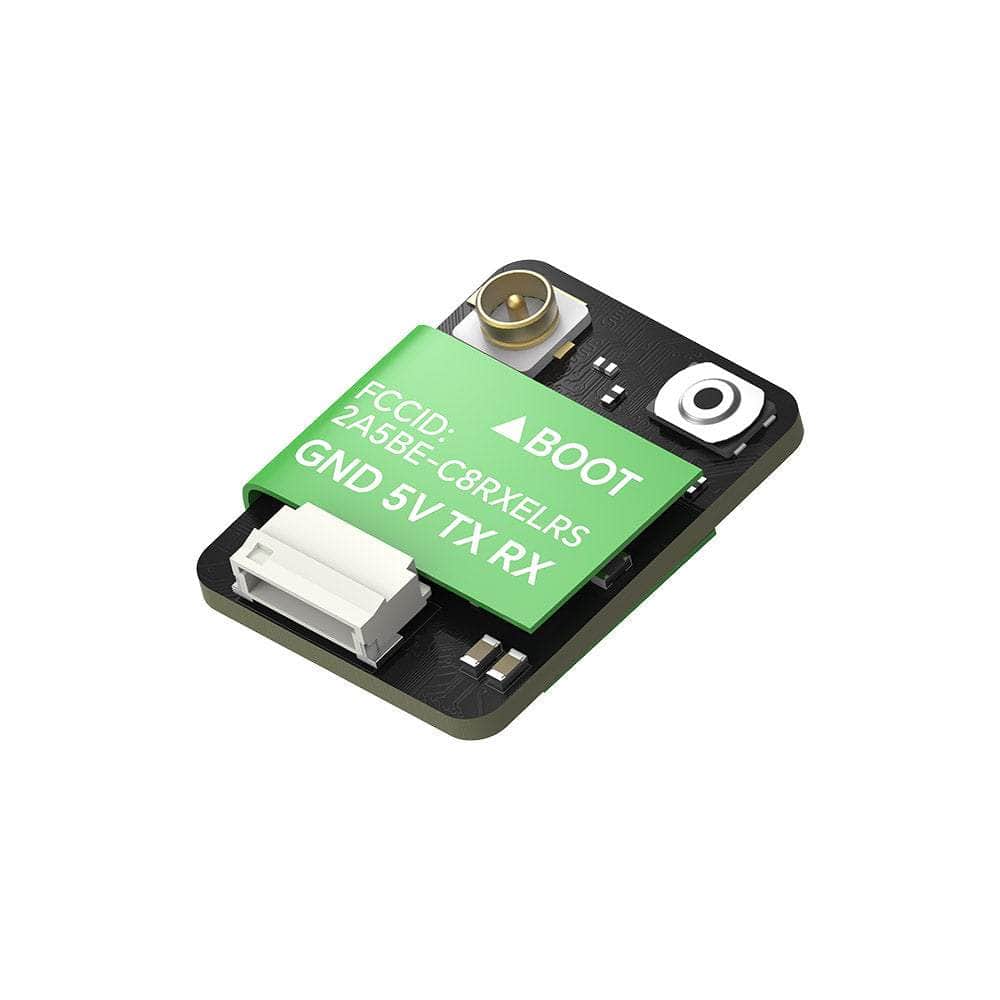

It's finally here, the iFlight ELRS Nano 2.4GHz Receiver + 70mm Antenna with extreme range and packet rate for the lowest delay. Failsafes are a thing of the past. ExpressLRS RX Nano modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!

Features

• Improved circuit design
• Upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
• High-performance at 2400MHz signal has outstanding performance and long-range capabilities

Specifications

• Antenna connector: IPEX / SMD antenna
• Firmware: ExpressLRS iFlight 2.4GHz Nano RX
• Frequency bands: 2.4GHz ISM
• Telemetry Power: 12.3dbm（17mW 2.4G）

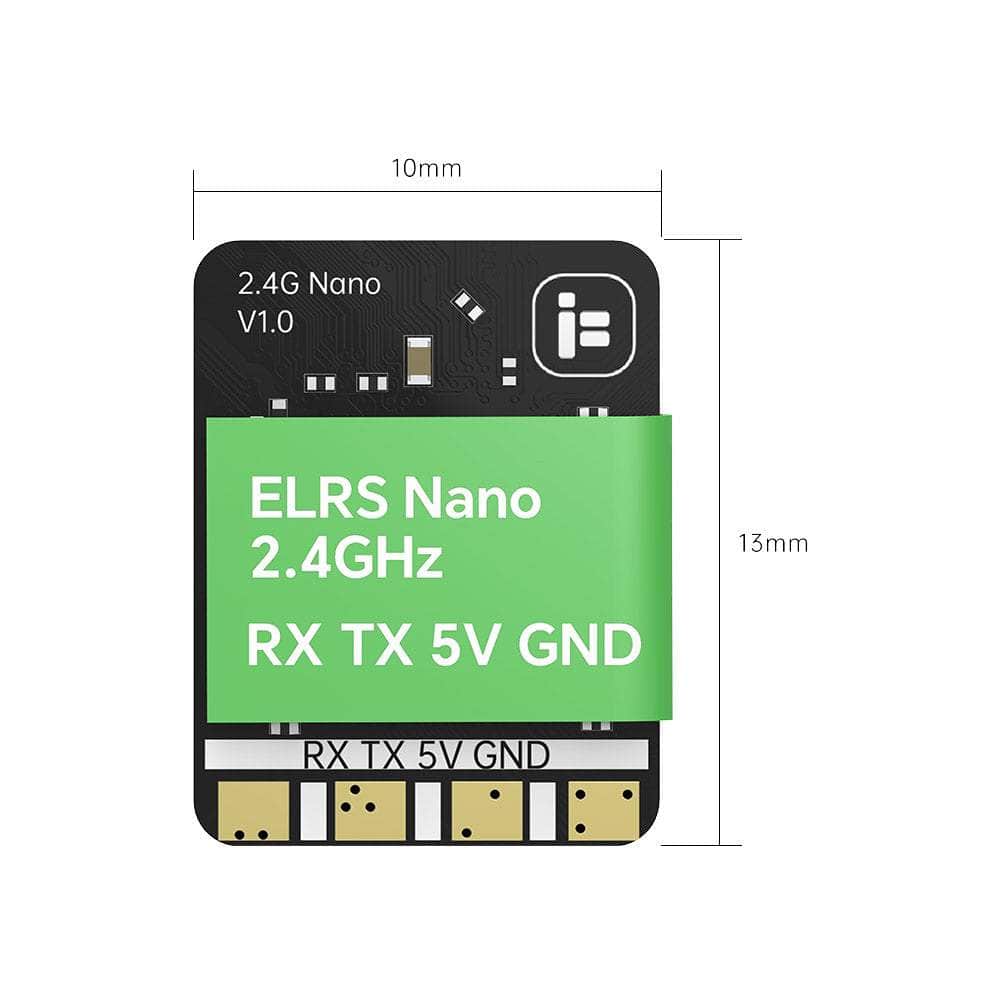

• Dimension: 10 x 13mm
• Connector: SUR0.8 Connector
• Interface: RX TX 5V GND
• Input voltage: 5V
• Protocol: CRSF
• Weight: 0.5g

Includes

• 1x iFlight ELRS Nano 2.4GHz Receiver

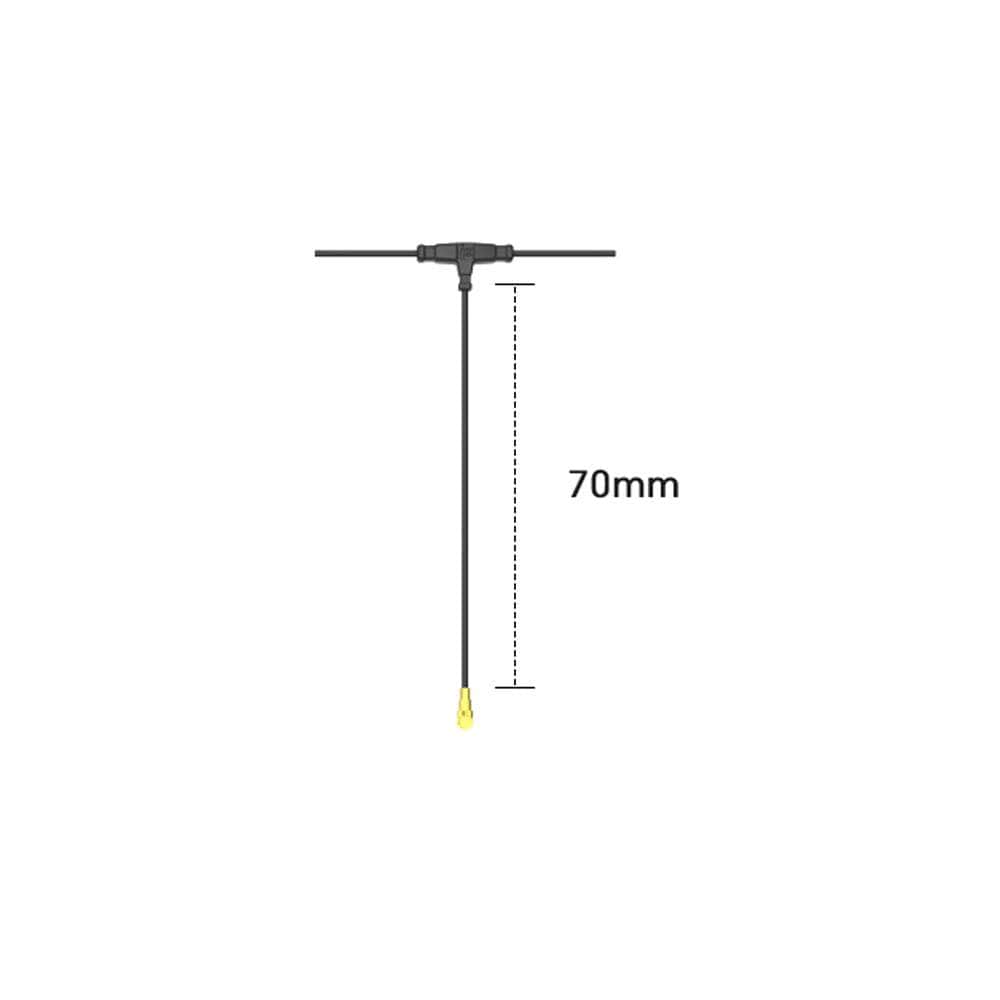

• 1x 70mm Antenna
