Details
Description

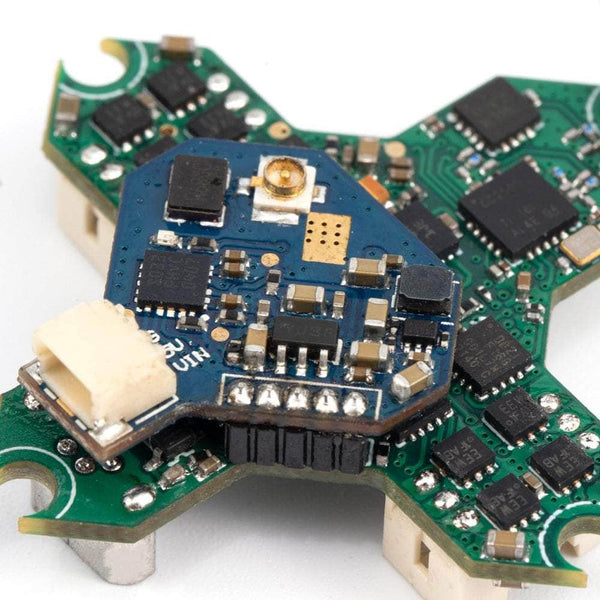

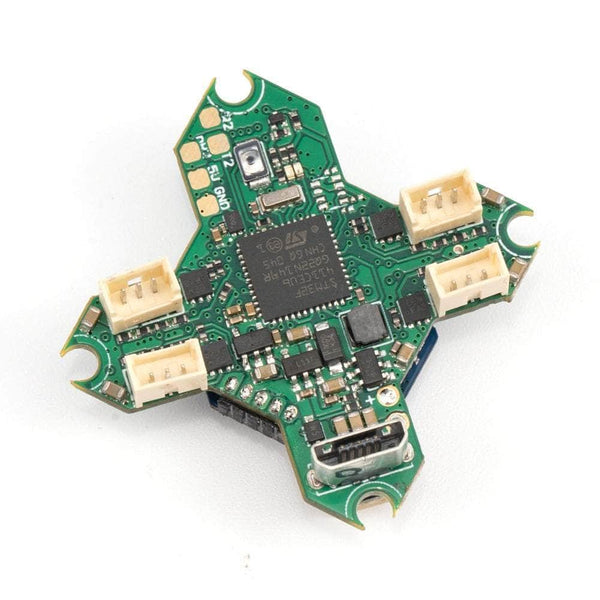

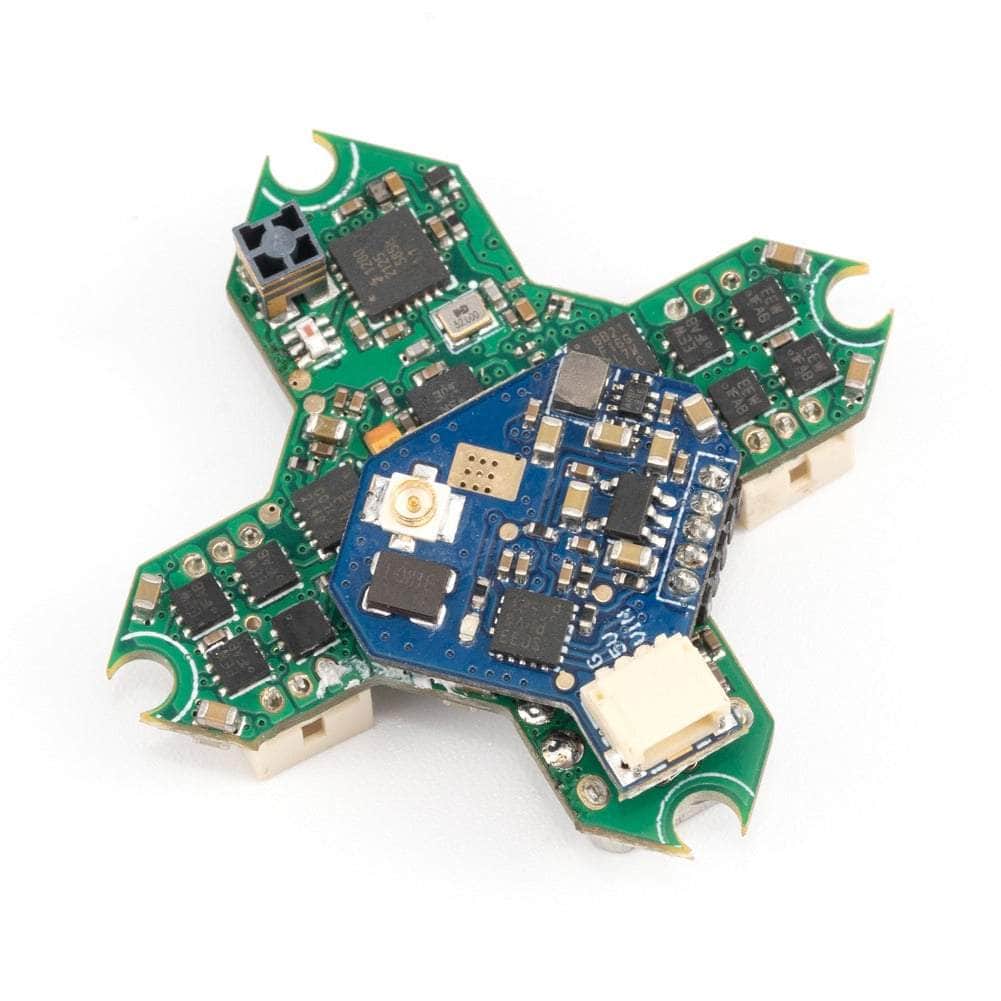

iFlight Blitz F411 1S 5A Toothpick/Whoop Flight Controller w/ 25-50mW VTX & ELRS RX is perfect for all of your lightweight builds. It is a Flight Controller, ESC, Receiver and VTX all in one little board weighing in at 4.8g. Now using ExpressLRS with a built-in ELRS ceramic antenna!
Check out all ourĀ whoop flight controllers, and all ourĀ iFlight Products!
Specifications
- Input Voltage:Ā Ā 1S

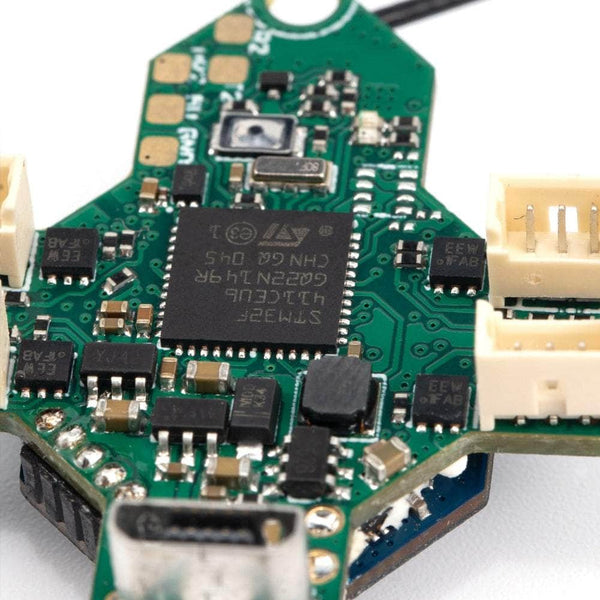

- MCU:Ā STM32F411
- Gyro: BMI270
- Built-in Receiver: SPI ExpressLRS 2.4G
- Receiver antenna:Ā 2.4GHz SMD ceramic antenna
- VTX:Ā PIT/25/50mW
- FC Firmware: IFLIGHT_BLITZ_F411RX
- Current: 5A continuous and peak 6A (3 seconds)
- Signal Support: Dshot,Ā Oneshot,Ā Multishot
-
ESC Firmware:Ā O-H-30 BLS 16.8 (Supports BLHeliSuite)
- Dimensions: 29x29mm, compatible w/ standard whoop framest
- Weight:Ā 4.8g
Includes
- iFlight Blitz F411 1S 5A Whoop Flight Controller w/ 25-50mW VTX & ELRS RXĀ
- 4xĀ M2 Rubber Damper
- 1x Whip antenna
Wiring Diagram
Ā
More Info
- SKU: 19437
- Barcode: 691023522572
