Description

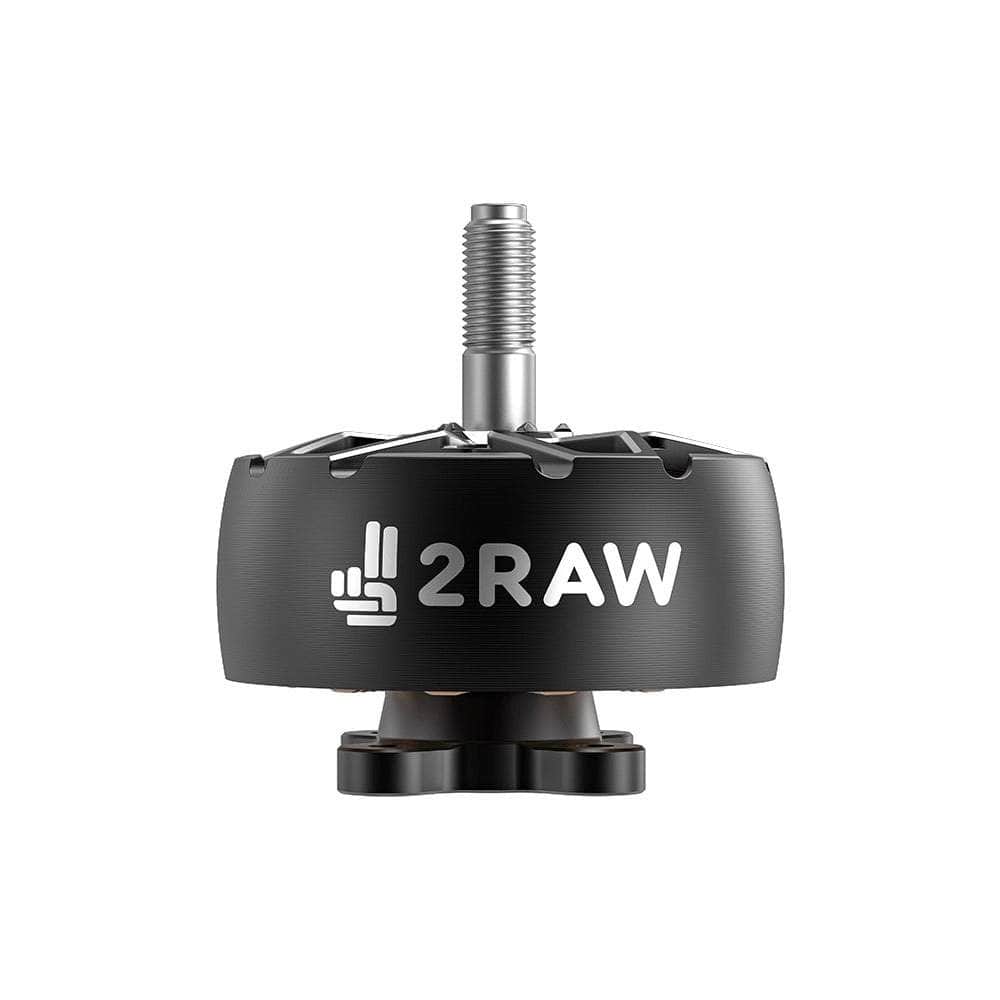

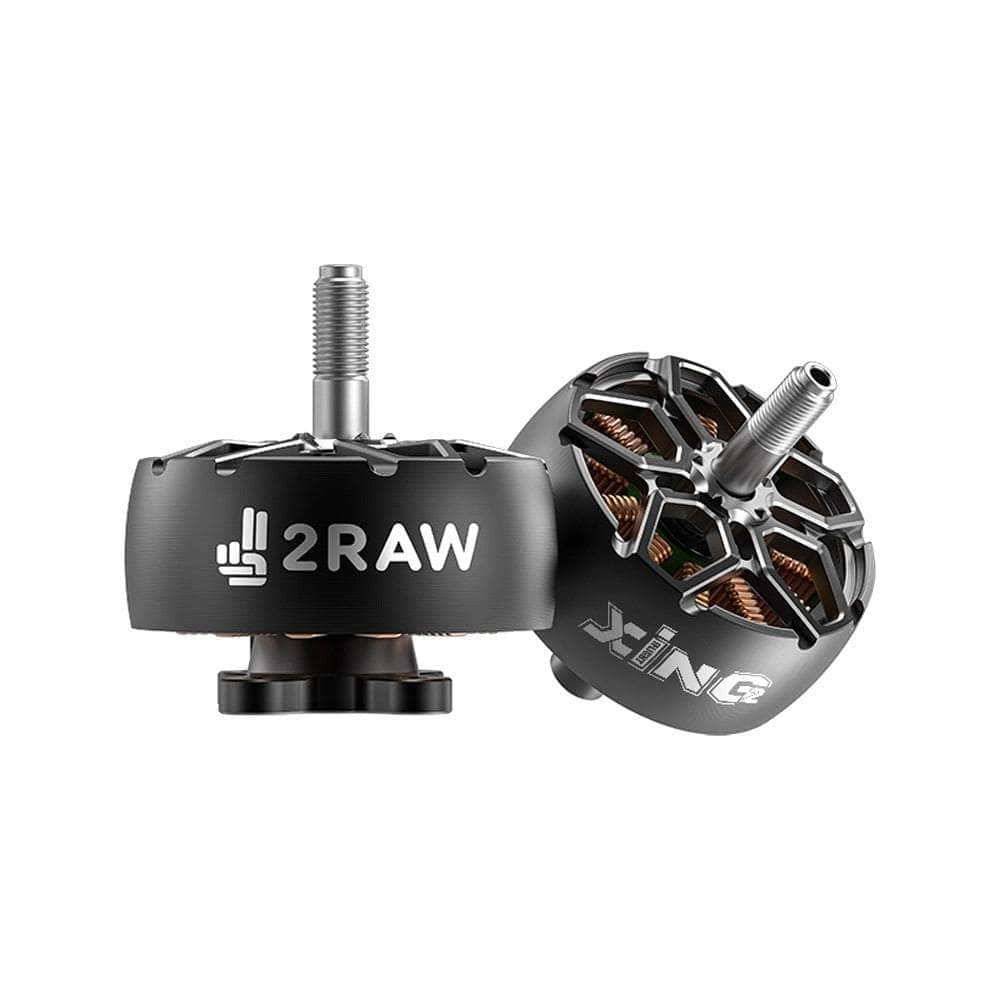

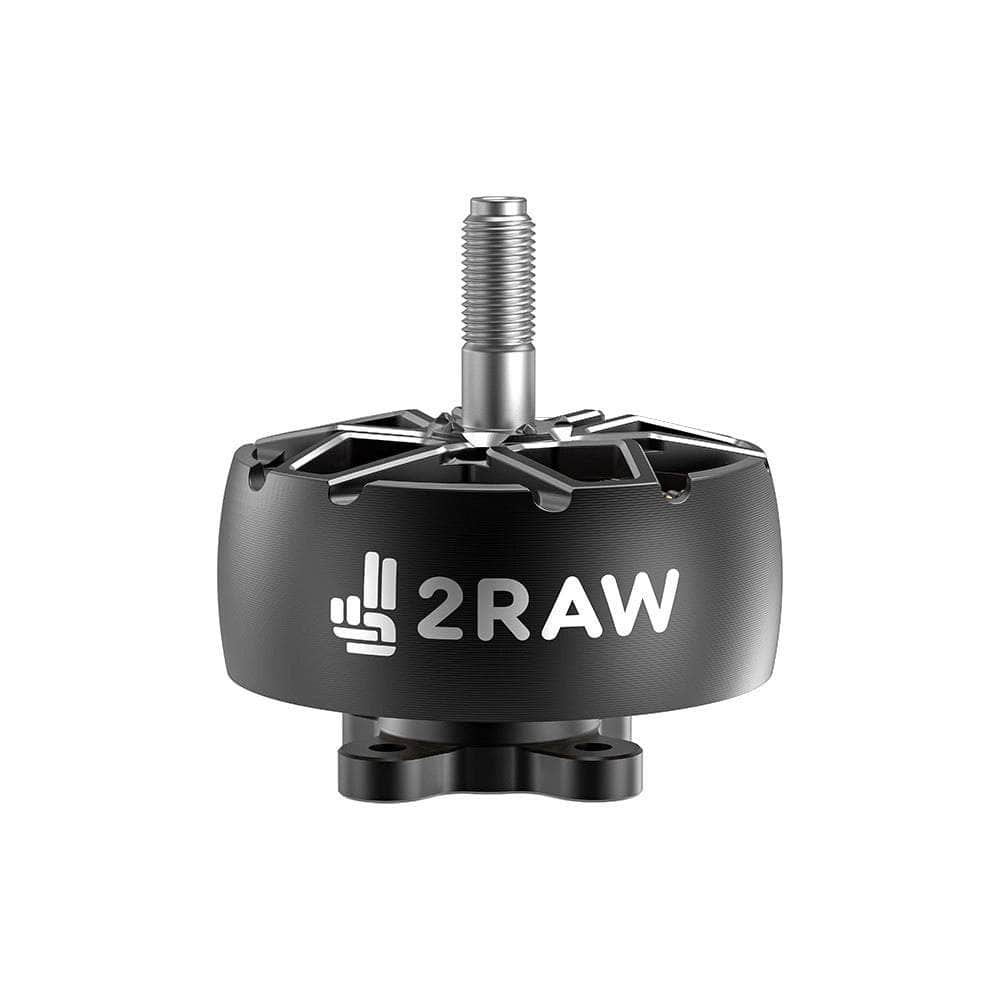

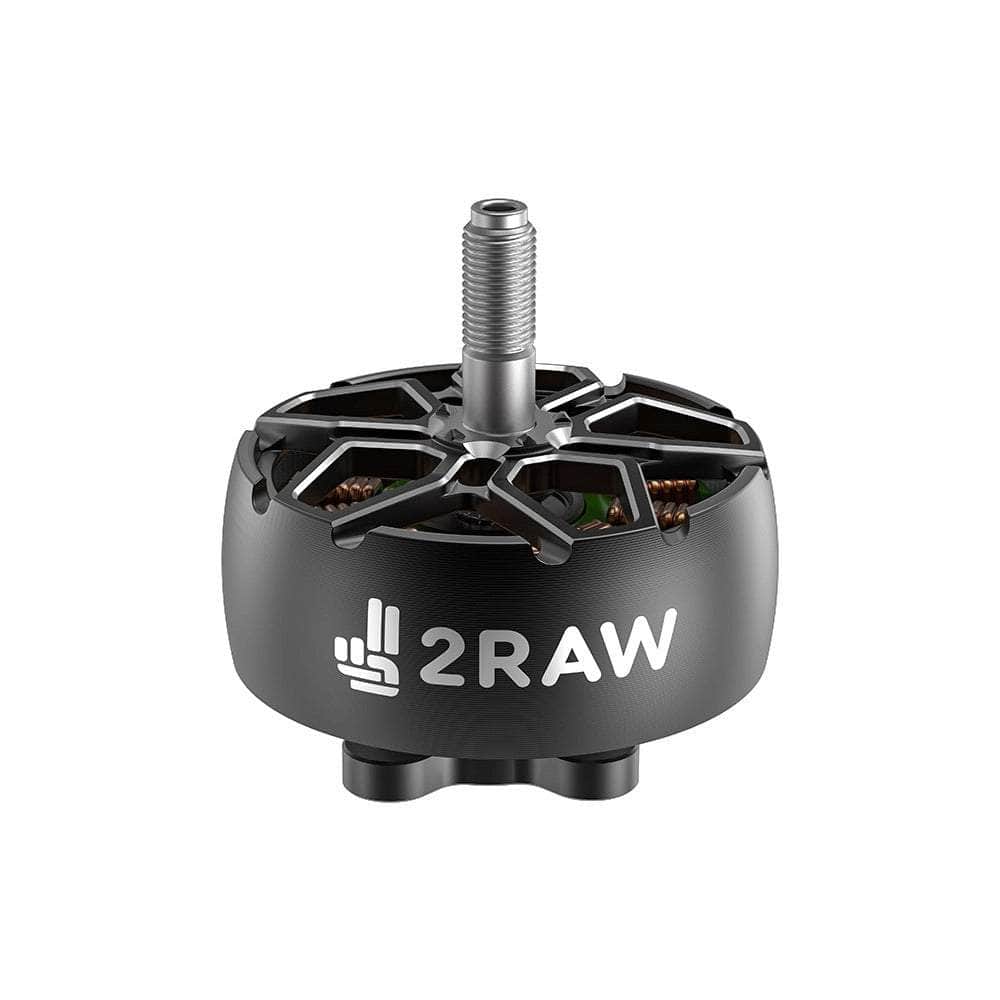

Introducing the iFlight Helion 10 3110 Motor with the advanced XING2 NextGen design. Building on the original XING series, it offers smoother, more powerful performance. With the N52H curved arc magnets, this motor reduces response time for faster throttle translation. Crafted with NSK bearings and a titanium alloy shaft, the Helion 10 is durable and efficient, with minimized air gap and stator lamination for more power and better flight times.

Be sure to browse the rest of our iFlight products and vast motor selection.

Features

• Smooth, Powerful, and Reliable Performance
• Center-Slotted N52H Curved Arc Magnets
• High-Quality Japanese NSK Bearings
• Optimized for Faster PID Translation
• High-Grade Titanium Alloy
• Minimized magnet air gap
• Next-Generation Design
• Internal Damping Ring
• Proven Unibell Design

Specifications

• Bearing Specifications: φ11 × φ5 × 5mm
• Winding: Single-strand copper winding
• Mounting Holes: 19 × 19mm, φ3mm
• Shaft Protruding Length: 15mm
• Lead Length: 260mm / 18AWG
• Dimensions: φ38.72 × 24.6mm
• Interphase Resistance: 78mΩ
• Rotor Specifications: Unibell
• Weight (including wire): 77g
• Max Wattage: 2143.8W
• Magnet: N52H Curved
• Configuration: 12N14P
• Peak Current: 65.54A
• Shaft Diameter: 5mm
• Input Voltage: 33.6V
• Bearing Type: NSK
• KV: 900KV

Includes

• 1x iFlight Helion 10 3110 Motor - 900KV
• 1x Hardware Kit
