Description

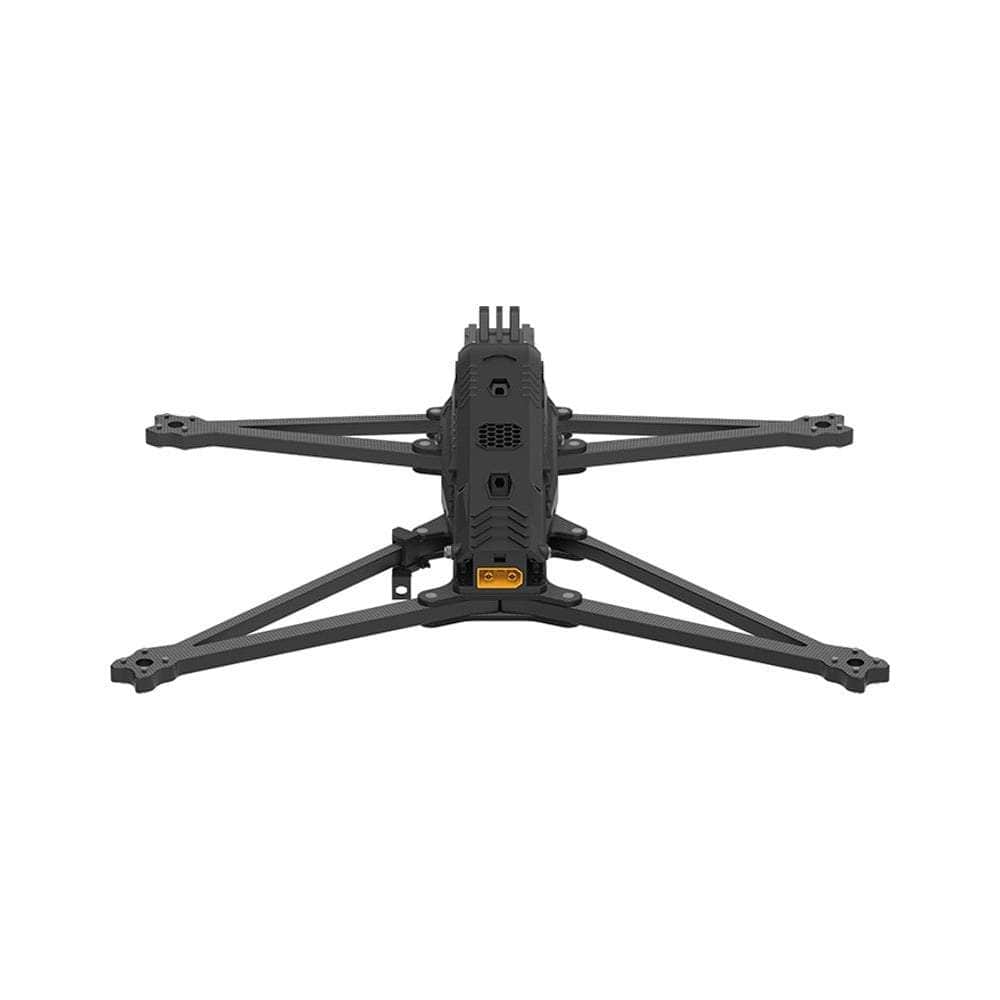

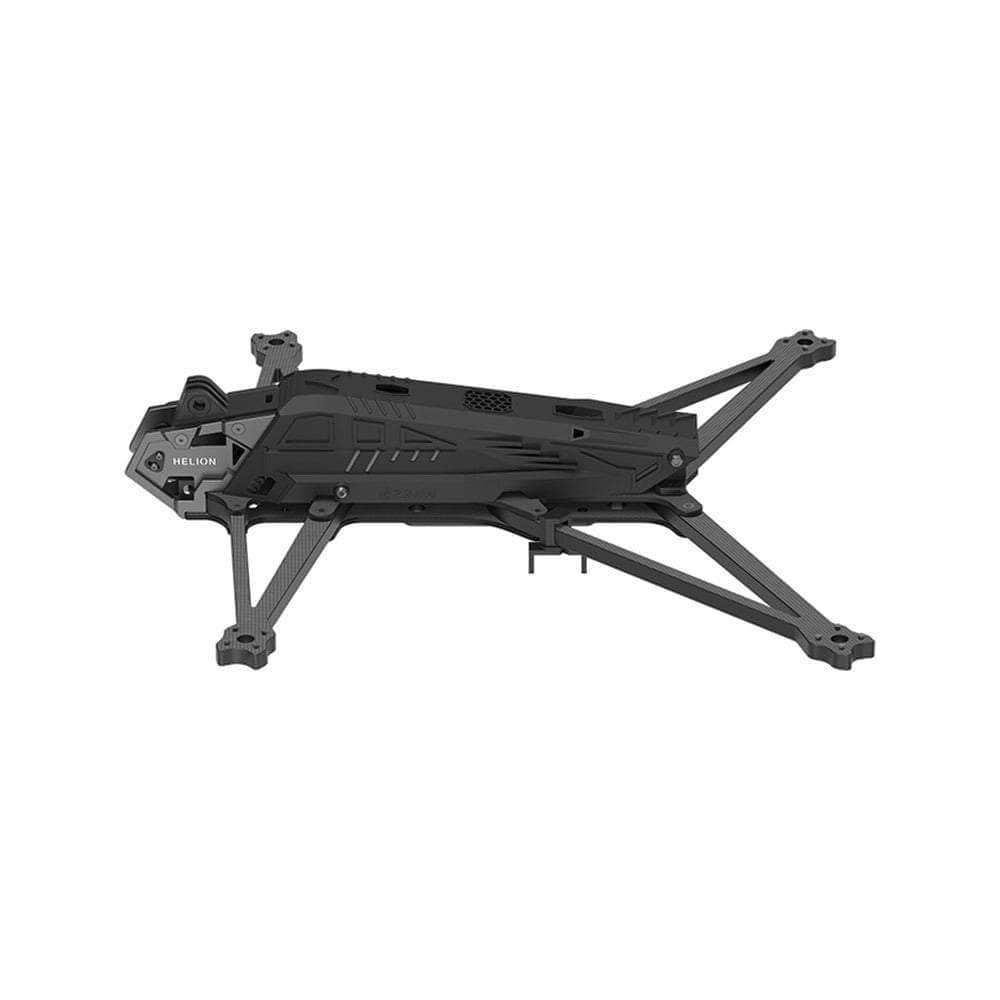

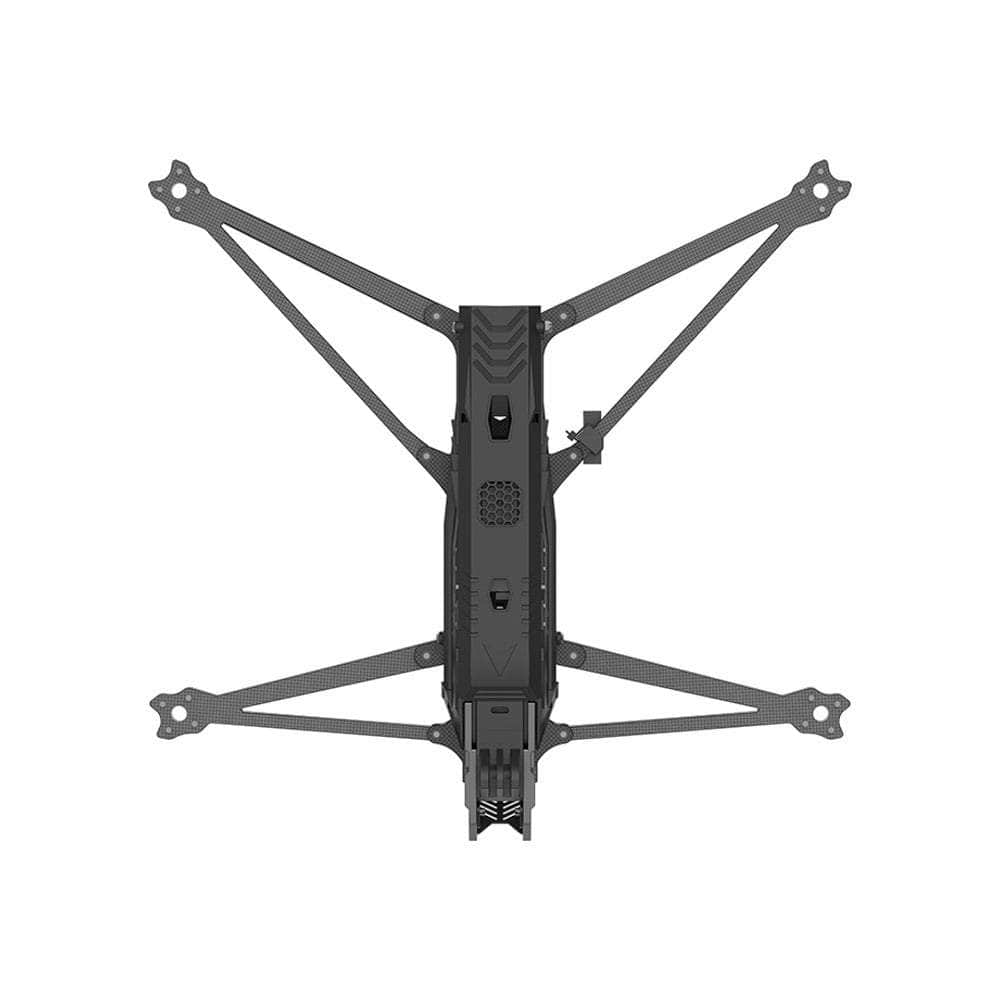

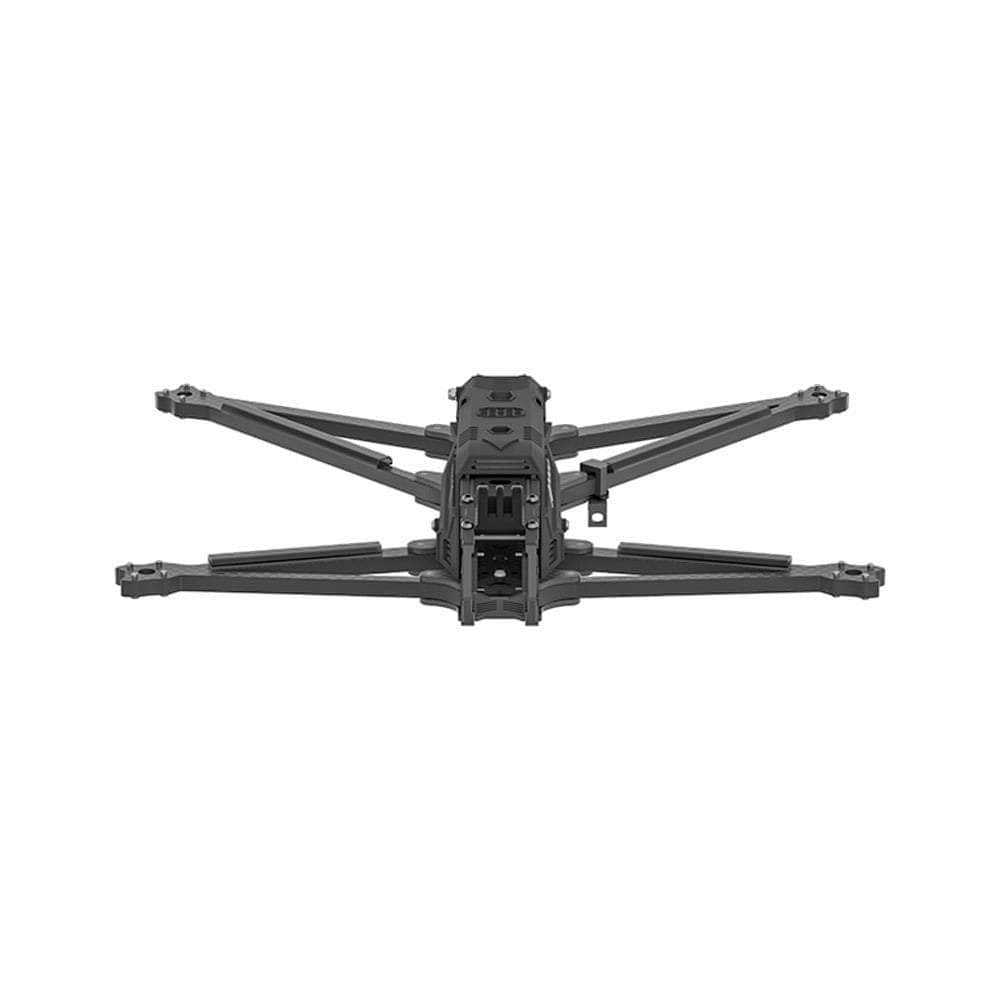

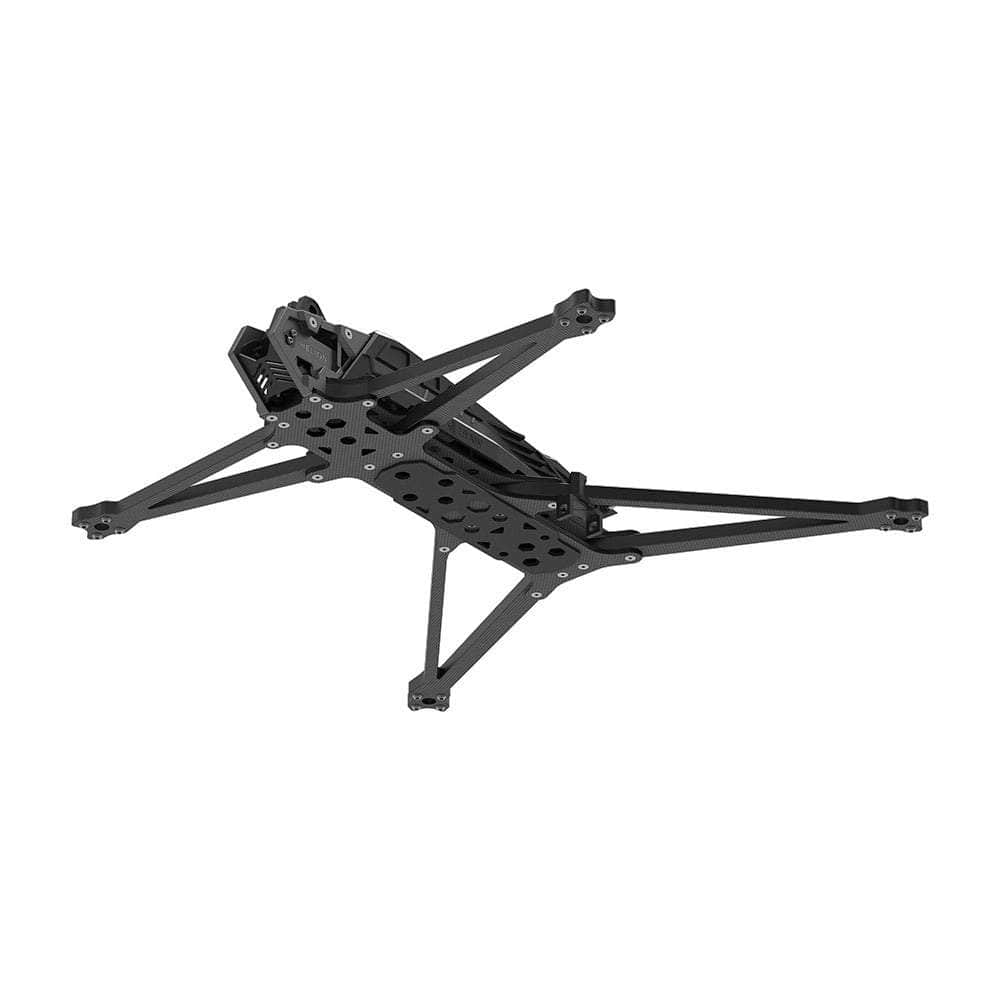

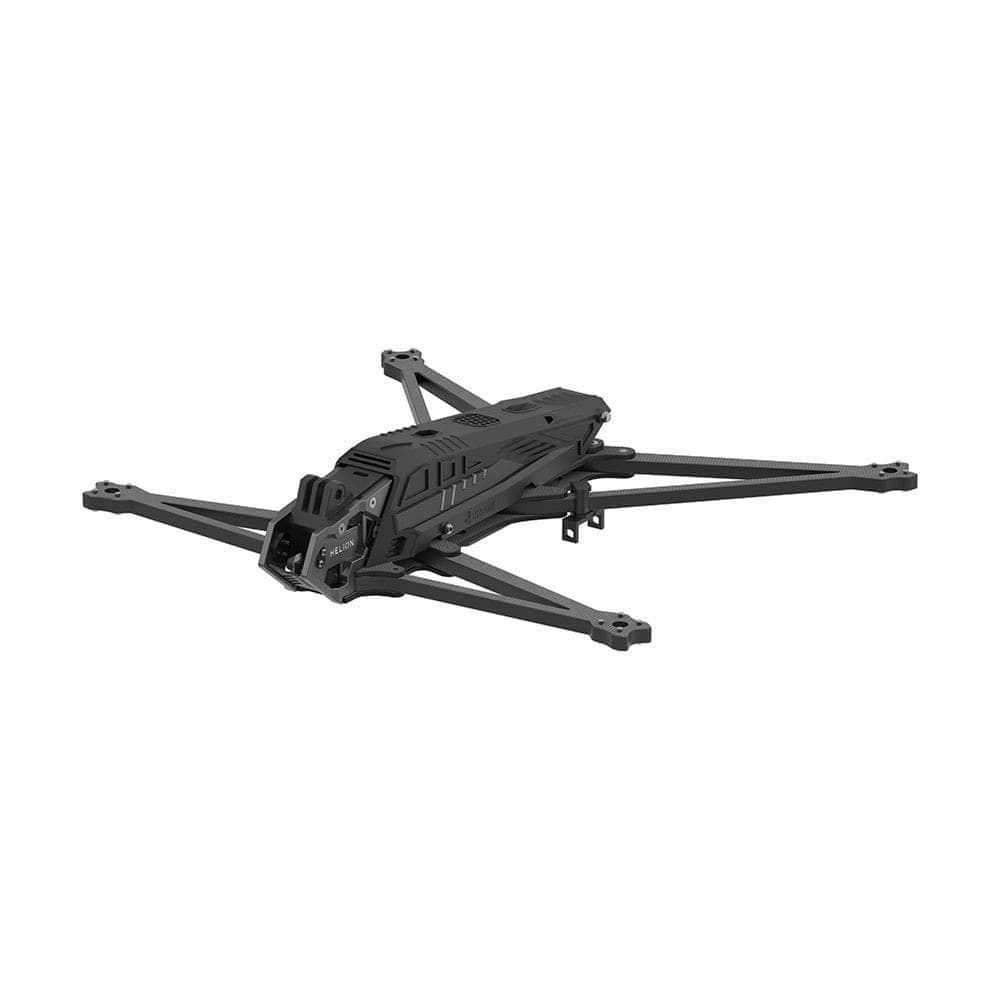

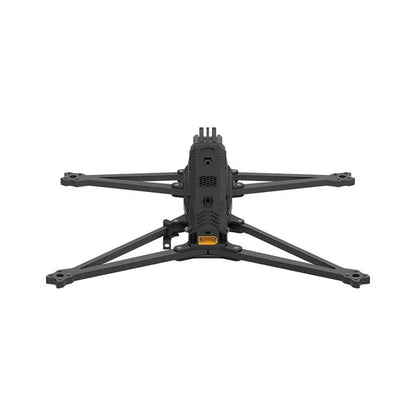

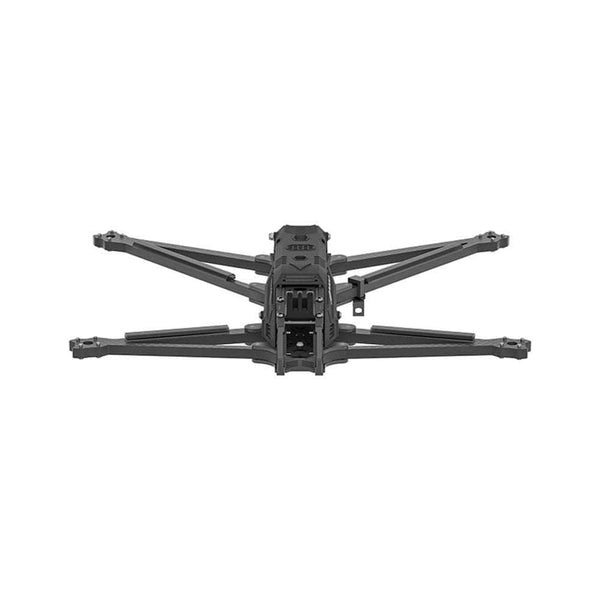

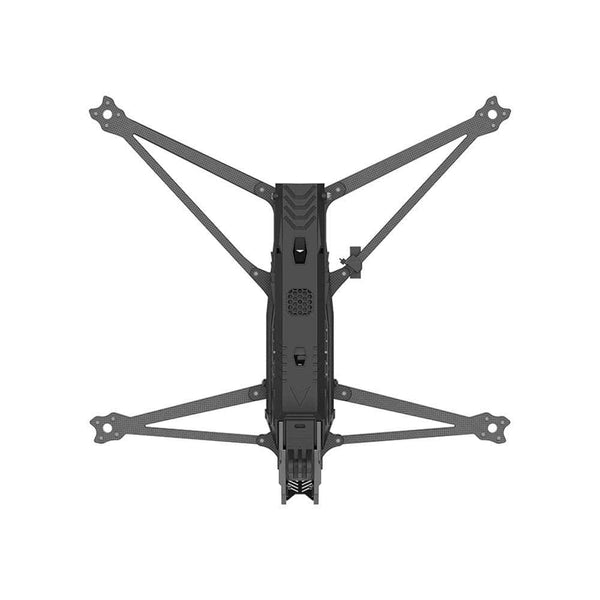

The iFlight Helion 10" Frame Kit is a 10-inch long-range flagship frame by 2RAW and ilfight, Now updated to support the DJI O4 Pro Air Unit and reinforced with v1.1 structural upgrades,built for maximum flight time, stability, and control. Optimized for high-capacity batteries and windy conditions, it features an aerodynamic shell for easy maintenance and drivetrain protection.Ā
Check out our iFlight selection, as well as all our other +6" frames!
Features
- Optimized for endurance flightsĀ
- Ultra long-range performance
- Vibration & torsion reduction
- Stable in windy conditions
- High efficiency & control
- Easy drivetrain access
Specifications
- Flight Stack Mounting: 30.5Ć30.5 / Ī¦3mm
- Frame Dimensions: 324Ć264Ć63mm
- VTX Mounting: 25.5Ć25.5 / Ī¦2mm
- Motor Mounting: 19Ć19 / Ī¦3mm
- Max Flight Stack Height: 21mm
- Bottom Plate Thickness: 4mm
- Upper Plate Thickness: 4mm
- Max VTX Height: 22mm
- Arm Thickness: 8mm
- Wheelbase: 418mm
- Body Height: 63mm
- Geometry: A-Frame
- Weight: 540Ā±20g
Includes
- 1x iFlight Helion 10" Frame Kit
More Info
- SKU: 23217
- Barcode: 723326374418
