Description

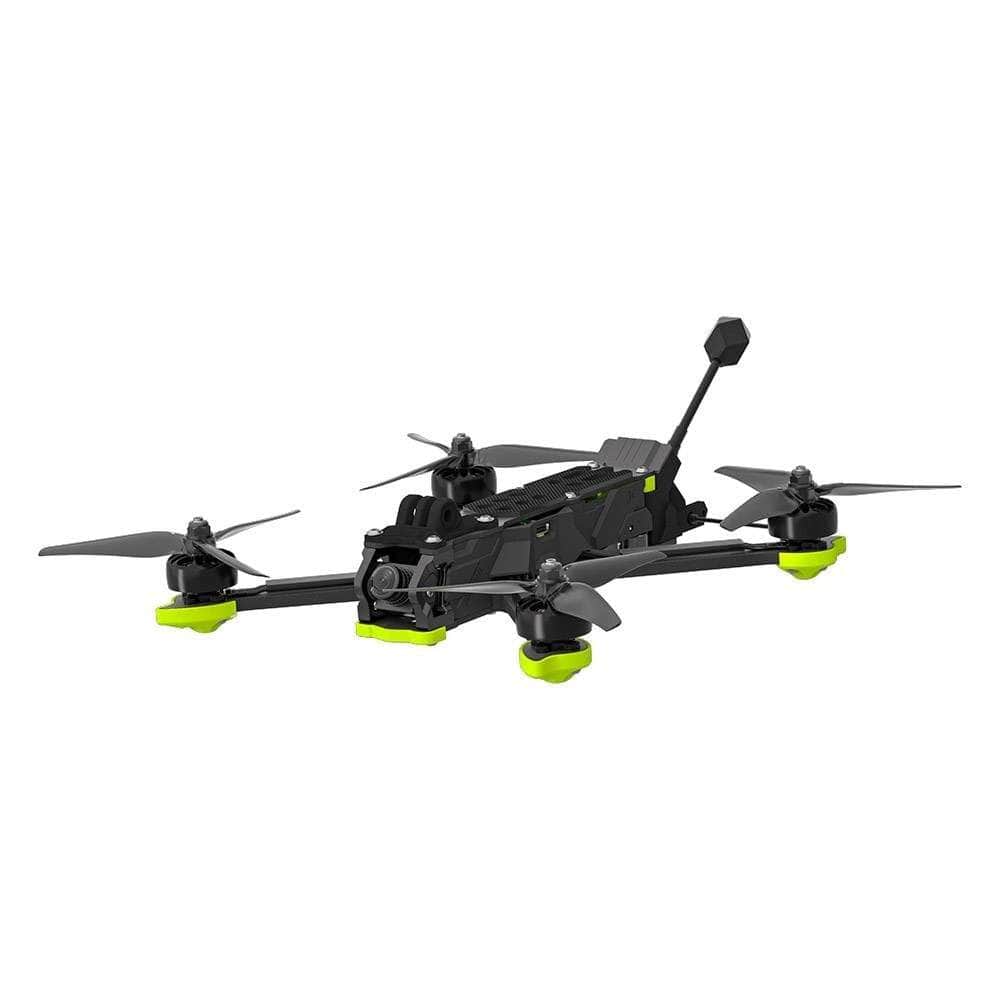

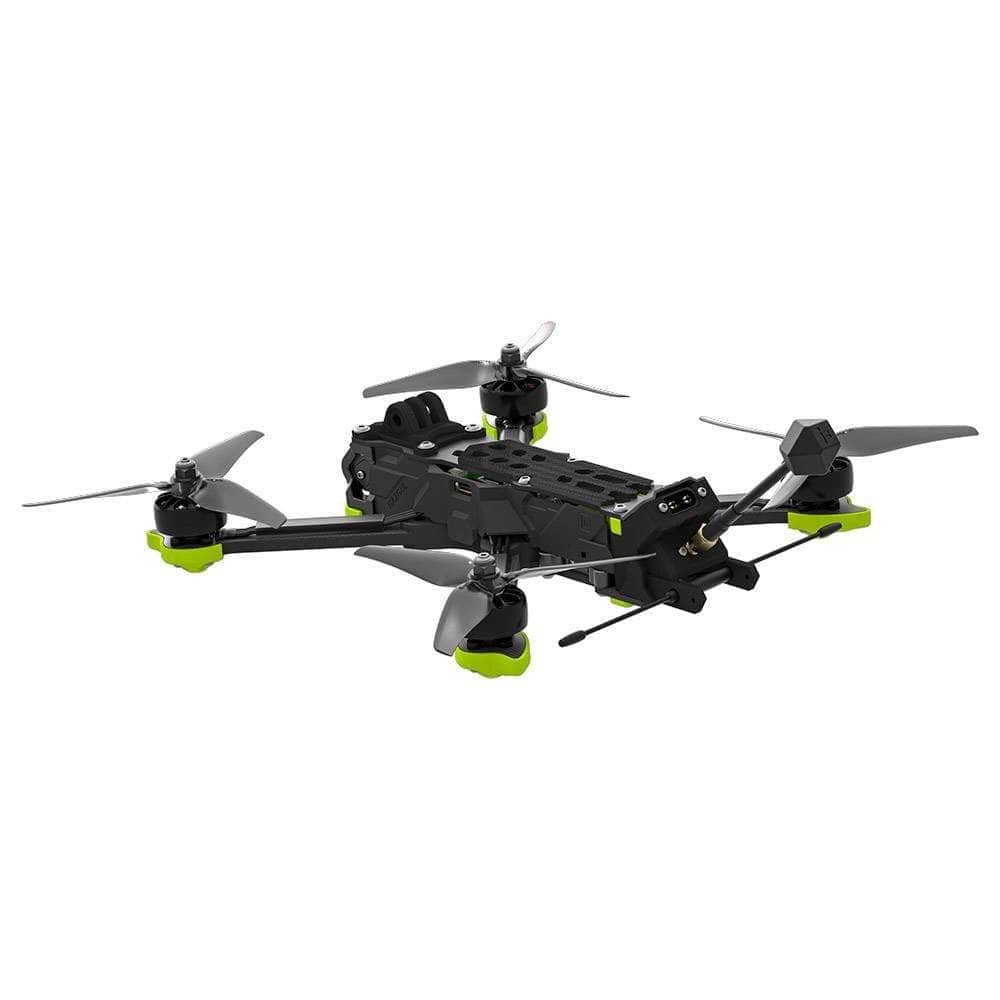

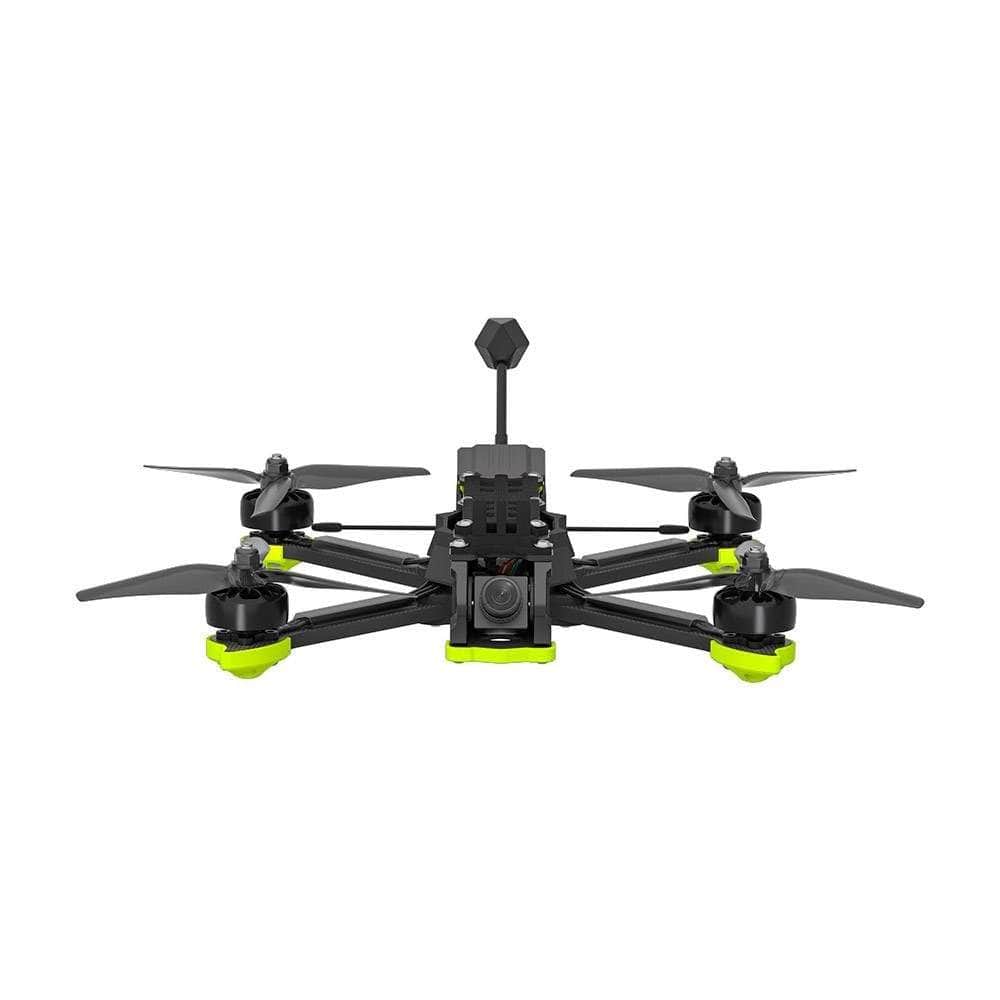

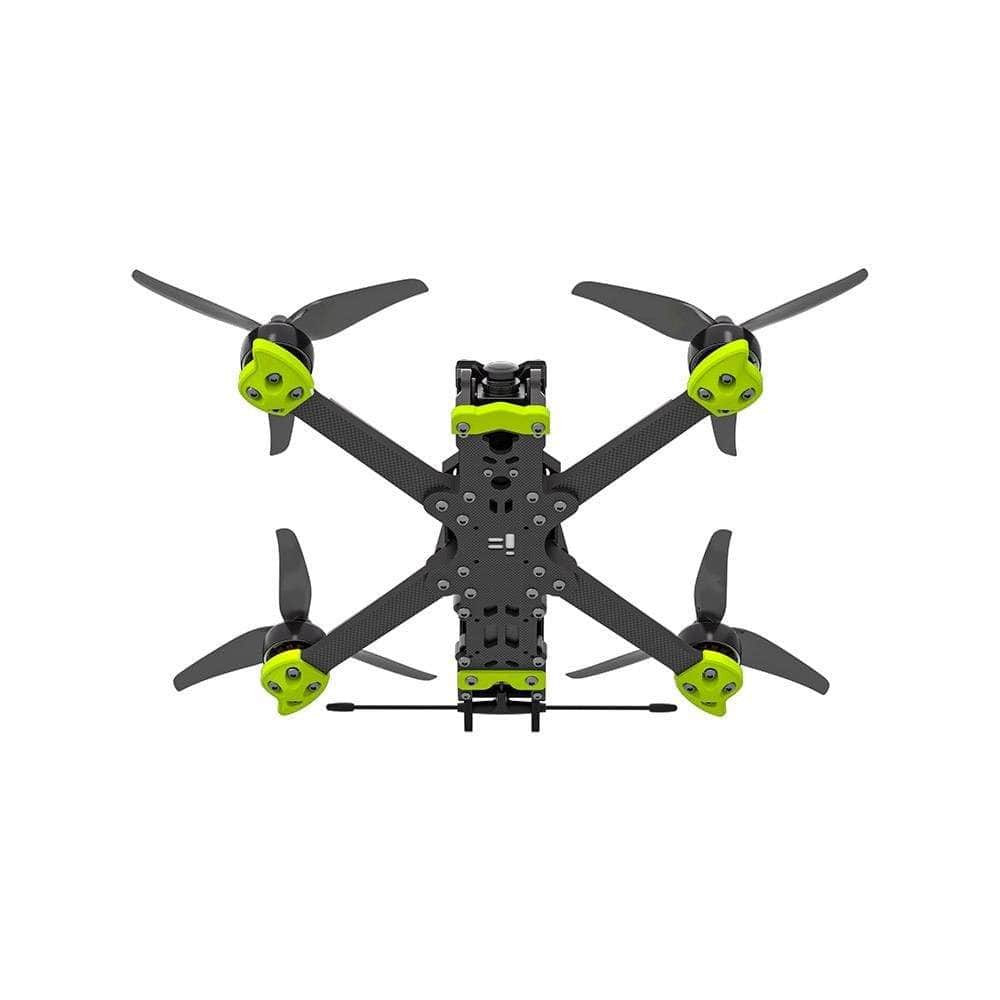

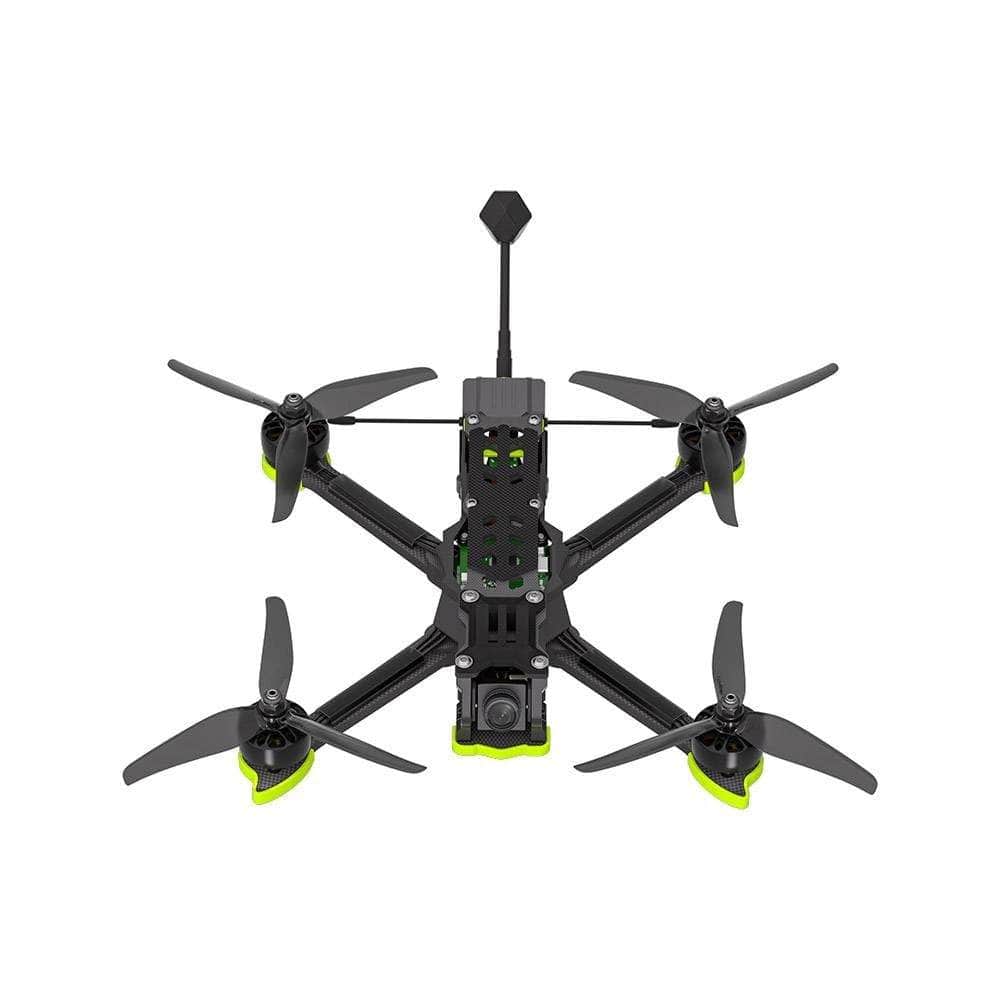

The Nazgul XL5 ECO — the next 5-inch freestyle drone from iFlight. Equipped with an ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 2-6S 55A ESC, the Nazgul XL5 ECO delivers unmatched performance and reliability at a great value.  With the included GoPro mount -- capture your epic freestyle flights. Get ready to fly with the Nazgul XL5 ECO!

Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!

Changelog:

June 28, 2024: Battery Plug updated to fixed form. The drone upgraded to V1.1.

Sept. 10, 2024: Product upgrade: the side panels will be installed by default.

Features

• Enhance User Experience
• Streamline Maintenance
• DIY Customized Space
• Lightweight & Durable
• Anti-Spark Filter

Specifications

• Operating Conditions: Temperature: -10° to 40° C (14° to 104° F)
• Dimensions: Length × Width × Height: 173 × 173 × 34 ± 2 mm
• Electronic Speed Controller (ESC): BLITZ E55S 4-IN-1 ESC
• Output Power: PIT/25mW/400mW/800mW/1600mW
• Video Transmission: BLITZ 1.6W VTX
• Motors: XING-E Pro 2207 1800KV
• Flight Controller: BLITZ ATF435
• Frame: Wheelbase: 245mm
• Input Voltage: 7-34V (2-8S)
• Diagonal Distance: 245mm
• Antenna: Single Antenna
• Propellers: Nazgul F5
• Geometry: True-X
• Performance:

  • Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
  • Max Speed: 190 km/h (Manual Mode)
  • Max Wind Resistance: Level 7
  • Max Takeoff Altitude: 3200m
• Transmission Frequency: 40CH (A-B-E-F-R)

  • Mounting Holes: 30.5 × 30.5mm / Φ3mm
  • Weight: 18.9g (Antenna not included)
  • Dimensions: 38.5 × 38.5mm
  • Antenna Interface: MMCX
• Weight:

  • With Battery (6S 1400mAh): Approx. 652g
  • Without Battery: 427g
• Current Consumption:

  • 1600mW: ≤ 250mA
  • 25.2V:PIT: ≤ 20mA
  • 400mW: ≤ 130mA
  • 800mW: ≤ 150mA
  • 25mW: ≤ 65mA

Includes

• 1x iFlight Nazgul XL5 ECO V1.1 5" Drone Analog - 6S
• 2x Battery Pads
• 4x Propellers
• 2x Antennas
